Cable: ABC cable 4x25-4x120mm2
Material: Hot dip galvanized steel, rubber, Anti UV plastic
Application
The clamps are designed to suspend LV-ABC lines with insulated neutral messengers. The neutral messenger is fixed by an adjustable grip device. The clamps can fixed to a pole by a pig tail hook or bracket.
A movable link allows longitudinal and transversal movement of the clamp body.
Standard clamp version PS1500 is supplied without pre-installed bracket.

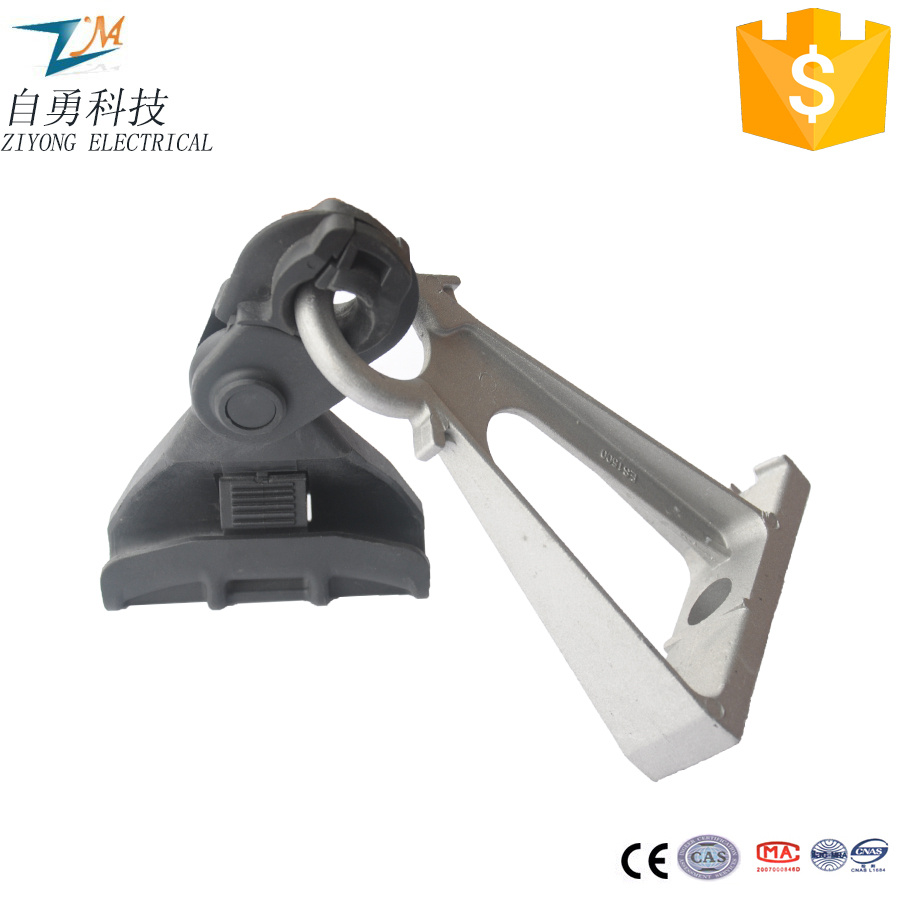

The clamps are also available with pre-installed bracket (version ES1500 + PS1500). The upper bulge of the bracket prevents the clamp from turning over the bracket. Drawing

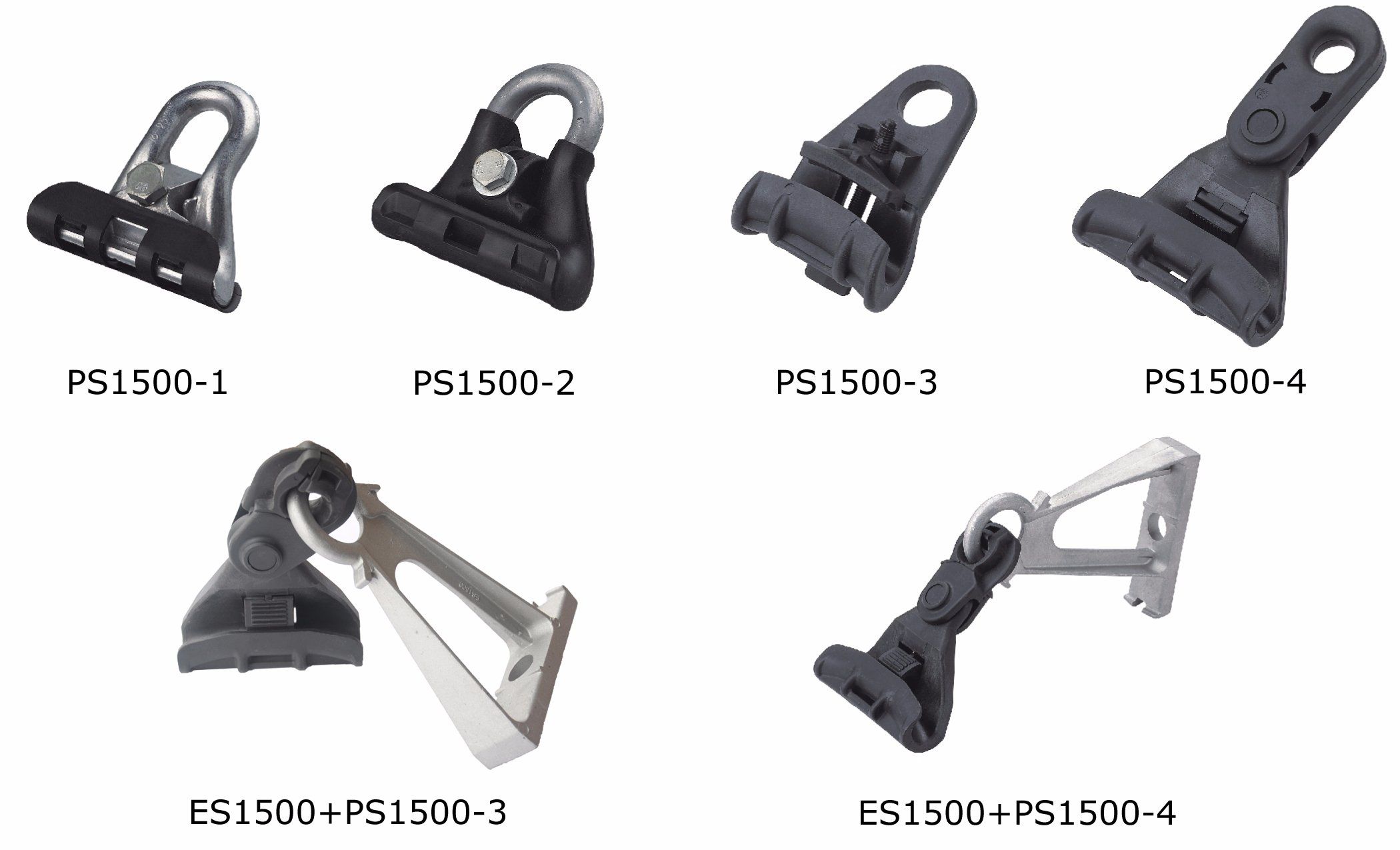

Basic Data| Catalog | Conductor Size, mm2 |
| Clamp without movable link |
| PS1500-1 | 16-95 |
| PS1500-2 | 16-95 |
| Clamp with movable link |
| PS1500-3 | 16-95 |
| PS1500-4 | 16-95 |
| Clamp with pre-installed bracket |
| ES1500+PS1500-3 | 16-95 |
| ES1500+PS1500-4 | 16-95 |
Features• Tool free installation
• No lose parts
• Clamp and link made of polymer gives an additional insulation between the cable and the pole.
• Exceeds requirements according to EN 50483-3 and NFC 33 040
• Clamp and movable link made of weather and UV-light resistant glass fiber reinforced polymer
• The bracket can be fixed to the pole by 1 M16 bolt or 2 stainless steel straps of 20 x 0.7 mm
• Bracket made of corrosion resistant aluminium alloy
• Maximum line deviation angles of 30°towards the pole and up to 50° pulling away form the poleServiceChoose our products! You'll get1) Good quality guarantee (2 years)2) Factory direct prices3) On time delivery4) Free sample5) Professional technology support Strict quality controls have been taken to ensure that you'll get reliable products. a. Material checks before production. b. Random inspection during production. c. Inspection before the shipment. Our products fully comply with well recognized standards such as IEC, BS, ANSI.
