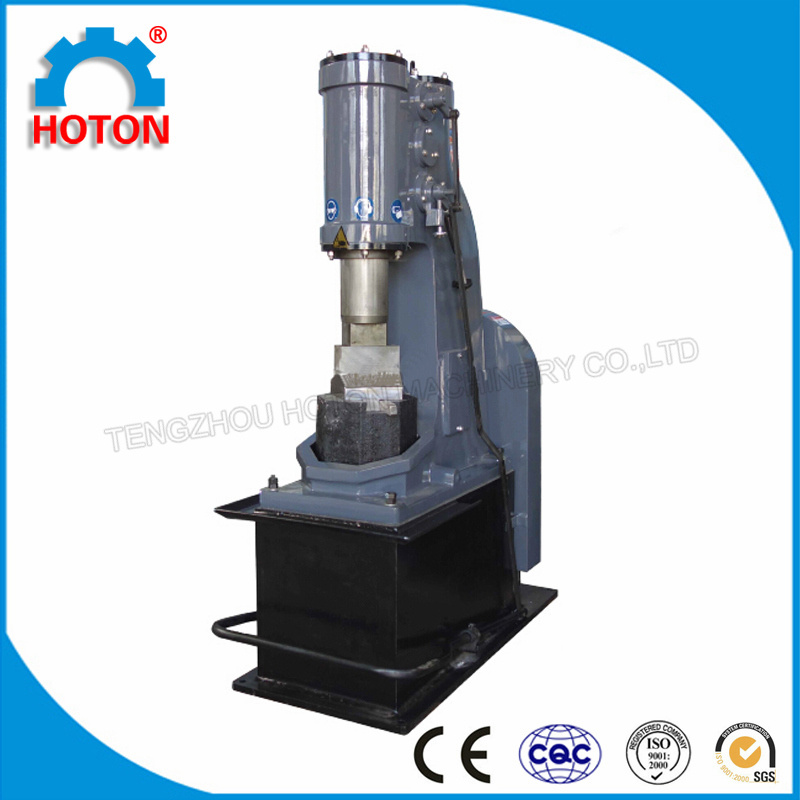

CE Approved Air Forging Hammer with Base Plate (C41-16)

CE Approved Air Forging Hammer with Base Plate (C41-16)
Price: US $ 1000-2000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal


AIR HAMMER PRODUCT FEATURES:

The air hammer is easy operation ,flexible movement and convenient to transit ,
installation ,maintenance ,the type is widely used for various of free forging works ,
such as drawing out ,upsetting ,punching ,chiseling .forging welding ,bending and twisting .
It is also used for open die forging in bolster dies.
it is suitable for free forging works of all kinds of different shape parts ,
especially suitable for village township enterprise and self-employed forge small agriculture tools .
For example sickle ,horseshoes ,Spike ,hoe etc .
At the same time ,the industrial enterprise use the air hammer to forge the steel ball ,
scaffold and many other factories and mines ,construction supplies .
In addition the series air  hammer is very commonly professional blacksmith's iron tools
that can install all kinds of mould to forge a variety iron flowers ,birds and other beautiful decoration.
SPECIFICATIONS
SPECIFICATIONUNITC41-16KG
SINGLE WITH BASE PLATE
Weight of falling partsKg16
Max. hit energyKJ0.18
Height of working areamm180
Hit numbermin-1258
Dimension of top and bottom die surface (L*W)mm70×40
Max. square steel can be forgedmm20×20
Max. round steel can be forged (Diameter)mmΦ22
Rate PowerKWSingle 1.5/220
Three phase 1.5/380
Speeds of motorr.p.m1440
Weight of base platekg40
Total weightkg290
Overall dimensions(L*W*H)mm800×420×1170

Contact Us:

Andy Wang

TENGZHOU HOTON MACHINERY CO.,LTD
Tel:0086 632 5633796
MP:0086 13506328892
www.hotonmachinery.com

Company Profile:

    Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.
   The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.
   Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers.

Quality first,Constantly perfecting skills.
Prod Model: C41-16 C41-20 C41-25
Max.hit Energy: 0.18kj
Hit Number: 258
Speed: 1440rpm
Weight: 290kgs
Power: 1.5kw
Processing Object: Metal
Molding Style: Forging
Surface Treatment: Forging
Company Profile

Tengzhou Hoton Machinery Co., Ltd was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46, 000 square meter, general assets 30, 000, 000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines, Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories. Some products have national patent. It has fourteen series, over eighty models by itself. It has the ability of making 100, 000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co., Ltd. is willing to make common progress and developments with all the customers.

Quality first; Constantly perfecting skills.
