Ca2060h-C6e, C2060f4, C2050f3, C2042f2 Agricultural Roller Chain for Citrus Harvesting Machine
| Price: |
Negotiable/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Meter |
| Pay Type: |
T/T |
Agricultural Roller Chain and Conveyor Chain, with alloy steel according to your requirement
1, Chain types: Roller Chain, conveyor chain, transmission chain, motorcycle roller chain, silent chains, oil pump chains, weld steel drag chains, plastic chains etc;
2, Main materials: It is 40Mn. 40Cr, 45Mn alloy steel, SUS304, and POM Plastic for plates, 10#, 20#, 20CrMnMo, 30CrMnTi for pins and rollers;
3, Heat treatment: Carburizing, Austemper Stressing, nitro-caburizing harden etc;
4, Surface: Shot peening, black, blue or original;
5, Package way: Plastic bag+ carton box+ plywood case
For example, our agricultural roller chains are often fabricated as below:

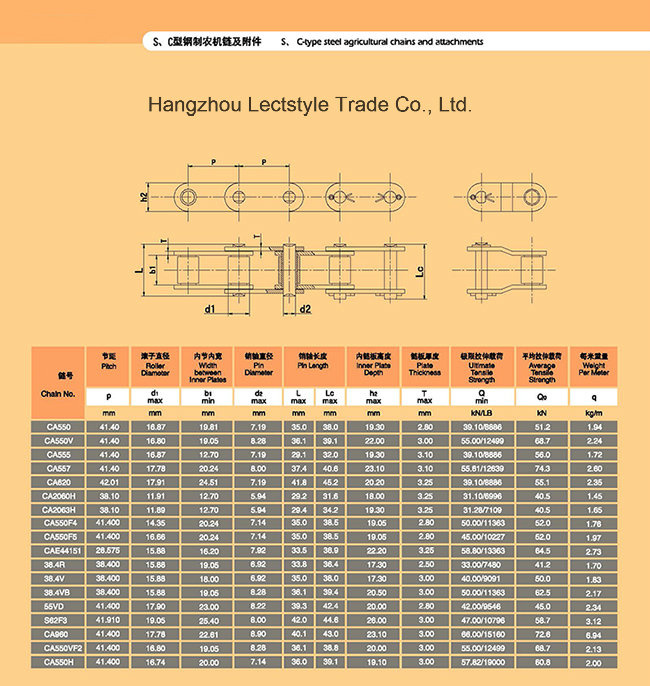

CA550, CA557, CA620, 38.4V, 38.4VB, CA550H, S32, S42, S45, S55, S62, S77, S88, S38, S55H, 55V etc.| S type steel agricultural chains |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Depth of chain plates | Pin diameter | Pin length | Plate thickness | Ultimate tensile strength | Weight per meter |
| p | d1(Max) | b1(min) | h2(Max) | d2(Max) | b4(Max) | T(Max) | Qo(min) | Q |
| mm | mm | mm | mm | mm | mm | mm | Kn | Kg/m |
| CA550 | 41.4 | 16.87 | 19.81 | 19.05 | 7.19 | 38.2 | 2.7 | 39.8 | 1.94 |
| CA550V | 41.4 | 16.87 | 19.05 | 13.5 | 8.28 | 39.1 | 3 | 68.7 | 2.24 |
| C550-H | 41.4 | 16.87 | 19.81 | 19.05 | 7.19 | 39 | 3 | 39.8 | 2.24 |
| CA550VF2 | 41.4 | 16.87 | 19.05 | | 8.28 | 38.8 | 3 | 68.7 | 2.13 |
| CA550VF1 | 41.4 | 16.87 | 19.05 | 19.8 | 8.28 | 36.7 | 3 | 44 | 2.5 |
| CA550F10 | 41.4 | 16.87 | 19.81 | 19.05 | 7.14 | 36.2 | 3 | 53 | 2.38 |
| CA550F4 | 41.4 | 14.35 | 20.24 | 17.3 | 7.14 | 38.5 | 2.8 | 52 | 1.78 |
| CA550F5 | 41.4 | 16.66 | 20.24 | 17.3 | 7.14 | 38.5 | 3.25 | 52 | 1.97 |
| CA555 | 41.4 | 16.87 | 12.7 | 19.8 | 7.19 | 32 | 3.1 | 56 | 1.72 |
| CA555F1 | 41.4 | 17.85 | 23 | 20 | 8.2 | 42.4 | 3 | 39.1 | 2.99 |
| CA555F2 | 41.4 | 17.85 | 23 | 20 | 8.2 | 42.4 | 3 | 39.1 | 2.82 |
| CA557 | 41.4 | 17.78 | 20.24 | 19.8 | 8 | 40.8 | 3.1 | 74.3 | 2.6 |
| CA620 | 42.01 | 17.91 | 24.51 | 19.05 | 7.19 | 42.2 | 3.15 | 39.1 | 2.35 |
| CA650 | 50.8 | 25 | 18.9 | 25 | 9.53 | 44.7 | 4 | 90 | 3.49 |
| C2040F1(C415HF1) | 12.7 | 7.95 | 4.88 | 12 | 3.96 | 16.3 | 1.5 | 13.8 | 0.54 |
| C2040F2(208AF2) | 12.7 | 7.95 | 4.88 | 12 | 3.96 | 14.5 | 1.5 | 13.8 | |
| 208AF3 | 12.7 | 7.95 | 4.88 | 12 | 3.96 | 14.5 | 1.5 | 13.8 | |
| 208AF3A | 12.7 | 7.95 | 7.85 | 12 | 3.96 | 17.8 | 1.5 | 13.8 | |
| C210AF1 | 31.75 | 10.16 | 9.4 | 15 | 5.08 | 13.2 | 2.03 | 21.8 | |
| C212AF1 | 38.1 | 11.91 | 12.57 | 18 | 5.94 | 28.3 | 2.03 | 31.1 | |
| 216BF1 | 50.8 | 15.88 | 17.02 | 22 | 8.28 | 35.8 | 3 | 60 | |
| C2042F2(208AL F2) | 12.7 | 7.95 | 4.88 | 12 | 3.96 | 14.8 | 1.5 | 13.8 | 0.62 |
| C2050F3(C2010A F3) | 31.75 | 10.16 | 9.4 | 15 | 5.08 | 23.2 | 2.03 | 21.8 | 0.95 |
| C2060F4(C212A F4) | 38.1 | 11.91 | 12.57 | 18.08 | 5.94 | 28.5 | 2.42 | 31.1 | 1.69 |
| CA2060H(C212AH) | 38.1 | 11.91 | 12.57 | 17.3 | 5.94 | 31.6 | 3.25 | 40.5 | 1.45 |
| CA2060-C6E | 38.1 | 11.91 | 12.57 | 18 | 5.94 | 28.5 | 2.42 | 31.1 | 1.4 |
| CA2060H-C6E | 38.1 | 11.91 | 12.57 | 18 | 5.94 | 31.6 | 3.25 | 31.1 | 1.78 |
| CA2063H | 38.1 | 11.89 | 12.7 | 17.3 | 5.94 | 34.2 | 2.8 | 40.5 | 1.65 |
| CAE44151 | 28.575 | 15.88 | 16.2 | 17.3 | 7.92 | 38.9 | 2.5 | 64.5 | 2.73 |
| CA960 | 41.4 | 17.78 | 22.61 | | 8.9 | 43 | 3 | 72.6 | 6.94 |
| CA650F1 | 50.8 | 25 | 19 | 25 | 11.28 | 53.7 | 3.5 | 138 | 4.36 |
| CA650F3 | 50.8 | 19.05 | 19.05 | 25 | 9.53 | 37.8 | 3.5 | 90 | |
| CA650F2 | 50.8 | 20 | 18.9 | 25 | 9.53 | 44.7 | 4 | 95 | 2.98 |
| A550 | 41.4 | 16.87 | 20.22 | 19.05 | 7.14 | 37.35 | 2.67 | 50 | 1.6 |
| A555 | 41.4 | 16.66 | 12.7 | 19.05 | 7.14 | 31.8 | 3.18 | 50 | 1.5 |
| A557 | 41.4 | 17.78 | 20.14 | 19.05 | 7.94 | 40 | 3.18 | 60 | 2.35 |
| A620 | 42.01 | 17.68 | 24.99 | 19.05 | 7.14 | 44.1 | 3.18 | 23 | 2.1 |
We are a leading manufacturer of mechanical transmission spare parts, as well as several years one of reliable and trustworthy vendors for European, America, Iran market etc. Our main items are roller chains, conveyor chains, transmission chain, pulleys, V-belts, sprockets, spur gears, bevel gear, gear shafts, roller bearings, rollers, conveyor belts etc.
Our product catalog:

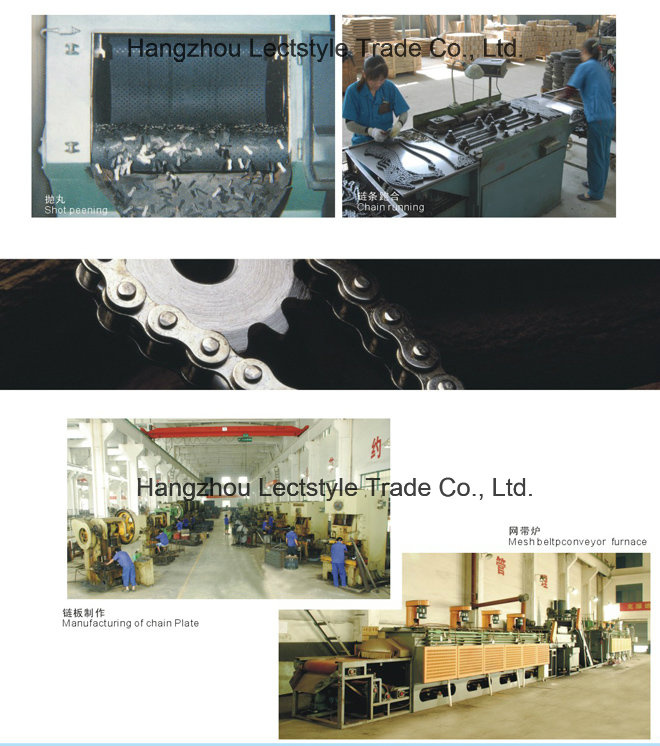

Our production workshop:

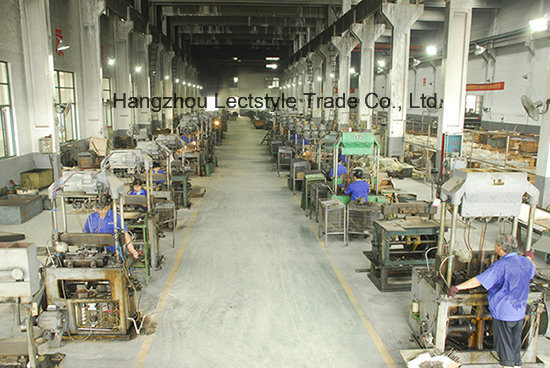

Our assembled workshop:
At present, For South American, European, and Asian market, our superior products are fabricated according to your requirement and our quality meets ISO, ASME, DIN standard.
I hope we can do business together, and look forward to hearing from you soon

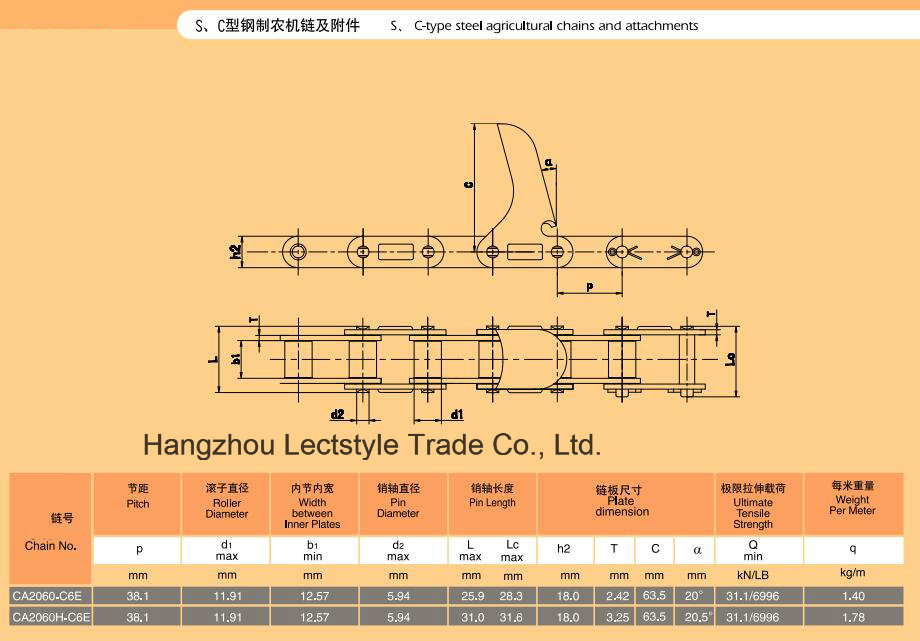

| Prod Model: |
CA2060H-C6E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Model: |
Ca2060h-C6e |
| Pitch: |
38.10mm |
| Pin Diameter: |
5.94mm |
| Width Between Inner Plates: |
12.570mm |
| Roller Diameter: |
11.91mm |
| Pin Length: |
31.6mm |
| Plate Thickness: |
3.25mm |
| Inner Plate Height: |
18mm |
| C: |
63.50mm |
| X: |
20.5 Degree |
| Surface Treatment: |
Carburizing and Quenching |
| Chain Size: |
38.10mm |
