Home Toolbuy Products C1-130 High Precision Power Press Punch Machine

C1-130 High Precision Power Press Punch Machine

C1-130 High Precision Power Press Punch Machine
Price: US $ 24000/Set
Min Order: 1/Set
Pay Type: T/T

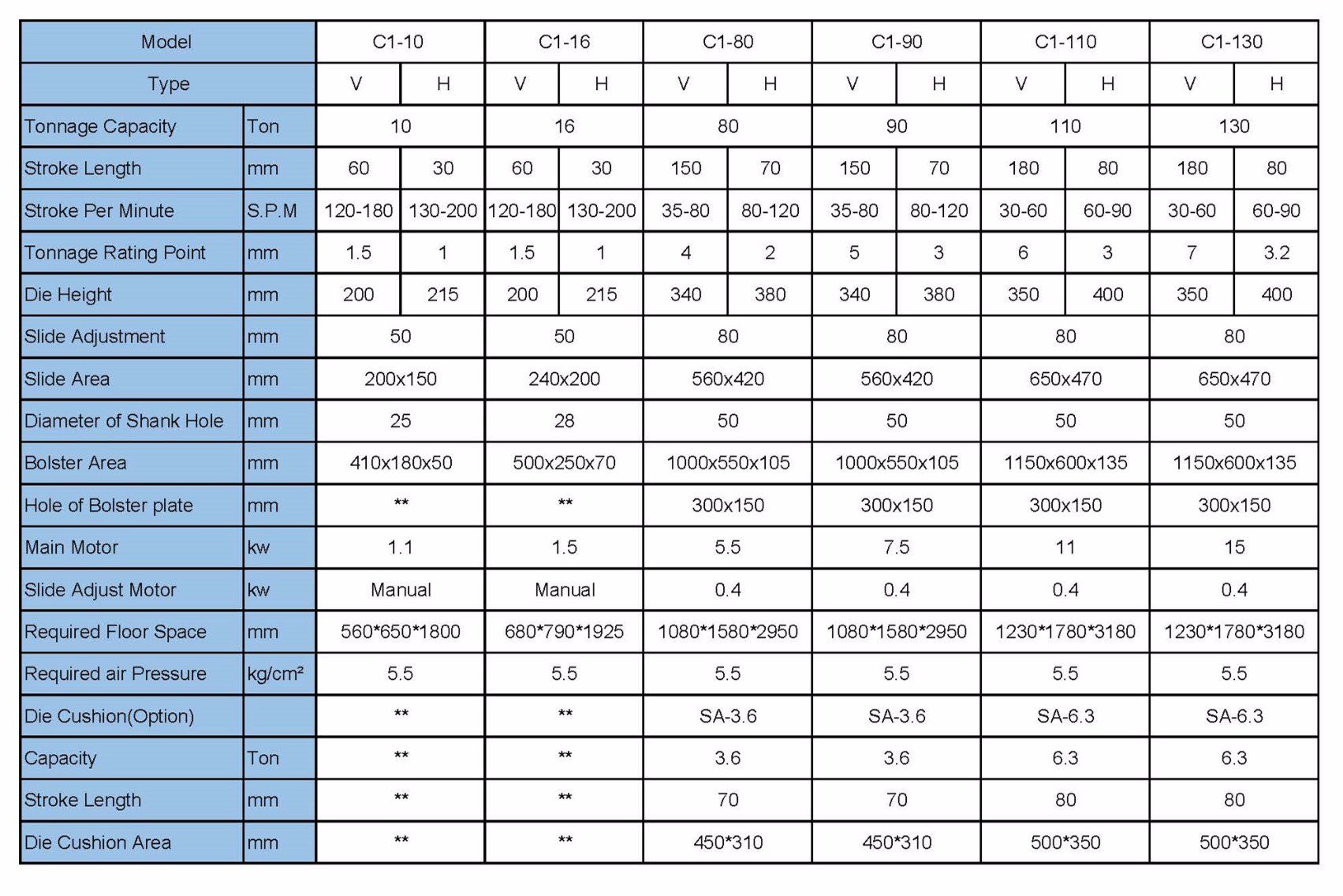

C Frame Crank Press(C1 Series 10 ton to 130 ton )
This is generally applicable for blanking, punching, bending and forming process on small single work of thin steel plate and progressive die parts, which can connect with single press, progressive die, mechanical arm or added with transfer system.

The American technical guided design C1 serial is an update machine model based on domestic normal power press. It has competitive advantage of higher energy, stronger rigidity and more stable accuracy. It's the best solution for high strength stamping, deep drawing and strict accuracy demanding products.

  • High torque, low noise clutch and brake.Rigid frame with less deflection.
  • High accuracy transmission gears and high rigidity crank ensure press long life and accuracy.
  • Forced Lubrication system with default monitor ensures the operation reliability.
  • User-friendly design and all-function electric control system provide high automation compatibility.

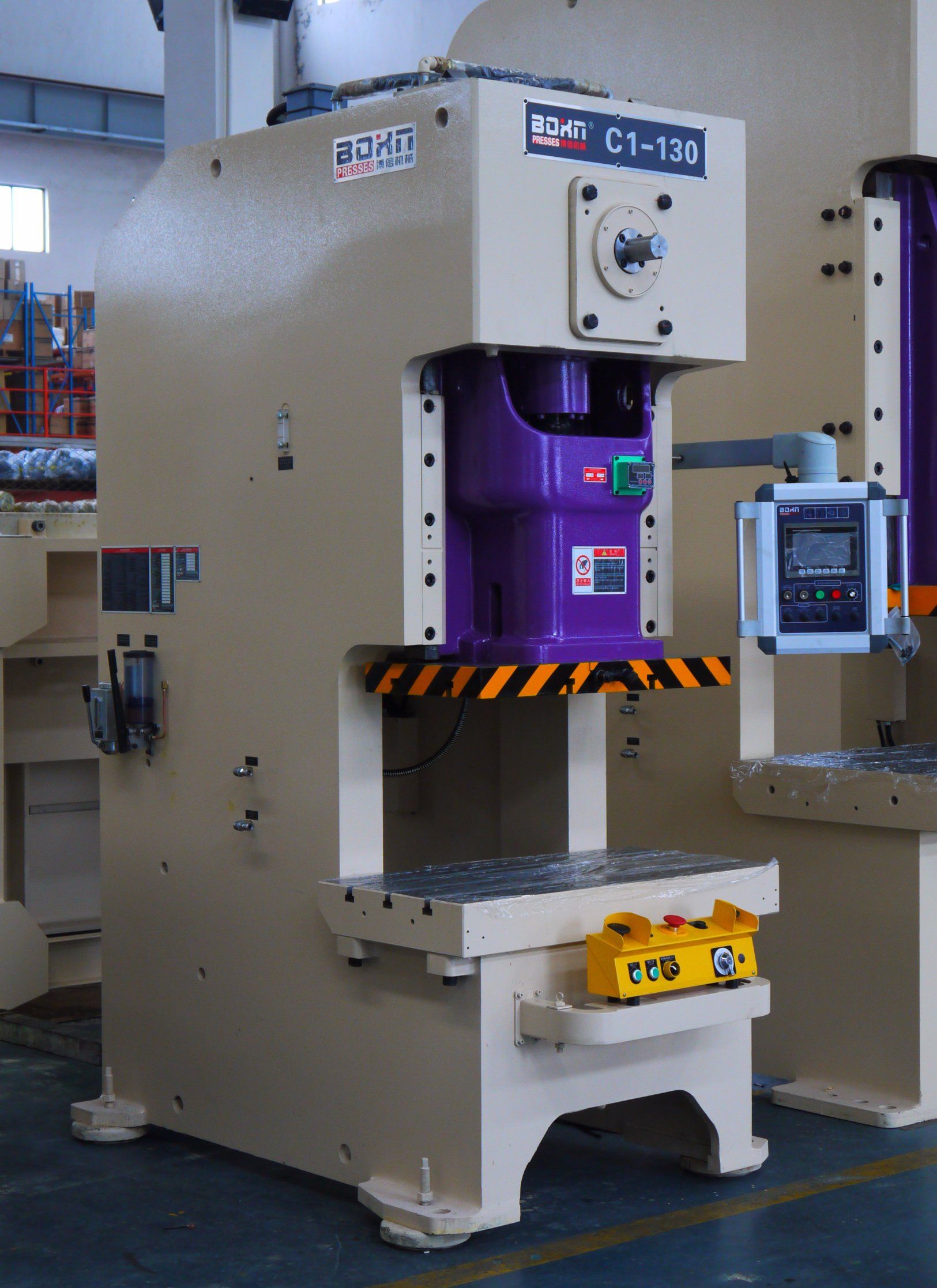

Prod Model: C1-130
Certificate: TUV and Ce
Exporting Country: The Only Presses Brand Keeps Exporting to America
Zhejiang Made: The First Factory to Get This Honor
Type: General Punching Machine
Automatic Grade: Automatic
Power Source: Electric
Precision: High Precision
Controlling Mode: PLC
Ningbo BOXIN Machinery Co., Ltd. Was found in 2003, is one of the leading press manufacturer in Ningbo, China. With the CE and TUV certification, we are the only China press manufacturer who keeps exporting our machines to American and Mexico market in the past several years. We are developing other countries markets and looking for professional wholesales all over the world.

Some of our major customers are CHNT, MAZDA, AUX, GEELY, BYD, MIDEA Who are satisfied with BOXIN machine's quality. As our machines are accuracy and durability.

In order to meet the requirement of it's customers in building high quality products, our company use all high precision, high performance machine tools from Japan. BOXIN products range from 16 ton open back C-frame press up to 2000 ton eccentric gear driven link motion car body panel stamping machines. Other than stamping press, it also manufactures cold and hot (warm) forging press machine for both home appliance and automotive industries.

Implementation standard: JIS 1 class standard

The machine is widely used for pressing and forming in the fields of electronic, household electric appliance, furniture, communication tools and vehicles (automobile, motorcycles, bike) and hardware etc.

Applicable processes: Stamping, forming, pressing, cut, blanking, deep drawing, punch, bend, molding, stretching and rolling.
