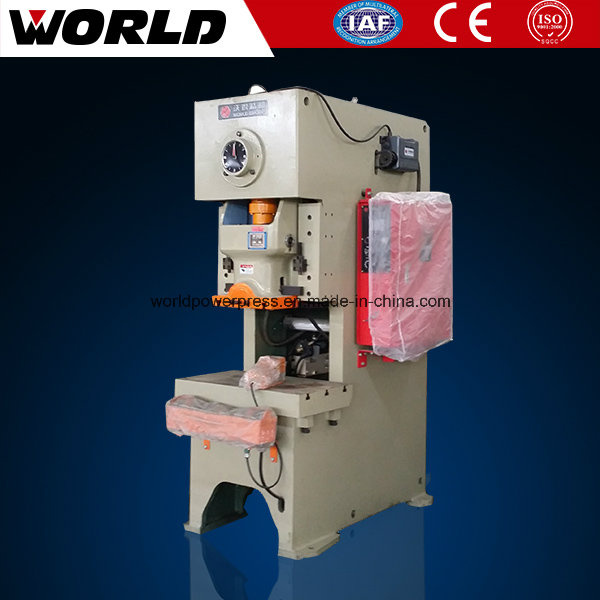

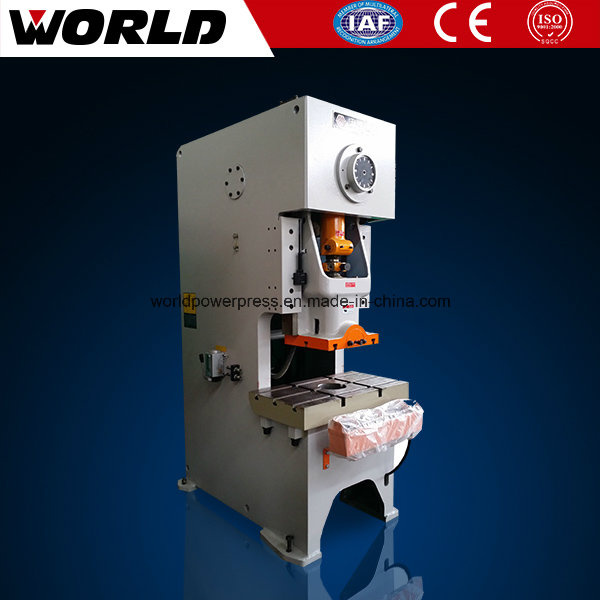

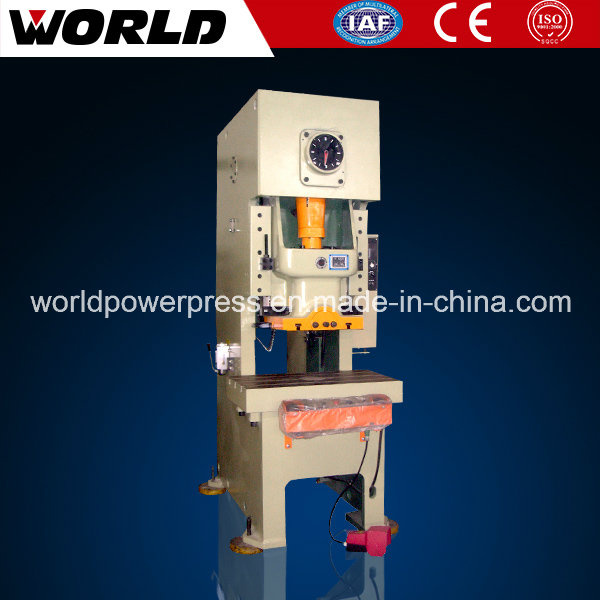

C Type Single Crank Power Press 60ton with Pneumatic Clutch

C Type Single Crank Power Press 60ton with Pneumatic Clutch
Price: US $ 10000-20000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
press 60ton

Features:

1. Steel welded body, tempering treatment, high rigidity, accuracy and stability;
2. Vertical located crankshaft, compact structure;
3. The crankshaft undergoes grinding treatment after high frequency quenching;
4. Lengthened rectangular guideway with a surface of bronze plate;
5. Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;
6. PLC control and imported safety dual valve;
7. Wet clutch and hydraulic overload protector.
8. CE certificate

Details:

1. Steel plate welded c frame body, heat treatment, produced by cnc boring and milling center, high rigidity and precission
2. Wet type pneumatic clutch with safety solenoid valve, lower noise and longer service life.
3. Best quality gears, bushes, cylinders, link rods and ball screw ensure the high performance, high reliability and longer service life.
4. Hydraulic overload protected system is standard equipped. The press will stop with oil pressure release if overload to protect the press and the die. It is easy to reset to normal status.



5. PLC control, Omron or Panasonic brand, high quality with global warranty.
6. Double hands control buttons, touch screen control panel, cam controller with encoder.
7. Slide adjust motor is equipped on the back of the slide. This position is better to protect the motor and the press is more compact in this way. The slide is motorized adjusted with digital displayer.
8. Center auto grease lubrication system is standard equipped and the lubrication frequency can be setted with the touchscreen. In the meanwhile, manual thin oil lubrication system is equipped too.



Options:                                                                                                Quality certificate:

- light curtain for safety                                                                       - ISO 9001
- inverter for adjustable stroke speed                                             - CE
- variable speed motor for adjustable stroke speed                    - SGS inspection if needed
- cushion
- hydraulic die quick change device

Warranty and service:

- one year warranty for whole press.
- all spare parts are available as we produce most of the parts in our factory.
- it is easy to get the electric parts as all are international famous brands.
- we can provide technical support via email, phone or video.
- we can send out engineers for service, installation or training with reasonable additional cost.
- English operation and maintenance manual is provided with the press.
- All safety warning tags and control panels are in English.

Our products range:

- J23 and JH23 inclinable eccentric press, capacity from 6.3ton to 125ton.
- JH21 c frame single crank press, capacity from 25ton to 400ton.
- JH31 semi-straight side single crank press, capacity from 110ton to 400ton.
- JW31 H frame single crank press, capacity from 110ton to 400ton.
- JH25 c frame double crank press, capacity from 110ton to 315ton.
- JW36 H frame double crank press, capacity from 110ton to 500ton.
- JX36 close type big table press with double crank, capacity from 400ton to 1000ton.
- JS36 close type gear press, capacity from 300ton to 1250ton.
- JS31 close type gear press, capacity from 160ton to 1000ton.
-  hydraulic shearing machine
-  hydraulic press brake and cnc press brake

Specifications of JH21 power press:

ITEM
UNITJH21-25JH21-45JH21-60JH21-80JH21-125JH21-160JH21-200JH21-250JH21-315JH21-400
Nominal CapacityKN250450600800125016002000250031504000
Slide Strokemm80120140160180200220250250270
Slide StrokesFixedTimes/min100807060504545303030
Variable(optional)Times/min60-10050-8045-7040-6035-5030-4525-4520-3020-3020-30
Max. Die Heightmm250270300320350400450500500550
Die Height Adjustmentmm5060708090100110120120120
Throat  Depthmm210225270310350400430450450490
Distance Between Uprightsmm4505155606106707369109809801050
Slide Bottom SizeForward - Rearmm250340400460520580650700700750
Left - Rightmm3604104805406207008809509501020
Shank Hole SizeDiametermm40505050707070707070
Depthmm6560706590100100130130130
Bolster SizeForward - Rearmm400440520600680760840880880950
Left - Rightmm720825930950110011701390150015401700
Thicknessmm80110130140155165180190190210
Bed Opening Hole Diametermm150150150180200220250270270290
Overall DimensionsForward -Rearmm1496158515401765204023052600266027202850
Left - Rightmm945107512001200132014201540164016801750
Heightmm2120239125702725303532153800386538654150
Motor PowerKW35.55.57.5111518.5223037
Weight(approximate)kg245035505150645095501360019200232002660031600
Prod Model: JH21-60
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Press 60ton: Mechanical Power Press
Nominal Capacity: 600kn
Power: 380V/50Hz/3phase and Customerized
Delivery Time: 30 Days
Stroke Length: 140mm
Stroke Speed: 70spm
Max. Die Shut Height: 300mm
Table Size: 930X520mm
Clutch Type: Wet Type Pneumatic Clutch
Overload Protected System: Hydraulic Overload Pump
Type: General Punching Machine
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Power Source: Mechanical Drive
Precision: High Precision
Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.

We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.

We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.

Warranty Policy

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.

Installation Support

We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
