C-Frame Double Crank Stamping Punching Power Press

C-Frame Double Crank Stamping Punching Power Press
Price: US $ 100000/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T

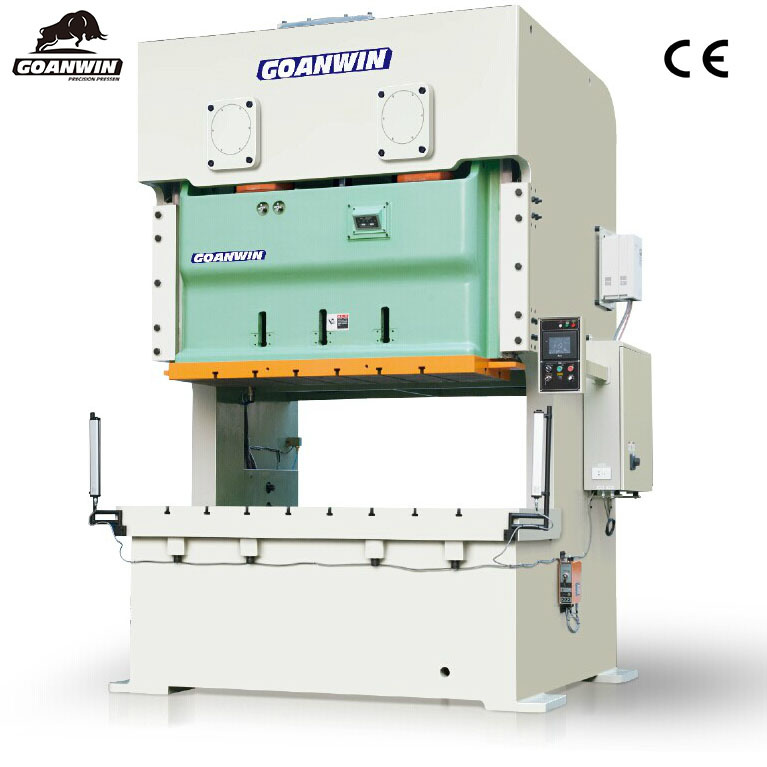

C-Frame Double Crank Stamping punching Power Press

Application:

Generally suitable for the small, single engineering steel sheet and continuous mould parts blanking, punching, blending, molding, can be single mode, continuous mode, manipulator or add attachment transmission system operation.


Features:
High rigidity press frame
Six-Point gibbings for slide guide way
Dry type clutch/brake
Highly responsive hydraulic over-load protector(H.O.L.P.)
Variable slide knock-out device
Increased pressure point center distance enhances off-center load capability

Precision: JIS first class

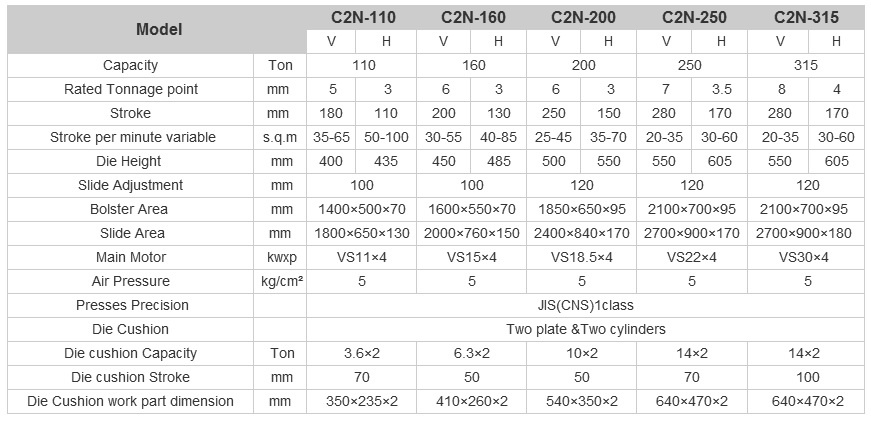

Specification:








Standard accessories:
Hydraulic over-load protector
Motorized slide adjusting device
Digital die height indicator(unit:0.1mm)
Balance device
Rotary cam switches
Crank angle indicator
Re-circulation lubrication device
Electromagnetic stroke cunter
Against over-run safety device
PLC controller
Air Ejector
Air source receptable
T-Mobile station
Independent electrical control box
Maintenance tool box

Optional accessories:
Die cushion
Slide knockout device
Die room light
Main motor reversing circuit
Preset counter(3digits)
Photo electronic safety device
Safety block with plug
Preset counter(6digits)
Load monitor
Receptacle for msifeed detecting device
Inveter
Anchor bolts, plate & fundation paltes
Safety guard & ladder
Power receptacle
Quick die change device



Guaranty & Service

1.      Guaranty period
One year
2.      Guaranty covers
Main parts of the machine, wearing parts not included
3.      Parts delivery
Within 3working days by TNT
4.      Technical support
Technical support via email or video, technicians available for overseas service with reasonable additional costs
5.      Installation & commissioning
Seller can dispatch technicians to do installation & commissioning, technician costs will be on buyer's side

Contact:
Ms.Mindy


Prod Model: C2N
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity(Tons): 110, 160, 200, 250, 315
Type: General Punching Machine
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Power Source: Mechanical Drive
Precision: High Precision
NingBo Goanwin Machinery Manufacturing Co., Ltd. is a high-tech enterprise in forging industry located in Ningbo, China. We are professional in design, manufacture, sale, service, trade for mechanical press machines. Goanwin has a core of research and development technology and focus on advanced forging design. Furthermore, Goanwin has a engineering research center, gathered the first-class professional technicians from Germany, Taiwan and Main land China. In Goanwin, We following ISO9001 and 14001 team spirit strictly, create better internal and external environment, to offer best quality and services to our customers.

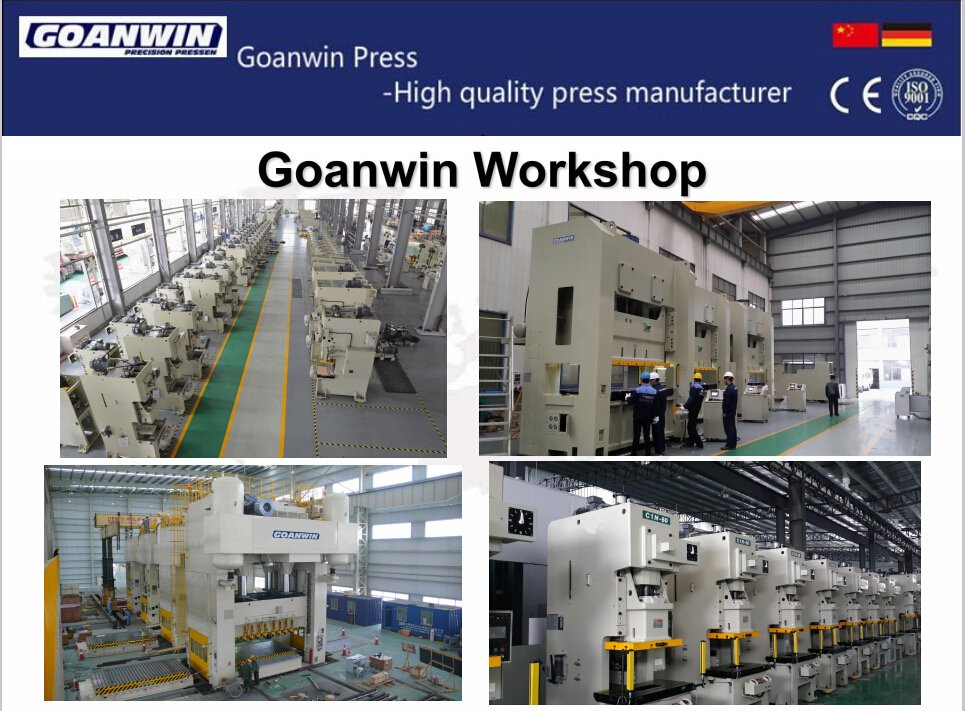

With many years of efforts and development, Gonawin earned Certificate of High-tech Enterprise, CE Certification, ISO9001 Certification and other more than 86 Certificates of Utility Model Patent. We insist use the best quality of components and parts, always adhere precise process, to ensure the products with high quality. Before delivery, each machine has more than 100 times quality test, including at least 72 hours actual operation in the assembly shop. All priority parts have corresponding encoding and traceability records, all machines are have 24 hours strict test. Each machine must need loading test, voltage test, temperature rise test, precision test before delivery.

Goanwin products have been exported to more than 10 countries, such as America, Europe, Africa and Southeast Asia etc. We also have more than 20 marketing networks in China, each of dealer has complete personnel services. Goanwin offered comprehensive services to our customers, including plan, design and performance, commissioning and maintenance and operator training.

With an accelerated global economic integration, now Goanwin focus on the entire world to spare no effort or funds to introduce technologies, talents to improve products and adjust industrial structure to achieve an international top class level. We will continue to put forth effect to achieve technical advancements to make technical innovations, Quality and Service Improvements.

Goanwin, Let us to create double win.
