Bytcnc Power Saving Coil Bender
| Price: |
US $ 8999-12999/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |

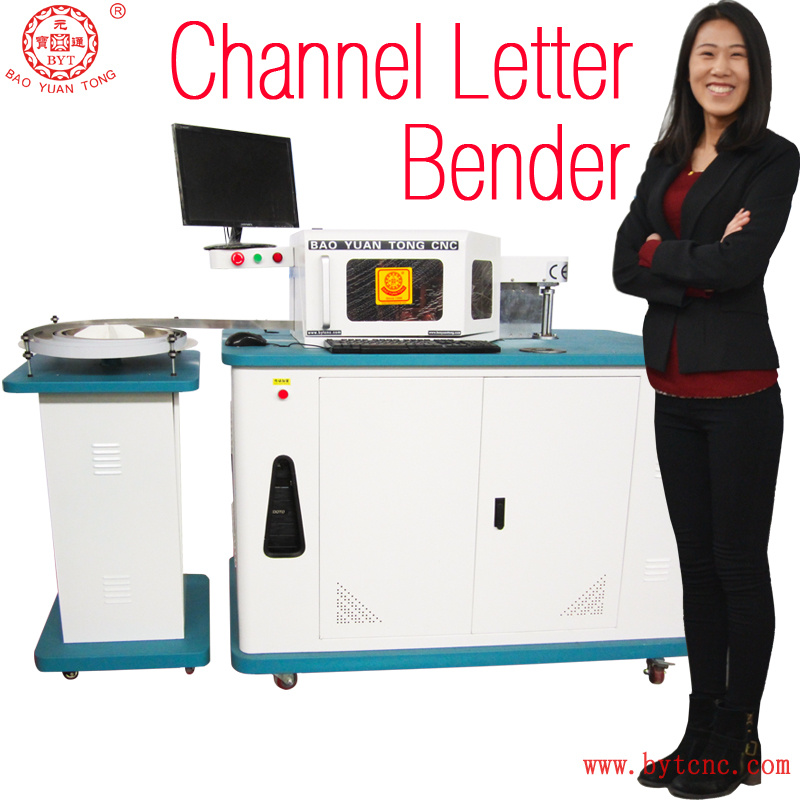

BYTCNC- Multifunction Aluminum Stainless Steel Channel Letter Bending Machine
Why the best choice?

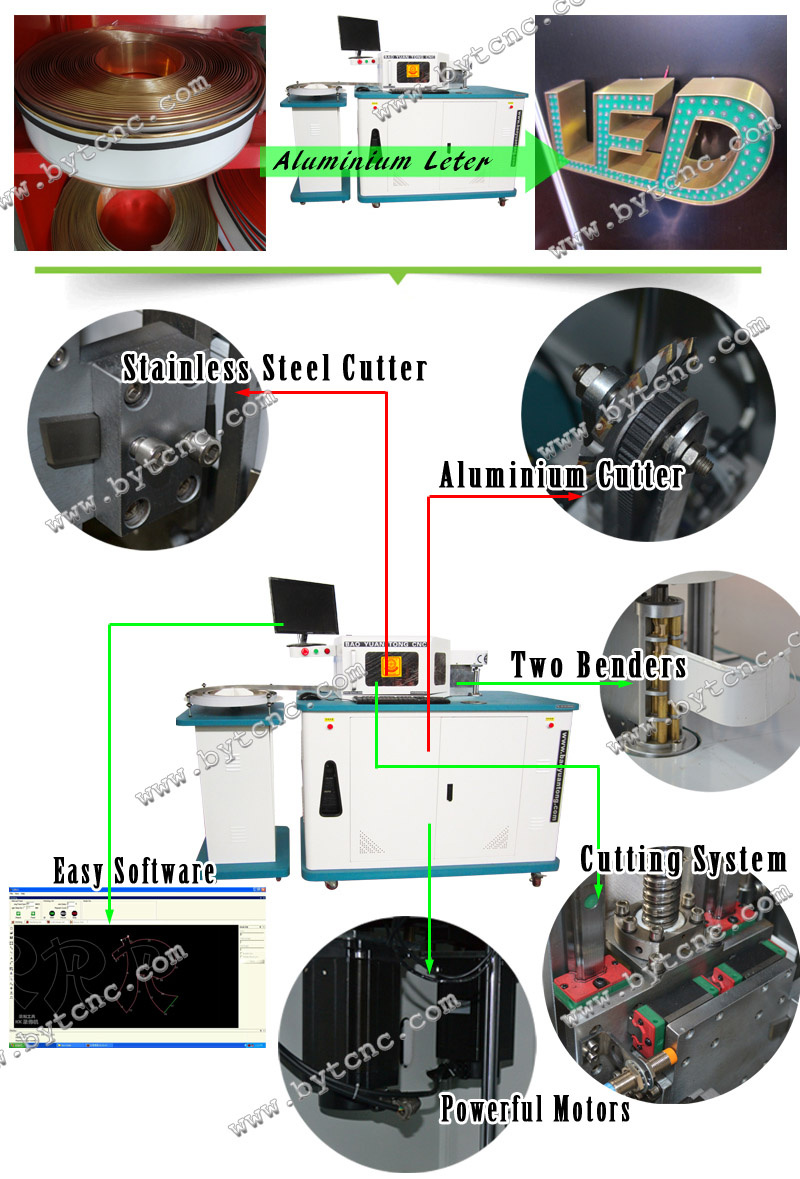

√ Stainless steel cutter√ Aluminum cutter√ with 2 benders√ Powerful Cutting system√ Easy software√ Stepper motor and servo motor optional√ Heavy structure, Working stable, Precisely Features1.Cut angle from 45 to 135 and it can control depth precision,by using the CNC axis. the processing of various types of
profile bending angle precision.2.Intelligent control of the software,intelligent inspection to avoid collision in character bending process.3.Telescopic bilaterally symmetrical bending mode of the unique, the greatest degree of bending process to avoid
interference,and greatly improve the bending strength4.Stainless steel gouging unique,single slotted mode profile milling groove,according to different characteristics of
arbitrary switching material, the operation is simple and convenient .5.Can read muti-vector file like the format such as AI,DXF matching with the engraving file perfectly.6.Use rotary type handwheel to adjust the feed depth,the operation is simple and convenient.7.Intelligent imported square guide rail and a high precision ball screw can adjust the depth of grooves.8.Special specification and equipment is availableAdvantage New type of three-in-one CNC Channel letter bending machine, there are two working systems and different bending axis,
one for stainless steel and iron, another for aluminum. When we need to slot and bend different materials, Dot need to
change the cutter. We just need to convert into another system. and it is convenient for us to change the bending axis,
just three to five minutes. Therefore, this new machine can save time , works with more efficiency . Technical parameter | Model | BWZ-A | BWZ-B | BWZ-C | BWZ-D | BWZ-E | BWZ-S |
| Operation principle | Automatic feeding,slotting and bending |
| Available material | Aluminum,stainless steel,galvanized iron | Aluminum | Aluminum | Stainless steel |
| Slot angle | 45°-110°(flat profile unlimited) | 45°-135°(just for aluminum) | 45°-110°(flat profile unlimited) | 45°-110°(flat profile unlimited) | - |
| Bending radius | ≥15mm | ≥15mm | ≥10mm | ≥12mm | ≥12mm | ≥15mm |
| Material width | ≤128mm | ≤128mm | ≤128mm | ≤135mm | ≤90mm or customized | ≤128mm |
| Material thickness | Aluminum:0.3-1.2mm, stainless steel and iron: 0.3-0.8mm | Aluminum 0.3-1.2mm, stainless steel≤1mm | 0.2-1.2mm | 0.2-1.2mm | ≤1mm |
| Power | ≤1800W | ≤1000W |
≤1800W | ≤500W | ≤500W | ≤1000W |
| Machine size | 1850mm*880mm*1300mm | 2350*950*1750mm | 1850mm*880mm*1300mm | 1500*800*1400mm | 1050*850*850mm | 1500*880*1300mm |
| Machine weight | 270kg | 300kg | 400kg | 280kg | 65kg | 300kg |
| Voltage | 220V | 220V | 220V | 220V | 220V | 220V |
| Working Air pressure | 0.6Mpa | 0.4-0.6Mpa | 0.6Mpa | - | - | 0.6Mpa |

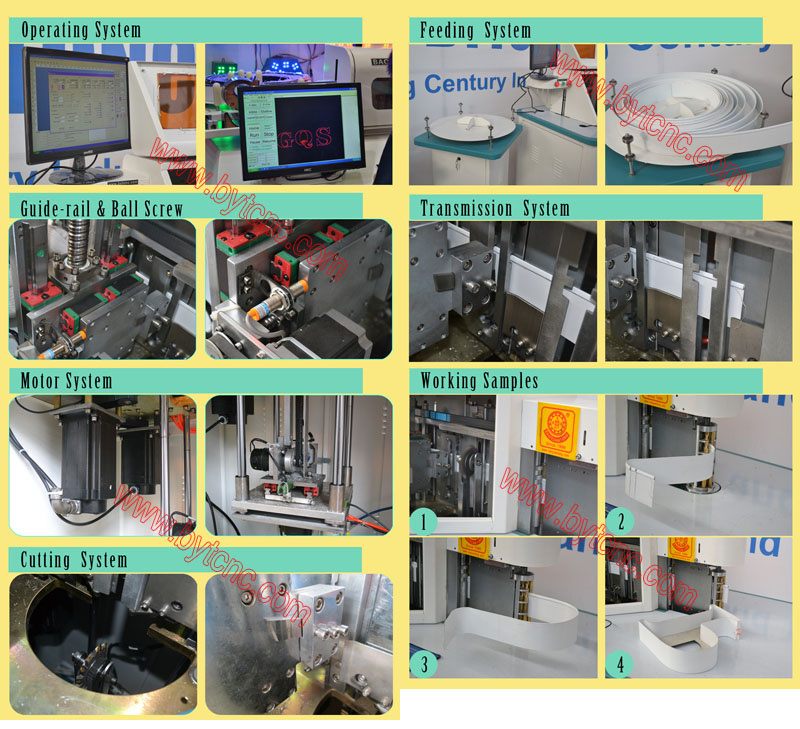

Main Parts :

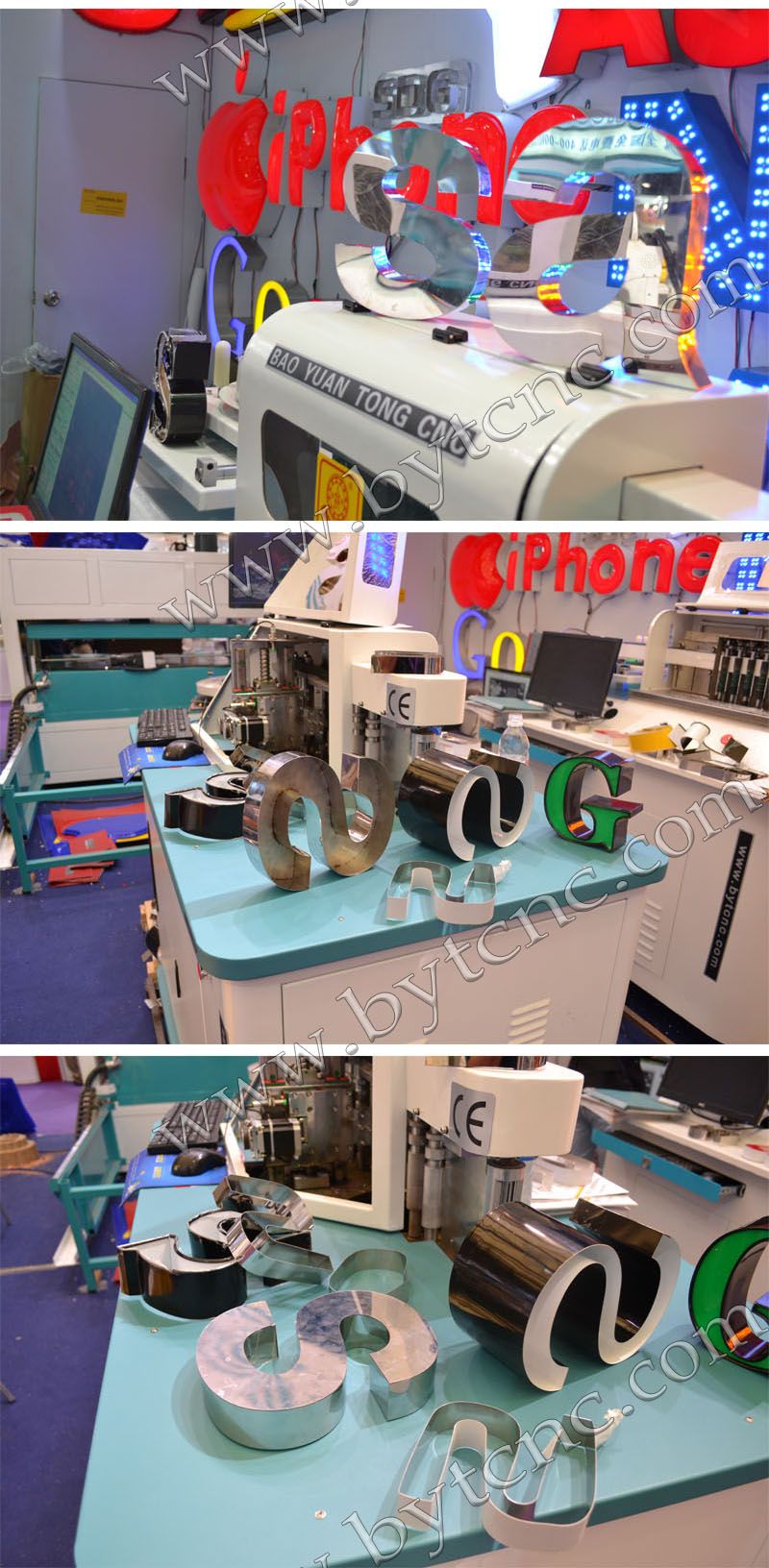

Application Industry Advertising industry,such as logos,signs,neon signs,billboards,light boxes production,outdoor advertising and other advertising productionSamples

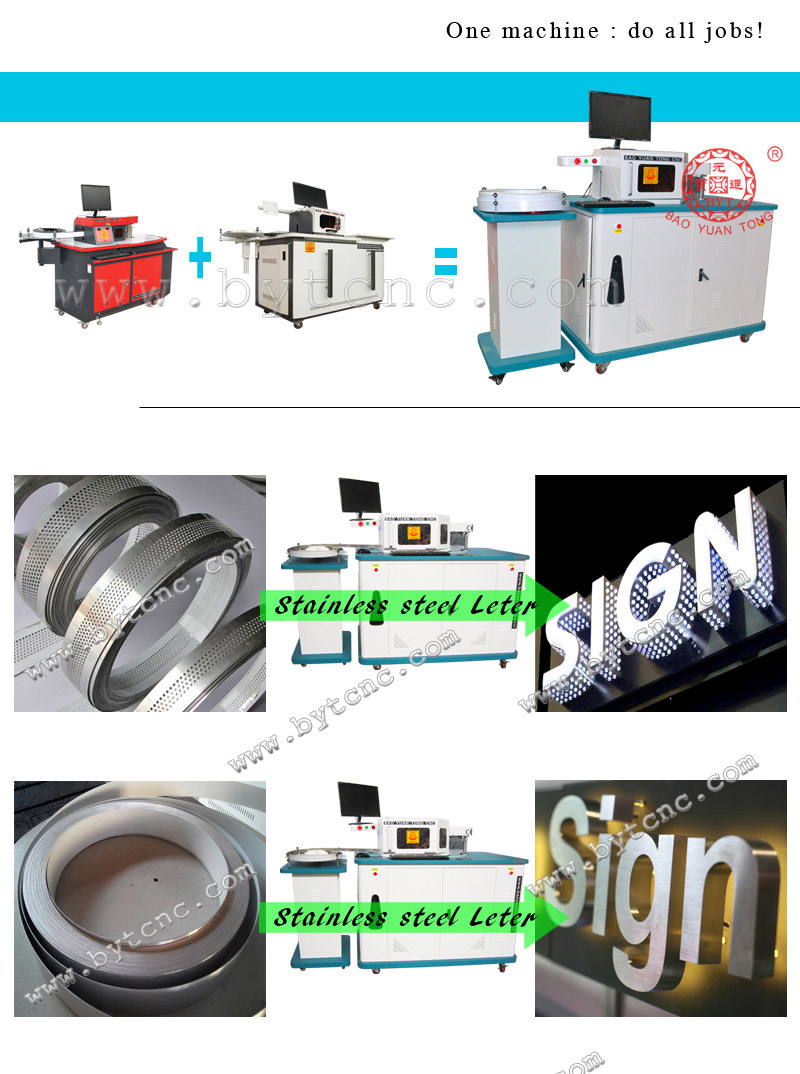

Our machines can do all jobs, stainless steel letters, aluminum letters.
After-Sales Service1.One year quality guaranty. The machine with main parts(excluding the consumables)
shall be changed free of charge when problems happened during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5.Engineers speaking English12 hours on line serviceeach day, free technical support. We
will solve your problemsimmediately by E-mail, fax, MSN, Skype, or telephone.
6. The English operation manual in electronic edition is included.
7. Machine has been adjusted before delivery.
8.Yuantong century is constructing oversea technical support center network, you can
contact us to find your nearest support center. FAQ: 1) This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine has any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours
service from phone and skype.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name
or your detailed address. There will be best shipping freight and machine price send to you. Related Products:

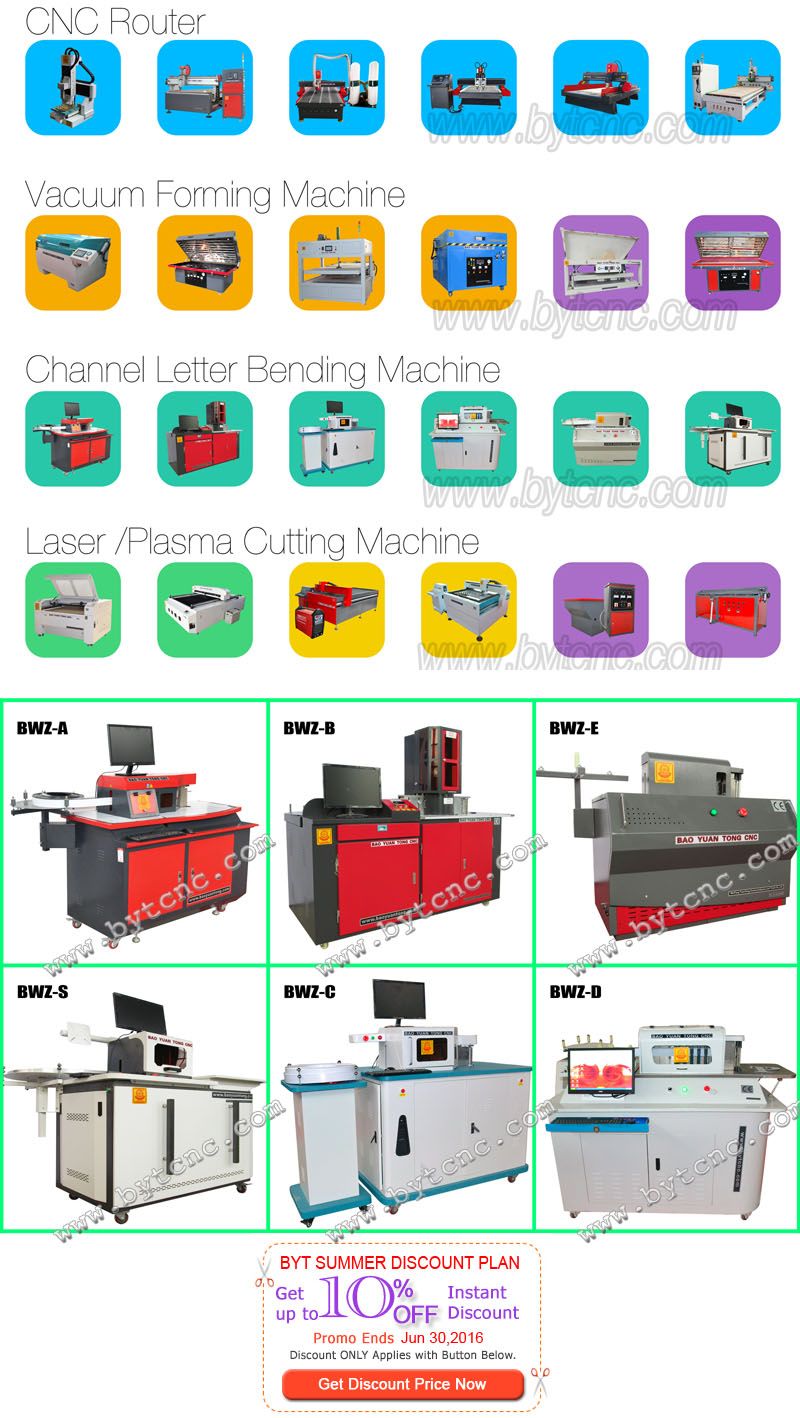

We have more than 20 kinds of CNC machines ,
Please contact us,
So we can help you select the right system to meet your needs and fit your budget !
| Working Principle: |
Auto Feeding, Slotting and Bending |
| Availabe Material: |
Aluminum, Stainless Steel, Galvanized Iron |
| Slot Angle: |
45°-135°(Just for Aluminum) |
| Bending Radius: |
≥10mm |
| Max Processed Width: |
≤128mm |
| Material Thickness: |
Aluminum 0.3-1.2mm, Stainless Steel≤1mm |
| Machine Power: |
≤1800W |
| Machine Size: |
≤1800W |
| Machine Weight: |
400kg |
| After-Sale Service: |
Engineer Speaking English Available |
Shandong Yuantong Century Intelligent Technology Co., Ltd, founded in 1996, specialized in manufacturing kinds of CNC Machines. Our product ranges from CNC routers, laser, plasma machine, to various sign making machines dedicated to advertising and other applications. Such as decorating, label making carpentry industry, stone processing, craft gifts, garment and leather processing, embroidery industry and so on.
Now our products have been sold all over the world, and with the CE certification, they are exported to more than 100 countries, including: Algeria, Argentina, UAE, Oman, Azerbaijan, Egypt, Ethiopia, Ireland, Angola, Oliver, Australia, Papua New Guinea, Pakistan, Paraguay, Bahrain, Panama, Brazil, Bulgaria, Belgium, Puerto Rico, Poland, Bosnia and Herzegovina, Bolivia, Denmark, Germany, Dubai, Dominican, Russia, Ecuador, France, Philippines, Chile, Colombia, Costa Rica, Georgia, Kazakhstan, Korea, Netherlands, Honduras, Kyrgyzstan, Canada, Czech Republic, Zimbabwe, Cameroon, Qatar, Cô Te d'Ivoire, Kuwait, Croatia, Kenya, Curacao, Latvia, Laos, Lebanon, Lithuania, Libya, Romania, Maldives, Malaysia, Macedonia, Mauritius, United States, American Samoa, Peru, Myanmar, Moldova, Morocco, Mexico, South Africa, Nepal, Nigeria, Norway, Sweden, El Salvador, Serbia, Senegal, Cyprus, Saudi Arabia, Sri Lanka, Slovakia, Thailand, Tanzania, Turkey, Venezuela, Brunei, Ukraine, Spain, Greece, Singapore, New Zealand, Hungary, Armenia, Iraq, Iran, Israel, Italy, India, Indonesia, United Kingdom, Jordan, Vietnam, Vietnam, Zambia.
Rather than merely supplying stand-alone products, we offer customized solutions for different clients request. These solutions bring users a more efficient way with lower production cost.
Now we are developing more and more intelligent equipment to offer more advantages to our clients.
The integrity, reliability and high quality products guarantee us the leading position among CNC advertising equipment industry.
In order to provide better service for customers, Yuantong century is constructing oversea sales center in Dubai and oversea technical support center network all over the world,
We provide technical support and professional training for customers, make sure their machine run stable and efficiently. English speaking after service team make sure the customer's problem could be settled in shortest time.
All around the clock, all around the world, we are always here for you
