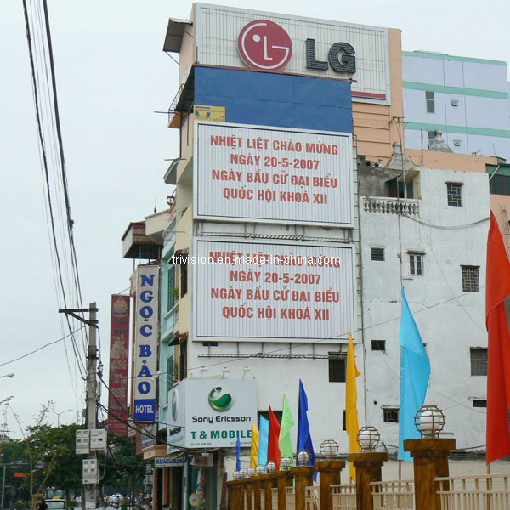

Building Wall Mounted Trivison Billboard, Adverising Display (F3V-131)

Outdoor Large Size Rotating Trivision Billboard

Tri-vision billboard can be made arch/curve shape according to the construction

Main technical parameters:

1. Primary Material: Environmental aluminum alloy of special quality

2. Driving: double-gear steps driving system

3. Specification of external frame:145mm (width) * 160mm (thickness)

4. Width of triangle prism:131mm , thickness1.35-2.0mm

5. Weight: 20kg/square meter

6. Image Gap: 6-8mm

7. Image combination: triangular prism 8m without joint and no length limit

8. Image flipping time: each face 6-12 seconds (preset )

9. Controlling system: Siemens LOGO

10. Image stop time: freely set from 0-900 seconds

11. Power supply: voltage 220v, current 0.54A, frequency 50HZ, power 90W

12. Motor: 90W original Panasonic motor

13. Wind resistance: 10 class

14. Operation service life: qualified installation will ensure normal service life up to 10 years

      based on 16 hours each day

15. Flipping performance (only one type can be set ex works based on customers

      requirement)
      A. Simultaneous              B. Wave type                    C. Curtain opening type
      D. Curtain closing type     E. Flipping step by step.    F. Flipping from part to part.

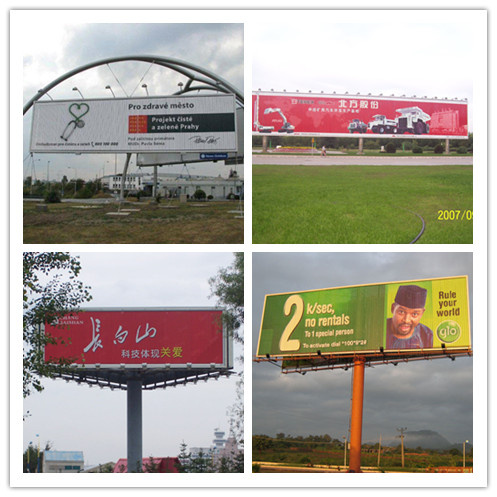

16.Tri-vision, trivision billboard, trivision display available for T pattern pole, upper building ads, outside building ads, intersection.
