| Price: | US $ 3.8-4.2/Piece |
|---|---|
| Min Order: | 100/Piece |
| Pay Type: | T/T,Western Union |
Bright p10 outdoor led module,red p10 led module
Technical Parameter
| LED tube chip parameters | ||||||
| Packaging | Color | Brand | Model | Brightness | Wave length | Quantity |
| DIP Oval 546 Lamp | R | Epistar | 9mil | 800-900 | 730-800 | 1 |
| G | Epistar | 8x10mil | 1000-1100 | 900-1000 | 1 | |
| B | Epistar | 8x10mil | 230-260 | 230-260 | 1 | |
| LED module parameters | ||||||
| Pixels pitch: | 10mm | Pixel density: | 10000dot/m2 | |||
| Pixel configuration: | 1R/1G/1B/1W/1Y/1P Optional | Module pixels: | 32x16=512 dots | |||
| Module size: | 320x160x25mm | Module weight: | 0.58KG | |||
| Configuration feature: | Integrated Light/Driver | Frame material: | Polycarbonate(PC) | |||
| Input voltage: | AC 4.8-5.5V | Max current: | 6.0A±0.1A | |||
| Module power consumption: | 30W | Driver mode: | 1/4 scan | |||
| LED cabinet parameters | ||||||
| Standard cabinet size: | 960x960x48 mm | |||||
| Cabinet pixel: | 96x96=9216dots | |||||
| Cabinet square: | 0.9216m2 | |||||
| Cabinet weight: | 45KG | |||||
| Max power consumption: | 300W | |||||
| Average power consumption: | 100W~250W | |||||
| LED display parameters | ||||||
| Brightness: | ≥1800cd/m2 | Brightness homogeneity: | ≥0.95 | |||
| Best horizontal view angle: | 120° | Best vertical view angle: | Vertical:<160° | |||
| Best view distance: | 5m~100m | Blind spot rate: | <0.0001 | |||
| Max power consumption: | 300w/m² | Application condition: | outdoor | |||
| System control parameters | ||||||
| Gray scale: | 256 grade | Color | 16777216 kinds | |||
| Repetition rate: | ≥60 frame/second | Refresh rate: | ≥300Hz | |||
| Control method: | Asynchronous or Synchronous | Brightness adjusting: | 256 auto/manual | |||
| Input signal: | DVI/VGA, RGBHV, S-VIDEO, HDTV and so on | |||||
| System working features | ||||||
| Lifespan: | ≥100,000 hours | MTBF: | ≥10,000 hours | |||
| Attenuation rate: | ≤15% 3 years working | Out of control dots: | 0 | |||
| Discrete control dot: | 0 (before shipment) | Blind spot rate: | 0 (before shipment) | |||
| Working temperature: | -20 ~50 °C | Working humidity: | 10%~90%RH | |||
| Protection feature: | over-heat, over-load, image complement, overcurrent, overvoltage, anti- thunder (optional) | |||||
Product Advantage
1) New style module mast can improve 10% brightness than normal module mask to realize more clearer text and images with stronger feeling of layers.
2) With Powerful and experienced engineers and technician team, with advanced production equipment,we control all steps from material to mass product, from design to produce that guarantee the quality and reliability.
3)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for the environment of wide Horizontal.
4) High brightness that the content on the display remains clearly visible under direct sunlight without any delay, smear phenomenon.
5)The brightness can be adjustable to meet the need of changing requirement of customer in environment.
6) Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective.
7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.

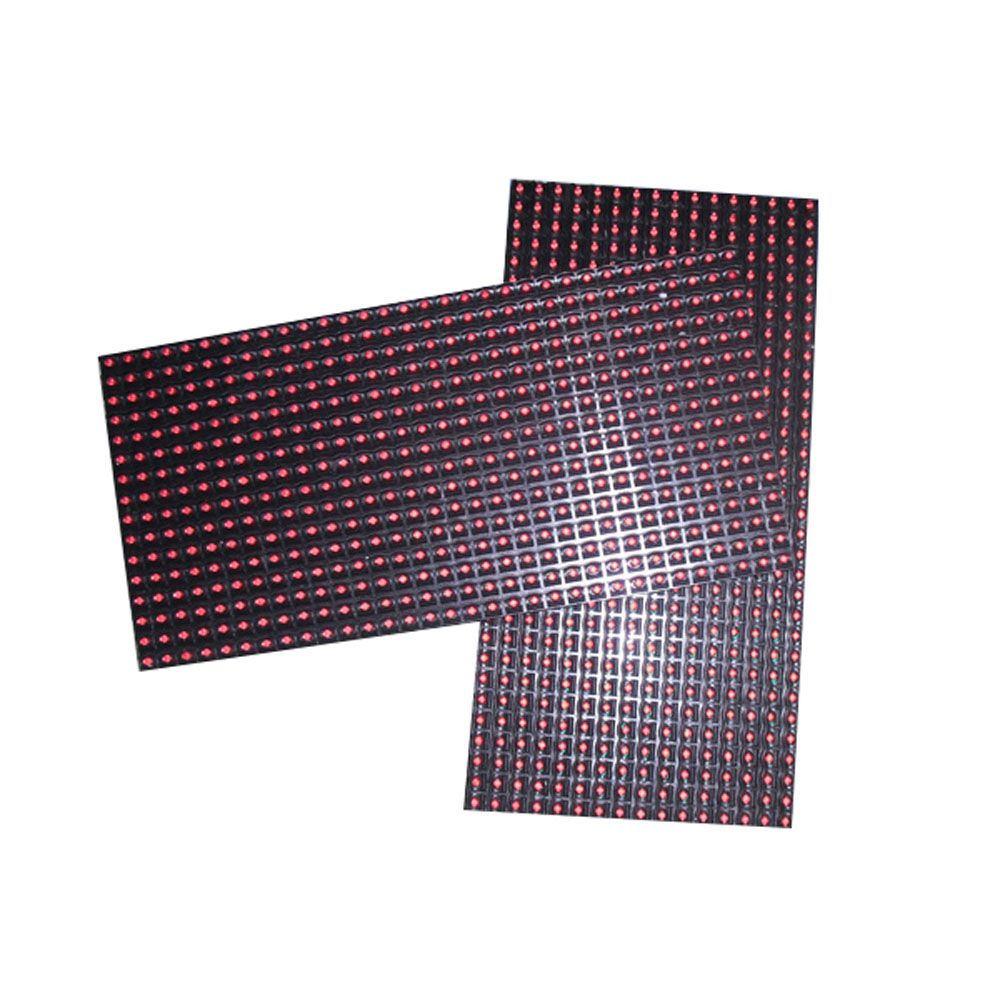

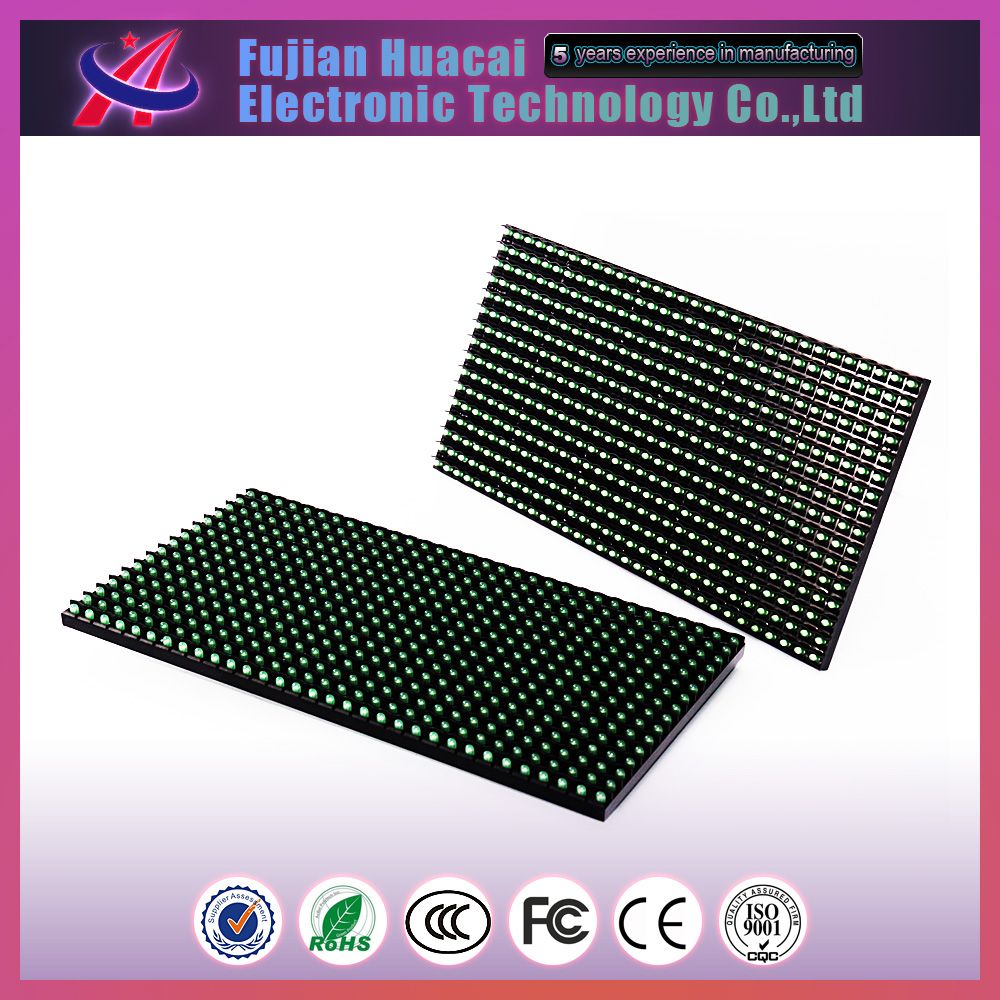

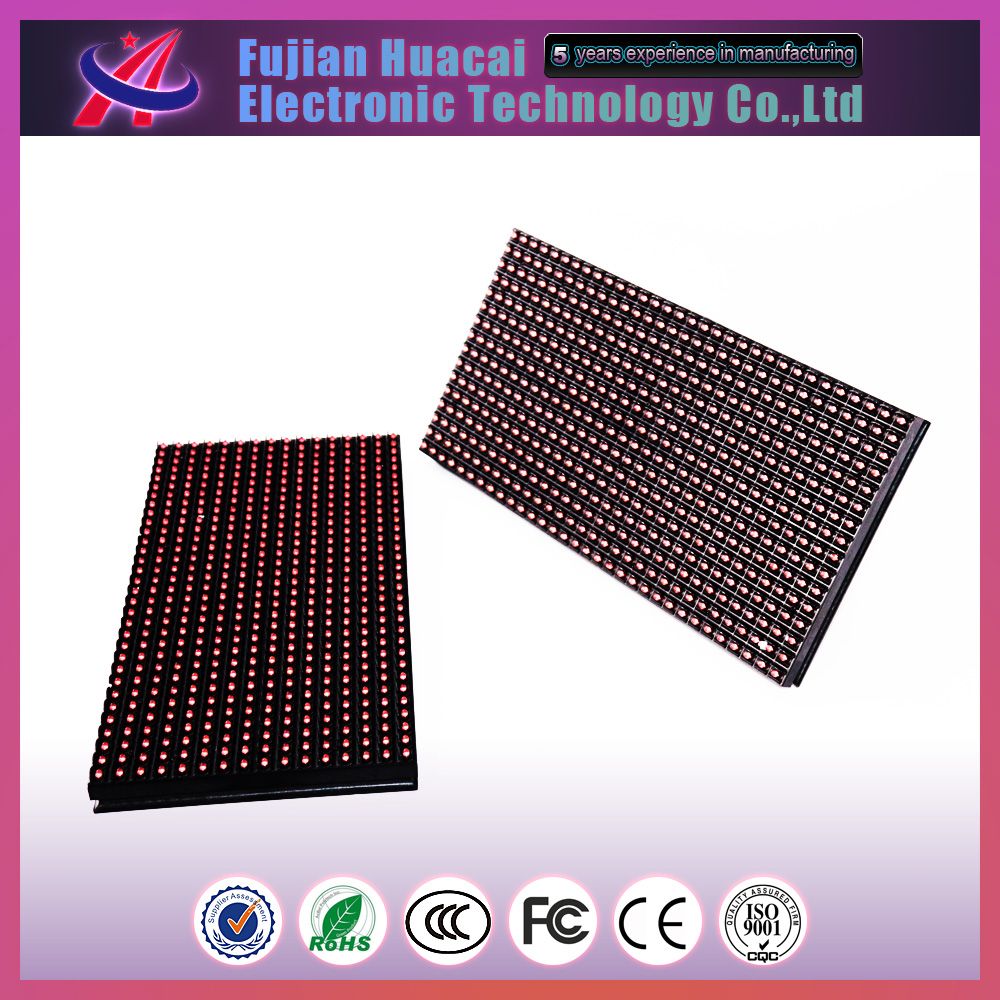

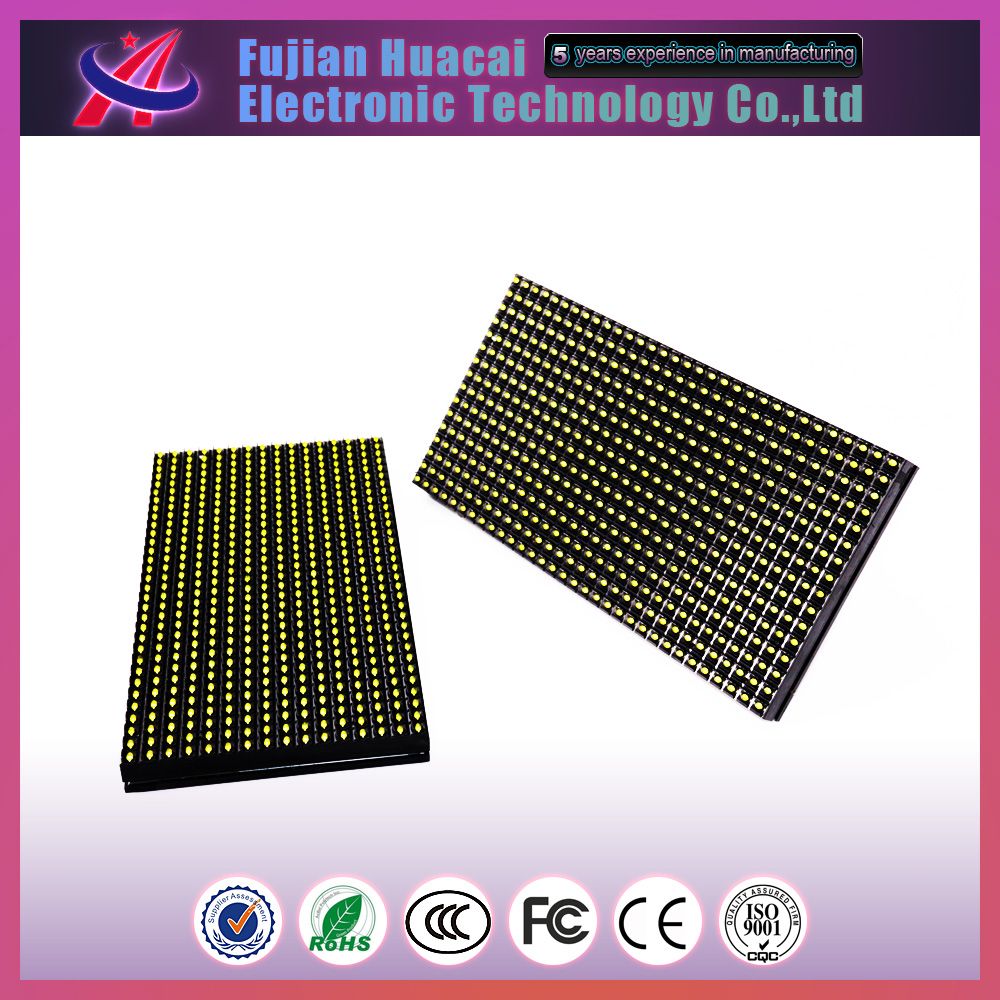

Product Pictures
Packing
Our Service
1.The price depends on the quantity.We can offer you the best competitive price at the market with the same even better quality.
2. Your inquiry will be replied by well-trained and experienced staffs in 24 hours.
3. Top Quality+Reasonable Price+Responsible After Service=Successful & Win.
4. Help you design OEM&ODM or any your customized lightings and put into production.
5. Distributorship are offered for your unique design and some our current models.
6.Your sales area, ideas of design and all your private information will be well protected.
Fujian Huacai Electronic Technology Co.,ltd is a manufacturer and trader company, specialized in the research, development and production of Bright red color p10 outdoor led module 32x16for more than 9 years.
We can offer you the best competitive price at the market with the same even better quality .The price we quoted for you leaves us with only the smallest of margins, which is lower than those of our competitors for goods of the same quality.
We are located in Quanzhou city,Fujian Province,China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We have huge foreign trade team,to open oversea markets,our led displays selling well all over the world. Our products are well-sold in Russia,America,Spain,Peru and South East Asia and well appreciated by their purchasers.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
| Prod Model: | PH10 Red |
|---|---|
| Pixel: | P10 |
| Scan Mode: | 1/4 |
| DOT Density: | 10000dots/Sqm |
| Warranty: | 2years |
| LED Package: | 546/446 |
| Lamp Chip Brand: | Epistar |
| Driving IC Brand: | Sm74hc595D/Dp |
| PCB Type: | 706/806 |
| Brightness: | 2200CD/Sqm |
| Certificate: | Ce/RoHS |
| Emitting Color: | Red |
| 1 LED Power: | ≥1W |
| LED Chips: | Epistar |
| IP Rating: | IP65 |
| Waterproof: | Waterproof |
| LED Light Source: | LED |
| Power: | 18W |
