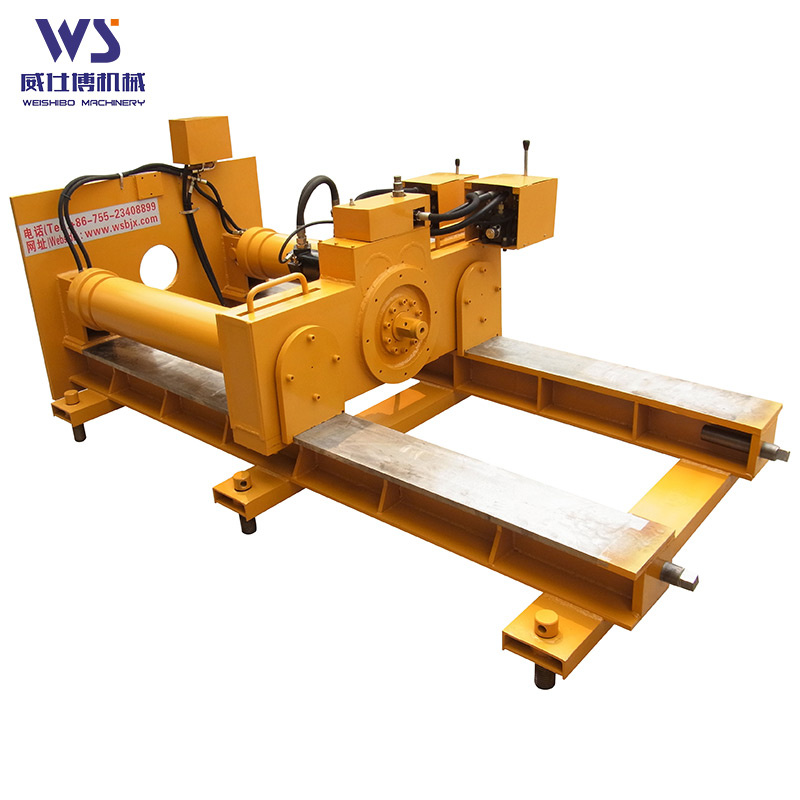

WS-500T trenchless horizontal directionyal driling rig
horizontal directional drilling rig is a kind of underground pipeline advanced,new construction adopts-rack and pinion gear reliable performance,the vuleerability of small,high speed,power head effect is good,the construction efficiency is high,the cummings engine,the power is sufficient,high efficiency,reliable performance,low oil consumption,the main hydraulic components and pipe are imported or joint venture products,easy to use,simple maintenance.maintenance,Eliminate the pipeline laying work.
| WS-500 SAND DE MOLE | Specification |
| Diesel Engine power | 132KW/22000rpm |
| Max.Spindle Torque | 8000Nm |
| Spindle speed | 0~100rpm |
| Oil cylinder thrust | 1500KN |
| Oil cylinder stroke | 650mm |
| The torque of the mud | 10000NM |
| Max.mud flow rate | 80L |
| Max.fluid pressure | 6MPa |
| Dril rod | Φ114mmx1000mm |
| power station Size | 2800mmx1350mmx1400mm |
| The host dimension | 2100mmx1700mmx1100mm |
| Power drill weight | 3000kg |
| The host weight | 2600kg |
Shenzhen wei shi bo machinery equipment co., LTD. (hereinafter referred to as "wei shi").The company is located in the beautiful and rich city - shenzhen, is China's reform and opening up since the established the first special economic zone.
Wei shi bo machinery equipment co., LTD. is a professional set design, development, production, sales and after-sales service in one of the joint venture, the company specializing in the production of WS series horizontal directional drilling, WS series horizontal spiral pipe jacking trenchless machinery and equipment, etc.
Wei shi bo machinery co., LTD., has a group of experienced and have a strong sense of responsibility of engineering and technical personnel and perfect quality assurance system, the most professional production technology, the most complete products, the best quality products performance.Company "strives for the survival by the credibility of quality, service strives to compete the market".Has sold all over the world, favored by the majority of customers trust and support.Wei shi bo through unremitting efforts, create maximum value for customers, and made a positive contribution to the urban construction more beautiful.
Company's enterprise spirit: the market is the direction of the enterprise, the quality is the life of the enterprise.
Corporate goal: excellence, first-class quality.
Company tenet: let the customer trust, customer satisfaction.
Wei shi bo machinery equipment Co., Ltd. is a professional set design, development, production, sales and after-sales service in one of the joint venture, the company specializing in the production of WS series horizontal directional drilling, WS series horizontal spiral pipe jacking trenchless machinery and equipment, etc.
Wei shi bo machinery Co., Ltd., has a group of experienced and have a strong sense of responsibility of engineering and technical personnel and perfect quality assurance system, the most professional production technology, the most complete products, the best quality products performance. Company "strives for the survival by the credibility of quality, service strives to compete the market". Has sold all over the world, favored by the majority of customers trust and support. Wei shi bo through unremitting efforts, create maximum value for customers, and made a positive contribution to the urban construction more beautiful.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
