| Price: | US $ 55-60/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| OMH 200 | OMH 250 | OMH 315 | OMH 400 | OMH 500 | ||
| Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
| Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| inter | 439 | 348 | 282 | 220 | 184 | |
| Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| inter | 20 | 20 | 20 | 19 | 16 | |
| Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| inter | 439 | 348 | 282 | 220 | 184 | |
| Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| inter | 90 | 90 | 90 | 90 | 90 | |
Danliss hydraulic motor application:
1.Warraty: one Year from out of my factory.
2.For all your inquires about us or our products, we will reply you in detail within 24 hours.
3. We offer OEM services. Can print your own logo on product if your quantity enough.
3.We have sales who have engage in hydraulic industry about 8years to help you custom-made the sales solution.
4.We have engineers who has the rich experience in hydraulic product and system to help you solve all the problems of technical.
5. Payment term: T/T, Paypa, western union.
How to contact?:
Phone:+8613560881920
Whatsapplication:008613560881920
Tel: +86-769-85156586
Fax: +86-769-851580786
THANKS FOR YOUR READING, AND HOPE YOU HAVE A NICE DAY. ( n. N ) **

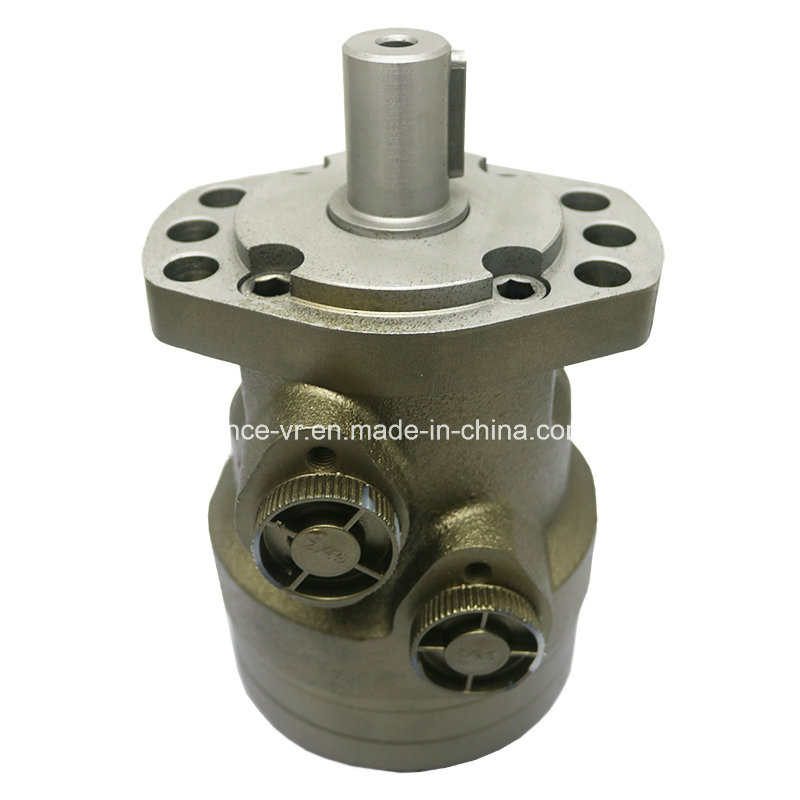

| Prod Model: | MH/MLHH500 |
|---|---|
| Material: | Cast Iron |
| Structural: | Gear |
| Usage: | Hydraulic Oil |
| Application: | Plastic Machine, Agriculture Machine |
| Warranty: | One Year |

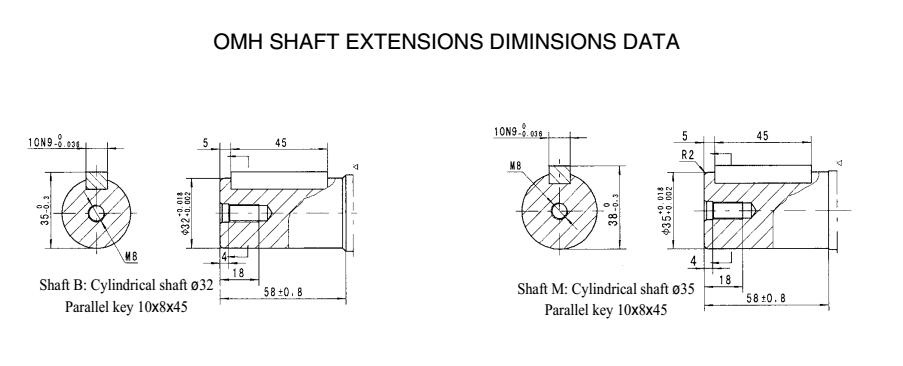

| Cylindrical Shaft: | 25mm/25.4mm/32mm |

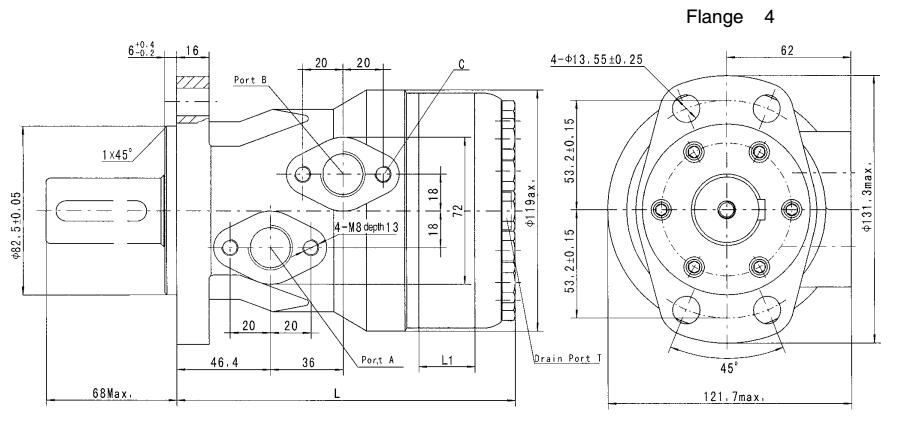

| Flange Diameter: | 106.4mm |
| Flange: | 2 Bolts/4bolts |
| Port: | G1/2 |
| Drain Case Port: | G/4 |
