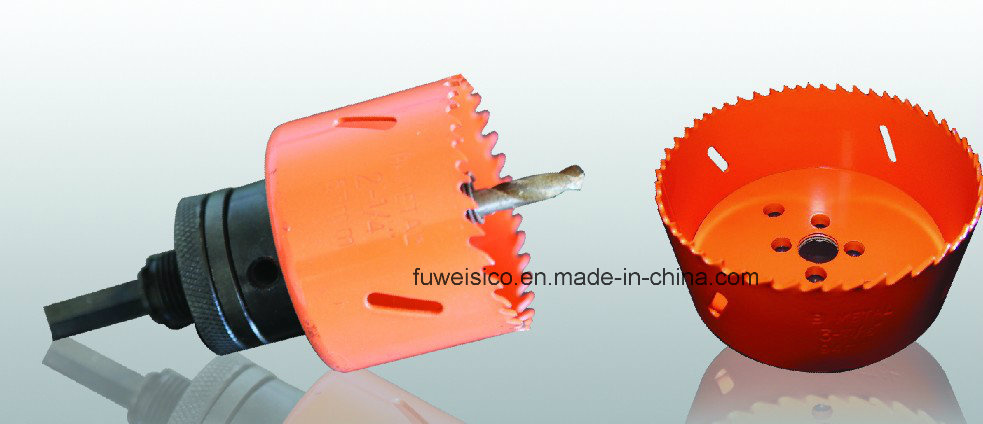

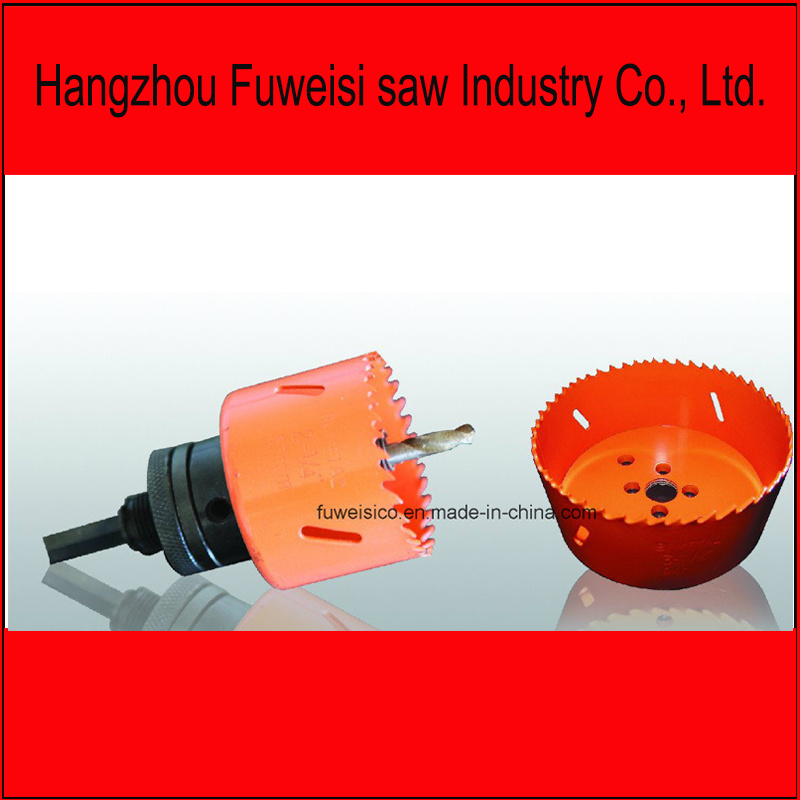

HOLE SAWS
Traditional narrow openings on the sidewall.
Bi-Metal (Clamshell / boxed)
| Inches | MM | M3 | M42 |
| 9/16" | 14 | 91201 | 91301 |
| 5/8" | 16 | 91202 | 91302 |
| 11/16" | 17 | 91203 | '91303 |
| 3/4 | 19 | 91204 | 91304 |
| - | 20 | 91205 | 91305 |
| 13/16" | 21 | 91206 | 91306 |
| 7/8" | 22 | 91207 | 91307 |
| 15/16" | 24 | 91208 | 91308 |
| 1" | 25 | 91209 | 91309 |
| 1-1/16" | 27 | 91210 | 91310 |
| 1-1/8" | 29 | 91211 | 91311 |
| 1-3/16" | 30 | 91212 | 91312 |
| 1-1/4" | 32 | 91213 | 91313 |
| 1-5/16" | 33 | 91214 | 91314 |
| 1-3/8" | 35 | 91215 | 91315 |
| 1-7/16" | 37 | 91216 | 91316 |
| 1-1/2" | 38 | 91217 | 91317 |
| 1-9/16" | 40 | 91218 | 91318 |
| 1-5/8" | 41 | 91219 | 91319 |
| 1-11/16 | 43 | 91220 | 91320 |
| 1-3/4" | 44 | 91221 | 91321 |
| - | 45 | 91222 | 91322 |
| 1-13/16" | 46 | 91223 | 91323 |
| 1-7/8" | 48 | 91224 | 91324 |
| - | 50 | 91225 | 91325 |
| 2" | 51 | 91226 | 91326 |
| 2-1/16" | 52 | 91227 | 91327 |
| 2-1/8" | 54 | 91228 | 91328 |
| - | 55 | 91229 | 91329 |
| 2-1/4" | 57 | 91230 | 91330 |
| 2-5/16" | 59 | 91231 | 91331 |
| 2-3/8" | 60 | 91232 | 91332 |
| 2-1/2" | 64 | 91233 | 91333 |
| 2-9/16" | 65 | 91234 | 91334 |
| 2-5/8" | 67 | 91235 | 91335 |
| - | 68 | 91236 | 91336 |
| 2-3/4" | 70 | 91237 | 91337 |
| 2-7/8" | 73 | 91238 | 91338 |
| - | 75 | 91239 | 91339 |
| 3" | 76 | 91240 | 91340 |
| 3-1/8" | 79 | 91241 | 91341 |
| 3-1/4" | 83 | 91242 | 91342 |
| 3-3/8" | 86 | 91243 | 91343 |
| 3-1/2" | 89 | 91244 | 91344 |
| 3-5/8" | 92 | 91245 | 91345 |
| 3-3/4" | 95 | 91246 | 91346 |
| 3-7/8" | 98 | 91247 | 91347 |
| 6" | 152 | 91258 | 91358 |
FEATURES
1.High speed cutting edge.
2.4/6 Variabe tooth configuration.
3.1 7/8"(48mm) cutting depth.
4.3/16"(5mm) thick heavy-duty backing plate eliminates need for drive plate.
ADVANTAGES
1.Shock resistant teeth.
2.Resists tooth strippage.
3.Less vibration.
4.Cut 30% faster than conventinonal saws.
APPLICATION INFORMATION
1.Creates holes for pipe,tubing installations,door lock installations,electrical conduit,hoses and antennas.
2.Ideal for plumbing,construction,aircraft,electrical,maintenance and automotive applications.
3.Use in steel,aluminum,brass,cast iron,plastic or wood.
