Big Promotion! ! ! Dx68 Hydraulic Hose Crimping Machine/Hose Crimper Tool

Big Promotion! ! ! Dx68 Hydraulic Hose Crimping Machine/Hose Crimper Tool
Price: US $ 600-1200SET
Min Order: 1SET
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Product description:

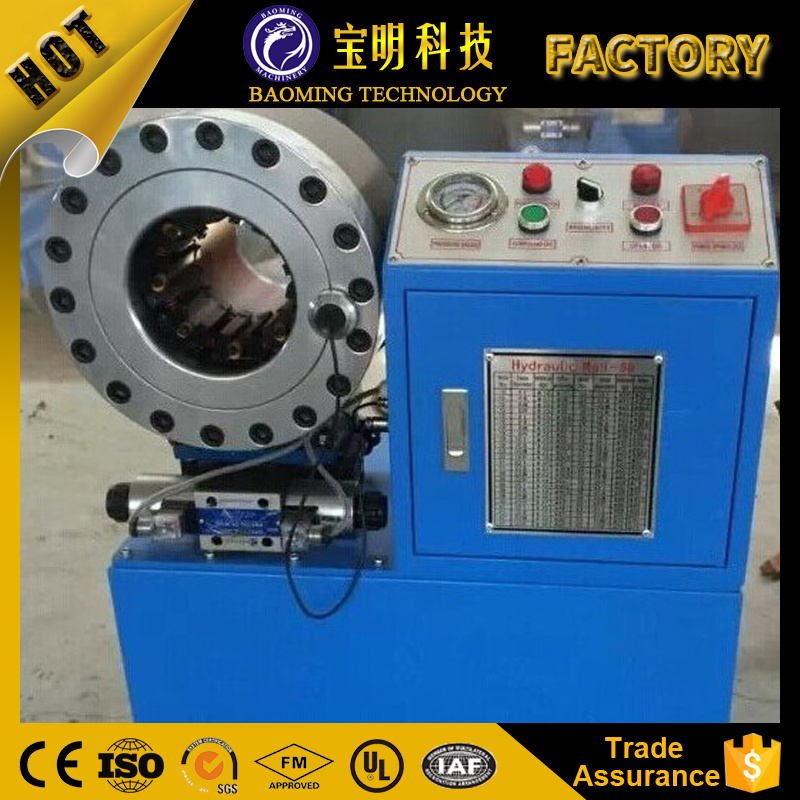

Model DX68 CNC hose crimping machine has equipped with computer numerical control system, fast crimp and good quality. This machine features high crimp accuracy, big force, low noise and easy to operate. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device. DX68 hose crimping machine is mainly used for crimping processing for high pressure hydraulic hose assembly in the mechanical engineering. It can also be used for crimping steel pipes, especially large pipes and irregular shape pipes.

DX68 hose crimping machine mainly technical parameters:






Troubleshooting
Trouble phenomenaTrouble reasonEliminating method
Machine has not action Oil tank has not been filled with oilFill oil as per requirement
Motor rotation direction is not correct Regulate two phase lines
Electric trouble Overhaul electric circuits
Scale is damagedThe scale is fastened on the oil cylinder end face by the screwRegulate the scale as per the instruction to make scale to telescope freely
Conductor at scale location is connected with scale Anew connect the scale conductor to make it to be insulated from scale base
Electric troubleOverhaul electric circuits and electric elements
Scale conductor cutting Anew connect scale
System pressure is excessively lowAdjust buckling pressure-regulating valve
No bucklingThe valve core of solenoid reversal valve is seizured by foreign mattersDismount solenoid reversal valve, use gasoline to clean the valve core.
Electric trouble Overhaul electric circuits
Mould is not openedOpening mould pressure is excessively lowAdjust opening mould pressure regulating valve
Electric troubleOverhaul electric circuits
Big noise Installation is not stable Conduct horizontal stable installation
Hydraulic oil is excessively dirty Filter or change it
Filter is blocked Use gasoline to clean the filter
Mould base crawls Gas in the hydraulic oil has not bee exhausted completely Suitable unscrew the bleed screw, make the piston in the oil cylinder to move back to last position to exhaust gas, then screw down bleed screw.
Lubrication is poor Smear grease on the working inclined face of mould base
Oil leakage Joint is not tightened closely Tighten the oil pipe joint
Sealing washer is damaged. Replace sealing washer.


Our service:

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory & Office.


After-Sales Service

* Warranty for 3 years.
* Training how to instal and use the machine.
* Provide free quick-wear part.

Payment Term

Trade Assurance

* PAY to our company's CITIBANK account designated by Alibaba.com with credit card or bank transfer.
* 100% product quality protection; 100% on-time shipment protection; 100% payment protection.

T/T

* 100% T/T in advance(normal models in stock).
* 50% T/T in advance, balance paid before delivery(for the customized models).


FAQ:
1.Question:Are you manufacturer or trading company?
Answer:We are manufacturer since 1997.

2.Question:Certificates ?
Answer:CE,ISO

3.Question:Delivery time?
Answer:The machines arein stock now,can be delivered as you need.

4.Question:What is theMOQ?
Answer:1 set for you test.

5.Question:Can I get some discount ?
Yes, friend.The more you buy, the more you save.

6.Question:What is the payment?
Answer:T/T in advance,as most of our crimping machine model are in stock.
L/C,western union,paypal and money gram also can be accepted.

7.Question:Can you make customized designs or LOGO?
Of course, we are professional OEM manufacturer.

8.Question:Can I visit your factory?
Yes,you are warmly welcome to visit our factory anytime. Before the visiting, please contact us firstly and confirm the visiting time, our car can pick up you to our factory.


Prod Model: DX68
Product Name: Big Promotion !!! Dx68 Hydraulic Hose Crimping Mac
Crimping Range: 1/4" to 2"
Crimping Force: 500t
Ruler Precision: 0.01mm
Rated Pressure: 31.5MPa
Power&Voltage: 3kw;220V,240V,380V,415V
Dies Quantity&Size: 10 Sets(15,19,23,26,31,36,41,47,55,60mm)
Weight: 260kg
Warranty: 3 Years
Delivery Time: Our Factory Have Machine in Stock
We are Tianjin Baoming Technology Co., Ltd, our factory mainly manufacture and sell the hydraulic machinery, rubber and plastic products. Our factory products have passed ISO and CE certificate. We hope to establish the long terms business relations with our customers. We are a high-tech enterprise in Tianjin, was founded in 1978, the original machinery and electronics industry test pump manufacturing enterprises. After decades of UPS and vicissitudes of life and hard work, is a modern standard workshop 15, 000 square meters, total assets of 6, 000 million. Companies in the domestic industry leading position, is engaged in filling equipment, pressure testing equipment, hose equipment and sawing equipment withhold product development, production, sales and technical service expertise. The company has strong technology development strength, advanced production facilities, complete testing conditions, the modern scientific management system. And passed ISO9001 international quality management system certification, the products sell well all over the country and exported to Southeast Asia and Europe and the United States.

Focus on science and technology investment company, the annual technical cooperation with domestic universities, professors hired as a technical consultant. In recent years, has developed a high-pressure pneumatic test pump, computer-controlled test pump, NC locks the machine, automatic fire extinguisher powder filling machine, high precision fire extinguisher powder filling lines and other new products, including high pressure, numerical test pump research and development so that my company ranked first in the domestic industry, a test pump industry leader; GFM8-2 type fire extinguisher powder filling machine for filling the domestic blank, and access to national utility model patent title; Precision fire extinguisher powder filling line As the pioneer of dry powder filling technology patent the State 5 in the world to know the industry enjoys a high brightness.
