Best in China Hydraulic&Pneumatic Drill Machine Use for Granite&Marble Quarry

Best in China Hydraulic&Pneumatic Drill Machine Use for Granite&Marble Quarry
Price: Negotiableset
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

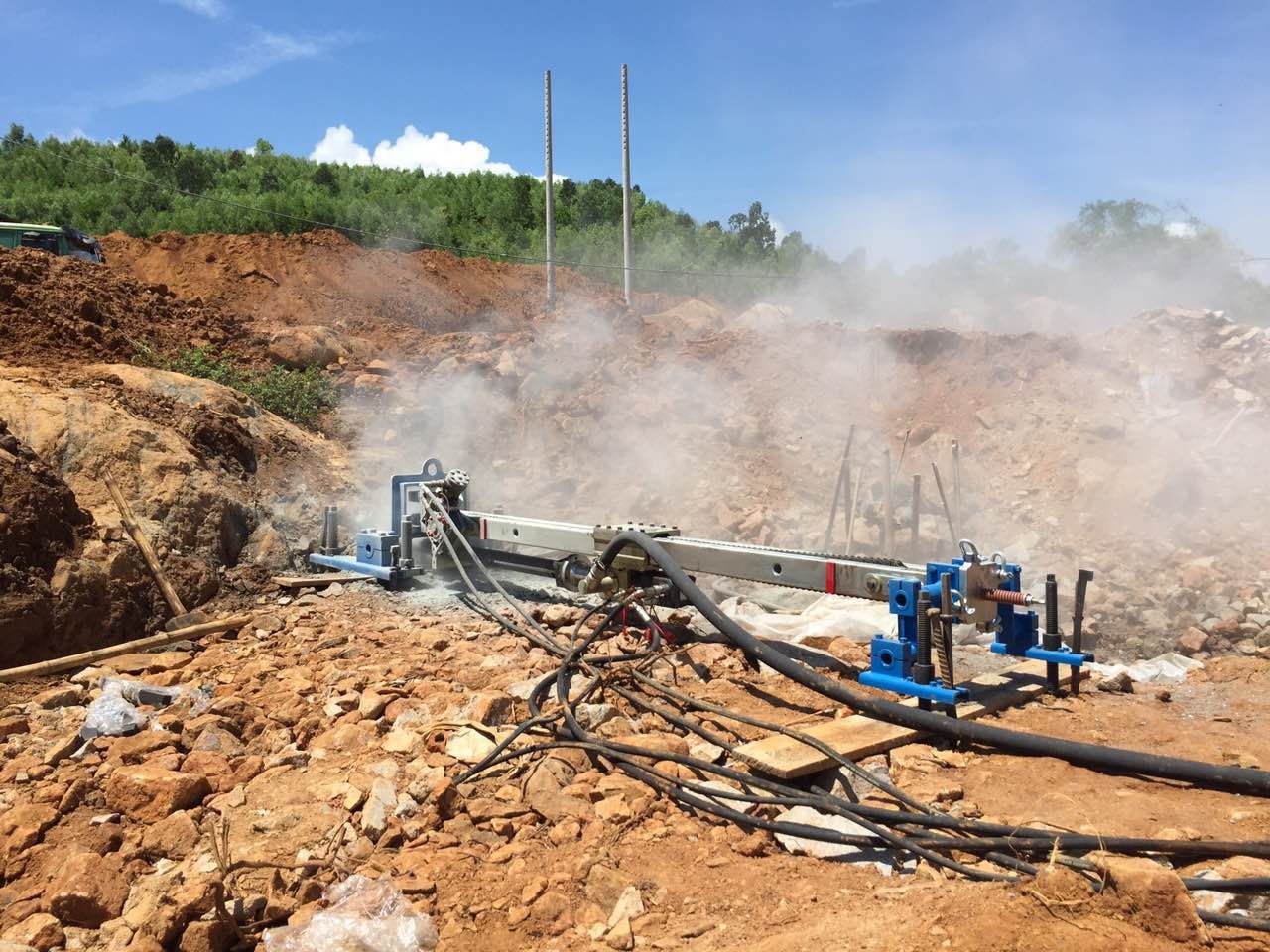

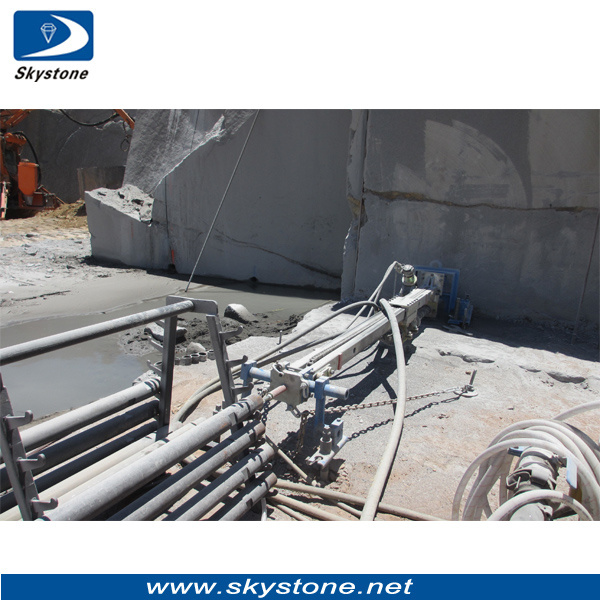

The TSY-PH90A Drill which controlled jointly by pneumatic and hydraulic, is a new model drill we developed specially used for stone quarry, and especially suitable for the mine that lack of compressed air.
The characters of the drill:
1. Light weight, easy installation and transportation;
2. The high quality pneumatic components ensure lower energy & air consumption and high efficiency;
3. The good hoisting ability;
4. The particular mechanical tube devices for screwing and discharging to reduce the labor intensity;
5. The Particular design for guiding drilling.
The total weight of machine is 1000kg(including 20 drill pipes and 1 aiguille).
Technical Parameter
Power voltage380V/50HZ
Power of rotation motor5.5KW
Maximum pressure of ratating12.5Mpa
Maximum pressure of forward & withdraw8Mpa
Diameter of the drill hole90mm-100mm
Depth of the drill hole≥30m
Drill speed5-10m/h
Single Feeding distance1500mm
Hoisting ability1300kg
Air consumption6-10m 3/min
Working air pressure0.5-0.8Mpa
Weight of main drill frame150kg


Prod Model: TSY-PH90A
Weight: 1637kg
Drill Pipes: 20 PCS
Drilling Speed: 5-10m/H
Material: Diamond
Customized: Customized
Condition: New
Usage: Marble
Application: Stone Industry
Source Voltage: 380V
Automation: Automatic
Type: Down The Hole Drill
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.

We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
