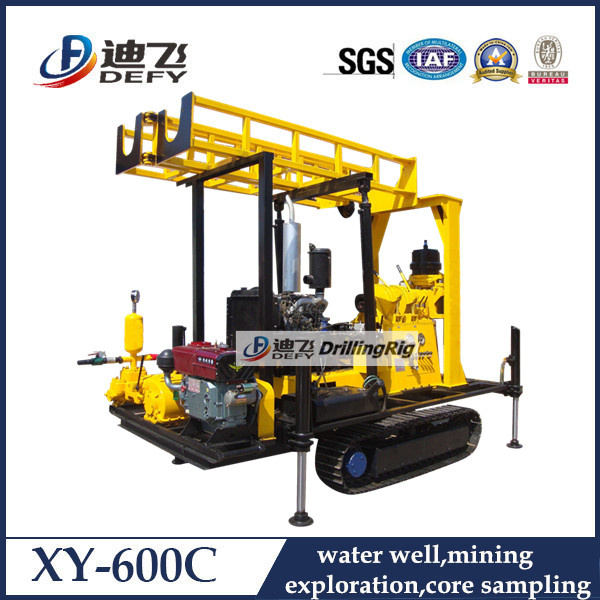

XY-600C crawler mounted rock used borehole drilling machine, hot sale in Nigeria, Algeria, Uganda, South Africa, Chile, Peru, Russia, Zimbabwe, etc.
Product Description
XY-600C rock used borehole drilling machine is a hydraulic drilling rig, adopting the latest technology for diamond drilling. It is widely used for water well, geological exploration, mining exploration, geothermal well, irrigation well, bridge conservancy, etc.
Technical Parameter
1. Main Parameters |
Max. Drilling Depth |
600m |
Diameter of drill pipe |
Φ42,Φ50,Φ60,Φ76 |
Angle of vertical spindle |
90°~65° |
Drilling capability |
Φ75mm drill diameter |
600m depth |
Φ127mm drill diameter |
400m depth |
Φ219mm drill diameter |
210m depth |
Φ273mm drill diameter |
150m depth |
2. Vertical Spindle |
Rotation speed |
Forward 10 grades |
30-1050r/min |
Reverse 2 grades |
29-137r/min |
3. Main hoist |
Lifting speed of single wire |
0.5-1.9m/s |
Diameter of wire rope |
12.5mm |
Carry capacity of single wire |
4000kg |
4. Mud pump(as per your choice) |
Horizontal triplex mud pump |
BW-200 |
Displacement |
200L/min |
5.Power supply(choose one between the following two) |
Diesel engine |
Model 4100,38kw(50HP) |
Electrical motor |
Y180M-4B35,22kw |
6.Six-wheel Trailer |
|
Walking speed |
25Km/hr |
Characteristics
1. Power supply:
It can be powered by diesel engine or electric motor as options; Diesel engine is started by electric battery.
2. Mobile base:
It can be mounted on trailer, crawler or truck for easy move and different drilling environment;
3. Automobile transmission assembly:
10 grades forward rotation speed and 2 grades reverse rotation speed, can meet various stratum drilling requirements.
4. Mud pump
Designed wih BW-200 or BW-250 mud pump, XY-600C is with much larger water flushing rate, with better scraps cleaning effects.
5. For different stratum
Soil, sand, gravel, rocks. XY-600C can work with alloy bit for soil and sand, PDC bit for gravel, and diamond bit for rocks and hard rocks.
6. Wide application
It can work for geological exploration, core sample, water well, geothermal well, etc. With good customer feedback.
After-Sales Service
1. One year quality guarantee for main machine;
2. Training: operation manual, overseas installation is also available;
3. Spare parts are available in our factory at cost price for former customers;
4. 24 hour on-line guidance for operation and maintenance.
