| Price: | US $ 500/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |

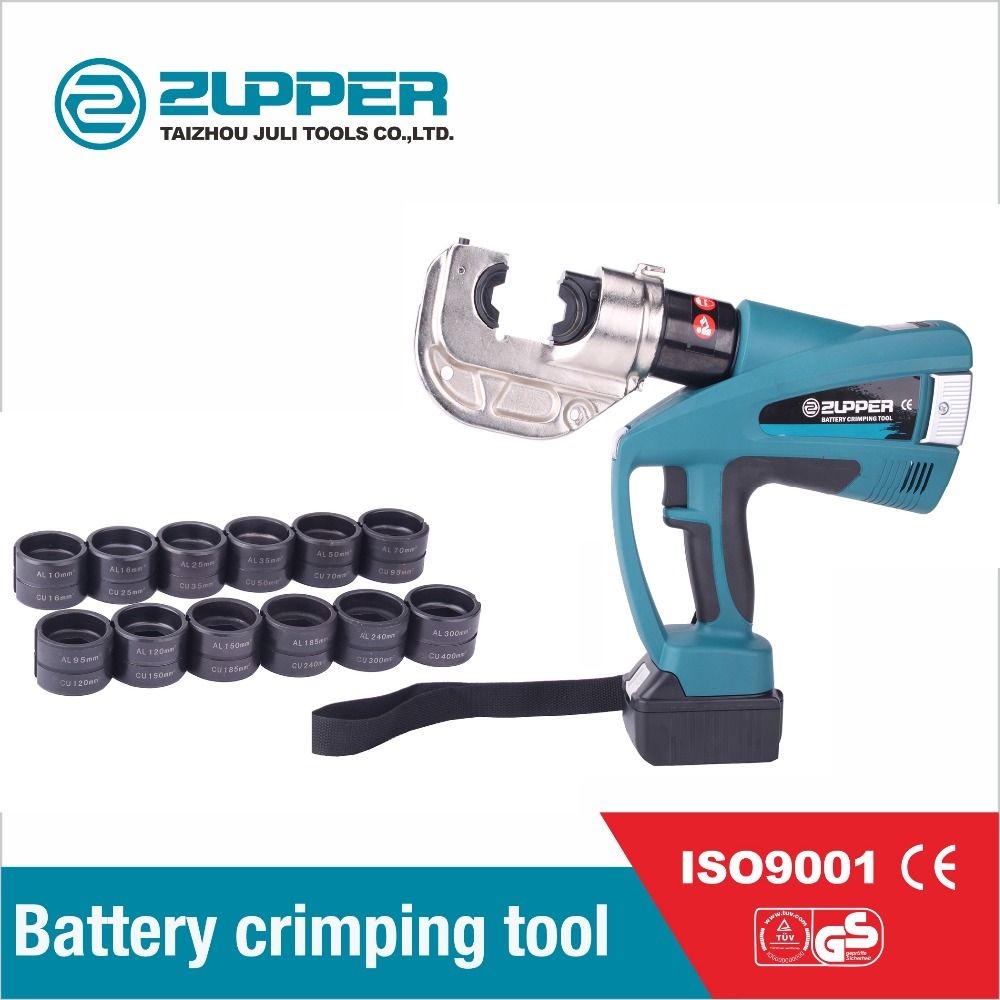

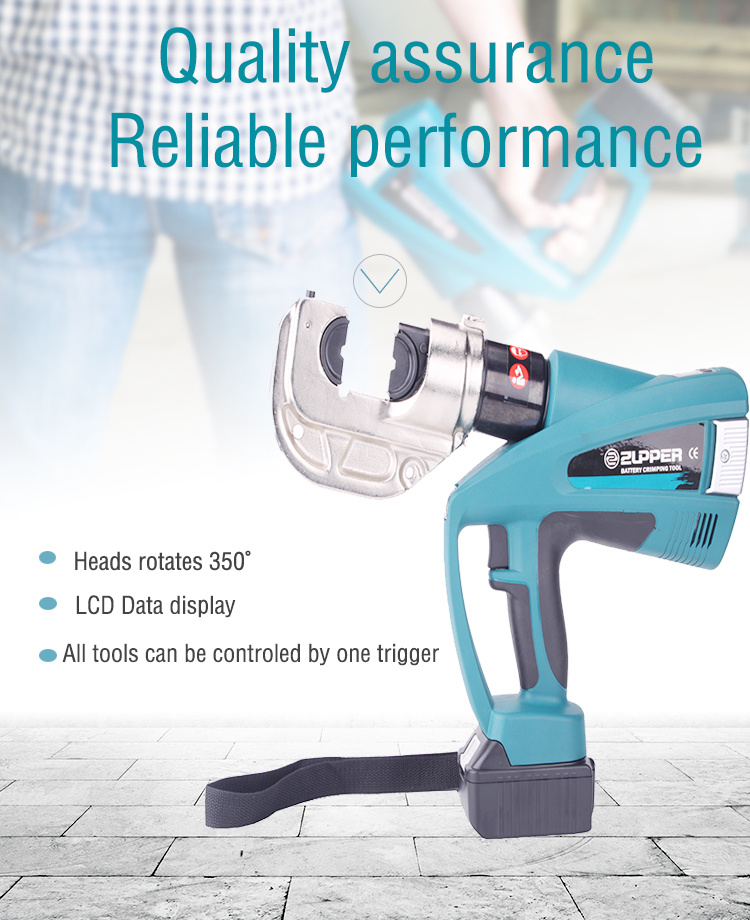

1.350° rotary head with flip top crimping head,working at any site.
2.Sudden suspend function can be controlled at any time,even can retract manually.
3.According to ergonomic design with antislip handle.
4.Micro computer control system with the feature of self-pressure inspecting,duble protection during operation,counting and realize the exchange between computer with data by the converter.
5.High performance Li-ion battery to provide stronger poer source,no discharge memory effects,one time charge 300 times can be effective for crimping.
6.LED light make your working comfortable in dark enviroment.
7.Precision hydraulic valve control system and electric sensor control system of double safety monitoring protection.
8.USB connect to memory crimping time.
Q 1: Is the whole working procedure finished by your workshop?
Re: Yes, the whole working procedure finished by our workshop.
Q 2: How about your stock?
Re: We always are not in stock, we produce as customers' requirement.
Q 4: What is your delivery time ?
Re: It depends on your order. Normally3- 7days for samples, 30-45days for standard, 30-60 days for customized.
Q 5: How do you guarantee your quality ?

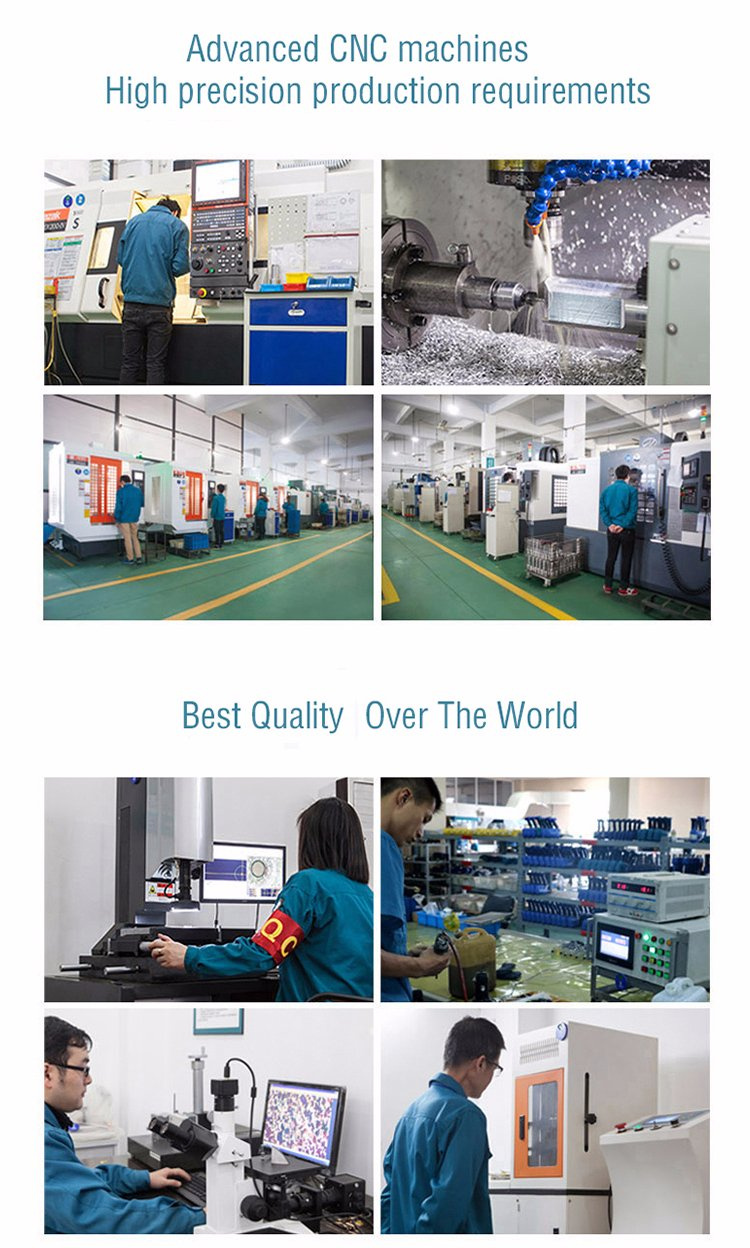

Re: Firstly, we do quality test during every process. We produce most components by ourselves, it is started from cutting raw material ,machining roughly in the first step. casting ,forging ,punching ,heat treatment ,finish machining ,painting ,assembling and finally packing ,we will spot check for each steps.
Secondly, we will collect all comments on our products from customers in time. And try our best to improving quality all the time.
Q 6: What's your warranty time?
Re: The warranty time is 12 month.
Sample trial order is welcomed.
You can visit our factory at any time.

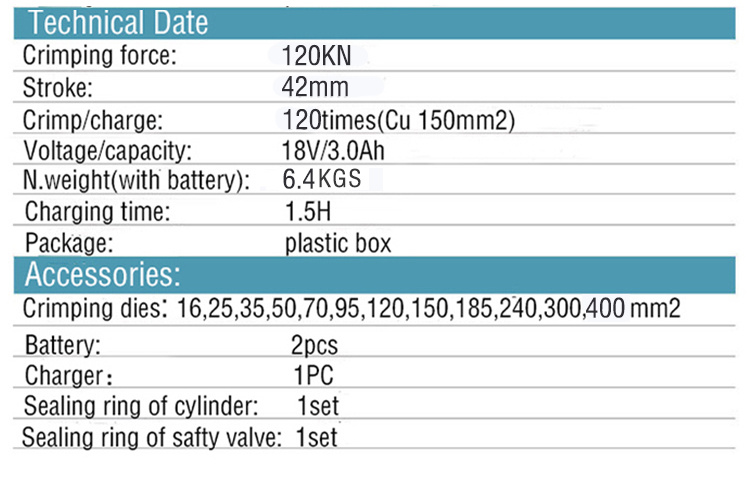

| crimping force | 120KN |
| stroke | 42mm |
| crimp/charge | 120times(Cu 150mm²) |
| crimping cycle | 6s-18s(depend on the size of cable) |
| voltage | 18v |
| capacity | 3.0Ah |
| charging time | 2hours |
| package | plastic box |

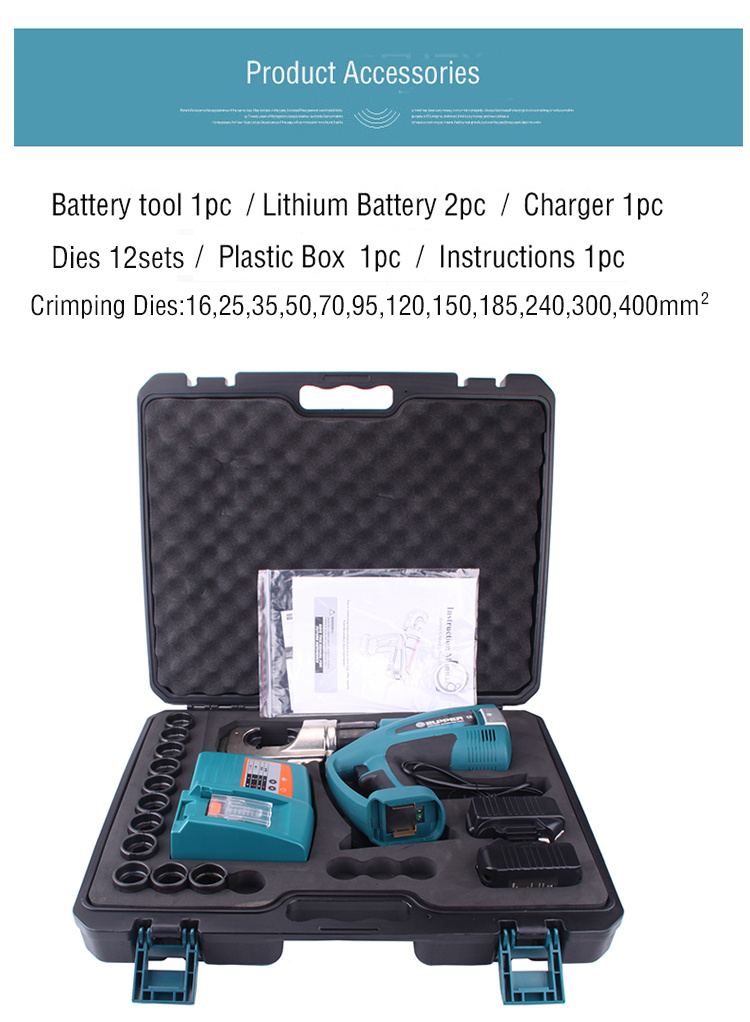

| accessories | |
| crimping dies 16,25,35,50,70,95,120,150,185,240,300,400mm² | |
| battery | 2pcs |
| charger | 1pc |
| sealing ring of cylinder | 1set |
| sealing ring of safety valve | 1set |
| Prod Model: | BZ-400 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Crimping Force: | 120kn |
| Stroke: | 42mm |
| Crimp/Charge: | 120times |
| Crimp Cycle: | 6s-8s |
| Voltage: | 18V |
| Capacity: | 3.0ah |
| Package: | Plastic Box |
| Charging Time: | 2 Hours |
