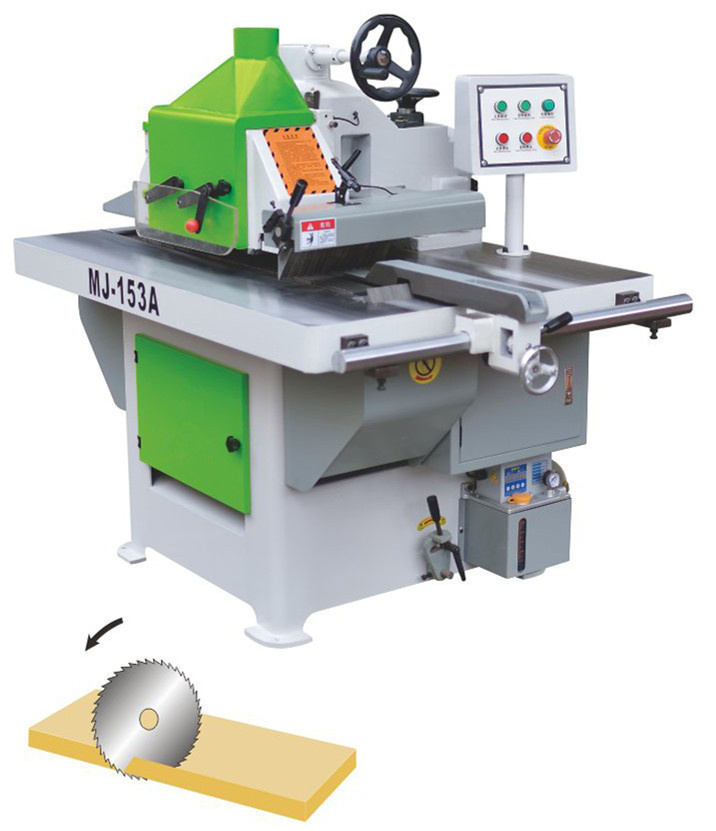

Automatic Feeding Single Blade Rip Saw for Sale

Automatic Feeding Single Blade Rip Saw for Sale
Price: US $ 3000-3200/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Single Blade Rip Saw For Woodworking

Model MJ153
Sawing width360 mm
Min sawing length200 mm
Sawing thickness10-82 mm
Saw blade diameter300 mm
Spindle diameter30 mm
Spindle speed5000 r/min
Main motor7.5 kw
Feeding speed15,20,25,31 m/min
Overall dimensions1669*1045*1356 mm
Net weight924kg
Voltage 380V, 3Phase, 50Hz
Packaging Plywood box


Feature:

1.The device equipped with protection-back retaining device ensure the safety of operating personnel,it is strictly forbid to tune up or dismantle protection-back device.
2.The cover cap of the saw equipped with sensors,when opening the cover cap,the equipment will automatically shut down.
3.The device must start the saw blade first to start transport.
4.The electric box set the automatic protection system,when the oil pump runs out off oil,it will automatically shut down to protect the rail and chain plates.
5.The machine installed infrared alignment device,in order to find the exact location to improve the efficiency of wood processing.

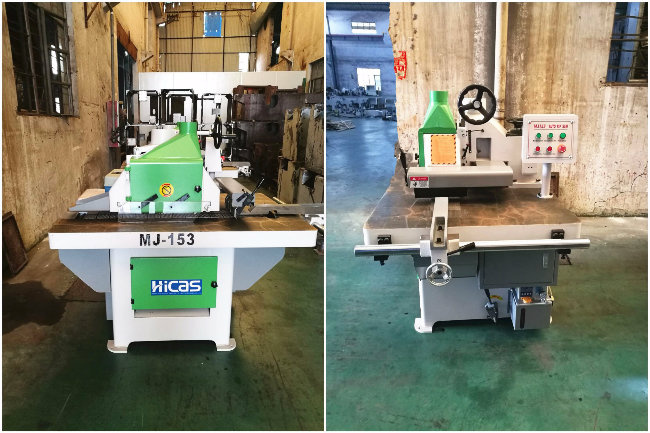

Machine's overview

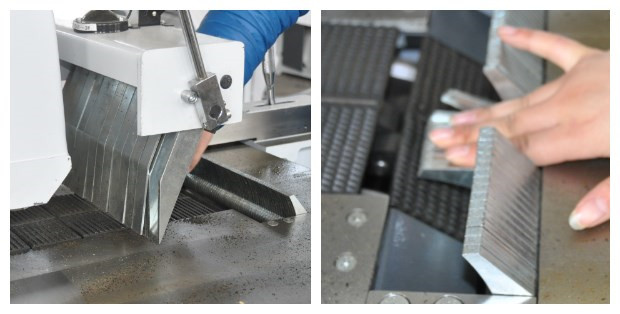

Details
protection
1) Anti-kickback device on working platform, avoided working pieces's kickback and ensure safety cutting.
2) Automatic feeding conveyor chain blocks made by special materials with tooth surface for better
friction and resistance, stock feeding more smooth.

worktable
Smooth and strong working table to ensure the durability and stability of the machine

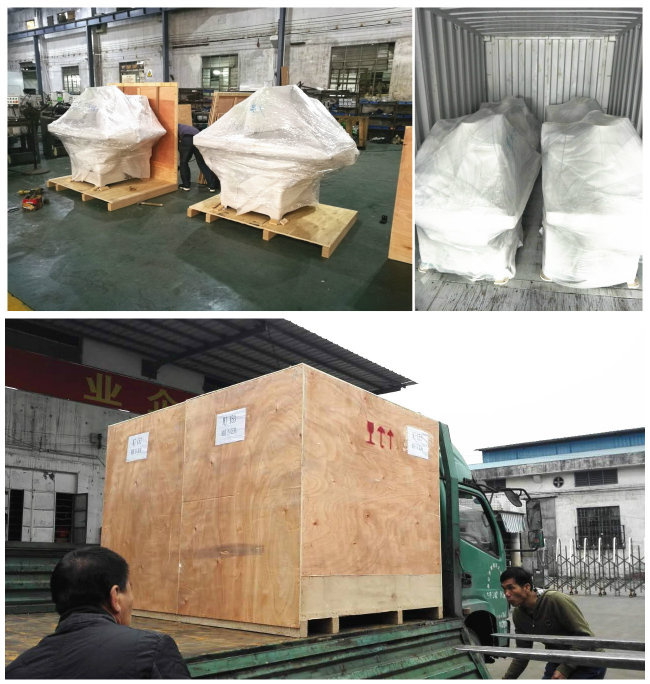

1.Packing details: Stretch film with wooden case or as your request.
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation

Hicas Machinery Co,.Ltd is located in the beautiful coastal Qingdao city, which is also famous for woodworking machinery. We are professional in providing Chinese leading woodworking machinery products, whole-factory solutions and excellent services. Now, we are engaged in offering woodworking machinery, metalworking machinery, packing machinery,WPC machinery and corresponding spares parts and raw materials. Our company has own professional technical team to make sure the perfect import and export service system run well. With years of experience, we have established long and strong business relationships with more than10 professional distributors all over the world. We are the sole buying agent of customers from Russia, the Middle East, South Africa and Brazil. We always welcome partners to join us and develop the business together. Under the guideline of "High Class Service", we would like to continue providing the best service for customers who need machinery. In accordance with the principle of mutual benefit, we are going to have a pleasant corporation.

Our Service

Pre-sale services
1> Provide the free consultation of the equipment
2> Provide the standard device and the flow chart
3> According to the clients' special requirement, we offer the reasonable plan and free design helping to selecthe equipment.
4> Welcome to visit our factory
Services during the sales
1> Inspect the machine before leaving the factory.
2> Oversea instal and debug the equipment.
3> Train the first-line operator.
After sale services
1> 24 hours online service
2> Provide the VIDEO with Install and debug the equipment
3> Provide technical exchanging


FAQ
1. Can we visit your factory?
We do welcome our new and regular friends come here to have a visit. Besides, we would send you our relative information to promote a face-to-face meeting if you'd like to.
2. What's your warranty of your products?
Our machines have best quality and its warranty is 1 year.
3. How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.
4. What's your payment term?
30% advance payment and the balance payment should be paid before delivery but after inspection.

Prod Model: HC-MJ153
Model: Hc-Mj153
Brand: Hicas
Name: Single Blade Rip Saw
Blade Diameter: 300mm
Voltage: 380V, 3 Phase, 50Hz.
Application: Woodworking
Usage: Cutting Wood
Power: 9kw
Weight: 950kg
Service: Working Video
Type: Rip Saw
Layout: Vertical
Automatic Grade: Automatic
Certification: ISO
Controlling Mode: Automatic
Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.

Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.

We have our own trade services company, currently has online service department, network development department and purchasing department.

We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
