| Price: | Negotiable/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
RUIZHOU CNC Cutting Machines are uauslly applied in different kinds of soft materials cutting. It can cut grey board, corrugated paper, honeycomb board, chipboard fiber board and KT board, cloth, fabric, Car mats, foam and composites materials(glass fiber, carbon fiber).
Our CNC Cutting Machine is equipped with multi-functional combined cutting tools, CCD positioning system, advanced frequency converter and other devices or components with good quality. It causes no burning or smell in the working process. It is unique and user-friendly. And RZCRT5-1813E CNC cutting machines are suitable for small-batch production. It helps save time and labor force.

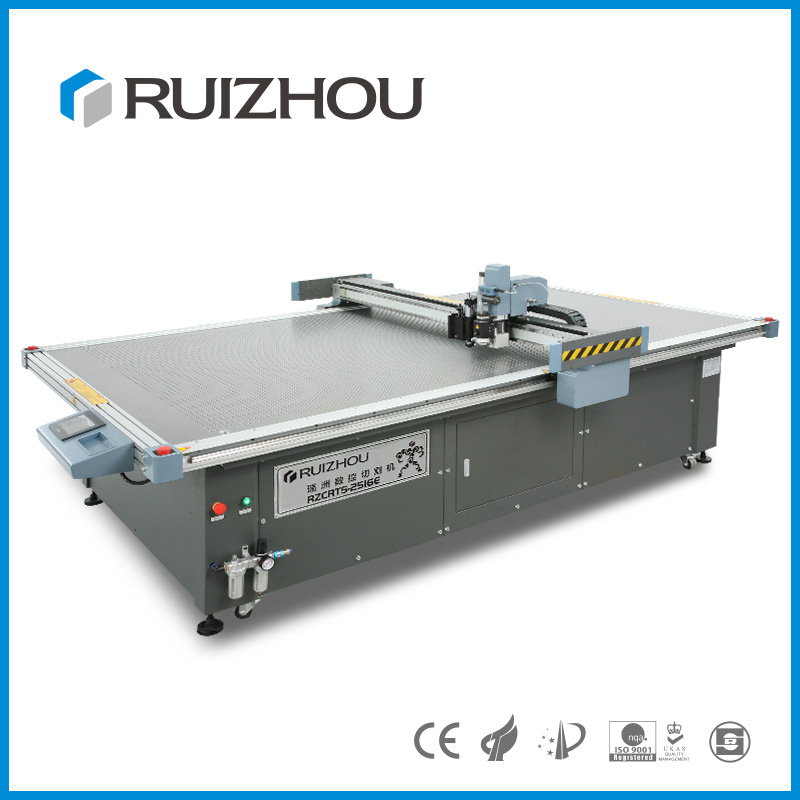

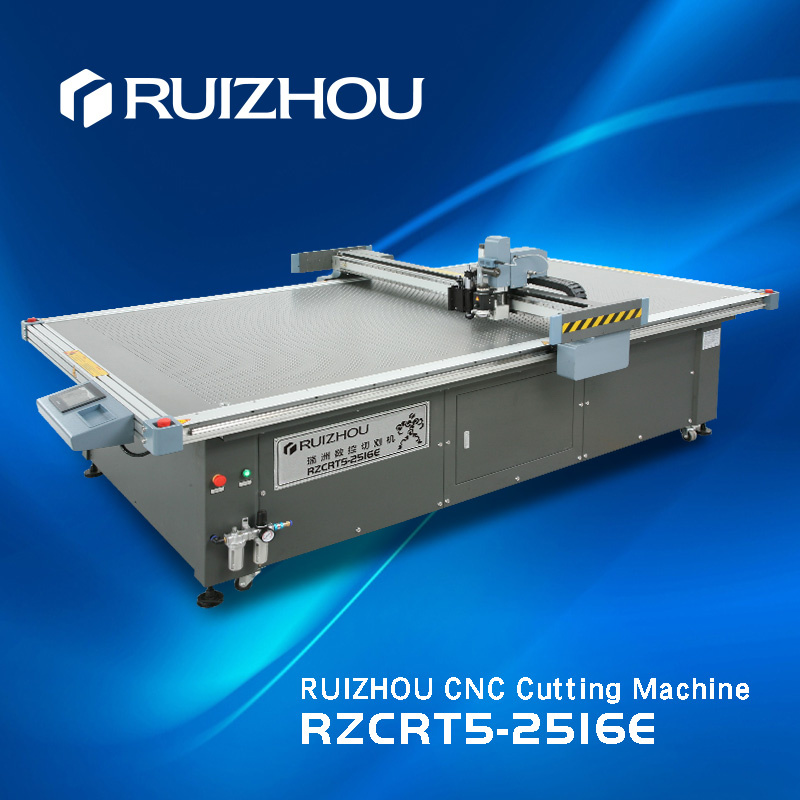

| Model of patterncutting machine | RZCRT5-2516E |
| Effective working area | 2500mm×1600mm |
| Cutting speed | 0-1200mm/s |
| Cutting thickness | 0-25mm ( customized cutting machine can up to 50mm) |
| Method of fixing material | Divisional vacuum absorption |
| Cutting tools | Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel |
| Types of pen | Gel pen, Mark pen, ball pen, silver pen |
| Human Machine Interface (HMI) | Touch screen LCD |
| Motor | Servo Motor, Stepper Moter |
| Cutting accuracy | ±0.1mm |
| Machine resolution | 0.01mm |
| Software resolution | 0.025mm |
| Interface of transmission | Network port |
| Gearing | Linear guide and gear rack |
| Machine voltage | 220V±10% |
| Air pump power | 9KW |
| Energy saving device | Frequency converter |
| Software program | Independent research and development CNC software |
| Control system | Cutting table and computer display |
1. Knife cutting, not by laser. So it causes no burning to the materials. No smell.
2. Accurate. oscillating knife, CNC computer control and servo motor, especially Ruizhou independent developed system enssure good cutting quality.
3. Saving. With Ruizhou automatic Nesting system, the material utilization can be improved by 5%.
4. Convenient. Both flatbed table and auto conveyor table are optional. With auto feeding system, the convenience and efficiency improves a lot.
5. Compatible. Files in DXF and PLT formats are supported. And software which can export DXF or PLT files are compatible with this machine.
6. User friendly. Operation is easy. A free training can be offered.

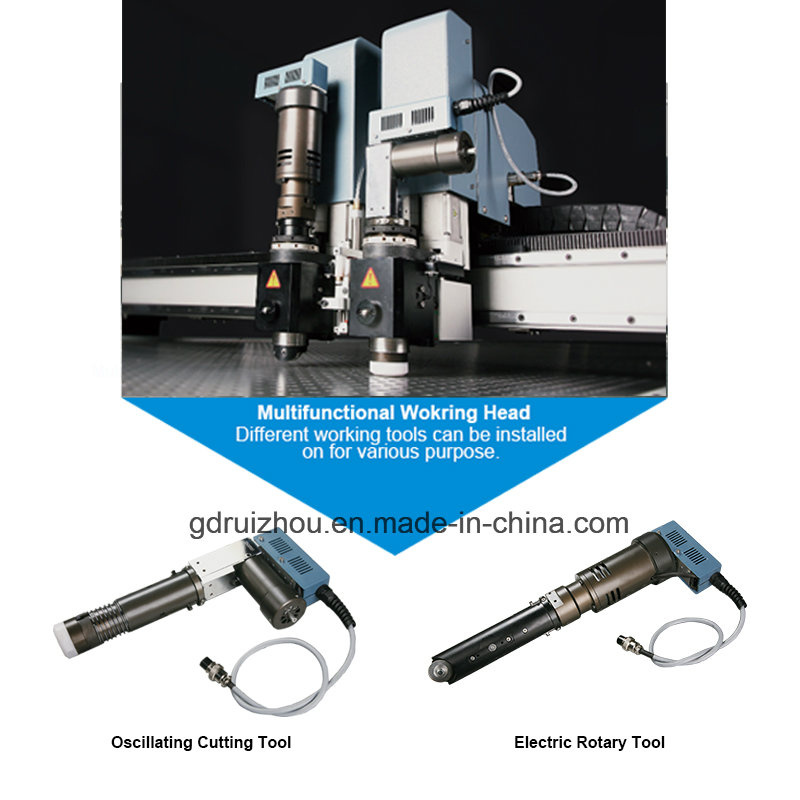

1. Oscillatin Cutting Tool
It is fast, accurate and no burning nor smell.
2. Electric Rotary Tool
It is more fast an low noise.
Cutting Samples of Cloth Cutting Machine

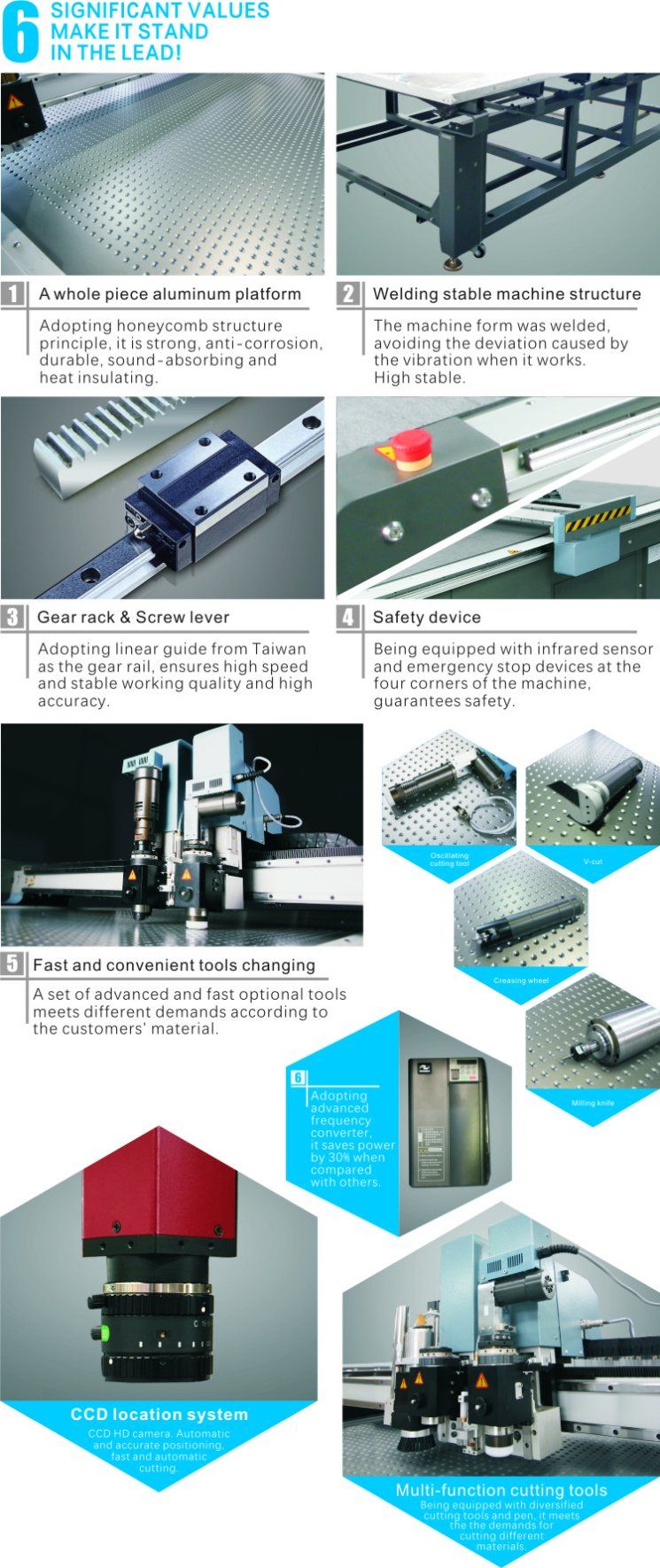

Our Advantages of CNC Cutting Machine
Innovative Features | Advantages |
Imported American CPU Precise electronic components | To make the stability and operability of pattern cutting machine reachs world-class level. |
| Self-developed built-in CNC control system | Full intellectual property rights of this system can ensure constant upgrade on this control system. |
Accurate lase registration system Precise cutting head | Suitable for high accurate cutting |
| mported linear guide rail & famous driving motors | Ensuring fast cutting speed, smooth cutting process, high accurate and the repeatability of cutting result can reach down to zero error. |

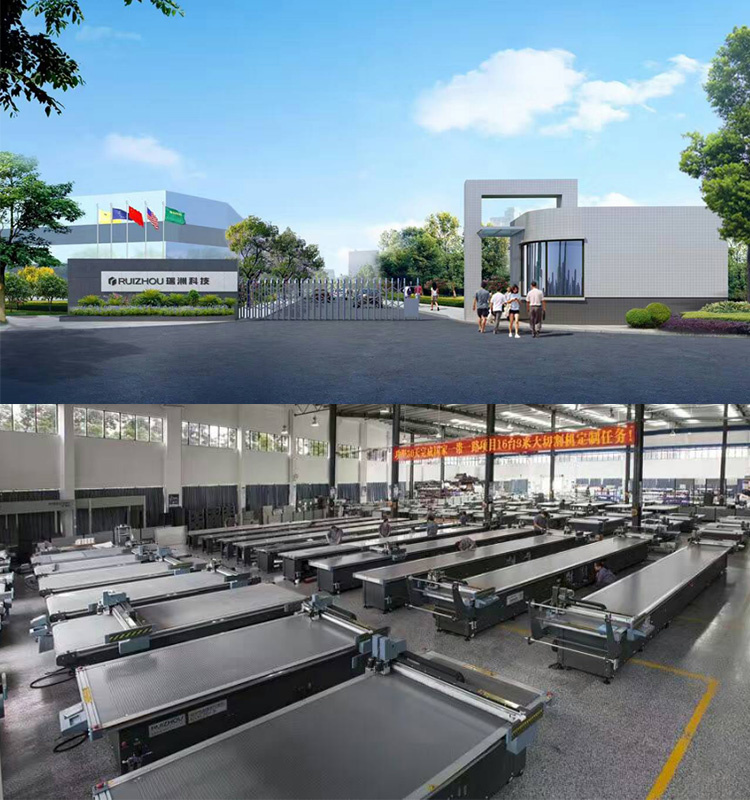

Guangdong RUIZHOU Technology Co., Ltd is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.
RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves the realization of the confluence of informatization and industrialization.
Related Products of Our CNC Cutting Machine
| Item Number | Working Area |
| RZCRT5-1007E | 1000X700MM |
| RZCRT5-1510E | 1500X1000MM |
| RZCRT5-1813E | 1800X1300MM |
| RZCRT5-2516E | 2500X1600MM |
| RZCRT5-2516EF | 2500X1600MM (with automatic feeding shelf) |
| RZCRT5-3016E | 3000X1600MM |
| RZCRT5-3016EF-2H | 3000X1600MM (with double cutting head ) |
| RZCRT5-3625E | 3600X2500MM |
| RZCRT5-3625EF-2H | 3600X2500MM (with double cutting head ) |
| RZCRT5-9009 | 9000X900MM |
| RZCRT5-9009-2H | 9000X900MM (with double cutting head ) |
| RZCRT5-12009-2H | 12000X900MM (with double cutting head ) |
| RZCRT5-12016-2H | 12000X1600M (with double cutting head ) |
Warranty & afert sale service
1.One year guarantee for whole machine except of consumables such as knife blade, mat.
2. A free training at our company
3. 24 hours technical support
4. Calling or door-to-door service
5. User friendly English software, usual manual and videos.
FAQ
Q1: What professional suggection can you give when I need to buy RUIZHOU cutting machine?
A1: 1)Pls inform us what materials do you cut and your materials' size(width and length). We will recommend you suitable model according to your materials texture and size.
2)And it is appreciate if you can send us some materials for trial cutting, we will record cutting videos for your reference
3)If it is possible, welcome to visit our company and factory.
Q2:How about your cutting machine's certification?
A2:We process CE, ISO and TUV certificates.
Q3:Are you a trader or a manufacturer?
A3: We are a professional and famous manufacturer of cnc cutting machine in China, which has more than 20 years experience, named RUIZHOU.
Q4:What materials can your machine cut?
A4: Ruizhou cutting machine can cut different kind of soft materials. And it is applied in different inductries, such as shoes, bags, garment, carton boxes, composite materials, automotive industries, etc.
Q5: How to use the machine?
A5: If you buy our machine, we will provide free installation and training.
Q6:What after-sales services can your company provide?
A6: We provide one-year free warranty at home and abroad.
| Prod Model: | RZCRT5-2516E |
|---|---|
| Working Area: | 2500mm X 1600mm |
| Machine Dimesion: | 3300mmx 2200mm X 1350mm |
| Weight: | 720kg |
| Cutting Speed: | 0mm - 1200mm/S |
| Cutting Thickness: | 0.5mm - 50mm |
| Original Place: | Guangdong, China |
| Name Brand: | Ruizhou |
| Voltage: | 220V±10%; 380V ± 10% |
| Knives: | Oscillating Blade Head, Milling Cutter, Hobbing Cu |
| Method Of Fixing Material: | Divisional Vacuum Absorption |
