Automatic Electric Extruder Hand Welding Tools for Plastic Material

Automatic Electric Extruder Hand Welding Tools for Plastic Material
Price: US $ 1000-2000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
1.Product

Automatic Electric Extruder Hand Welding Tools For Plastic Material

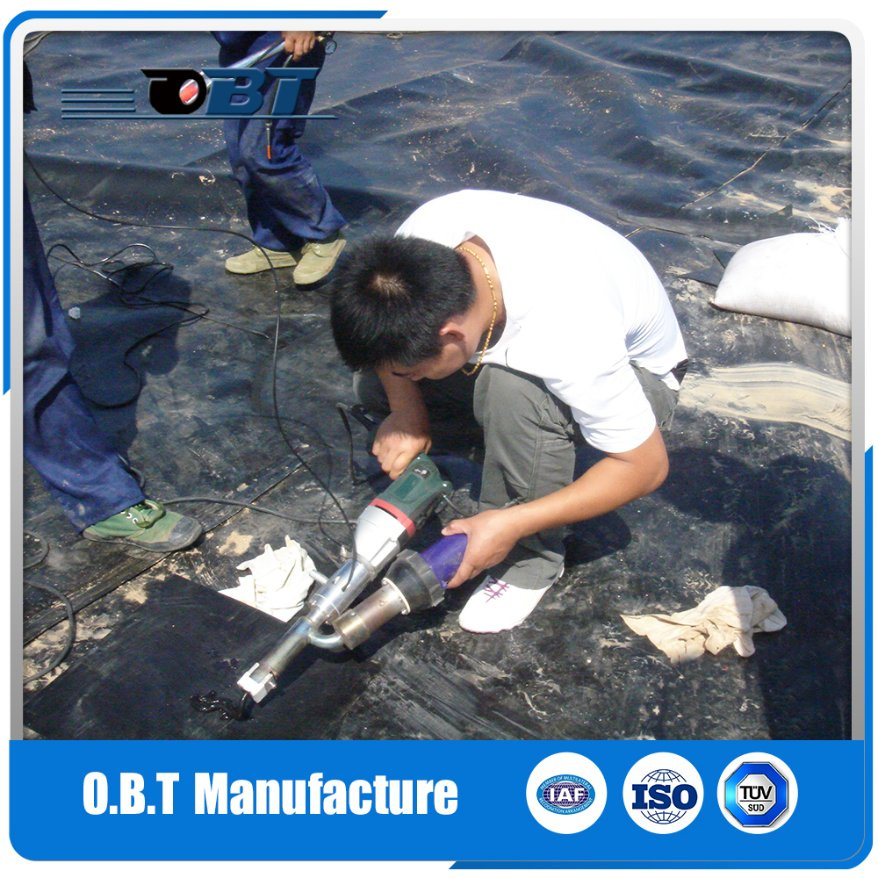

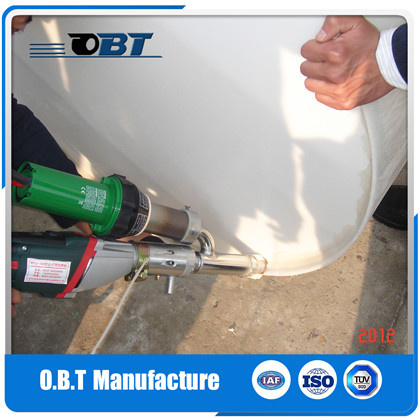

2.Picture





3.Technical Specifications

SpecsParameters
VoltageAC 220V
PowerExtruder 1100 W
Hotting air fan 3400W
Temperaturewind temperature 20-600ºC,
heating temperature 200-260ºC when extruding out
Preheating hot air consumption300-500L/min
Diameter of plastic rodΦ3.0mm---5mm
Suitable for materialHDPE, PP, PE, PVC, PVDF

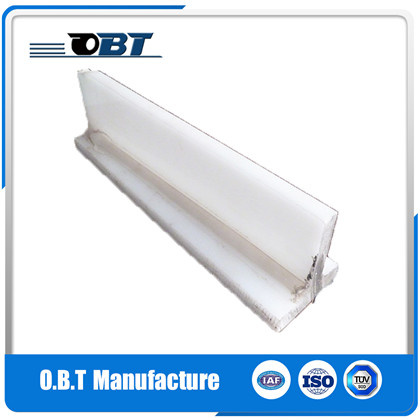

The welding joint width10mm

4. Applicable Range Technical Specifications

1.  Thermo plastic : HDPE ,PP,PVDF,PVC
2.  The welding joint can be above 10mm wide.
3.  Please do not apply to  plastic of electrical conductivity  (PE - EL), which can
    make the machine have electrical conductivity.

5.Operating Method

1.  Place the welding torch on the bracket, insert the power plug into power socket.

2.  Turn on the power switch of  hot air fan,  adjust the turning knob to the 5th or 6th gear, then heating for about 8 to 10 minutes until the material on the welding nozzle softening.

3.  Then set the extruder in D or E , pull the button, the motor began to run, while for the new machine, there may be noise, it can be relevant with the resonance of the basis and the machine or have relationship with the compactness of internal parts of the machine, It will disappear automatically after running-in.
The motor speed is easy and fast when idling , and it will become heavier after feeding material. But if it becomes very difficult, please stop it immediately. It is because the screw heating time is too short or the temperature is too low.

4. The welding speed, discharge, angle, the structure of the welding nozzle will determine the evenness and outlook of the welding joint. The strength depends on the preheating air temperature and air velocity, the average air temperature is at 300 ºC, the faster the welding speed, the higher the temperature is needed.

5. When the hot air is moving with the torch, it just needs to make the welding material surface loses luster. So the higher temperature, the better welding effect is not right . Choosing the right temperature is very important.

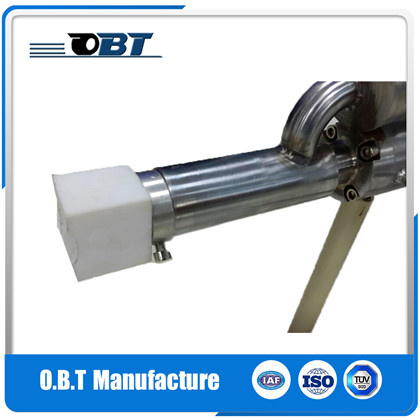

6. When replacing the welding nozzle, please don't make hard knocking, it needs to be taken off when heating.

7. When the carbon brush of the hot air fan has reached its limit, the motor will automatically stop working. The lifespan of the original carbon brush is about 800 hours, the service life of carbon brush is commonly 4 to 6 months, please pay attention to change it in advance.

8.  Before outage , the heating air temperature knob of the hot air fan should be set to "0" gear. After blowing for several minutes , the hot fan can be turned off.

9.  After using, it needs to retain few material within the flumen of the welding torch to avoid barrel sliding when screw idling.

Attention : For the PVC material, it needs to be extruding out by replacing with PP or PE after using.

6.Safety Precautions

1. Incorrect use of this tool may cause fires and burns, therefore, it is strictly prohibited using without the relevant personnel training.

2. The incorrect use of accessories not according to our company's  recommendation may cause danger of personal injury.

3. Operators should wear labour protection goods.

4. Prevent from heat burns and leakage risk caused by the heat of the welding torch or the power supply.


5. Based on the protection principle of the user, please install leakage and overload electrical appliances on the power supply.

6.  Be aware of that the machine cann't be affected with damp,  moreover it cannot be used in a wet environment.

7. Keep high alert, fully acknowledged when operating . Don't start the electric tools when tired.

8. Repairation and adjustment should be made under the guidance of professionals. Removing and adjustment without consent of our company are not allowed . Our company will assume no obligation to provide free warranty and other possible adverse consequences of responsibility.

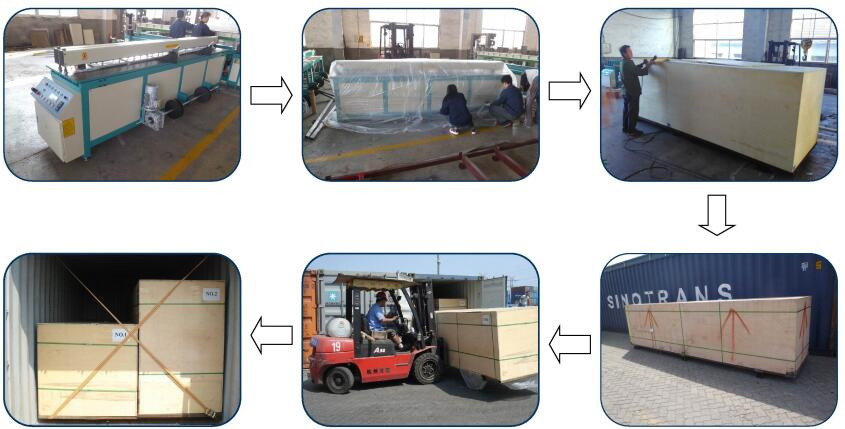

7.Perfect Package

HDPE Pipe Butt Fusion Welding Machine

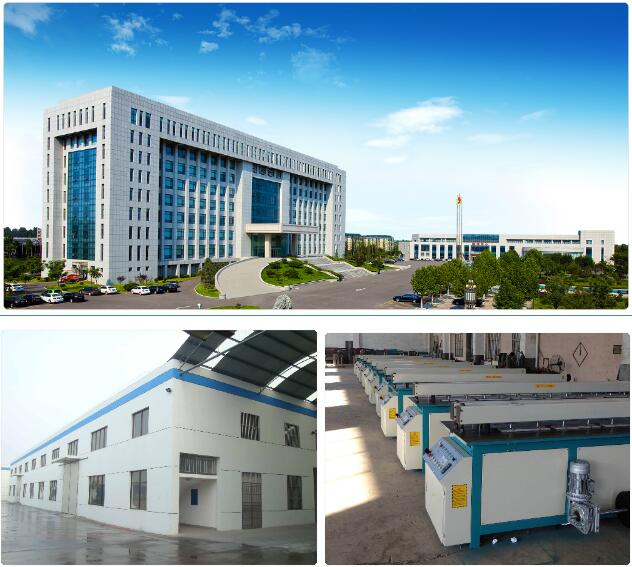

8.Company information

Qingdao O.B.T Manufacture Co., Ltd. is a professional manufacturer and exporter with over 18 years of experience in the manufacturing of plastic welding&bending equipments.

All products are designed and built according to International standards and directives. Since the very beginning, quality and technology innovation are OBT's milestones, and time after time, this philosophy is always more recognized by the global market. OBT's strong points are its ideas to design and produce accurate, efficient, versatile, and easy-to-use welding&bending machines.

Products range includes butt fusion, fast bending, extrusion equipments and panel saw.OBT is also providing production lines for PP/PE/PVC sheet, hollow wall winding tube, plastic rod etc.


Excellent geographical location and convenient transportation guarantee our fast delivery and prompt shipment; Excellent technology team and strict quality inspection make sure of top-quality with best prices for you.

Based on these advantages, we sincerely hope to cooperate with the customers all over the world for mutual development and benefits.


Plastic PP PE Sheet Bending Machine Price

9.Our advantage


1)One-stop Shopping

We focus on plastic welding/bending industry for over 18 years and we can produce equipments range includes butt fusion, fast bending, extrusion equipments and panel saw. OBT is also providing production lines for PP/PE/PVC sheet, hollow wall winding tube, plastic rod etc.

2) Reliable Quality

With most-to-up technology and top designers from Germany we successfully desing and manufacture for customers, and our equipments are certified by SGS, BV, TüV.

3)Technical assistance
We have professional designers and engineers to meet your special requirements. Meanwhile, we'd like to provide training for our customers.

4.)Best logistics
We guarantee shipment within 10 days after receiving the deposit. In addition, we offer multiple ways of transportation for your choice and to-door service if you need.

5)Completed supplement of replacement parts
As long as you purchased equipments from us, we would provide any replacement part of your equipment at any time you need.

Welcome your inquiry and sample order !!!
Prod Model: FSJ-16C
Payment Term: T/T or L/C
Drawing: Special Design for You
Material: Metal
Power: Transmission Motor 1100 W
Hot Blast: 3400 W
Temperature: 200-300ºC
Voltage: 220 V
Product Type: PVC Pipe
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008
OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In 2007, we merged the company CSRS for axle and suspension, built our trailer company B&C in Australia in 2010, we build our tyre branch ZERMATT in 2013, special for tires, in order to expand our business areas, we built our branch company SCG in Singapore in 2014, and also in 2014, we merged the Ocean Navy Logistics to perfect our transportation system. After 18 years of pioneering spirit, it has developed into an important vehicle and auto parts production base and export base.

OBT Group now has three independent Division---- Production Sector, Trade Sector and Singapore sub-sectors, involved in transportation, trailer and agriculture machine manufacturing, parts production and international trade fields.

With most-to-up technology and top designers from Singapore and Germany we successfully design and manufacture for Shell, BP, ExonMobil, Singapore Fire, Canada Fire, and Turkey moving company, etc.

We accept any kind of technique cooperation including to offer full exclusive custom design manufacture and service

With the combination of modern equipment and advanced processing technology and perfect quality control system, we always adhere to the principle of "Top quality, reasonable price and good after service"
