Home Toolbuy Products Automatic Cutting Machine 4000W Fiber Laser Cutter Stainless

Automatic Cutting Machine 4000W Fiber Laser Cutter Stainless

Automatic Cutting Machine 4000W Fiber Laser Cutter Stainless
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T

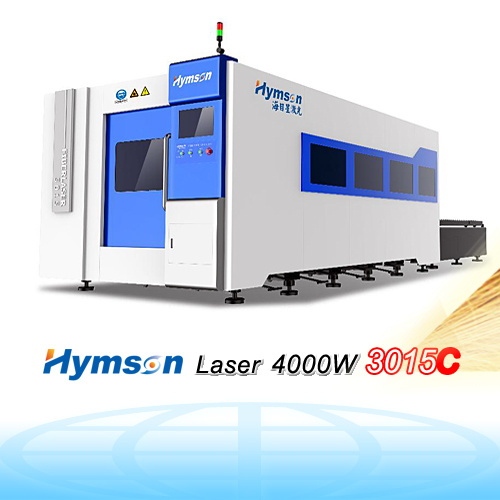

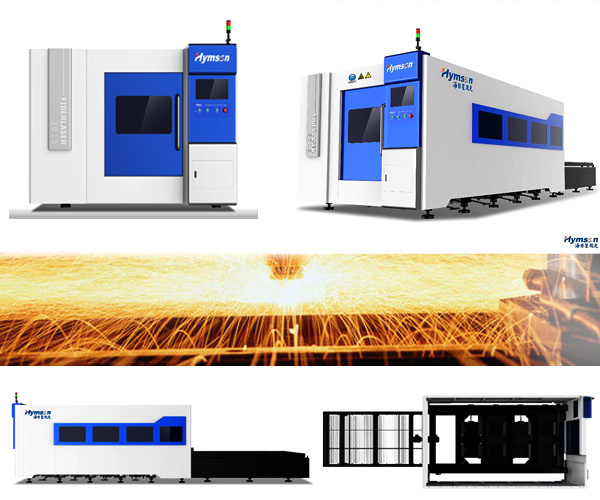

HF3015C-4000W Automatic Fiber Laser Cutting Machines For Metals
Hymson Laser Cutting Machine are distinct from traditional laser machine. Since the laser never makes physical contact with the metal, there is little to no wear on the equipment, and there is less opportunity for the material to become contaminated. In addition, fiber laser cutting leaves much fewer burrs than traditional laser equipment so your product is virtually flawless.


------------------------------------------------------- Equipment Structure -----------------------------------------

Hymson Double-stageOld-style Up and down exchange boardSimilar Double-stage

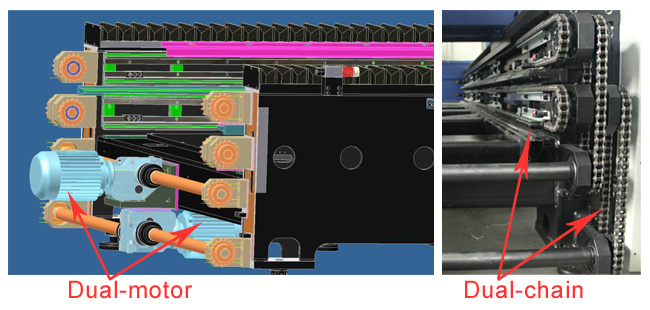

 Doual-motor & Double chain configuration
 8 sets of  high strength chains
Simple high and low lift structureSingle-motor & Sigle-chain
 Structural and Exchange performance stabilit
 Avoid deviation or collision
Slow speed
poor stability
Easy to deviation
 Zero positioning consistentZero positioning consistentZero positioning has deviation
 Stability exchange speed within 8~15scommon exchange speed within 30~60sCommon exchange speed within 8~15s
 Flexible setting linkage system or running independentlyOnly linkage systemOnly linkage system
 Easy to handle freezes and crashesDifficult to handleDifficult to handle
 Easy to clean the waste under the machine tool //
 Meet special Plate loading and unloading
 Single-motor & Sigle-chain
//


-------------------------------------------------------------------------------------------------------------------------------------

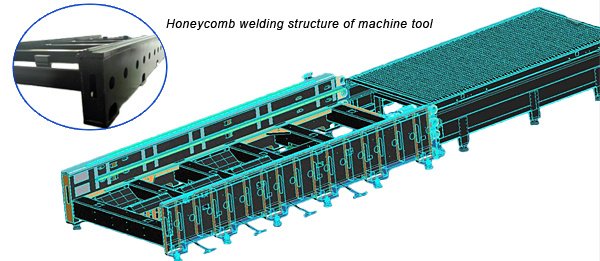

· The utility of honeycomb welding structure

1. High precision, ensure the stability of the machine for a long time.
2. The machine tool and bea using honeycomb welded structure to ensure that the tremendous thrust  from motor and reducer distribute evenly to the machine tool for greatly reducing machine vibration.


-------------------------------------------------------------------------------------------------------------------------------------

· Intelligent servo exhausting system

1. Hymson adopts centralized partition
 air draft intelligent control each subarea cylinder, excellent dust extraction .
2. Provide multiple protection on heat resistant material.


-------------------------------------------------------------------------------------------------------------------------------------

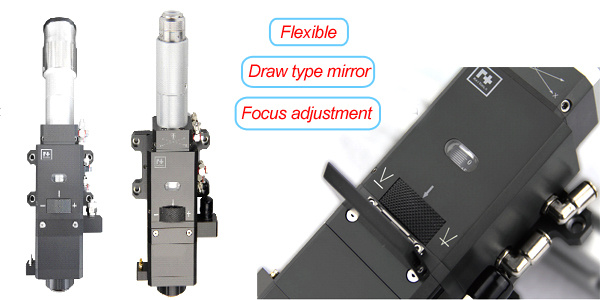

· RayTools BT240 Series Cutting Head

1.Max. support 4000W fiber laser generator.
2. Optimize optical configuration & smooth and efficient airflow design More economical loss protection lenses.
3. High-precision vertical, optimized cutting section.
4. The rotary focus adjustment and focusing convenient.
5. Using drawer mirror base, easy accessibility.
6. conducive to high anti-material cutting and slab explosion hole sputtering.
7. Collimating lens / focus lens dual water-cooled structure, better cooling effect.


-------------------------------------------------------------------------------------------------------------------------------------

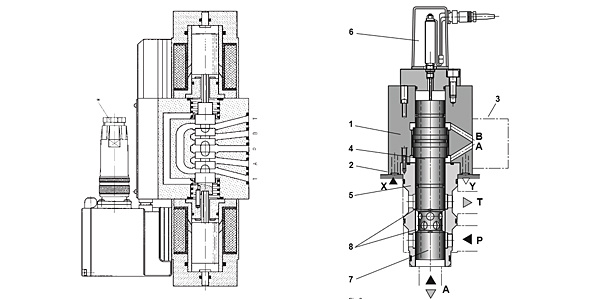

· Automatic Proportional Valve

1. Pneumatic components equiped AirTac, rexroth, etc
2. Freedom to choose nitrogen, oxygen, air.
3. Low pressure cutting is controlled by proportional valve automatically.
4. To help improving the effect of cutting technology and cutting effect.
5. Special processing capacity for Sharp corners / thick plate holes.
6. Reduce the artificial adjustment work, improve the production efficiency about 30%~50%.
7. Saving gas usage about 20%~40%.


------------------------------------------------------------ Technical Data ----------------------------------------------

 ModelHF3015CHF4020CHF6020C
 Laser Power1500W / 2000W / 3000W / 4000W
 Cutting Range3050mmX1550mm4050mmX2050mm6050mmX2050mm
 Z-axis travel240mm240mm240mm
 Positioning Accuracy±0.03mm/m±0.03mm/m±0.03mm/m
 Repeatability±0.02mm±0.02mm±0.02mm
 Max. Moving Speed120m/min120m/min120m/min
 Max. Acceleration1.2 g1.0 g0.8 g
 Equipment Weight60m/min60m/min60m/min
 Max. load of worktable1.0g1.0g1.0g
 Area covered8.8t11.6 t14.8 t
 Power IP level1.2 t1.8 t2.2 t

· Cutting Range
Stainless steel : 1.0~12mm
Aluminum(Magnesium) : 1.0~12.0mm
Brass : 1.0~8.0mm
Carbon steel :  1.0~22.0mm


FAQ:
Question 1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

Question 2: This is the first time I use this kind of machine, is it easy to operate?
We will have the free technical training,and send you Software Operating Instructions in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.


Question3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".you need to pay the postage.

Question4:What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

Question 5:How long is the delivery time?
For standard machines, it would be 20-30 days; For non-standard machines and customized machines according to client s specific requirements, it would be 45 to 60 days.

Question 6:How's the payment?
Telegraphic Transfer(T/T).

Question 7:Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.


Question 8:How is the packing?
Exporting Standard Package
Prod Model: HF3015C
Laser Power: 4000W
Stainless Steel: 1.0~12mm
Aluminum(Magnesium): 1.0~12.0mm
Brass: 1.0~8.0mm
Carbon Steel: 1.0~22.0mm
1. Hymson Group Profile

Hymson technology group is a world-wide famous high-tech laser industry group, founded in 2007, specialized on R&D laser and automation, owns many top patents of laser productions and its products are popular for all over the world and admired for its comfortable wealth creation. National high and new technology enterprise qualification authentication. Owning 12 innovation patents, 6 software copyrights. Owning hundreds of patents for utility model. SGS and ISO9001 authentication enterprise. Won the second prize in the nation's highest specification innovation entrepreneurship competition (Intelligent equipment first Prize/ First prize in Guangdong province.

Subsidiary Corporation:

ShenZhen Hymson Laser Technology Co. Ltd

800 workers, 20K sqm factory, producing Laser source, Laser Micromachining, Special Laser machines, Laser automation lines, lithium battery Laser system. etc.

GuangZhou Hymson Laser Technology Co. Ltd

200 workers, 10K sqm factory, producing Full ranges of rapidly laser cutting

Machine for many metals with a kerf less than 20um, alloy /carbon/stainless steel, copper, aluminum, for all sizes metal cutting from size 3000*1500mm, 4000*2000mm and 6000*2000mm, from laser power 500W till 6000W.

Anshan Hymson Laser Technology Co. Ltd

100 workers, 5K sqm factory, producing All kinds of marking machines, including UV/Green/Fiber/CO2/YAG laser marking machines for electronic components, IC, electrical appliances, mobile communication industry, hardware, tools, plastics, precision instruments, medical equipments/packings, PPVC pipe, jewelry, auto parts, etc.

2. The core technology team and management team

Abundant experience in Laser & Automation products for 15 years+.

Group has many prestigious advisors and professionals in this industry

Of China and talents with doctoral and master's degrees.

Team members are graduates from top International universities, with abundant experience in overseas companies or foreign companies.

Granted: Nearly 30 invention patents, nearly 100 utility model patents, nearly 50 software copyrights.

Annual investment in research funding take up 9% of total sales.

3. Hymson's Industry First

First manufacturer of inverter fully-auto assembly line in the world.

First manufacturer of air-cooled UV laser source in domestic. (Advancer in the world)

First manufacturer of portable laser machine in domestic.

Fist manufacturer of mylar packing automatic production line with vertical technology.

First manufacturer who use CAN communication system in auto-workshop.

4. Awards and honors

National hi-tech enterprise qualification

Shenzhen high-tech industry association (Members)

Guangdong province power industry association (Counselor)

Guangdong province laser industry association (Outstanding contribution award)

Shenzhen advanced manufacturing association (Vice-chairman)

Hong Kong metal surface treatment society (Members)

Shenzhen machinery industry association (Counselor)

5. Advantage and solutions of Hymson laser cutting machine

Widely application service engineering mechanical, and building mechanical, and food processing mechanical, and textile mechanical, and light mechanical, and agricultural machinery, and oil mechanical, and electrical manufacturing, and tool manufacturing, and elevator manufacturing, and car manufacturing, and printing packaging, and decorative, industry, applies Yu Banjin, and pipe, and plexiglass, and template, and rubber, and ring oxygen glass Silk Board, synthesis material of cutting, and playing hole, achieved has in above industry of no die efficient of of production processing and in Stable & High efficiency & Intelligent,

6. Parts of Business parters

Apple, Foxconn, Huawei, Flextronics, Emerson, ZET, Delta, Foxlink, TDK, LENS TECHNOLOGY, ATL, GoldenSea, CIMC, etc.

7. Key Supplier

IPG, Beckhoff, Atlanta, Schneider, Precitec
