Automatic Clay Column Cutter for Brick Making Machine

Automatic Clay Column Cutter for Brick Making Machine
Price: US $ 10000-50000/Set
Trade Terms: FOB,CIF,DAP
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
                            Brick cutting machine
Product description

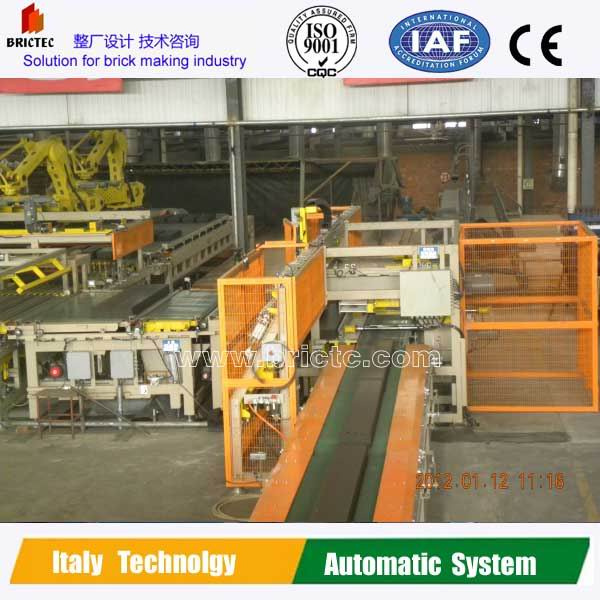

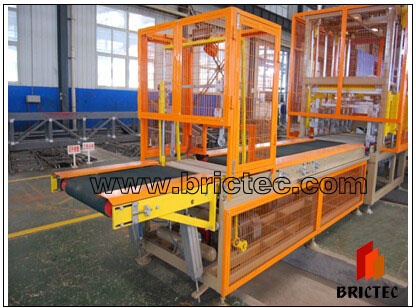

Slug Cutter SQT500*300 is mainly used for vertically cut of column from vacuum extruder and transport clay column in equal length to powered belt conveyer. The entire working process is under automatic control of PLC.
Its cutting wire are pneumatically tensioned, and the tension can be adjusted directing at different products, in order to keep wire sharp, sections flat and service life of wires improved. Before cutting, a sensor equipped on the driven shaft of conveyer can feed back the speed of clay material from the extruder to the control center accurately, and the cutting frame is driven to move simultaneously with the clay, ensuring the cutting sections of column to be perpendicular to the bottom surface, and reduce the waste.


Technical Parameters
SpecificationCutting Frequency (time/min.)Cut billet length(mm)Working Pressure (MPa)Power (kW)Dimensions(mm)
SQT500×30030>5000.6~0.8Single PowerTotal Power4300×1140×2065
2.25.75
1.5×2
0.55

Our Services:
Before-sale services:
(1) Tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing. (Confirm clay, power electricity, water, land area, fund)

(2) Guide customers to choose the best and economic plant, recover the investment within short time.

(3) site inspection

(4) We are responsible for the offer, flow chart, and detail specification of each machinery.

In-Sale services:

(1)Quality control must be inspected strictly

(2)In accordance with the agreements stipulated in the contract

After-sale services:
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.

(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
1. Daily wear and tear 2. Mishandling or improper operation3. Incoming power supply fluctuation
4. Consumable and spare parts.

(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.
Technological Process of the whole brick&block production line:

FAQ
1. what's the raw material for producing bricks?

Answer: clay,mud,gangue,shale etc.


2. how much land area for building a new brick plant?

Answer: it need above 20,000 square meters,the land area relate with capacity



3. when  you need our proposal and quotation,what you have to mention in your inquiry.

 Answer:please provide daily capacity,the brick size and you want to build a new brick plant or brick making machingery only. so we can give the proposal and offer accordingly.



4. what's the Trade terms?

Answer: it can be EXW,FOB,CIF,CNF,FCA,CPT, CIP

 5.Vido on line

http://www.brictec.com/video_big.asp?bigclassid=9

Prod Model: SQT500*300
Markets: North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia
Method: Autoclaved Aerated Concrete
Processing: Brick Cutting Machine
Product: Brick
Brick Raw Material: Clay
Automation: Automatic
Condition: New
Certification: ISO9001: 2000
Type: Brick Making Machinery
COMPANY INFORMATIONS:

In the year of 2011 Shandong Mine Machinery Cosmec Construction Materials Machinery Co., Ltd. And Xi'an Brictec Kiln Co., Ltd. Set up the joint venture of Xi'an Brictec Engineering Co., Ltd...Brictec engineering employing the former general manager of European COSMEC PICININI SRL, former chief drying engineer of PICININI, former chief kiln engineer of LAVAZZETTI. They work together with experienced domestic technical and thermal engineers, provide

1) The overall solution for the domestic and international brick factory turnkey project design, undertake and construction;

2) Brick making and automation equipment sales and after-sales service;

3) New brick equipment, new type kiln and new drying technology invention and R&D activities.

We have accomplished over 50 brick projects of engineering, trading, technical support in Asia, Africa and South America. We have also successfully constructed over twenty production lines in China.

OUR SERVICE:

Before-sale services:

(1) Tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing. (Confirm clay, power electricity, water, land area, fund)

(2) Guide customers to choose the best and economic plant, recover the investment within short time.

(3) site inspection

(4) We are responsible for the offer, flow chart, and detail specification of each machinery.

In-Sale services:

(1)Quality control must be inspected strictly

(2)In accordance with the agreements stipulated in the contract

After-sale services:

(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.

(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:

1. Daily wear and tear 2. Mishandling or improper operation3. Incoming power supply fluctuation

4. Consumable and spare parts.

(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.
