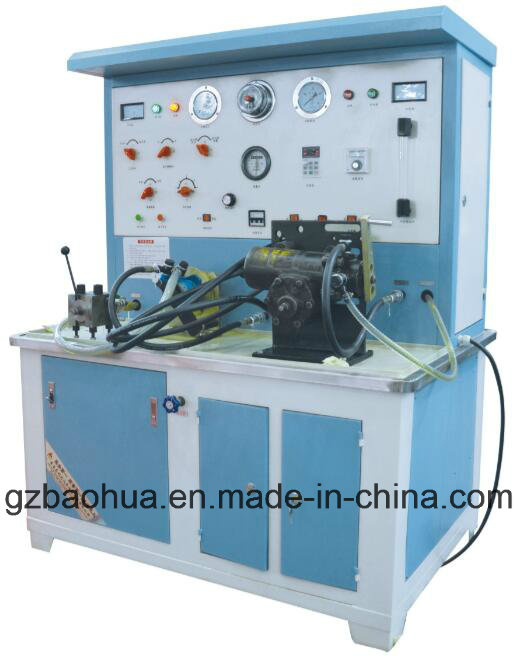

Auto Steering Gear and Sterring Power Pump Test Bench

Auto Steering Gear and Sterring Power Pump Test Bench
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

Test power pump : working speed, working pressure, oil flow rate
Test steering gear : input torque, output torque, working angle

Model OFY-3 Auto Steering Gear and Sterring Power Pump Test Bench
Function Introduction
It is used for testing steering gears and power pumps of various models trucks.
It possesses reasonable design, accurate test data and convenient operation.

Test item:
Pressure of power steering pump, can preinstall the rated pressure, automatic unloading
 Oil  flow of power steering pump
Revolving speed of power steering pump
Input and output torque of steering gear
Free stroke of steering gear
Working angle of steering gear
Performance of conversion valve assembly of steering gear
It displays measured data by digital display instrument.
It can be matched with computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of various models steering gears and power pumps.

Technical parameter:


English, etc


AC AC380V 50HZ  (Made to order )

Power of power pump motor


Frequency converter


Maximum working pressure of power pump


Motor power of power steering pump


Angle measuring range of steering gear


Maximum torque of steering gear

Input 500N.M; Output 6000N.M

Adjusting pressure of brake

 0--18 Mpa


 0-2400r/min(frequency regulation) diversion: positive, reversal

Heater power

1000W  220V

Rated heating temperature: 40°C (adjustable)



Warranty period

12 months

Payment term

T/T 100% in advance, the balance should be paid before delivery

Delivery time

30 days after receiving downpayment


Prod Model: QFY-3
Power: Electronic
Voltage: 380V 50Hz 3phase
Language: English
Input Air Source: 0-1.0MPa
Color: Blue
Warranty: 1year
N/G Weight: 250/295kg
