ASME B16.20 Spiral Wound Gasket
| Price: |
US $ 1-100/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
Product Type:XS-G1500
Features:

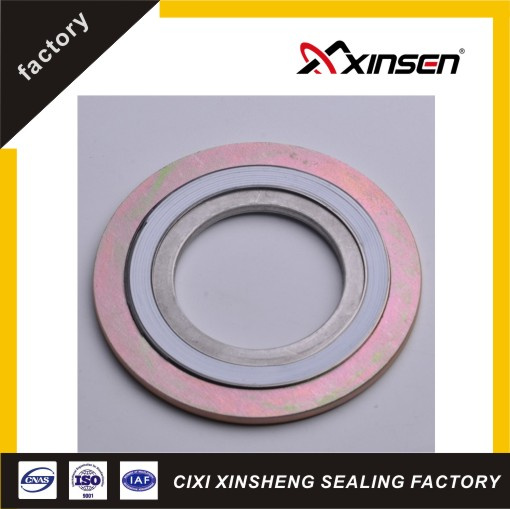

outer ring spiral wound gaskets consist of a metal guide ring and sealing element. The external ring accurately centers gasket on flange face: provides additional radial strength to prevent gasket blowout and acts as a compression stop. This profile is normally used in raised and flat faced flanged. The outer ring is often made of carbon steel (painted or zinc plated to prevent corrosion) but can be made of alloys for higher temperature and more severe medium applications.
| Style | Construction | Flange | Hoop material | Filler | Inner & outer Material | Size
(mm) | Thickness (mm) | | Material | Code | V | W | | | Basic type | Tongue and Groove | 304
304L
316
316LAlloy825 Monel400 Inconel625 S32750 | Asbestos
Graphite
PTFE
Non-asbestos
| ASB
FG
PTFE
NACF
| Carbon steel
304(L)
321
316(L)Alloy825 Monel400 Inconel625 S32750 | 16-3000 | 3.2
4.5 | 4.8
5.5
7.5 | | | With outer ring | Raised face Flat face | | | With inner ring | Male and Female | | | With inner, outer ring | Raised face Flat face | | | For heat exchanger | Heat exchanger |
|
| Prod Model: |
XS-1500C |
| Style: |
Mechanical Seal |
| Function: |
Dust Prevention Sealing |
| Application: |
Pump Seal |
| Shape (',For Gasket): |
Ring Gasket |
| Material: |
Metal |
| Standard: |
Nonstandard |
Cixi Xinsheng Sealing Factory develop and produce all kinds of sealing materials and products, our factory produce all kinds of seals, such as high-strength graphite gasket, PTFE gasket, graphite composite gasket. Is currently in a sealed area of advanced technology products are PRO - widely used in mechanical, chemical, metallurgy, electric power, shipping, food, aerospace, medicine, electronics and other industries. The company not only has a large number of customers in China, but products are also exported to overseas.
With the increasing demand for domestic and international markets, we will improve quality, increase product variety, under the premise of further expansion. We will rely on our quality products, strong technical force, excellent after-sales service, with the majority of users to establish good relations of cooperation.
