API Stainless Steel CF8 /CF8m / CF3m Flanged Ball Valve

Name: API Stainless Steel CF8 /CF8m / CF3m Flanged Ball Valve
Brand: tool-buy.com
SKU: 651985225
Availability: InStock
Rating: 4.3 (27 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Zhejiang Jieyu Valve Co., Ltd.

Showroom Product Company Profile

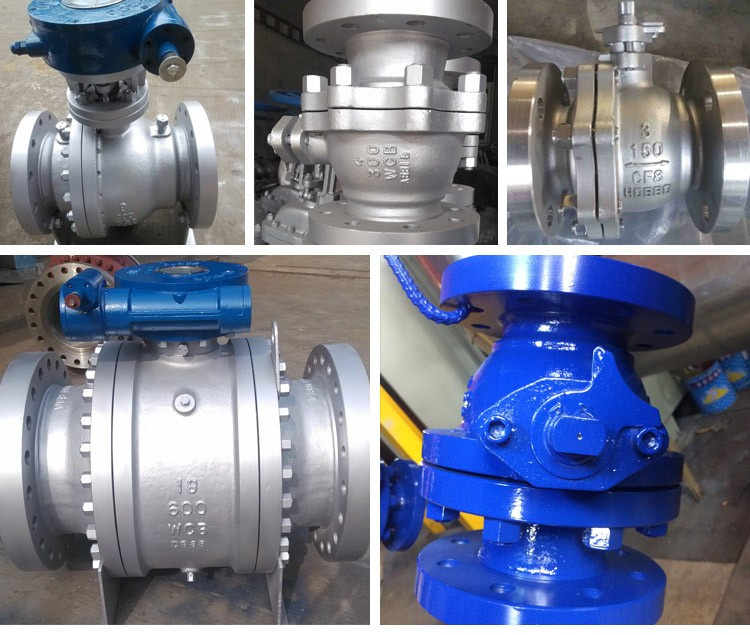

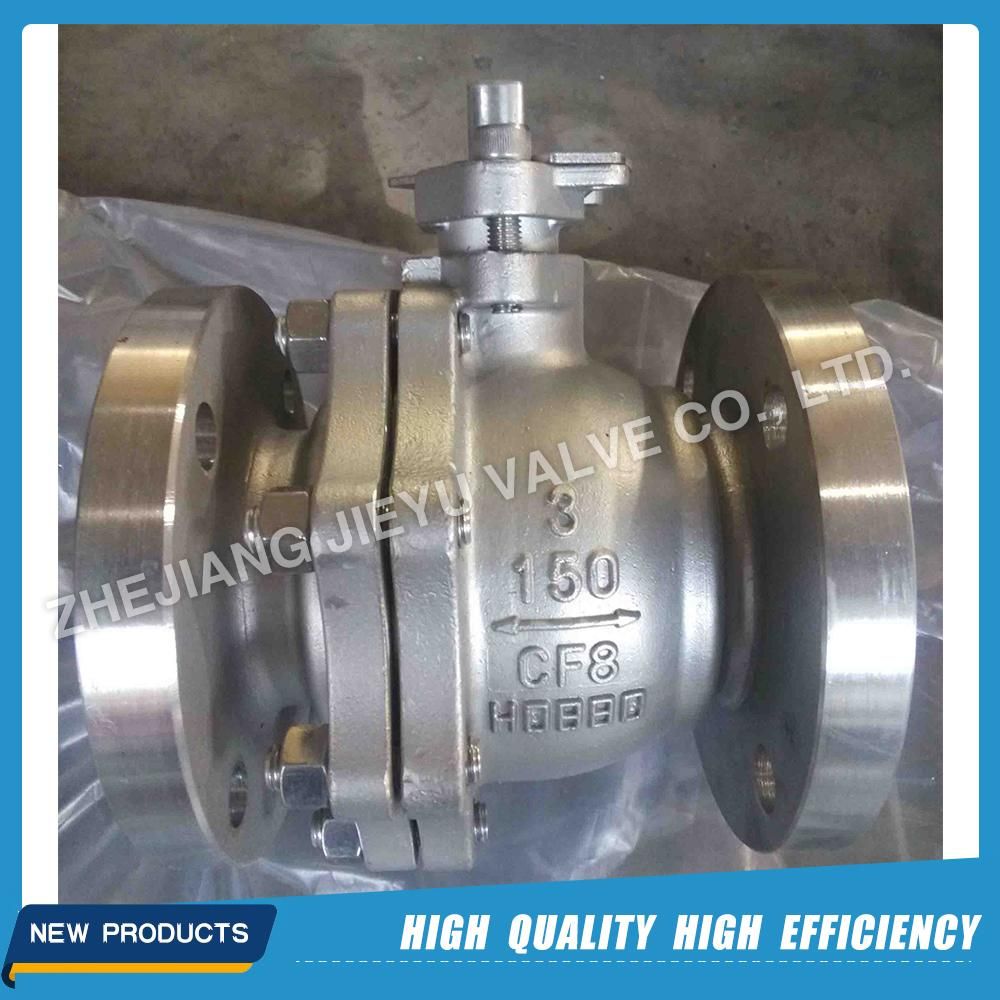

API Stainless Steel CF8 /CF8m / CF3m Flanged Ball Valve

Size:1/2"-24"
Model:Q41F/Q341F
Pressure:150Lb-1500Lb
Applicable Medium: steam, water, oil,etc
Body Material: Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),, WCC, low Carbon Steel LCB, LCC, Alloy St A217 WC6, WC9, C5, C12, Stainless steel A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.
Ball Material: Carbon steel A105, A105+ENP, Stainless steel SS201,SS304,SS316, SS316L
Operation: Lockable Handle Lever, worm, electric, pneumatic

Full port ( FP) or Regular Bore (RB), Two piece Split body or Three piece bolted body, Floating ball type or Trunnion Mounted type, Blow-out Proof Stem, Anti-staic, optional Locking Device or stem Extension, optional Direct Mounting to ISO 5211

Standard:
Design and Manufacture: API 6D, ASME B16.34
Face To Face Dimension: ASME B16.10,API 6D
Flange Connection Dimension: ASME B 16.5
BW Connection Dimension: ASME B16.25
Test And Inspection: API 598, API 6D
Fire-safe Design: API 607/6FA

Products:

Zhejiang Jieyu Valve Co., Ltd. is a manufacturer of gate valves, globe valves, check valves, and ball valves with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in petroleum, chemical industry, metallurgy, electric power, pharmaceutical, paper, urban construction and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

show of power

FAQ:
1. Yes, sample order is available for quality check and market test. But it is not free.
2. It usually takes about 25-30 working days to produce. For big order, it depends on the order quantity.
3. We usually accept T/T, L/C, Western Union, Cash.
4. We offer 12months warranty time.
5. Depends on your request, we have standard models in stock. Some special products and big order will be newly produced according to your order.
6. Yes, different models can be mixed up in one container.

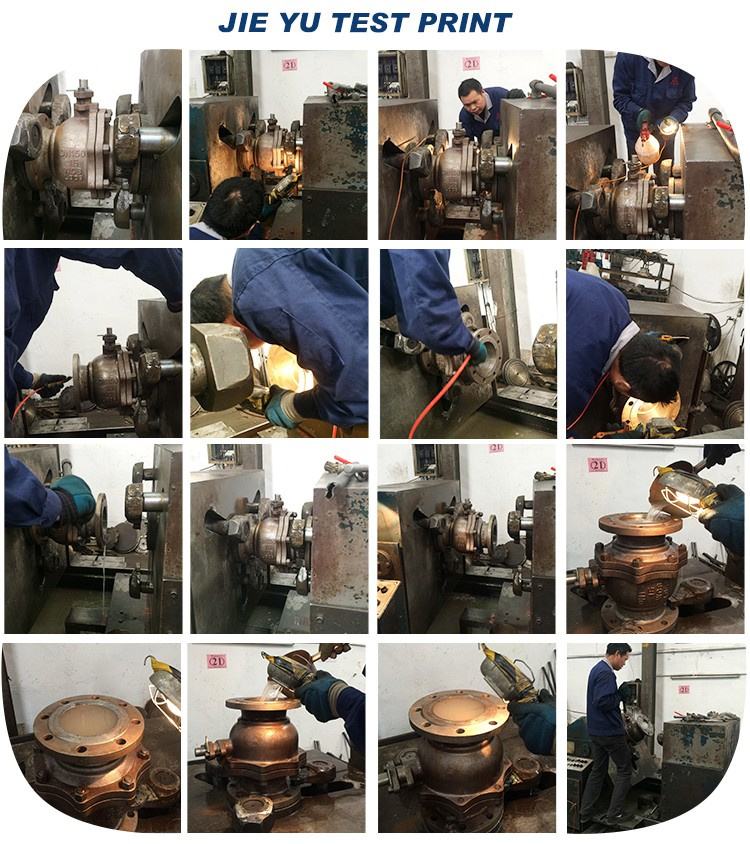

7. Quality is priority, we always attach the importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before painting, packing and shipping.
8. Yes, we have the right to export and can sell product all over the world.
9. Our company has been audited and approved API 6D, CE 0036, ISO9001.
Test report will be provided when all goods finished. Also we are the alibaba's gold supplier since 2010. Now we clients all around the world.

Prod Model:	Q41F/H/Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Packaging Detailsc:	Plywood or as The Customers' Requirement.
Delivery Detail:	Depend on The Quantity
Painting:	Slivery or as The Customer's Requirements
Certificates:	API ISO CE Ts
OEM:	Available
Connection Form:	Flange
Channel:	Straight Through Type
Structure:	Floating Ball Valve
Type:	Floating Ball Valve
Application:	Water Industrial Usage
Material:	Cast Steel\Stainless Steel\Alloy Steel.

Zhejiang Jieyu Valve Co., Ltd. is located in the City of Valves-Longwan Wenzhou. The company possesses high precision machinery and equipment over 70 sets and has more than 200 employees, 30 of whom are dedicated senior or middle technicians. With advanced testing equipment, complete detection method and sound CAD aided design system, the company sets in research, production, sale and after-sale service integration business.

JIEYU is one of China's top enterprises with kinds of certificates, such as API-6D certificate from American Petroleum Institute \CE certificate from EC Pressure Equipment Directive PED\ISO9001 International Quality Management System Certificate\Manufacture License of Special Equipment TS certificate and so on

JIEYU valves are grouped into the broad categories of gate, globe, check, ball valves, strainers and etc, All of products are manufactured to strict specifications and industry standards, which include ANSI, API, BS, DIN, JIS, GB and JB. JIEYU valves are broadly applied in the areas of power generation, chemical and petrochemical, oil and gas, metallurgy, ship-building, medicine, and environmental protection industries.

JIEYU's strategy is to win with top quality and reliable reputation, that is why we now have so many esteemed and faithful clients at home and abroad. We are working harder and harder to offer all of clients the best
