| Price: | US $ 2.3-2.6kgs |
|---|---|
| Min Order: | 500kgs |
| Pay Type: | T/T,Western Union |
We are professional in comtomizing different types of aluminum profiles with 23 years experience which are widely used in Industry ,Constrution,Decoration, Furnitures, Windows and doors,.etc. .
We design and manufacture different kinds of aluminium tupes & pipes including aluminium round tubes and pipes ,Aluminium square tubes and pipes , Aluminium retangular tubes and pipes , aluminum square tubing , aluminum elliptical oval pipes ,and Aluminium large diameter tubes and pipes ....
We have more than 30000 moulds so far , and your samples or drawings are warmly welcomed to
provided to us for customizing !
Product advantages
| vs | Products from my factory | Products from other small factories |
| Materials | National standard raw aluminium | Probably made of recycling aluminium alloy |
| Surface treatment | any kind of surface treatment afterwards are adopted | May not available for polishing and other special surface treatment later. |
| Anodized frosted silver | hardly find mechanical lines with beautiful fine sand blasting processing | easily be bruised because of a smaller thickness |
| Ordinary Powder Coating | No particles can stay in the air during the processing, surface color to be smooth enough | Other factories can hardly solve the technical problem |

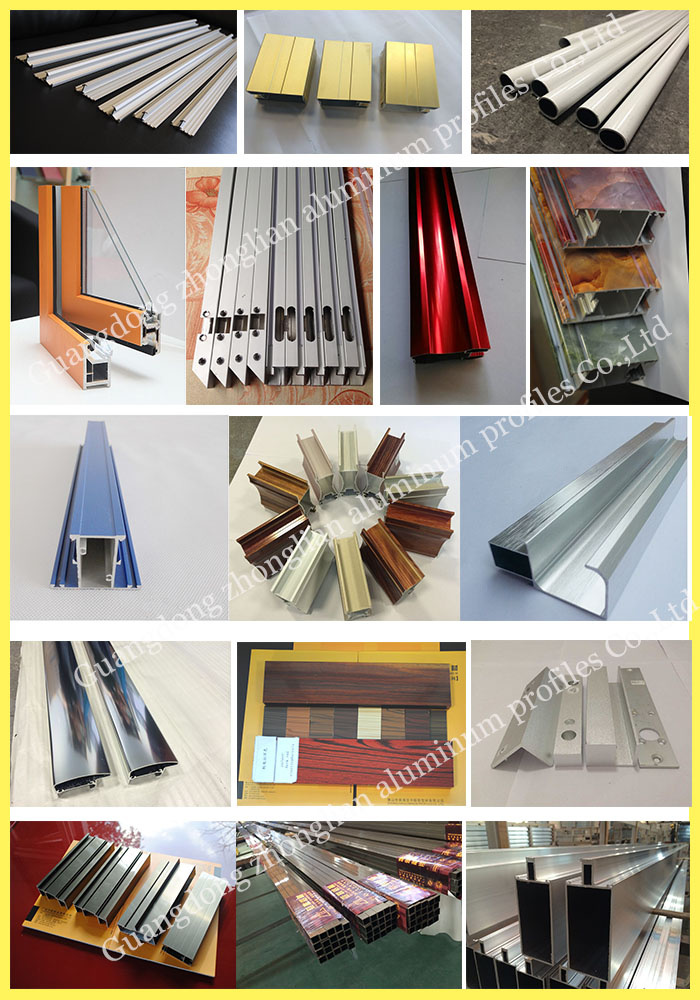

Products we focus on:
a). Aluminium profiles for architecture
b). Aluminium profile for doors and window
c). Aluminium profile for curtain wall
d). Aluminium profiles for louver / shutter
e). Aluminium profile for handrail and barrier
f). Aluminium profile for decorations
g). Aluminum profile with thermal barrier strips
h). Aluminium tube and pipe "U"/ "I"/"L"/"O" profile
i). Aluminium profile for Kitchen Cabinets
j). Aluminum profile for Solar panel frame
k). PVDF/heat transfer wooden grain aluminium profile
l). Marble color aluminium profile
m). CNC machined aluminium profiles
n). Anodized, powder coating, electrophoresis, mirror finish, brushed aluminium profiles for furnitures
Anodized Aluminium pipe Aluminum Tube
Product Pictures

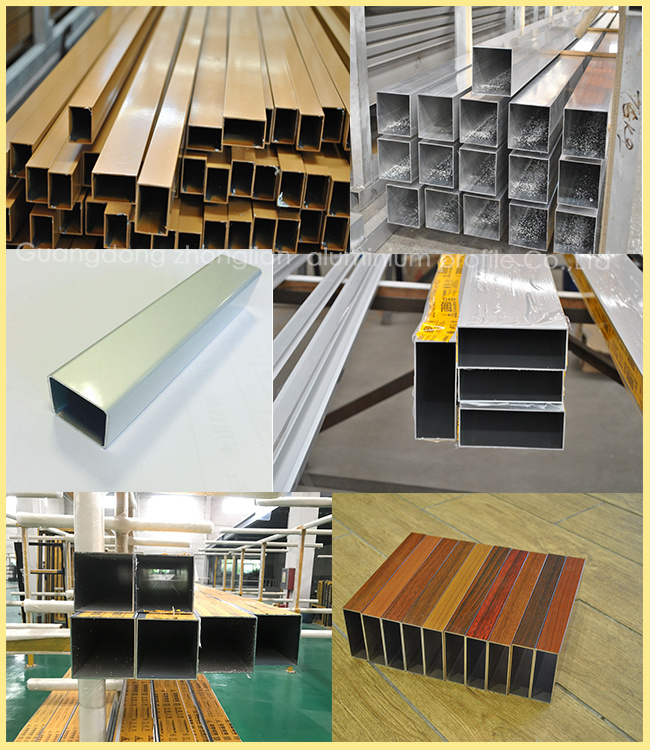

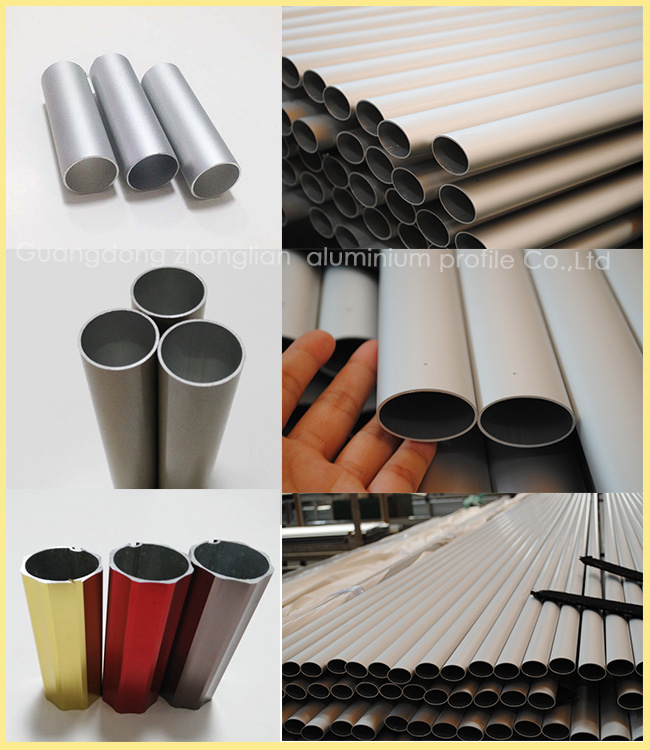

1) Aluminium Oval and Round tubes & pipes

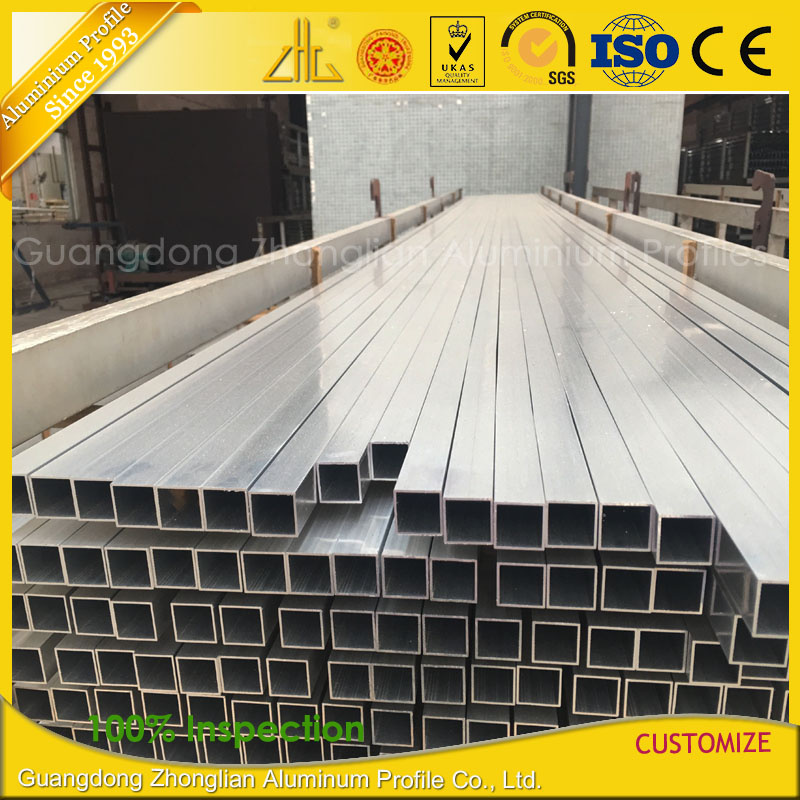

2) Aluminium Square / Retangular tubes and pipes

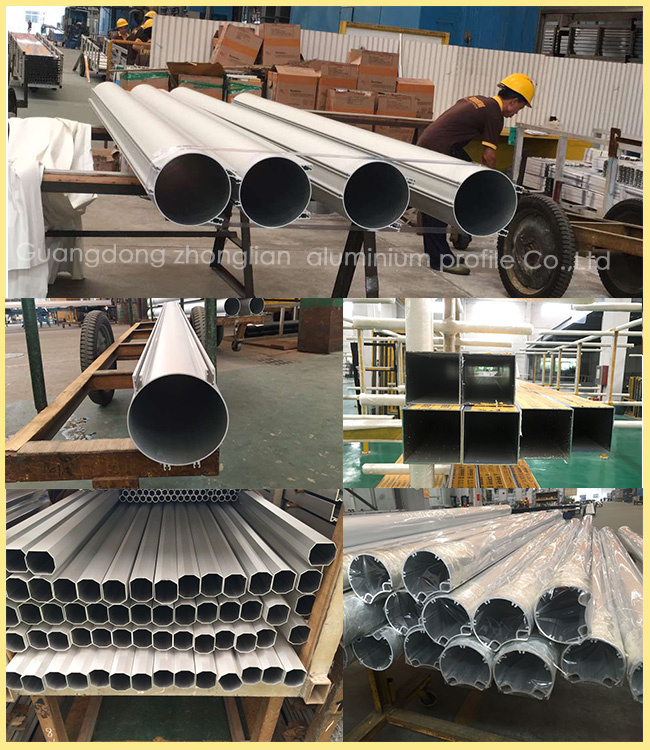

3) Aluminium Large Diameter tubes and pipes
| Item | alu rectangular tube , alu square tube , alu pipe , alu tube |
| Material | 6000 series Aluminium |
| Temper | T4, T5, T6 |
| Size / Thickness | General profiles thickness from 0.8 to 5.0mm, length from 3m-6m or customized available; Anodize protection film thickness from 8~25 um, powder coating from 40 ~ 120 um. |
| Shape | square, round, rectangular, customized |
| Application | In furniture, windows&doors, decorations ,industry, construction and so on |
| Surface treatment | powder coating, electrophoresis, wood grain , anodized and so on |
| Colors | Ref powder coating color sheet and customized color available |
| Deep process | CNC, drilling, milling, cutting, welding, bending, assembling |
| MOQ | 500kgs for each item |
| Packing Details | (1)Inside : packed with plastic protective film to protect each piece |
| (2) Outside: Wrap to be bundles by waterproof craft paper | |
| Delivery time | (1)Die Developing and Sample testing: 12-18 days . |
| (2) Mass Production completed: 20-30days after sample is confirmed by Buyer. | |
| FOB Port | SHENZHEN / GUANGZHOU / FOSHAN |
| payment terms | T/T 30% for deposit, balance before shipping. |
| settlement term | Charge by final actual weight or by drawing theoretical weight. |
| production capacity | 5000 tons monthly, 60000 tons annually. |
| Certificate and Standard | CQM, SGS, CE, BV, SONCAP / GB, ISO, JIS, AS, NZS, QUALICOAT, QUOLANOD available |
| Guarantee | Surface color can be stable for 10~20 years indoor using. |
Differerent surface treaments are available :
| Type | Features |
| Mill finish | Raw materials aluminum ingot purity 100% performance to adopt various processing secondly |
| Finish of aluminum itself with a natural anodic layer formed in the air , weak corrosion resistance | |
| Anodizing | Oxidation film thickness more than 13mu, even color , without mechanical lines, corrosion-resistant , durable ,shinning and decorative. |
| Available in different colors like metal silver, champagne, dark bronze, black, and the same color with matt effect | |
| Electrophoresis | 23 years quality assurance, color elegantly and even color, surface without grain, glossy surface, corrosion-resistance, highly-wear resistance , high surface and brightness |
| Available in different colors like metal silver, champagne, black, and the same color with matt effect | |
| Powder coating | Film thickness more than 40 mu, surface smoothly , colorful products with various mechanical performance to adopt all kinds of architechtural style |
| Available in all kinds of color | |
| Wooden grain | New technology in finishing to form a texture look like real wood . 23 years quality assurance, corrosion-resistance, durable , shining and decorative. |
| Available in types of wood pattern. Hand touch or film transferring are both available. Customized accepted. | |
| Polishing | By buffing and chemical process to form mirror like finish, suitable for decorative application |
| Available in all kinds of color | |
| Brushed | By brushing and chemical process to form shining with line, suitable for decorative application |
| Available in all kinds of color |
Material introduction:
1) 6063-T5 national standard aluminium profile
2) 97.5% pure
3)aluminium profile with thermal break strips
4)surface colour gurarantee:20 years
5)Lengths: 3-6meters, or based on customer requirement
6) Flexible size and shape based on customer's design
| Aluminium Alloy Chemical Composition | ||||
| Alloy | 6063 (%) | 6063A (%) | 6061 (%) | 6082 (%) |
| Si | 0.2~0.60 | 0.3~0.60 | 0.4~0.80 | 0.7~1.30 |
| Fe | 0.35 | 0.15~0.35 | 0.70 | 0.50 |
| Cu | 0.10 | 0.10 | 0.15~0.40 | 0.10 |
| Mn | 0.10 | 0.15 | 0.15 | 0.40~1.0 |
| Mg | 0.45~0.90 | 0.60~0.90 | 0.80~1.20 | 0.6~1.20 |
| Cr | 0.10 | 0.05 | 0.04~0.35 | 0.25 |
| Zn | 0.10 | 0.15 | 0.25 | 0.20 |
| Ti | 0.10 | 0.10 | 0.15 | 0.10 |
| Other (each) | 0.05 | 0.05 | 0.05 | 0.50 |
| Other (total) | 0.15 | 0.15 | 0.15 | 0.15 |
| Al | Remainder | Remainder | Remainder | Remainder |
Producing Process
Inquiry ------ Sample or CAD drawing(Supplied by customers) ----CAD drawing (Our company)------ Drawing Confirmation ----- Mould Fabrication------Sample conformation ---Mass production----Inspection-------Delivery
Why to Choose Us ?
1. Professional production workshop for extrusion and colored profile manufacturing.
2. Strict quality control and inspection before goods delivery.
3. Production standards: GB5237-2008, QUOLANOD, JIS or other International standards.
4. With 23 years experience, our factory is well recognised by clients and enjoys a good reputation among overseas markets.
5.While being awarded various honors, our brand Yalian Aluminium Profiles is rated as Guangdong Famous Brand by the government and our factory is rated as the enterprise which can always honor our contracts and keep commercial integrity.
6. Strong R&D team and over 100 national patents.

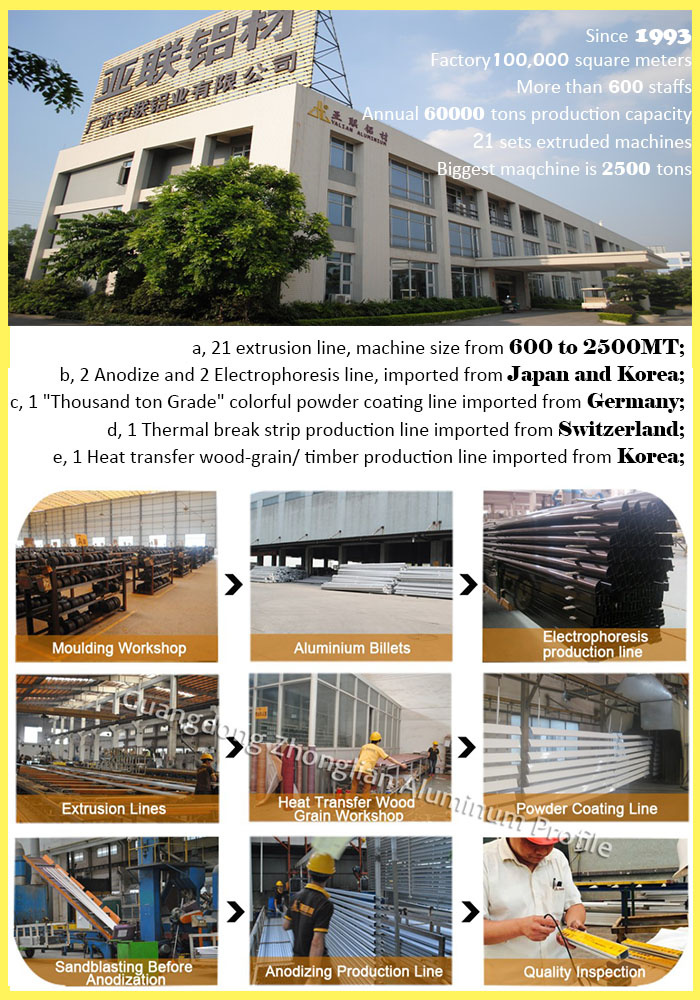

Company Information
Our aluminum profiles have been widely used in Industry , Construsion,Decoration, Furnitures, Windows and doors,.
So far, our products have been exported to dozens of Countries .
Our Service
1.Your inquiry related to our product & price will be replied within 24 hours.
2.Well-trained & experienced staff are to answer all your inquiries professional in English.
3.OEM is highly welcomed.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sale service offered, please get back if your got question
Other Products

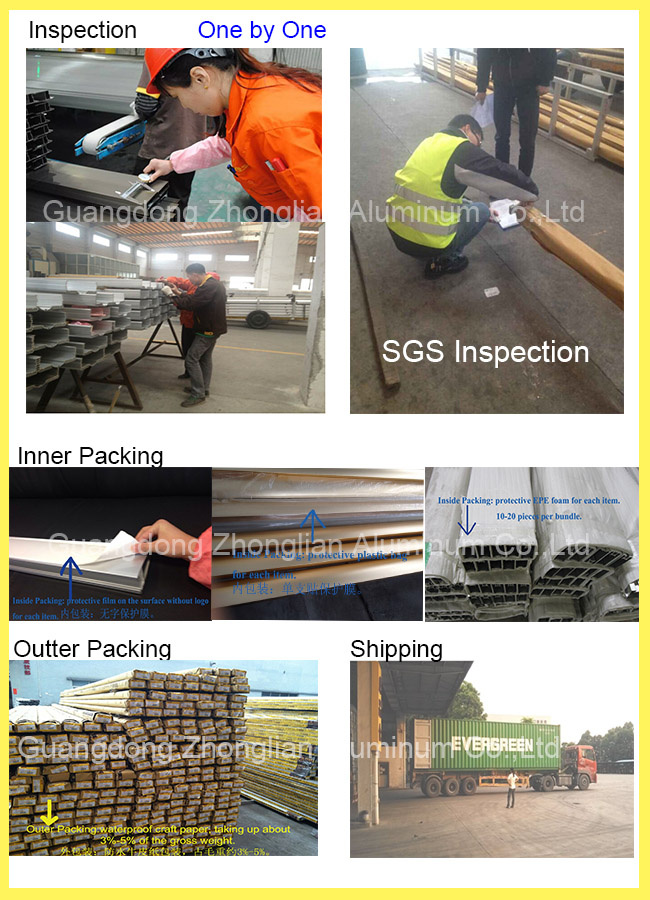

Inspection & Packing & shipping
FAQ
1) Are you a manufacturer or a trade company ?
------- We are aluminium manufacturer located in Foshan with more than 20 years experience since 1993 . And you are warmly welcomed to visit us .
2) What kind of surface treatments can your company do ?
------ Our mainly surface treatments including Anodized , Powder coated , Wood grain, Polished, Brushed, Electrophoresis ,Mill finish , Sand brusting etc.
3) What kind of deep process can you do ?
------CNC, drilling, milling, cutting, welding, bending, assembling .
4) What's the delivery time for samples and mass production?
-------Usually 15 days for mould development and 25-30 days for mass production .
Contact Us :
| Prod Model: | Aluminum Tube series |
|---|---|
| Delivery Time: | 20 Days After Deposit Received |
| Standard: | GB/75237-2004, Q/320281/Pdwd-2008 |
| Payment Term: | T/T, 30% Down Payment While Balance Shall Be Paid |
| Port: | Shenzhen, Guangzhou, Foshan |
| Guarantee: | Surface Color Is Able to Sustain for 10~20 Years F |
| Colors: | Anodized, Wood Grain, Powder Coating |
| Item: | Aluminum Tube |
| MOQ: | 500kg for Each Item |
| Deep Process: | CNC, Drilling, Milling, Cutting, Welding, Bending |
| Application: | Aluminum Tube |
| Grade: | 6000 Series |
| Temper: | T3-T8 |
| Window & Door Aluminium Profile: | 60 Series |
| Alloy: | Alloy |
| Certification: | TUV |
| Polished Aluminum Profile: | Mechanical Polishing |
| Surface Finishing: | Anodized, Wood Grain, Polished, Brushed |
| Alloying Ingredient: | 6063-T5, 6061-T6, 6463-T5, 7075-T6, 6082 |
| Shape: | Angle, Square, Round, Flat, T-Profile, Customized |
