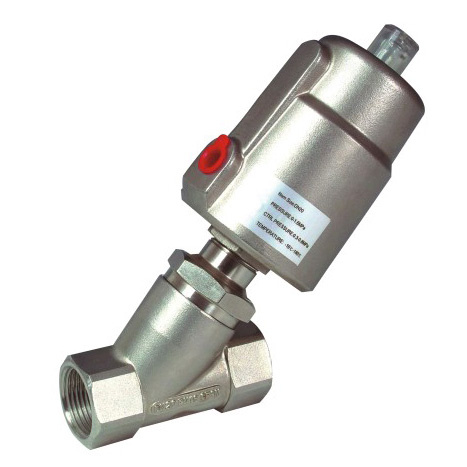

Angle seat valve
Design Character :
1. Can see the position indication
2. Easy to install
3. Actuator adopt low abrasion piston structure ,big capacity and low wastage
4. There is lubricative for inner parts ,no need maintenance
5. The actuator material have stainless steel and aluminum
6. Long life for the piston pole ,PTFE seal ,avoid the reif come in.
7. No water hammer affect ,when the liquid flowed from valve underside ,the water hammer will be absorbed

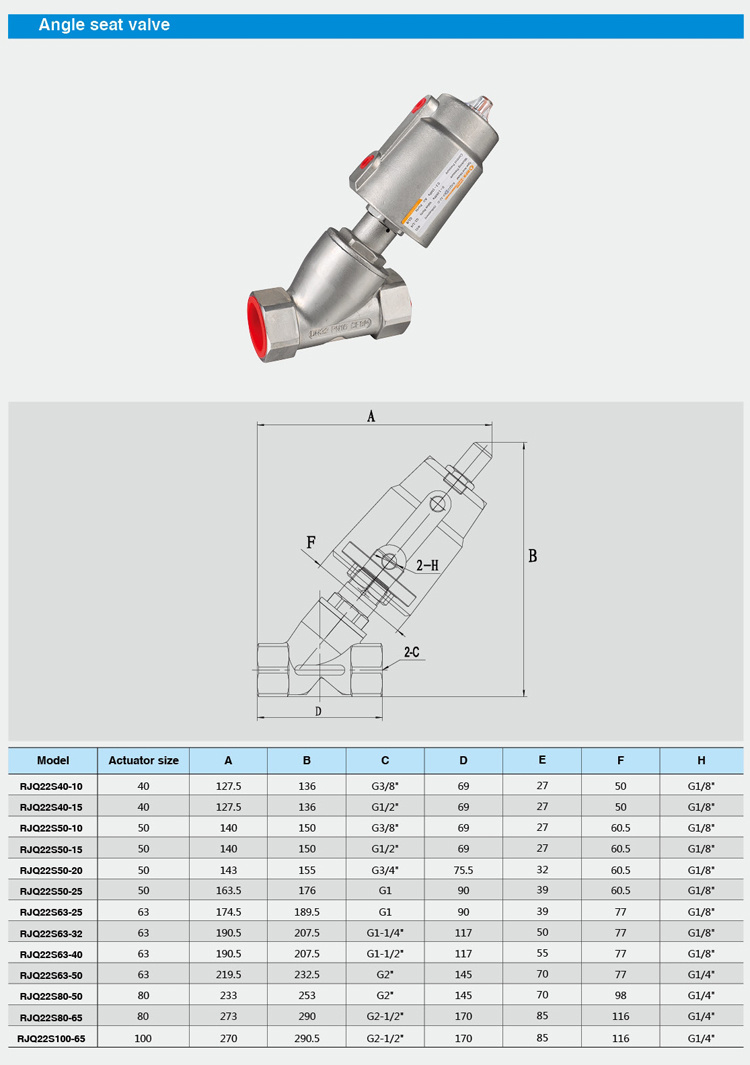

Specification :
Viscidity :max. 600mm2 / S
Installation :any position
Controlling Medium :Air or Neutral Gas
Controlling Pressure range :0.3 ~ 1Mpa
Liquid Working Pressure :0 ~ 1.6 Mpa
If you need more information .Please kindly contact with me .
XingyuRfs is one of the leading manufacturers of solenoids and solenoid valves in China. XingyuRfs is a private limited Company, it was founded in 1991, after 26years' hard working, now XingyuRfs has grown into a group, business include: Solenoids, solenoid valves, pneumatic actuators, angle seat valves, sensors and so on. XingyuRfs solenoids, valves, actuators, sensors are widely used in automotive, automation, textile industry, pneumatic, hydraulic, air and water treatment systems and so on.
XingyuRfs is a ISO9001: 2008 & TS16949 approved company. Not only advanced equipments, there are advanced management & experienced R&D team in XingyuRfs. These ensure the high and stable quality of the products.
XingyuRfs is located in Fenghua district, Ningbo city, China. XingyuRfs has 37000 square meter workshops and about 350 employees. In 2016, XingyuRfs annual output value is about 23 million US dollars, half of exports and half of domestic sales. More and more famous brands come to cooperate with us, for example: Festo, IMI, ASCO and so on.
Win-win is our aim, let's make progress together.
