Aluminum Ground Mount Solar Panel Kits Components Hardware

Aluminum Ground Mount Solar Panel Kits Components Hardware
Price: US $ 0.05watt
Min Order: 20000watt
Pay Type: L/C,T/T,Western Union,Money Gram

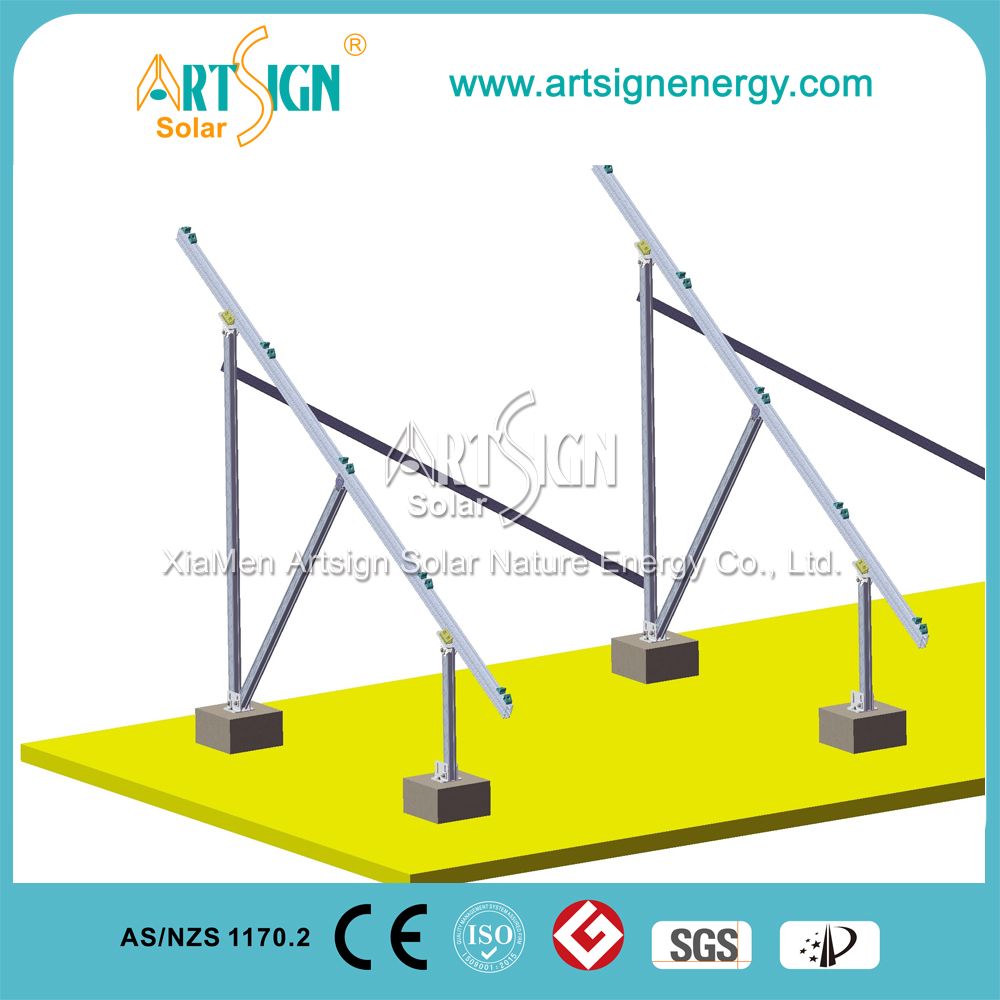

Aluminum Ground Mount Solar Panel Kits components hardware

Design Features

Aluminum ground structure is lighter and easier to install.
The triangle-base can prevent the whole system sinking on sandy ground, such as desert or other similar ground.

Foundation type

Ground screw, concrete pad, sandy ground.

Surface treatment

10um thk, Anodized aluminum, stainless steel 304 bolts and nuts.

Design strength

The structure is designed according to the wind load and snow load request

Certification

Australia AS/NZS 1170.2 - Wind load report,

SGS report- Chemical and Physical test.


Mounting compenents hardware

AS-LCE-100
L Clamp
Material: aluminum 6005-T5

AS-CEC
E rail end clamp
Material: aluminum 6005-T5

AS-CMC
E rail end clamp
Material: aluminum 6005-T5

AS-AUB-1
UT2 Beam
Material: aluminum 6005-T5

AS-AUB-2
UE beam
Material: aluminum 6005-T5

AS-R-13
Rail 13#
Material: aluminum 6005-T5

AS-RS-13
Rail splice 13#
Material: aluminum 6005-T5

AS-TEP
Enforcement pipe
Material: aluminum 6005-T5

AS-R-8
Rail 8#
Material: aluminum 6005-T5

AS-RS-8
Rail splice 8#
Material: aluminum 6005-T5

AS-OB2
Open base
Material: aluminum 6005-T5





Techinal data

FoundationConcrete; Grounding screw; piling
Wind Load:60 m/s max
System Tilt Angle:30 degree
Applicable Module:Framed
Module Orientation:Landscape
Rail Material:Aluminum 6005-T5
System MaterialAluminum 6005-T5
Warranty:10 year

Design drawing


Prod Model: AS-SA-010
Foundation: Concrete, Grounding Screw or Piling
Wind Load: 60 M/S Max
System Tilt Angle: 10-60degree
Applicable Module: Framed
Module Orientation: Landscape
Rail Material: Aluminum 6005-T5
System Material: Aluminum 6005-T5
Warranty: 10 Year
Application: Commercial
Specification: Normal
As the producer and designer of solar PV mounting systems, Xiamen Artsign Solar Nature Energy Co., Ltd mainly offer quality solar roof racking systems and ground racking systems, both of which are for frame and frameless solar panels. Our main market includes Japan, Australia, UK, France, Belgium, Denmark, US and so on.

With the demand of changing market, our professional R&D department always improves and designs the new solar mounting system for the different request. So that ART SIGN have various of solar mounting system for different customer's requirement.

Strive for maintaining the friendly and long relationship with our clients that we always offers the excellent service, good quality and best price for our products.
