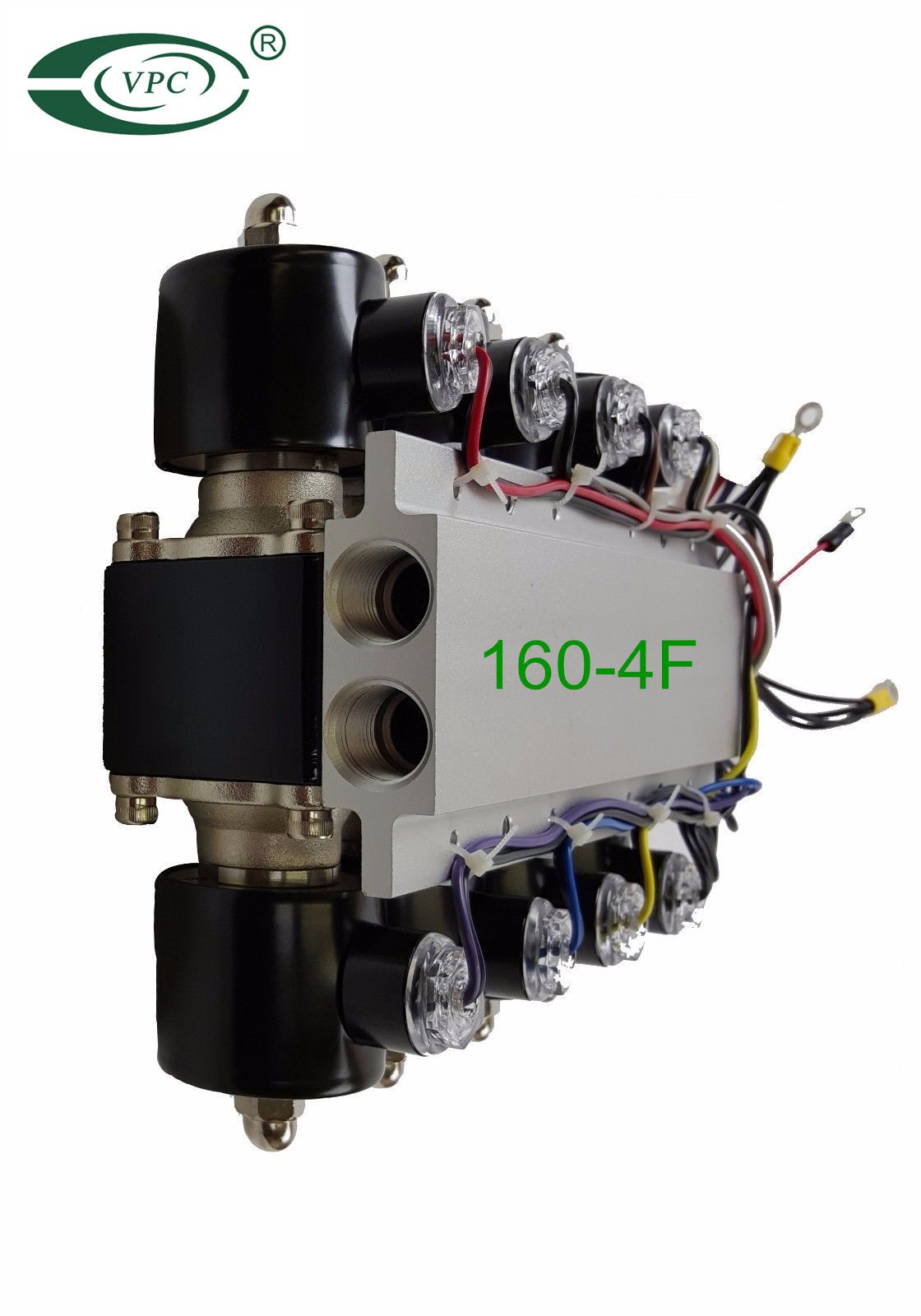

Air Ride Suspension Valve Vu4 Air Bag Valve Brass 10mm (3/8") Orifice 200psi 8-Cyl Air-Engine Manifold Block Valve

Air Ride Suspension Valve Vu4 Air Bag Valve Brass 10mm (3/8
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal






1) Competitive advantage product
2) FULL REFUND in case of bad quality or late delivery
3) Payment by PAYPAL
4) Free samples offer & small order welcomed
5) After Sales Service 24 * 7
6) With us your business in safe .
7) With us your money in safe .
Standard or Nonstandard:
Standard
Structure:Control
Pressure:High Pressure
Power:Solenoid
Material:Alloy
Temperature of Media:High Temperature
Media:Air
Port Size:1/4" 3/8" 1/2"
Place of Origin:China (Mainland)
Model Number:VVU-3L-4F
Brand Name:VPC
Application:Air Suspension, Air Suspension
Accuair Solenoid Valve Manifolds VU4

The New Design Air Suspension Solenoid Valve (Accuair Solenoid Valve Manifolds)  is engineered to provide the cleanest installation and most reliable operation on the market. This electronic solenoid valve unit inflates and deflates up to (4) individual Air Springs and has built-in push-to-connect 3/8" D.O.T. approved air fittings for all of its plumbing connections. It's more smart than our previous manifolds Assembly Valve Block wiring harness 160-4F Solenoid Valve.

Good replacement to Accuair AA-VU4  Air suspension valve block With E-level

Compatiable Suspension Type4-Corner Full Air Suspension
Voltage Requirements  10.5-16 Volts
Current Requirements 1.1 Amps (for each of the (8) Valves)
Connectors IP67 certified (immersion up to 3 ft)
Fitting Size 3/8" D.O.T. / P.T.C (x 8), 1/4" NPT (x 4)
No. of Inlet Ports 2
No. of Exhaust Ports2
Max Operating Pressure 200Psi
Cv Flow Factor 0.33
Average Adjustment Time 2.2 Seconds (from 10% to 50% of travel

3/8" Brass Air Valves 3-Position 200psi 10mm (3/8") Orifice 40watt coil 200psi 8-Cyl Air-Engine Manifold Valve -Bare

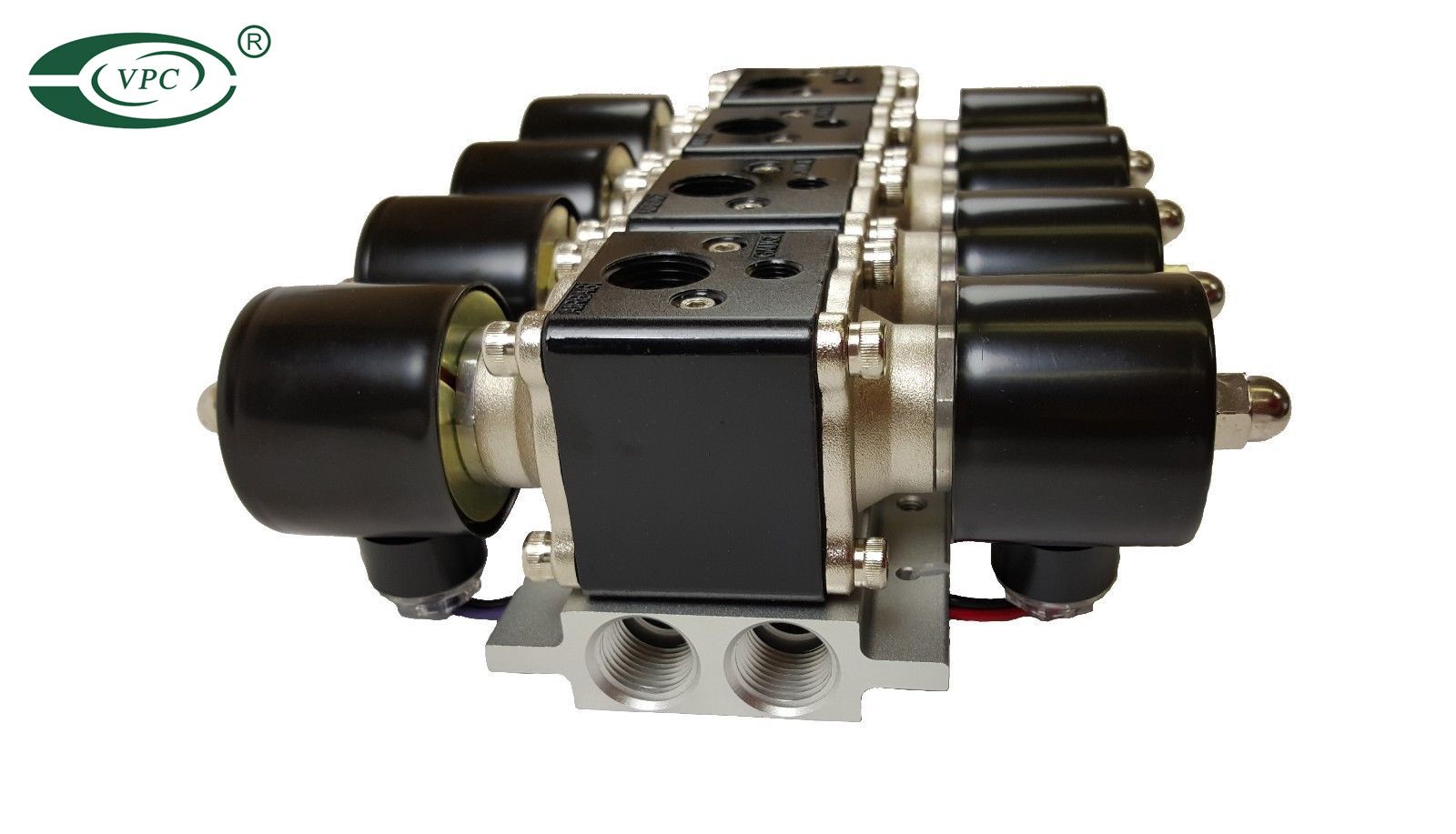

Assembly Valve Block
1. Material: Brass or aluminum alloy
2. With wiring harness
3. Provide custom-built product or service
Assembly Valve Block is combination of 2 way 2 position valves, which is extensively applied in many production trades as automobile, boats and ships etc. The products are sold to distant countries and areas as America, Europe, Southeast Asia etc.

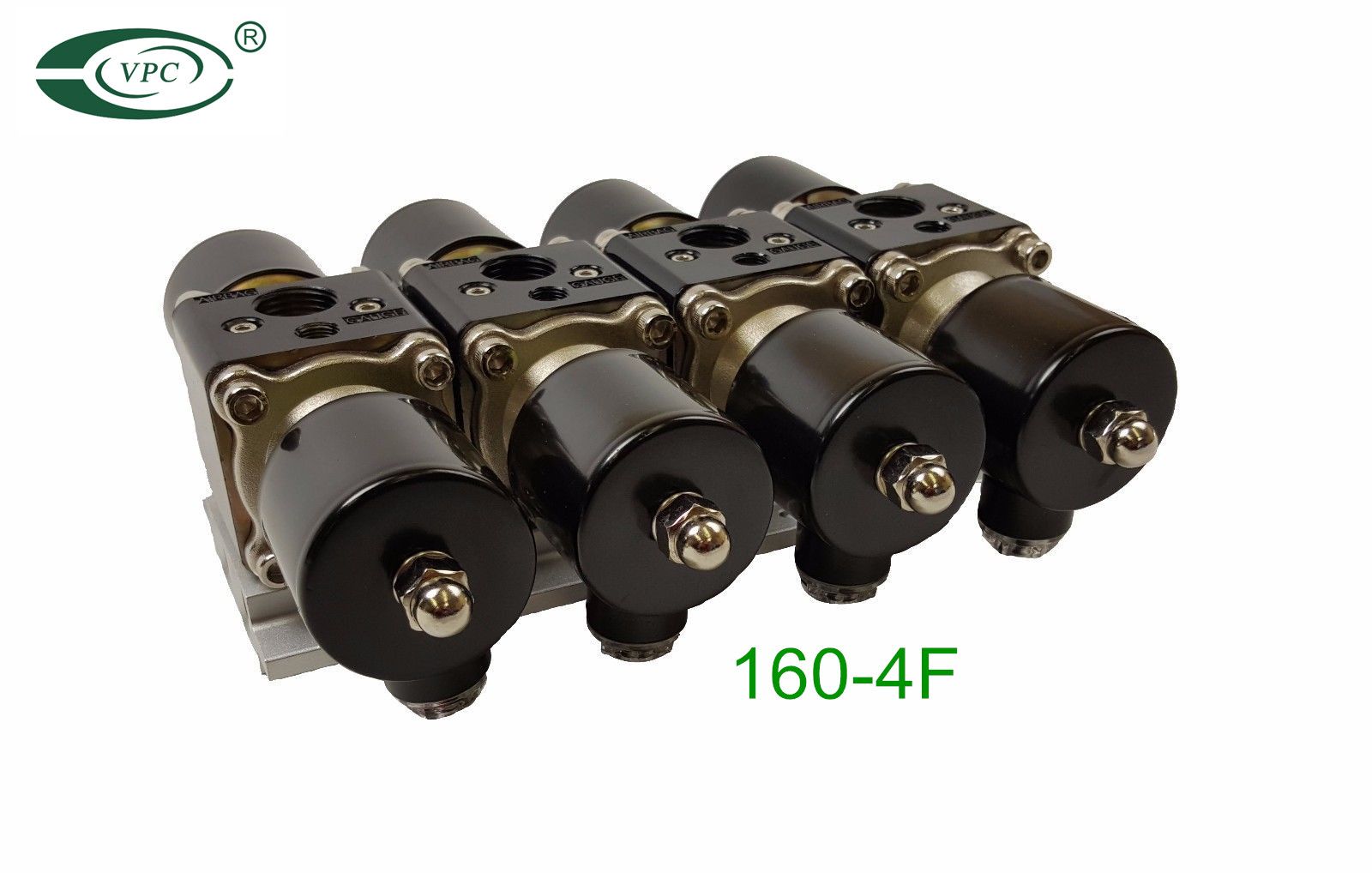

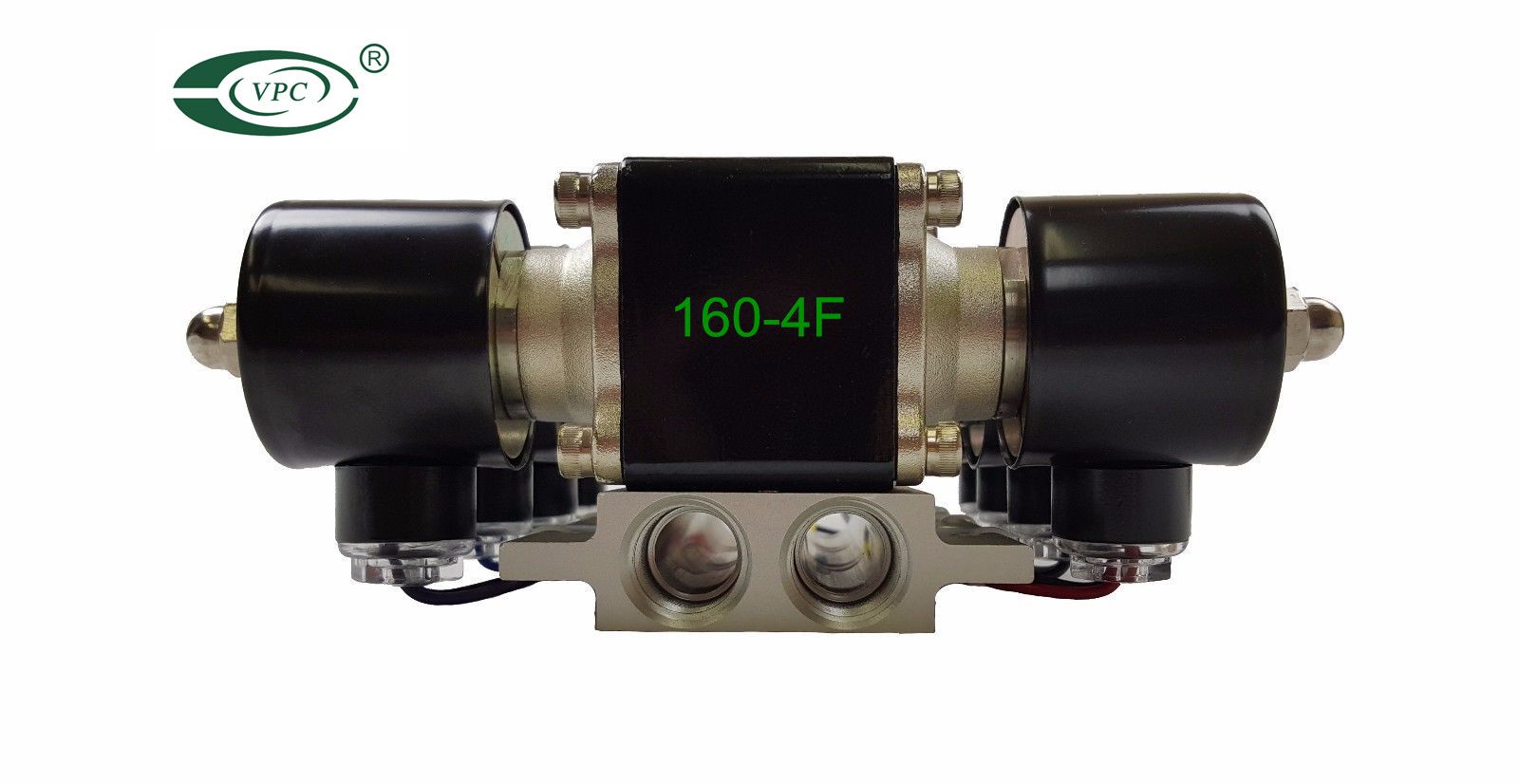

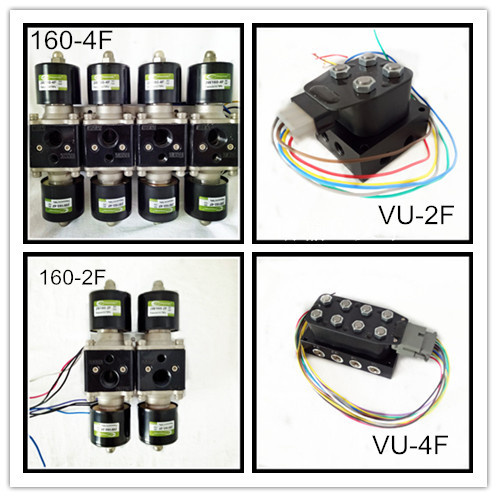

Prod Model: 160-4F 160-2F 160-F 2W160-15 2W160-10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
VPC Pneumatic

Pneumatics is changing air that is wherever and infinitely available in the world to power energy. You might seldom see its actual applications, but currently pneumatic equipment are used in production and conveyer lines in almost all industries.

VPC ® Company, which was founded in 1985, as a leading manufacturer, is dedicated to serve the automation and labor saving requirements with our pneumatic product range.

Our goal is to preserve our customers through the complete satisfaction of their specific requirements, having in our mind only to pursue the continuous improvement in the fields of productive efficiency and cost saving. Our professional skills and abundant resources will continue to be the great source of our strength.

Above, coupled with close connection with customers' requirements, enables us to manufacture and market good value, high quality products and to operate successfully around the world. As natural result of such policy, VPC ® Has been recognized to be in compliance with the requirements as provided for the quality system standard ISO 9001: 2000, as well as the CE Certificate, which is the first pneumatic enterprise who get both certificates in Ningbo, China.

VPC ® Built an excellent sales team is taking advantage of a widespread net of local and foreign distributors in constant expansion in the main worldwide strategic areas. We believe the diversity of our product line, and the sincere work of our staff will make VPC ® To be world class performance leaders of pneumatic products.
