| Price: | US $ 180-400/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

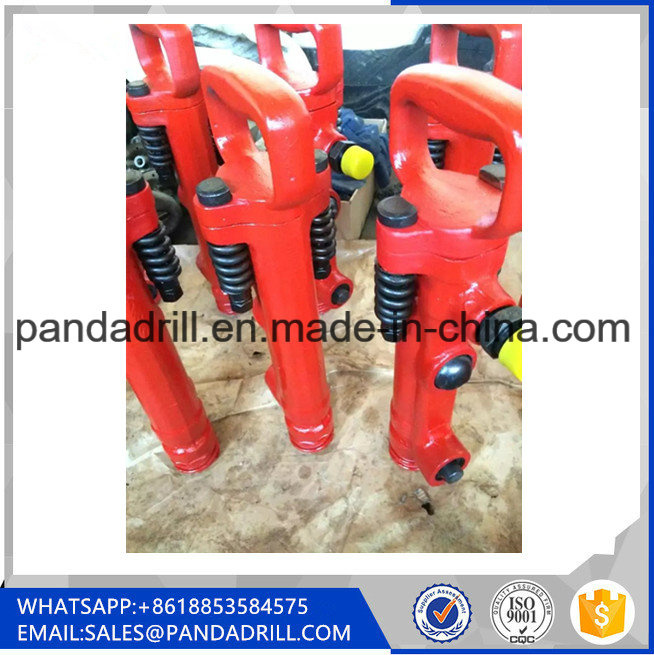

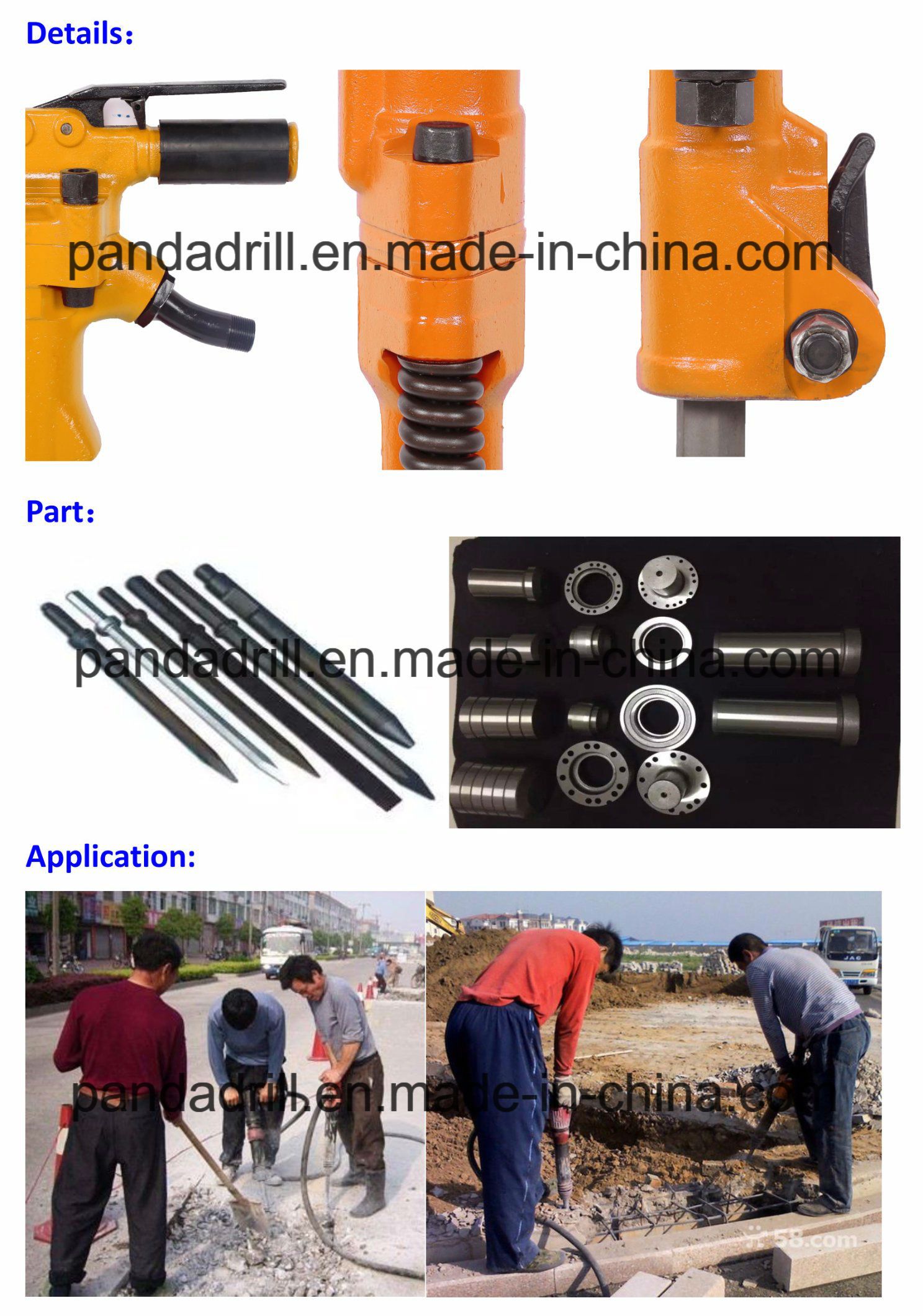

Paving breaker uses the compressed air as a driving force. It can efficiently complete strengthen of concrete and the breaking of rocks and asphalt. The compressed air is distributed alternatively through the distributing valve into either end of the cylinder assembly so that the hammer inside is made to carry on a reciprocaql motion which impacts the shank of the steel chisel by the tappet drives the chisel into the concrate foundation and makes them split into huge pieces.
And it is more high-powered, more efficient and has much longer life. Especially, for the crushing of Large, thick, hard objects, it is the ideal tool to the foundation constructions, such as the Mines, bridges, roads, municipal construction, etc.
| TYPE | TPB90 | TPB60 | B87C | RB777 |
| WEIGHT(KG) | 42 | 42 | 39 | 37 |
| LENGTH(MM) | 723 | 723 | 686 | 733 |
| CYLINDER DIA(MM) | 66.67 | 57.15 | 63.5 | 57 |
| AIR COMSUMPTION(L/S) | 37 | 33.4 | 55 | 34 |
| WORKING PRESSURE(Mpa) | 0.63 | 0.63 | 0.63 | 0.63 |
| AIR PIPE INNER DIA(MM) | 19 | 19 | 19 | 19 |
| PISTION STROKE(MM) | 152 | 100 | 100 | 189 |
| SHANK SIZE-1 | 28*152MM | 28*152MM | 28*152MM | 32*152MM |
| 1 1/8 * 6 INCH | 1 1/8 * 6 INCH | 1 1/8 * 6 INCH | 1 1/4 * 6 INCH | |
| SHANK SIZE-2 | 32*152MM | 32*152MM | 32*160MM | |
| 1 1/4 * 6 INCH | 1 1/4 * 6 INCH |
Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.
Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
Q4: Can I have a visit to your factory before the order?
A: Sure, welcome, here is our address: Yantai, Shandong.
| Prod Model: | B87C, TCA-7, TPB40, TPB60, TPB90 |
|---|---|
| Weight: | 32-56kg |
| Processing Type: | Forging |
| Material: | High Manganese Steel, Tungsten Carbide |
| Use: | Coal Mining, Quarry Drilling or Well Drilling |
| Transfer: | Air/Sea/Express |
| Color: | Request |
| Power Type: | Air Compressor |
| Product Name: | Rock Drill/Jack Hammer |
| Working Pressure: | 0.63MPa |
| Air Consumption: | 32-42(L/S) |
| Certification: | API |
| Condition: | New |
| Type: | B87c, TCA-7, Tpb40, Tpb60, Tpb90 |
| Application: | Splitting and Construction |
