ADSS G652D Singlemode Aerial Fiber Optic Cable with Cheap Price

ADSS G652D Singlemode Aerial Fiber Optic Cable with Cheap Price
Price: US $ 0.2-0.6/Meter
Min Order: 2000/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
ADSS G652D Singlemode Aerial Fiber Optic Cable With Cheap Price

Description:

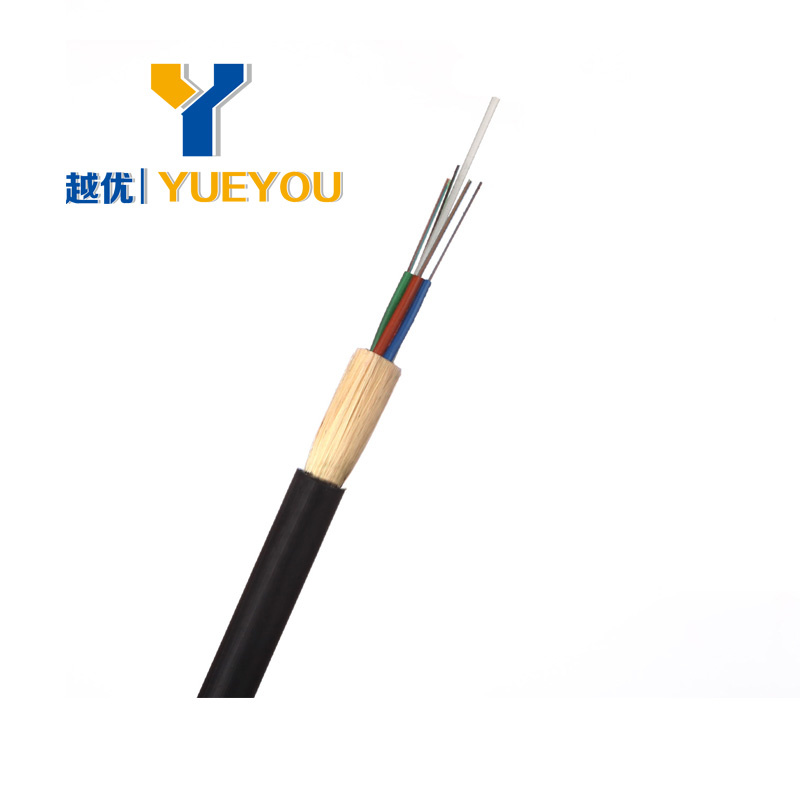

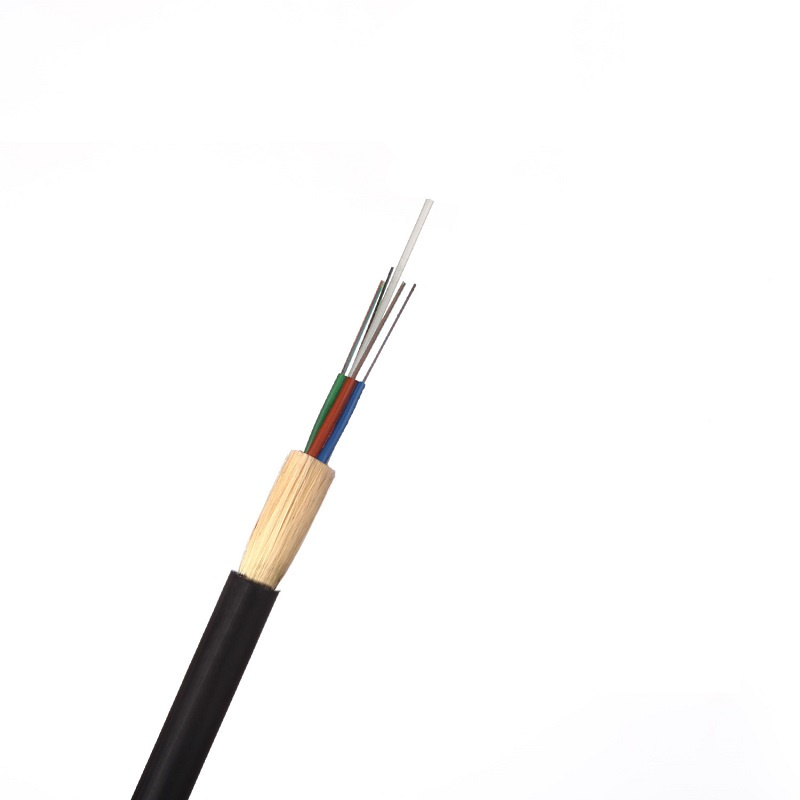

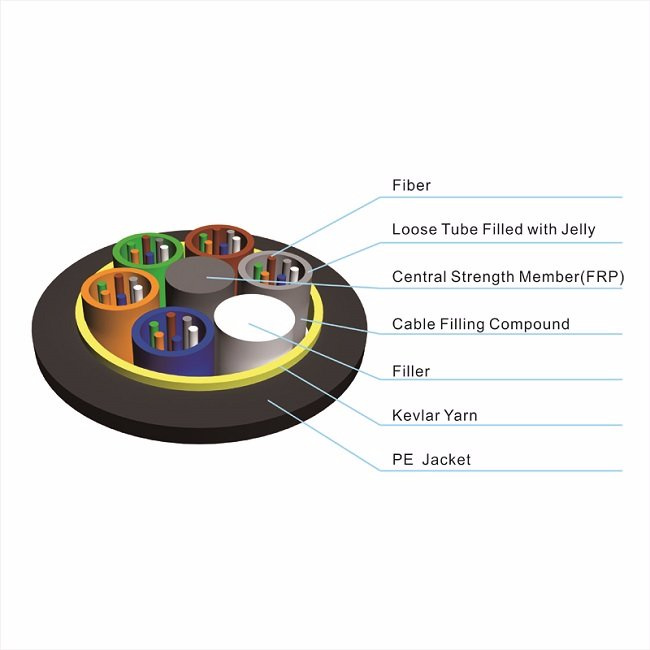

The ADSS CABLE,Single-mode/Multimode fibers are positioned in  loose tubes which are made of high modulus plastic PBT loose tube are filled with water-resistance filling compound.The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. Stranded layer of aramid yarns are applied over the tube as strength member, Outer sheath is made of PE or AT (anti-tracking).





Features:

Fiber count: 2-144 Fibers in Gel filled loose tube.

Fiber selection: Single mode or Multimode.

Strength member : Kevlar Yarn.

Gel filled loose tubes for a critical protection of fiber.


Can be installed without shutting of the power.

Excellent AT performance. The maximum inductive at the operating point of AT jacket can reach 25kV.

Light weight and small diameter reducing the load caused by ice and wind .

Large span lengths and the largest span is over 200m.

Lifespan is over 30 years.


Applications:

Aerial.

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.
For overhead power lines under 110kV, PE outer sheath is applied.

For power lines equal to or over 110kV, AT outer sheath is applied.

The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.


Fiber datasheets:

Fiber G.652DG.65550/125um62.5/125um
Attenuation(+20ºC)@850nm  ≤3.0dB/km≤3.3dB/km
 @1300nm  ≤1.0dB/km≤1.0dB/km
 @1310nm≤0.36dB/km≤0.40dB/km
 @1550nm≤0.22dB/km≤0.23dB/km
Bandwidth@850nm  ≥500MHz.km≥200MHz.km
 @1300nm  ≥500MHz.km≥500MHz.km

Cable datasheets:
Cable diameter(mm)Weight/KM(kg)Rec. Daily Max. Working TensMax Allowable Working Tension (KN)Break strength
(KN)
Suitable Span (m)
(NESC Standard)
 HDPEAT   ABCD
11.01101201.5410160100140100
11.51151252.25615230150200150
12.01201303.0820300200290200

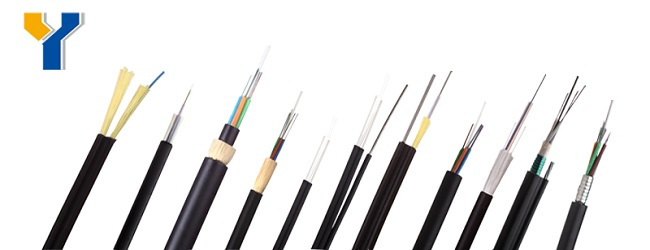

More popular products:




About us:





Contact us:

If you are interested in our products,please contact with our sales,we will reply you
on 24 hourswith english o spanish. Also you can send us a email o call us by telephone.







Prod Model: ADSS-Single jacket
Fiber Count: 2-144cores
Fiber Type: G652, G655, 50/125, 62.5/125
Fiber: Singlemode /Multimode
Strength Member: Kevlar Yarn/Aramid Yarn
Jacket: Black PE /at Jacket
Construction: Dielectric Strand Loose Tube
Tube: PBT Material Loose Tube
Span: 80m-150m
Installation Temperature Range(ºC): -40~+70
Application: Telecommunications
Type: Single-mode Fiber
Certification: ISO9001
Sheath Material: Black PE

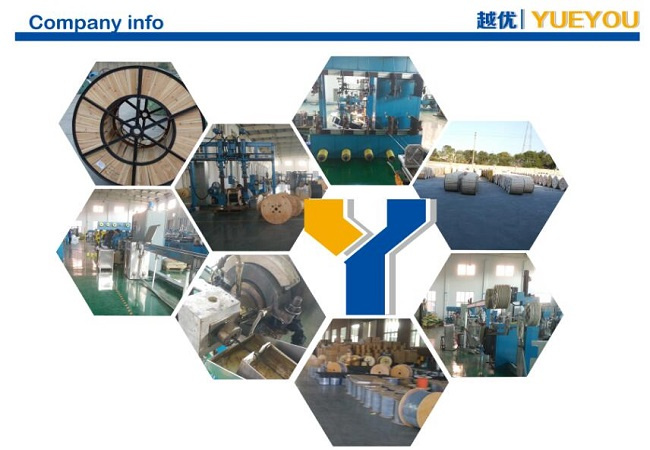

Ningbo Haishu Yueyou Communication Equipment Limited Located in zhejiang Province, is a professional manufacturer of fiber optic cables in China, more than 10 years experience in manufacturer, sales about communication cables.
