AD-452C 15-50m depth Core drilling rig/Geological engineering drill
Product Description NY-452C core drilling is a kind of portable geological engineering drill, It is suitable for all kinds of geological investigation\ Drilling industry and all kinds of drilling construction. Advanced structure and convenient operation. Compact structure, small volume, light weight, strong resolvability and easy to move, which is suitable to work in plain or mountain area.Technical Parameters
Drilling Diameter(mm) | 110 | 91 | 75 | 60 | 46 |
| Drilling Depth(m) | 15~20 | 20~25 | 25-~30 | 30~35 | 35~45 |
| Drill rod diameter(mm) | Standard 42 mm, It can be used by adaptor 32/50 mm |
Max Output Speed(r/min)
(Not Recommended) | 442~900(r/min) |
| Output speed at max torque(r/min)-( Recommended) | 320~650(r/min) |
| Output maximum torque | 220 N·m(Slow) |
| Gasoline Engine/The diesel engine(optional) | Model: LONGXIN -LC1P92F
power: 10.2KW Speed :3600r/min |
| Size(L*W*H) | 680×1200 ×3180mm |
| Weight (Including gasoline engine) | 168kg (Including pedestal and windlass);
The machine can be disassembled and transported, the heaviest single piece 48kg |
Pictures of AD-452C 15-50m depth Core drilling rig/Geological engineering drill Free consultation:

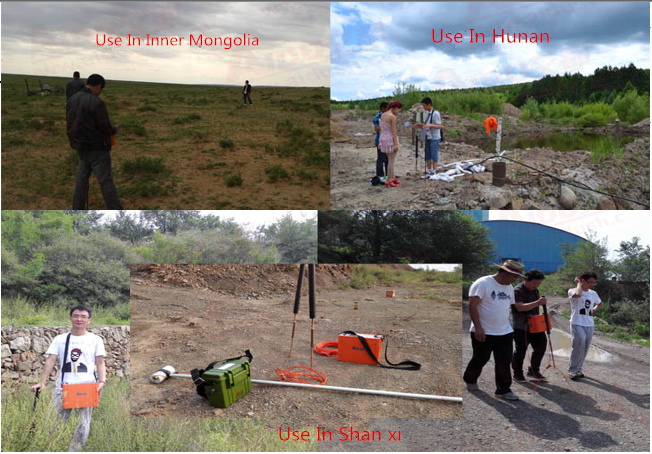

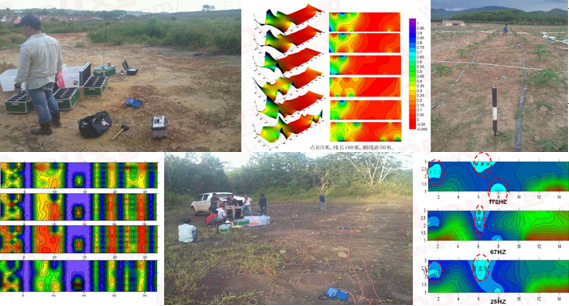

Successful Cases:
Company Information Shanghai Aidu Energy Technology Co., Ltd. (China) is a high-tech limited joint venture, which integrate and involve the R&D, manufacturing and sales of geophysical prospecting instruments like electrical prospecting instruments, magnetometer, portable drilling rig and technique of processing plant; the main products also include IP (induced polarization) instrument, mine locator, water detector, ore analyzer besides above.
Certifications
Payment and Shipping
FAQ
Q:Is it difficult to operate?
A:The instrument is easy to operate, we can share how-to video with you and we will send you the detailed operation manual. via email. If you have some basis of computer operating, generally it only need 2hour to manage it.
Q:What's your delivery port?
A:Shanghai or other main port of China.
Q:What's your packing?
A:Aluminum specialized box or carton.
Q:Can we place OEM orders?
A:Yes, OEM orders are acceptable, We can manufacture machines according to your requirements:such as design, logo, color, material or brand information.
Q:Does machines have warranty period?
A:Yes, our machine with one year warranty period for main parts, quick parts are excluded.
