| Price: | US $ 5000-5100/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

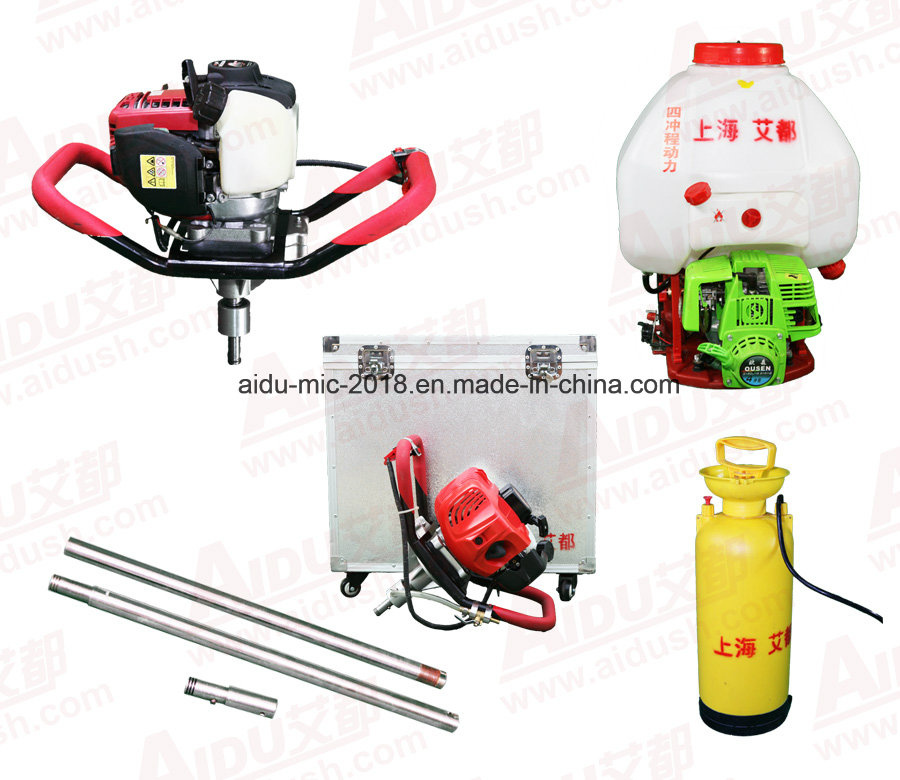

AD-18 0-23m depth portable backpack core drilling rig drilling machine
The AD-18 0-23m depth portable backpack core drilling rig drilling machine is a nearly ideal tool for environmental and geotechnical field investigation because it can be used in otherwise difficult of access locations behind buildings, fences and walls, trees, escarpments and much else. The diamond core bits of the system are easily capable of advancing borings through a large array of subsurface materials including steel reinforced concrete, hard rock and some kinds of cemented gravels.
The drill has many field applications including precious and basic metals, academic, environmental, geotechnical investigation, construction, treasure hunting, fossil fuels, quarry stone, and well installation.
Main Application of AD-18 0-23m depth portable backpack core drilling rig drilling machine:
It is an indispensable technology in precious and basic metals, academic, environmental, geotechnical investigation, construction, treasure hunting, fossil fuels, quarry stone, and well installation.
Technical parameter of AD-18 0-23m depth portable backpack core drilling rig drilling machine:
1) Model: AD-18
2) Rotate Speed: 800-1560(r/min)
3) Drilling Depth: <20m
4) Enter Method: Hand Pressure
5) You can use diamond drill bits, alloy bit for drilling soil and rock layers.
6) Forward distance: 0.6M
7) The whole machine net weight: 18Kg
8) Unit max weight: 5Kg
9) Gasoline Engine main parameters:
| Model Parameter | Kawasaki TJ35E | Mitsubishi TU43 | Steele SF20 | Honda GX35 |
| Type | Two-stroke air-cooled | Two-stroke air-cooled | Two-stroke air-cooled | Four-stroke air-cooled |
| Displacement(mL) | 34.4 | 43 | 32 | 35 |
| Fuel tank capacity(L) | 0.7 | 0.6 | 0.6 | 0.5 |
| Power | 2.68 | 1.89 | 1.98 | 1.5 |
Please contact me for more details:
Sophia Zhou
Manager of Export Deparment
Mobile 0086+18019473619
Q:Is it difficult to operate?
A:The instrument is easy to operate, we can share how-to video with you and we will send you the detailed operation manual. via email. If you have some basis of computer operating, generally it only need 2hour to manage it.
Q:What's your delivery port?
A:Shanghai or other main port of China.
Q:What's your packing?
A:Aluminum specialized box or carton.
Q:Can we place OEM orders?
A:Yes, OEM orders are acceptable, We can manufacture machines according to your requirements:such as design, logo, color, material or brand information.
Q:Does machines have warranty period?
A:Yes, our machine with one year warranty period for main parts, quick parts are excluded.
Q:1 year Maintenance?
A:In 7 days after sale, if our products can't be used because of the quality problem, we promise that they could be retuned, replaced and their guarantee period is 6 months.
Q: QEM service?
A:Different configuration for your actual conditions.
| Prod Model: | AD-18 |
|---|---|
| Power: | 2.7 |
| Fuel Consumption: | About 0.45L/Hour |
| Rotatory Speed: | 1600r/Min |
