Ad-100 0-150m Depth Full Hydraulic Core Sampling Drilling Rig Drilling Machine

AD-100 0-150m depth Full Hydraulic core sampling drilling rig drilling machine

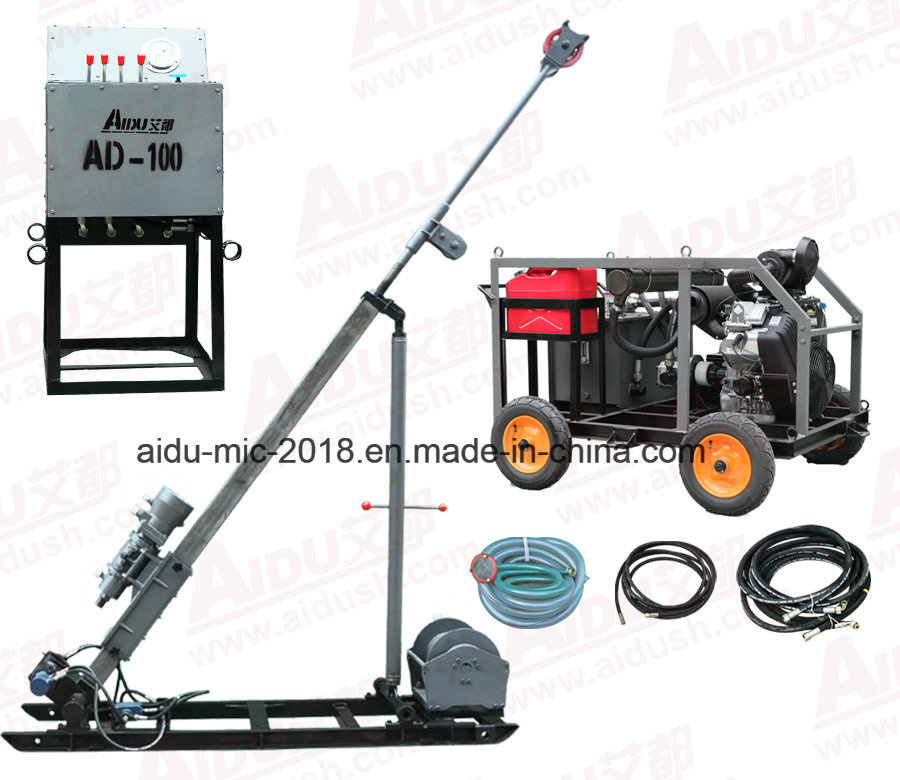

AD-100 Full Hydraulic Portable Drilling Rig is well- designed and improved drilling rig, referred to advanced drilling rigs of domestic and abroad, which is more suitable for the using in all kinds of complex conditions. It equips with electrical motor (or diesel engine) as power and the operations such as rotary, feeding, winch, slip are driving by hydraulic pack, which is quite easy for use.
AD-100 is designed as modularity and has features like light weight, small size, quite convenient to use in the fields. For drilling work, AD-100 can drill in 0-90 degree angle with diamond bit, spiral twist bits, alloy bit etc. In China, AD-100 is the most advanced portable drilling rig which can drill inclined borehole.


Main Feature of AD-100 0-150m depth Full Hydraulic core sampling drilling rig drilling machine:

1.Electrical motor, diesel engine

2.Suitable for normal drilling rod coring and wire-line coring

3.Modularity designed, portable, easy to assembling and disassembling, convinient to move

4.Easy to learn and operate, practical and reliable


Main Appliation of AD-100 0-150m depth Full Hydraulic core sampling drilling rig drilling machine:

Widely used in geological survey sampling and mapping, seis hole construction, geochemical rock sampling, road foundation exploration and geotechnical engineering etc.

Technical parameter of AD-100 0-150m depth Full Hydraulic core sampling drilling rig drilling machine:

Drilling type: diamond and alloy rotary and twist spiral drilling
Hole diameter(mm):42-75
Drilling depth(m):≤150M
Spindle rotating speed(r/min):120-1500
Power(KW):22-37   (36-60HP)
Tower:Single frame with tilt brace,3.7m height
Feed stroke:1.5m
Total weight (kg) :500
Max. single weight(Kg):120 (hydraulic pack)

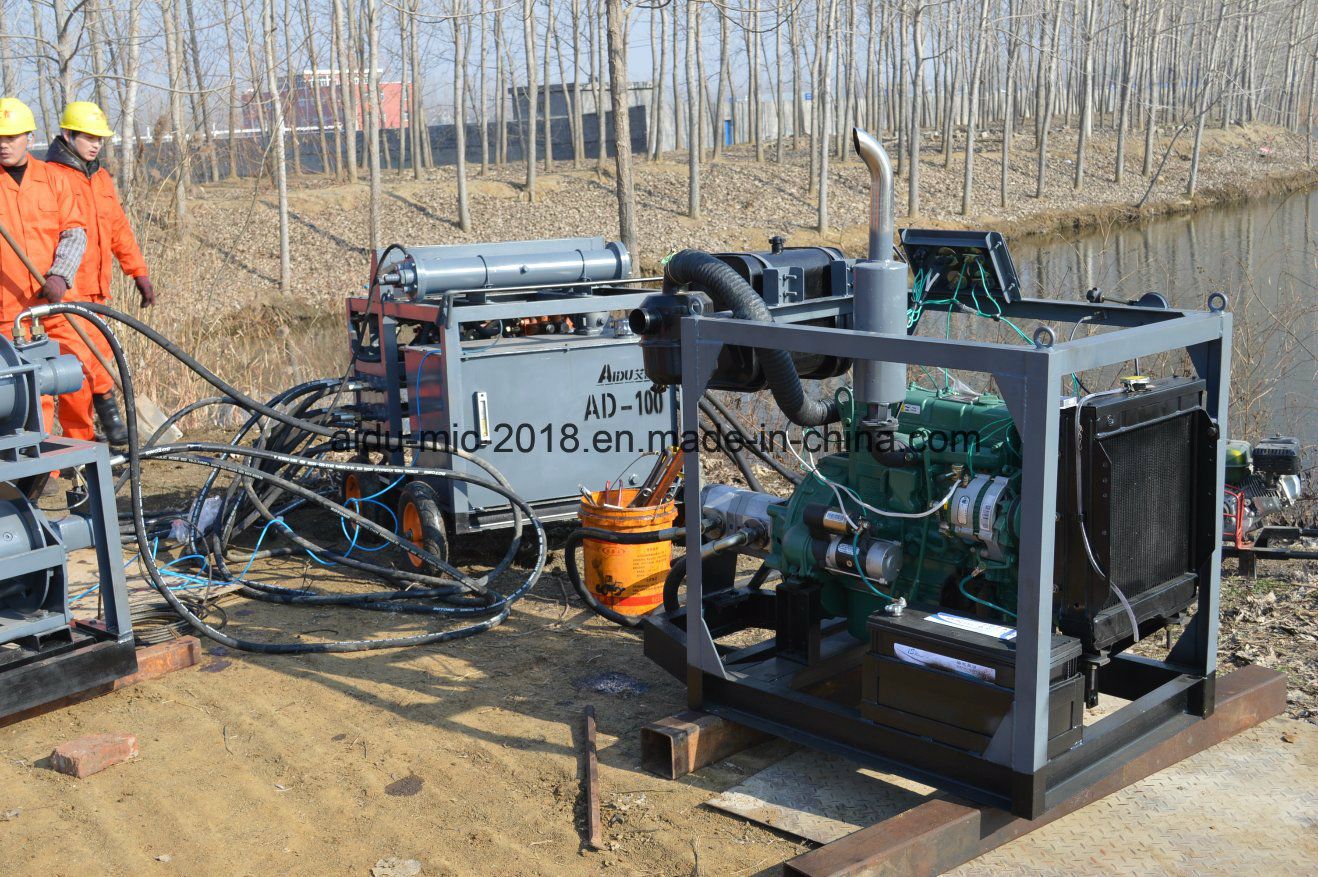

Operation in the field of AD-100 0-150m depth Full Hydraulic core sampling drilling rig drilling machine:



Please contact me for more details:
Sophia Zhou
Manager of Export Deparment
Mobile/WhatsAPP/Wechat: 0086+18019473619

Q:Is it difficult to operate?

A:The instrument is easy to operate, we can share how-to video with you and we will send you the detailed operation manual. via email. If you have some basis of computer operating, generally it only need 2hour to manage it.

Q:What's your delivery port?
A:Shanghai or other main port of China.

Q:What's your packing?
A:Aluminum specialized box or carton.

Q:Can we place OEM orders?
A:Yes, OEM orders are acceptable, We can manufacture machines according to your requirements:such as design, logo, color, material or brand information.

Q:Does machines have warranty period?
A:Yes, our machine with one year warranty period for main parts, quick parts are excluded.

Q:1 year Maintenance?

A:In 7 days after sale, if our products can't be used because of the quality problem, we promise that they could be retuned, replaced and their guarantee period is 6 months.

Q: QEM service?

A:Different configuration for your actual conditions.
