D.O.T. Air Brake Fittings --workshops

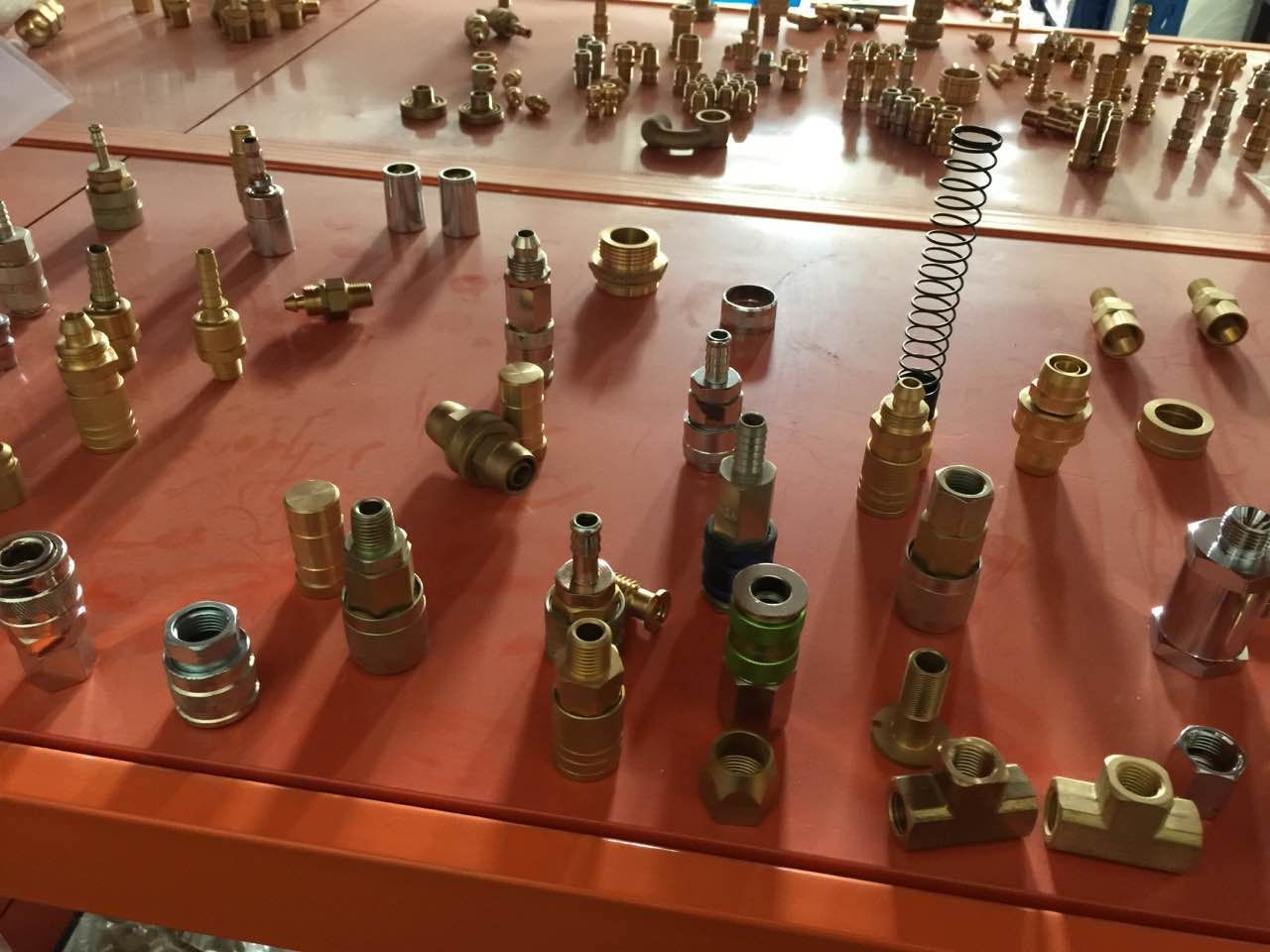

AIR BRAKE FITTING FOR COPPER TUBE
1. Applications: Used to copper tubing in air brake system
2. Advantages:
Machined from CA360 brass. Easy to assemble (no flaring required). Being used with Nylon tubing by replace nut, sleeve and insert with short nut and sleeve.
3. Specifications:
When used with NTA63 sleeve and Nylon SAE J844 Tube, the series meets D.O.T. FMVSS 571.106 performance requirements. Also meets funcational requirements of SAE J 246.
4. Working Pressure Range: 4000P.S.I.
5. Temperature Range:-65F+250F(-53ºC+121ºC)
6.Assembly Instructions:
Cut tube to desired length and remove burrs.
Slid nut and sleeve on tube, the thread end of the nut should face toward the fitting body.
Insert tube into the preassembled the fitting, the tube should be bottomed in the fitting.
Tighten nut to required torque as indicated on chart.
| Part NO. | Tube Size | Pipe Thread |
| 860-4 | 1/4'' | 0.322 |
| 860-6 | 3/8'' | 0.461 |
| 860-8 | 1/2'' | 0.594 |
| 860-10 | 5/8'' | 0.734 |
| 860-12 | 3/4'' | 0.874 |

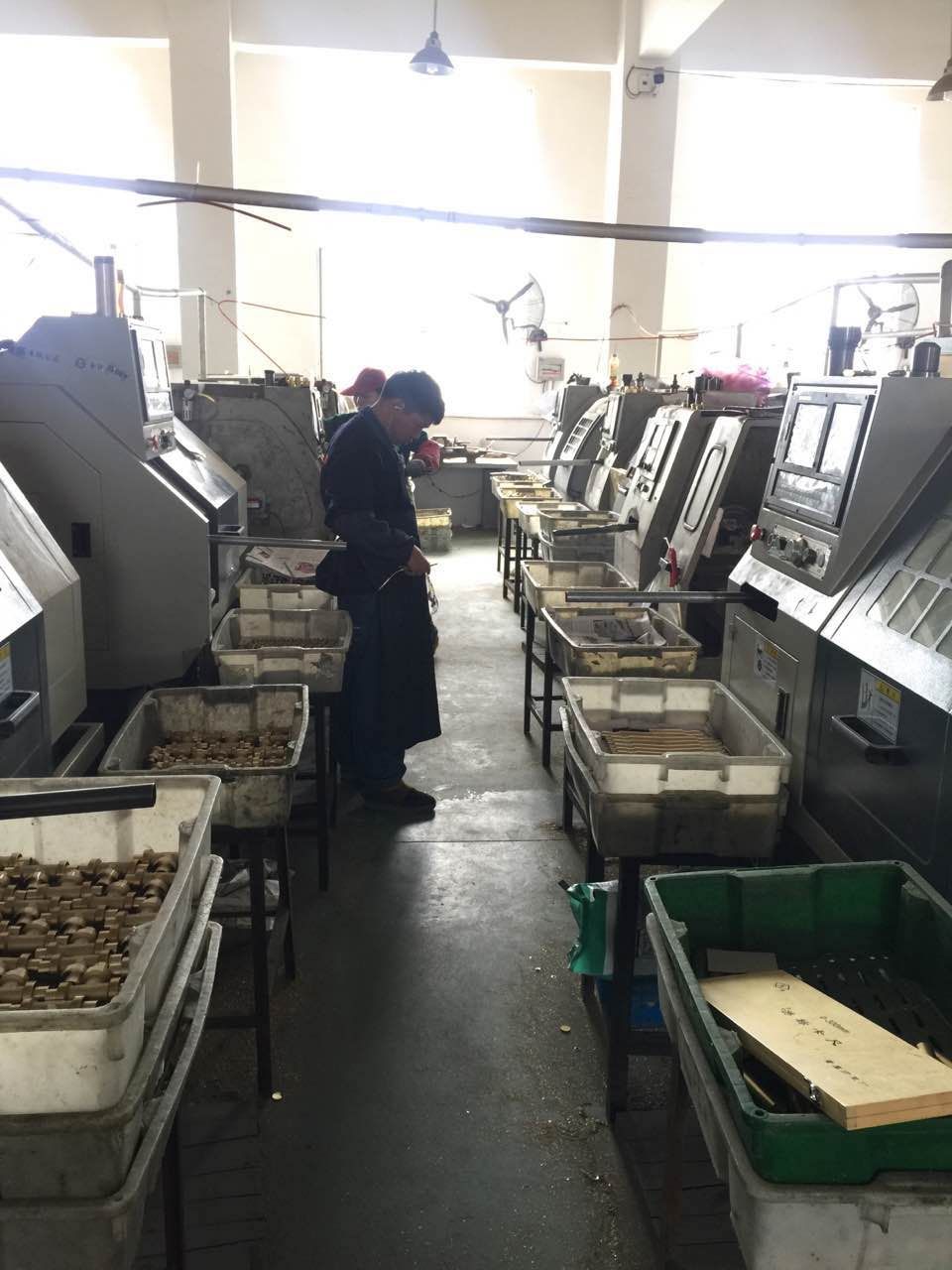

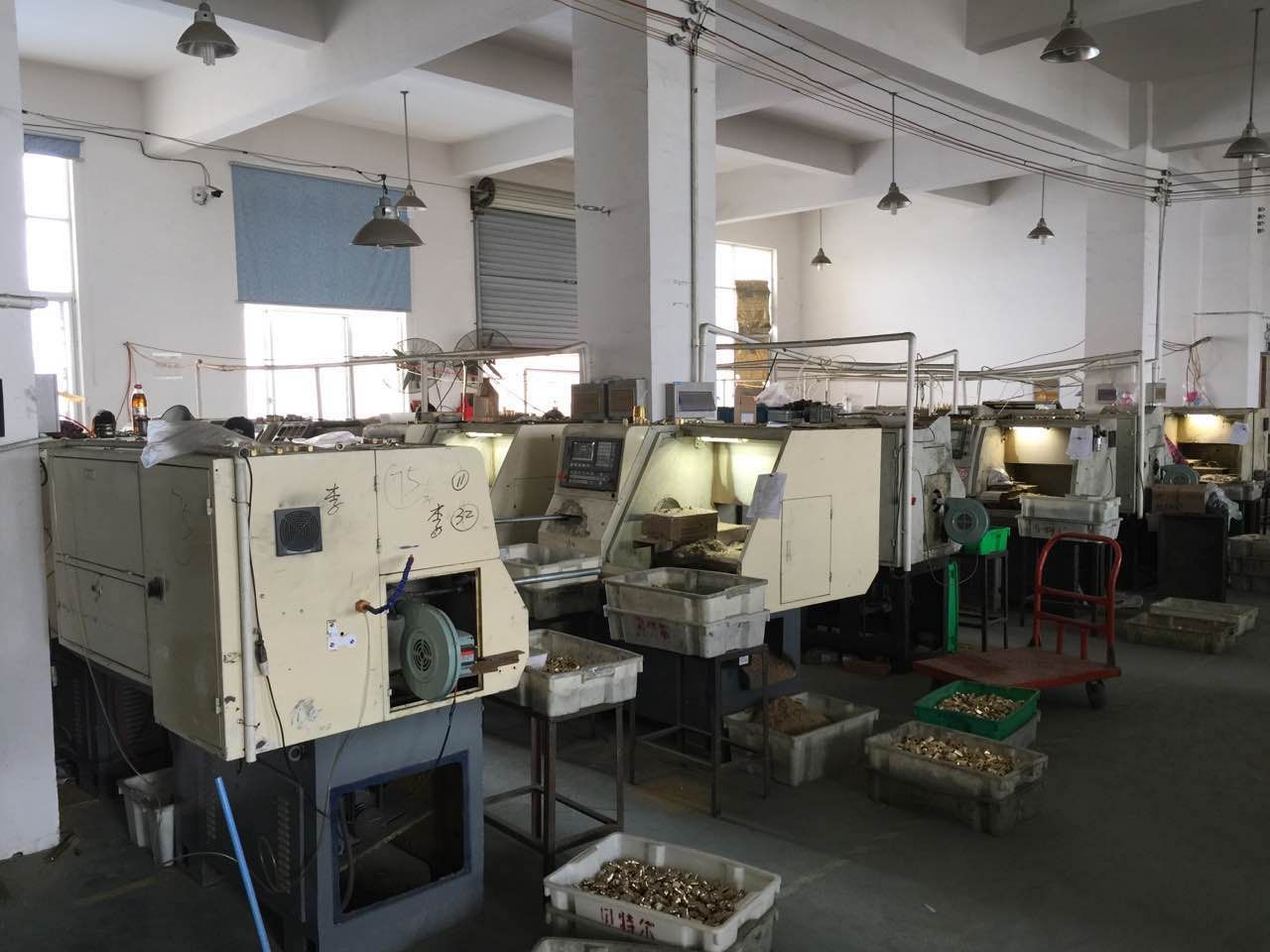

Shanghai zhengmi pneumatic element limited company is a high- tech enterprise, we are specialized in developing, producing and marketing plastic tube. Our company produce and market PU tube, coiled tube, garden hose and component products. We already belonged standard existing plant about 3000 square meter, and some production lines of PU tube, PU coiled tube, PU braided pipe, H-hose. With advanced facilities and a high degree of automation, our monthly capacity is about 100 tons. Our products have exported to Europe and America, and all around the world. Our products appear on many kind of fields, from automobiles to machinery, medical care, toys, tools and so on.
From product design, material selection, color matching technology, production, packaging and storage and transportation of every link, we will be able to control. On raw materials, we used BASF, Bayer, , Atto, high tripod, Shimei, and other highquality raw materials; Strict quality management and environmental requirements, computer color matching chromatography analyzer, the computer raw materials oven ther-mostat, automated production and multichannel quality control measures to ensure that our products always maintain superior performance. We can supply you with many products, including PU series, gardening series and PU braided tube. The PU series is divided into Super--soft type ( Shore 60--85A), Air Compressor general type (Shore 95-98A), high-pressure-type ( Shore65D ), high-performance water resistance of type, fire-flame resistant type.
Customer satisfaction is our goal, from the pre-sale of products to the after-sale technical advisory services, our customer service system can achieve full services. To be honesty, being pragmatic, efficient, and innovation are our entrepreneurial spirit. Shanghai zhengmi is moving in modern and international forward; We are looking forward to cooperating with the worldwide friends to create peace and prosperity together!
