8m Hydraulic Electric or Battery Power Aluminium Alloy Platform Lift

8m Hydraulic Electric or Battery Power Aluminium Alloy Platform Lift
Price: US $ 1599/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Product Description

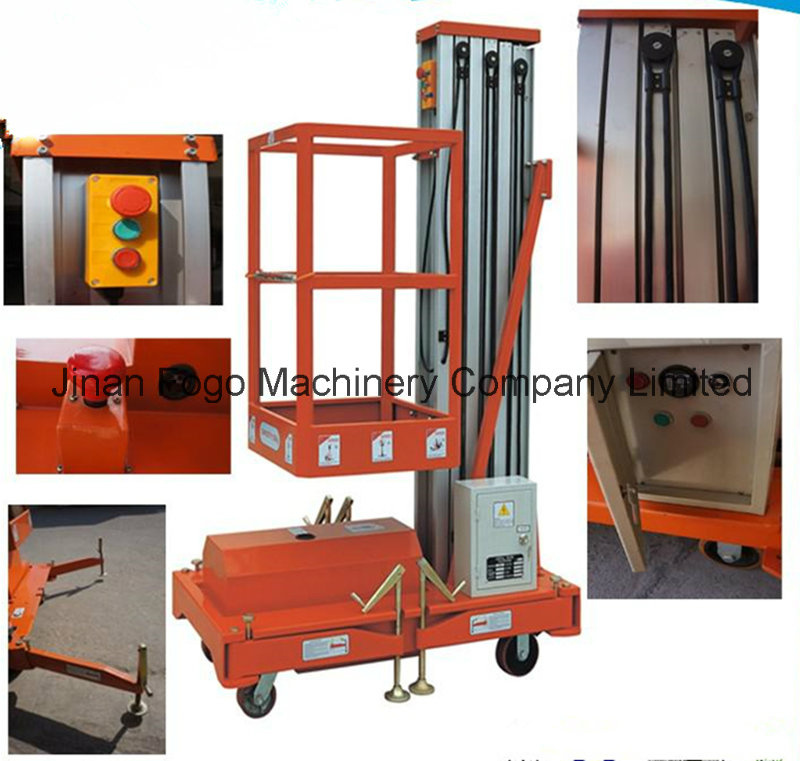

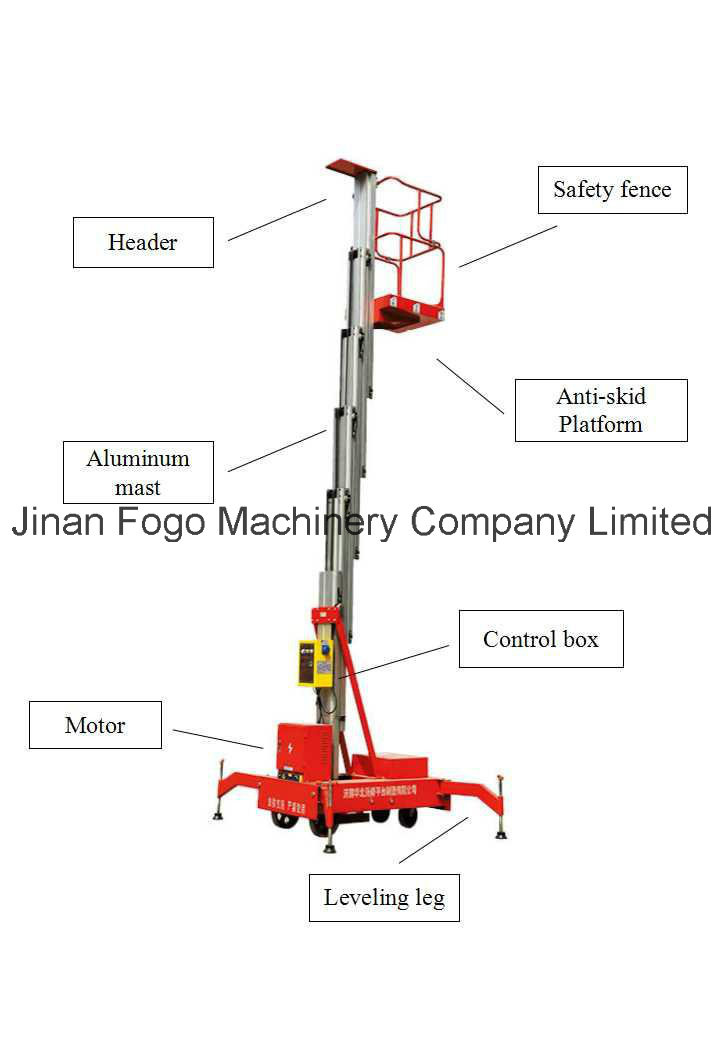

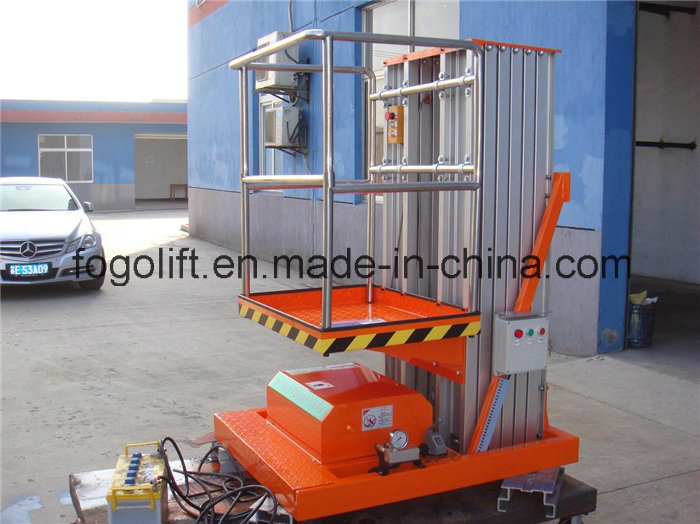

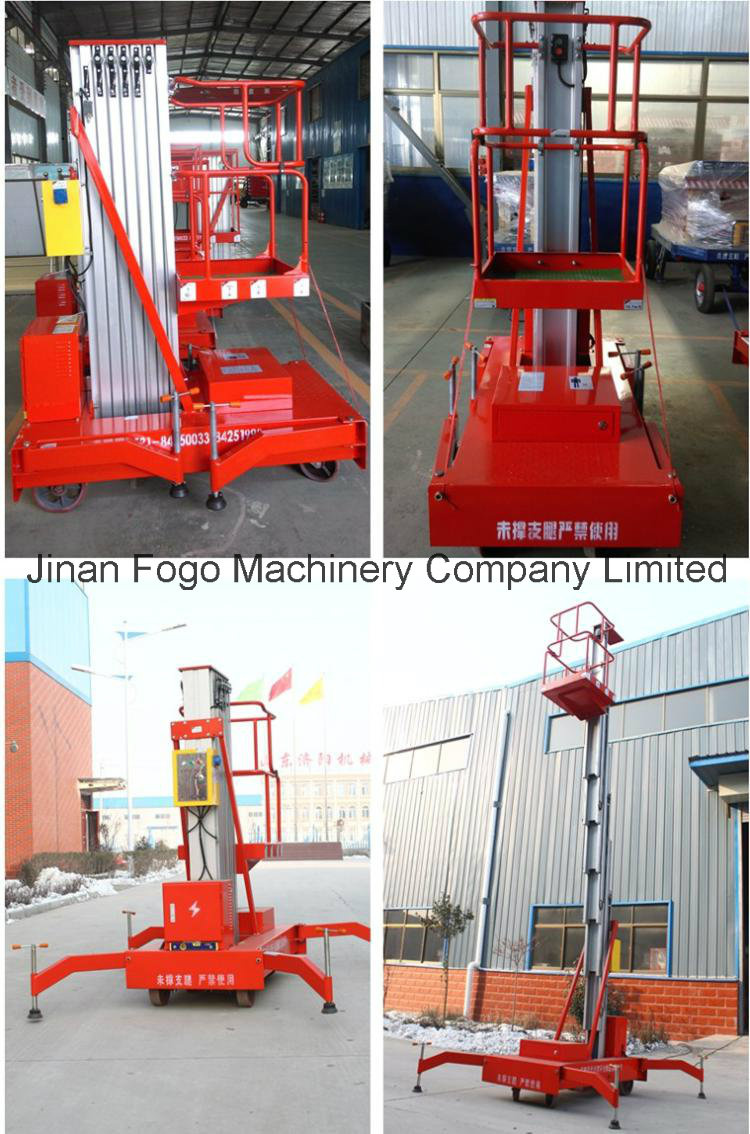

Brief Introduction of hydraulic mast aluminum alloy platform lift
A.Aluminum-single-Mast Lifts are made up of high grade aluminum profile.
B. It is mainly used for the installation and maintenance of the narrow spaces such as star hotels,modern workshops,business hall,hotels,lobby,restaurant,railway stations, exhibition hall and shopping malls.
C.The lifting height ranges from 4m to 18m and lifting capacity varies from 100 to 200kg.The power sources could be 220V,380V or chargeable battery.
D.The control panels are available both on the lift platforms and the ground.


Aluminum alloy lift platform uses the high strength aluminum alloy materials, with beautiful shape, small volume, light weight, lifting balance, the advantages of safe and reliable, the platform of their own insurance rope wear and safety protection device, and can up and down operation, widely used in factories, hotels, restaurants, stations, theaters, exhibition halls and other airport place.

Product advantage of hydraulic mast aluminum alloy man lift

Lift or fall steadily
The seamless transmission is used between the lifting masts, thus minimizing the amount of sway after lifting.

Safe and reliable
The four turning stabilizers of the unit connected to the four corners of the chassis support the MEWP duringwork. They are designed for leveling regulation and preventing inclination. They are composed of stand bars and turning legs. The stand bars are installed in the turning legs. Extending out the turning legs before operating the unit enlarges the area of supporting. Therefore, the steadiness of the whole platform is guaranteed.


Convenient
The whole work platform is light because the lifting masts are made of alloy aluminum. The structure is compact and the volume is small, so only one person can move the equipment and carry it through a very narrow passage.


Single Mast Aluminium Alloy Platform Lift Model Catalogue
Model #YBC-6YBC-8YBC-9YBC-10
Load Capacity100Kg100Kg100Kg100kg
Table Size/mm600×600600×600600×600600×600
Lifting Height6M8M 9M 10M
Work Height7.7M9.7M10.7M11.7M
Power SupplyAC220/50HZAC220/50HZAC220/50HZAC220/50HZ
Rated Power0.75KW0.75KW1.1KW1.1KW
Overall Dimension/mm1280*800*19801280*800*19801360*850*20001360*850*2100
Package Dimension/mm1400*950*21501400*950*21501500*1000*22501500*1000*2250
Dry Weight280Kg300Kg320Kg340Kg
Package Weight330KG350KG370KG390KG

Package & Shipping


Prod Model: YBC-8
Working Volt: 110V, 220V, 380V/50Hz, 60Hz
Capacity: 100 Kgs
Table Size: 600*600mm
Remote Control: Yes
Power Source: DC/AC
Application: Warehouse Crane
Carrying Capacity: Light Level
Driven Type: Hydraulic
Running Mode: Moving
Feature: Insulating
Jinan Fogo machinery Co., Ltd is a company which is professional in producing the hydraulic lift platform and handling equipment for logistics using and is also the biggest producer in making Aluminum Aerial Work LT, Cylinder hydraulic aerial work platform, Arm Lifter and dock levelers and is a member of China Association of Warehouses and Storage.

With excellent facilities, advanced techniques, full-scale analysis technique, tremendous technology, all of our products has passed the detection of Check station of China Special Equipment and Manufacture License of Special Equipment of People's Republic of China with the number TS2437071-2009. Our machine's burden has reached the maximum load: 10 tons.

Our company has got the 2000 Quality System Certification of ISO9001. Our product was awarded the first-class prize of Shandong Mechanical Designing Competition and its Quality and capability had been tested by using in several national project. We have got a reputation by selling our goods towards domestic market and overseas market such as: America, Canada, and German. Our products are compartmentalized to six BIG SERIES and FIFTY VARIETIES.

The management criterion is "Quality is the best, Users' demand is the highest, Employee moves fast, and the honesty is the first". Welcome the friends coming from all over the world!
