| Price: | Negotiable/Meter |
|---|---|
| Min Order: | 10/Meter |
| Pay Type: | L/C,T/T,Western Union,Paypal |
Brief Introduction

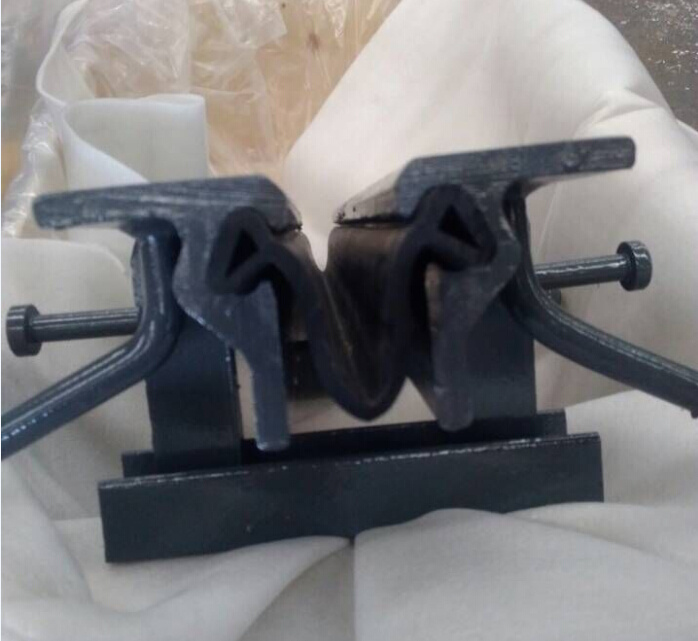

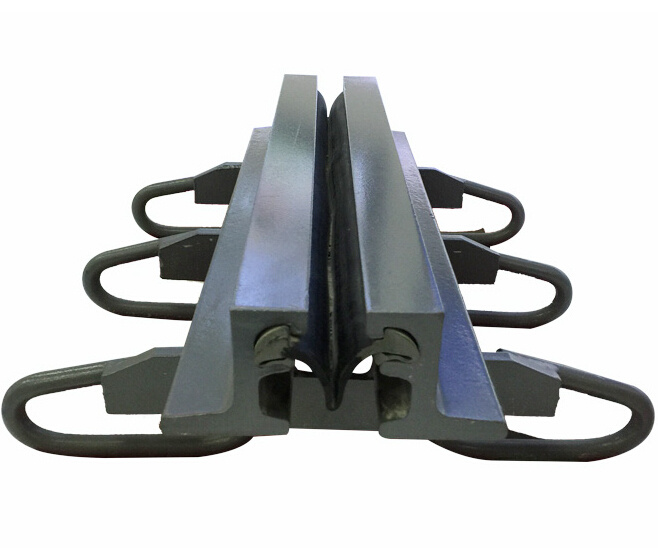

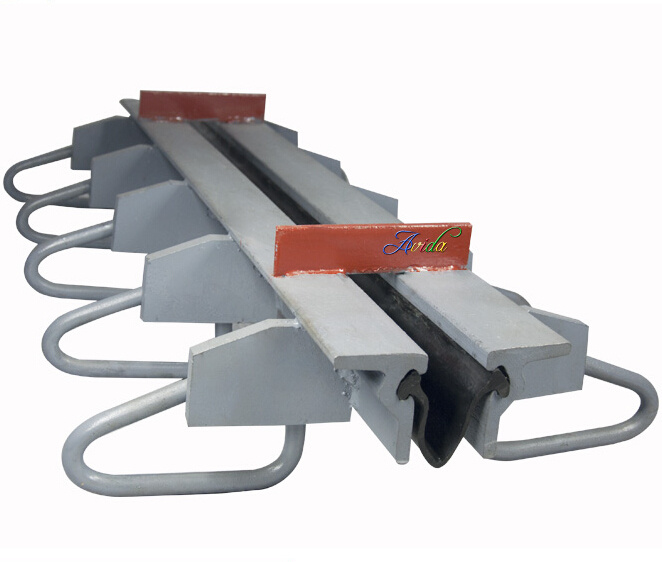

Single gap expansion joint is a strip seal joint, which consists of two steel edge profiles with anchor loops and a replaceable sealing profile. The strong anchor loops ensure the reliable anchorage of expansion joint with bridge structure. On the anti-corrosion side, the steel profiled should be in accordance with ISO12944 or other national standard as requested,such as ASTRA, RVS and ACQPA.The sealing profile is firmly connected with the steel edge profiles and meanwhile it ensures 100% water-tightness.
Single gap expansion joint allows a longitudinal movement capacity up to 80mm. It is designed for bridge heavy traffic load and can be used for both bridge structure and building structure.
Single gap expansion joint can be designed and manufactured with noise-reduction plates to reduce the noise greatly when traffic passes.
Physical Properties of Rubber Strip Seal
| Physical Properties | CR | NR | EPDM | |
| Hardness | 50±5 | 50±5 | 50±5 | |
| Tensile Strength/Mpa ≥ | 15 | 16 | 14 | |
| Elongation at Break/% ≥ | 400 | 400 | 350 | |
| brittleness temperature(ºC) ≤ | -40 | -50 | -60 | |
| EN Compression Set(70ºC*24h)/% ≤ | 15 | 30 | 25 | |
| Ozon Resistance(20% elongation, 40ºC*96h) | No Crack | No Crack | No Crack | |
Air Oven Aging(Max change, comparing with datas without aging) | Test Conditions(ºC*h) | 70*96 | 70*96 | 70*96 |
| Tensile Strength(%) | ±15 | ±15 | ±15 | |
| Elongation at Break/% | ±25 | ±25 | ±20 | |
| Hardness Change | 0~+10 | -5~+10 | 0~+10 | |
| Peel Strength between Rubber and Steel(kN/m)> | 7 | 7 | 7 | |
Resistance to Salt Solution(23ºC*14d, concentraction 4%) | Volume Change(%)≤ | 10 | 10 | 10 |
| Hardness Change ≤ | 10 | 10 | 10 | |
Oil Resistance(ASTM1,23ºC*168h) | Volume Change | -5~+10 | <+45 | <+45 |
| Hardness Change | -10~+5 | <-25 | <-25 | |
Packing Details : 1.pearl cotton as separation 2.carton for inner package 3.Container
Delivery Details : 1.Safety package
2.100% test before delivering (ensure the quality)
3.Item is shipped in about 15-30 working days against payment depends on the quantity
4.Tracking number will be sent to you as soon as we ship the product
Contact
Mike Chen
Nanjing MEISHUO Building Materials Co.,Ltd
ADD: No. 50, Dingjie, Pancheng, Pukou District, Nanjing, China
Web: http://msbxf.com/
Tel: +86-15295732784
| Prod Model: | AGQ |
|---|---|
| Main Material: | Q235 Stainless Steel |
| Product Name: | Strip Seal Expansion Joint |
| Movement: | 80mm |
| Strip Seal: | EPDM |
| Size: | Custom |
| Shaped Steel: | C, F, E, Z, M or Custom |
| Special Service: | Custom as Drawing |
| Certificate: | ISO/SGS |
| Sample: | Avaliable |
| Warranty: | 10 Years |
| Type: | Expansion Joint |
