7 Inch 1024X600 LCD Display for Electronic Game Machine, Ka-TFT070be005

7 Inch 1024X600 LCD Display for Electronic Game Machine, Ka-TFT070be005
Price: US $ 9.4-9.9/Piece
Min Order: 100/Piece
Pay Type: T/T,D/P

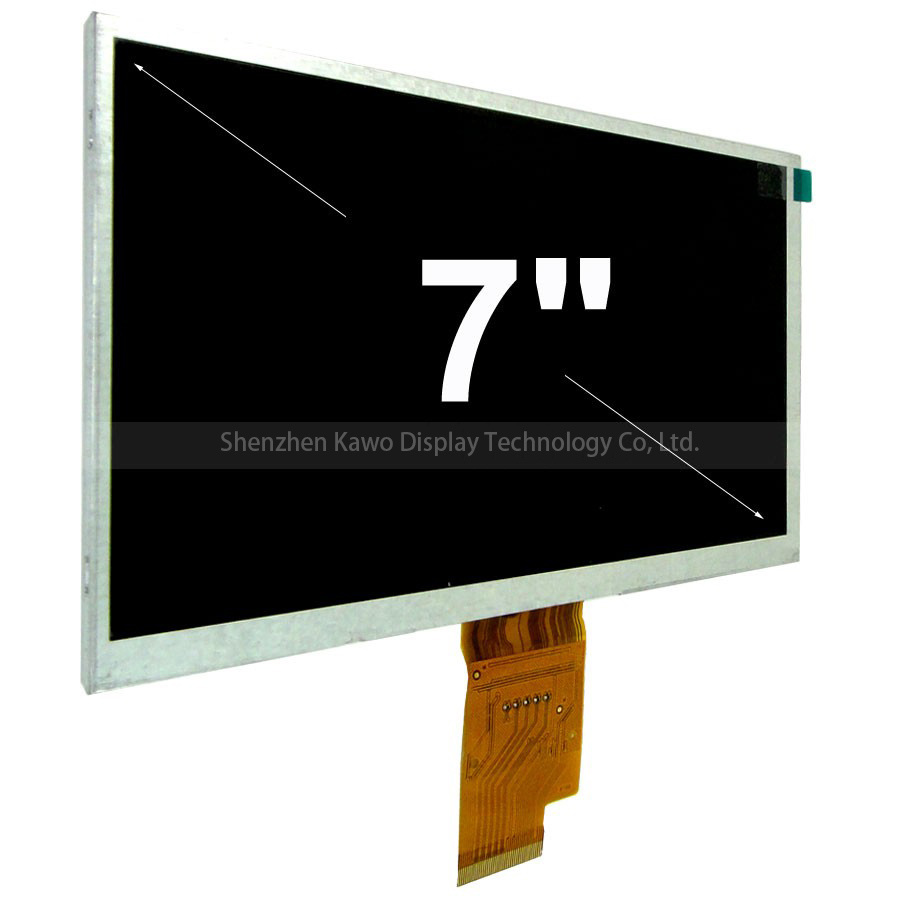

KA-TFT070BE005 is 1024*600dots 7" BOE TFT lcd module display with driver IC EK79001/EK733215,which has optional  Capacitive Touch  Panel and Touch Panel of resistance.All materials are in conformity with the RoHS standard for environmental protection.It can be widely used in car navigation, medical equipment, IMD tablet PC, electronic game machine and industrial control equipment.
Gross Weight(kg)0.236
ManufacturerKawo Display
Continuity SupplyWe promise the long term continuity supply for this product no less than 5 years since 2016
Part NumberKA-TFT070BE005
Display Format1024*600dots
InterfaceLVDS
IC or EquivalentEK79001/EK733215
AppearanceLVDS
Diagonal Size7''
ConnectionFPC-Connector

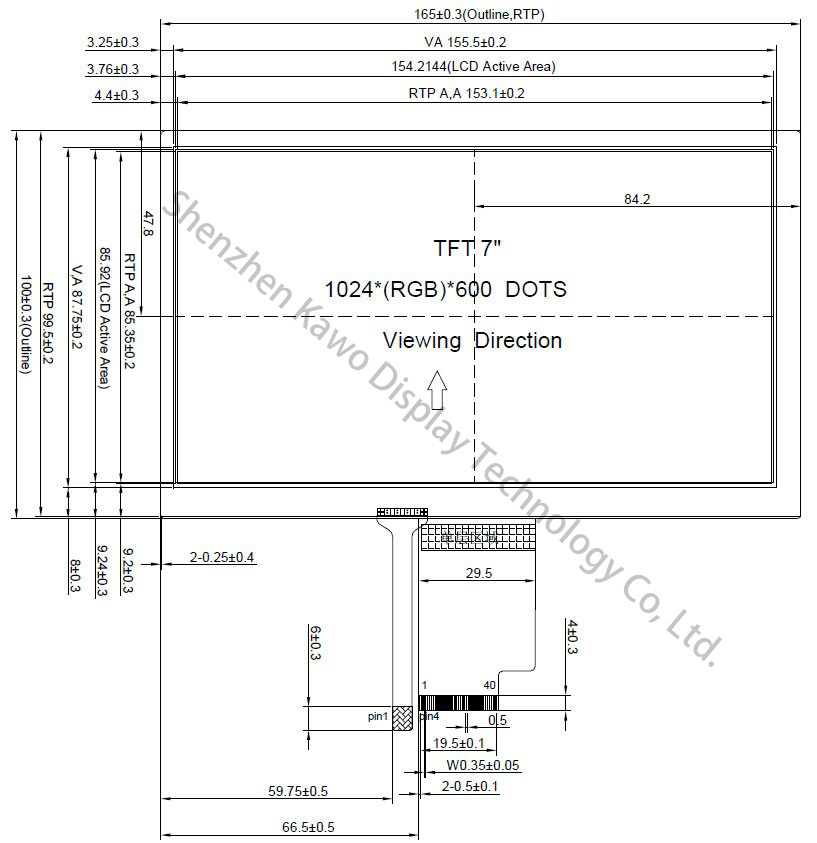

Outline Dimension164.9(W)x100.0(H)mm
Visual Area156.6(W)*89.0(H)mm
Active Area153.84(W)x85.63(H)mm
Dot (Pixel) Size0.1506(W)x0.1432(H)mm
Display TypeTFT-LCD Color
Optional Touch PanelYes
Sunlight ReadabilityNo
Response Time(Typ)15ms
Contrast Ratio(Typ)500:1
Colors65K/262K/16.7M
Viewing Direction6 o'clock
Viewing Angle Range(U/D/L/R)50/70/70/70
Brightness(Typ)300cd/m2
Backlight ColorWhite
Backlight Current(Typ)160mA
Operating Temperature-20ºC-70ºC
Storage Temperature-30ºC-80ºC
Series NumberKA-TFT070BE005
POL Meterial0.22EWV
Voltage/Power9.6V/160mA  1.536W




Stock
The general recommendation model of our company will be prepared for part of the stock. If no inventory is made, 3-7 working days will be required to be decided by the product. The regular delivery of a batch order takes 15 working days, for example, for the first delivery of a new case, it takes 30 working days. Please communicate and coordinate with our sales under special circumstances.
Warranty
Long Term Continuity Supply Warranty
We understand you probably worry whether we still offer the display after your long development time.Kawo gives the promise to every customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply.Some controller IC may stop the production,we'll try our efforts to find the completely compatible ones.If the equivalent is unavailable, we'll make the new tooling and use the most similar IC as replacement.So you don't have to worry even your research time is very long.


Shipping
1.Shipping Carriers
We cooperate with DHL ,UPS,FEDEX, TNT,EMS,HongKong Post and Singapore Post for shipment and choose the most appropriate one for the destination .
2. Shipping Time

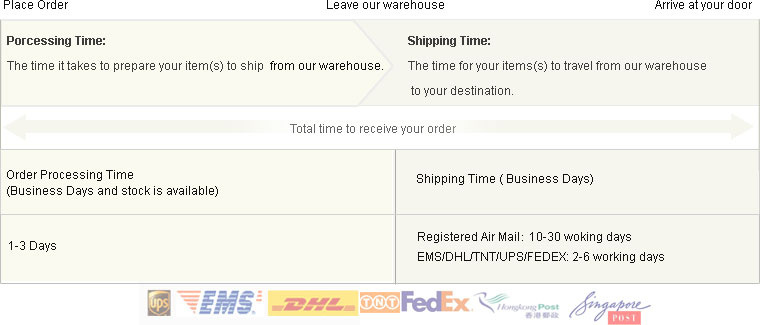

Please use the chart below to help how long it will take to recive your order.

3. Rates
A shipping cost estimate is displayed during online checkout based on the "Ship to" address you provide. If that estimate is significantly lower than the actual cost determined after your order is packed, we will notify you by email and wait for your approval before shipping.If significantly higher,we will reduce your shipping charge.
4. Charge for Packages Returned or Rerouted

In addition to the original shipping cost, we charge you for packages returned to us or that require rerouting when caused by your error (for example,providing an incorrect shipping address) or refusal of a package.
5.Customs and Import Duties
Customs fees and import duties for exports are your responsibility. We cannot predict or prepay these fees.We will charge you for any duties or customs fees erroneously charged to us.


Return
1.Selecting the Part You Need
To ensure that a product will meet your requirements, please read its products manual or get the products details from our sales. If you have any questions after that, we provide free technical support.
2.Repair or Replacement for Defective Products
We will provide 12 months warranty after sales service, and the defective products in the warranty period can be returned to repair or replace. Before returning the product, you must first contact our salesman to make a good registration record for the later goods to follow.
3.Returning Non-Defective Products
We will only consider return requests when the request is made within 30 days of delivery. There is a restocking fee of up to 30% of the purchase price depending on the circumstances. You can avoid a restocking fee by reviewing your order confirmation to ensure the correct parts have been ordered. Shipping charges are nonrefundable.
4.How to Return a Product
After we receive the product, we inspect it to determine the cause of any defect, then update by email with our findings. This process usually takes five business days. It takes 15 working days to repair after the report is confirmed.


Prod Model: Ka-TFT070BE005
Driver IC: Ek79001/Ek733215
Brightness: 300CD/M^2
Aspect Ratio: 16:9
Feature: LED Backlight Display
Type: TFT
Widescreen: Widescreen
3D: Not 3D
Screen Size: 7''
Application: Electronic Game Machine
Optimum Resolution: 1024*600
Response Time: 15ms
Interface Type: RGB
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
