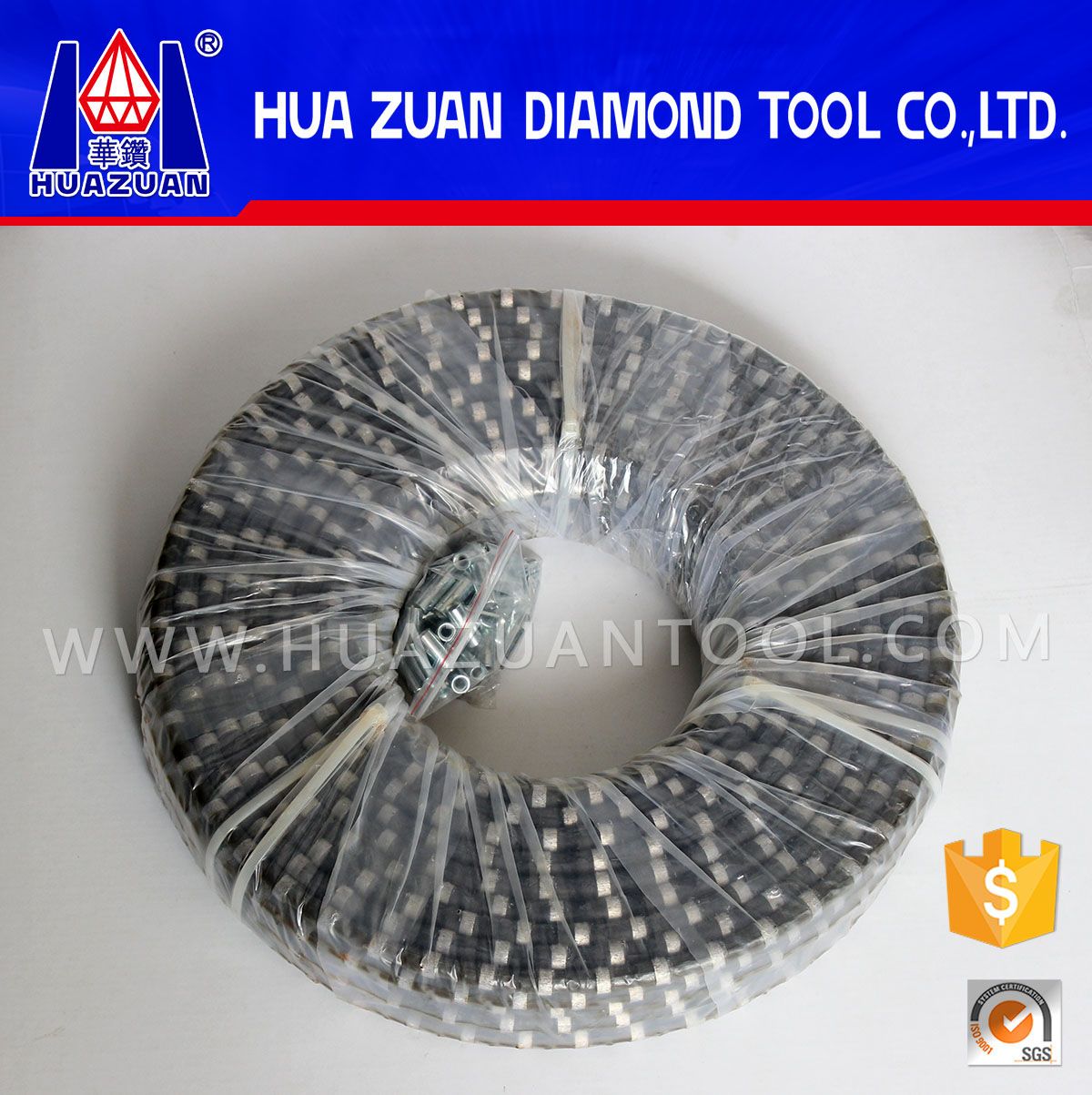

7.2-11.5mm Diamond Wire Saw for Sawing Machine

7.2-11.5mm Diamond Wire Saw for Sawing Machine
Price: US $ 42/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 10/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Product Description
Application1.For Stone Quarry,Block Squaring&Chamfering,Profiling Cutting
2.For Cutting Reinforce Concrete
Diameter Of Wire Saw7.2mm, 8.0mm, 8.5mm,9.0mm,11.0mm,11.5mm
Technology Sintered,Electroplated,Vaccum Brazed
Coating Fix InjectionPlastic,Rubber,Spring,Rubber+Spring,Plastic+Spring
Beads/Meter40/37/33/28/26pcs
Attentionl. Checking the saw regularly and adjust timely.
2.Checking the pearl abrade regularly,Avoid the eccentric wear
3. Checking the joint regularly and adjust timely.
4. The tension of ropes is 250-300kg(Φ4-5mm ropes)
5.  Water supply is around 15-25L/min
 Feature1.Very less breakage ratio when using therefore increase the working lifetime.
2.Automatic production ensures stable quality performance.
3.Safe, high efficiency and environment protecting.

What is the maximum thickness of granite and concrete you can use your wire saw cut?
Depending on the process, Diamond can saw various thicknesses, for example:
Wall saws will typically cut concrete or masonry up to a thickness of 24 inches. In the event that the wall to be cut can be accessed from both sides, a total thickness of 48 inches can be sawed.
Slab saws will typically cut up to 24 inches deep through concrete, asphalt, or brick paving. When thickness exceeds these depths Diamond is equipped to create openings with wire saws.
With a wire saw depth is or thickness is unlimited. Wire saws are capable of cutting through press bases, concrete foundations, reactor vessels, stainless steel, and more.

Diameter(mm)ApplicationsCoatingBead/mCutting Speed(m2/h)Wire Life(m2/m)
Φ11.5/Φ10.5Reinforced concreterubber+spring400.5-50.5-8
Φ11.5/Φ11.0Granite mine/quarryrubber/rubber+spring402-127-22
Φ11.5/Φ11.0/Φ10.5Marble mine/quarryspring/spring+plastic28-404-2015-50
Φ11.0/10.5Granite & marble blockplastic/rubber37/406-307-50
Φ8.8/Φ8.5Granite&marble profilingplastic/rubber33/37/407-307-40
Φ7.2/Φ8.5Granite slabplastic370.5-1.66-15

Product Pictures
Packaging & Shipping
Our Services
Why Choose us?
1.We are reliable Alibaba Gold Supplier,Support Trade Assurance
2.We are leading manufacturer in diamond tools, more than 20 years experience
3.Rich experience in Global market, export to more than 60 countries.
4.100% QC inspection Before Shipment
5.Keep researching and developing the latest technology
6.Reply within 24 hours.
Company Information
Contact Us
FAQ
Q1:What is the warranty of the diamond wire saw?
A1: The Quality is stable.
This 1 year whatever happen some questions about quality welcome to contract us
Q2:What is the Specific Size of your diamond wire saw?
A2: Our mainly size is 7.2mm 8mm,8.5mm,9mm,10.5mm 11mm 11.5mm and so on,we product the size as request.
Q3:What is Lifespan of Your Diamond wire Saw?
A3:The lifespan of this diamond saw is on the above data.
If you want have other requirement about the quality.We also can satisfy your requirement
Q4:Can we Buy different kind of quality in different stone?
A4:Yes,You can .Give us your requirement .The design are depend on the different hardness of the stones.
Q5: If our factory have no import license can we buy from you?
A5: Of cause you can.If the weight lower than 45kg.We advice you choice send by Express( FedEx,Dhl)
We suggest you can find a company which have import license from your country.
Use their name import from us.















Prod Model: HUAZUAN0085
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Wire Saw for Cutting Granite Marble Concrete
Hardness: Soft, Middle, Hard
Cutting Speed: 10-40
Wire Speed(M/S): 30-40
Technology: Sintered, Electroplated, Vacuum Brazed
Certification: ISO9001:2000, SGS
Beads Diameter: 7.2-11.5mm
Beads/Meter: 40/37/33/28/26 PCS
Grade: AAA
Production Processes: More Than 70 Processes, 100% Quality Testing
Quanzhou Huazuan Diamond Tools Co., Ltd., established in 1994 and covering an area of more than 10, 000 square meters, is an enterprise with more than 20 years' experience in research, development and production. "HUAZUAN" means made in China, as solid and stable as diamond. Driven by diamond saw blade, diamond segment and diamond wire saw as for main products, company produce a series of high quality diamond grinding and polishing tools. Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers. With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology, and build the outstanding business relationship with more than 50 countries and region partners. We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients, suppliers and staffs. In recent years, company make and practice a strategic plan to"reinforce a high quality production system, create a consultant service team" and reached great success. At present, China diamond tool constantly embody the competitiveness in the world, we expect to contribute ourself to change the poor quality image of China diamond tool in the world with our effort.
