60mm High Quality and Patent Product Magnetic Induction Differential Pressure Gauge

60mm High Quality and Patent Product Magnetic Induction Differential Pressure Gauge
Price: US $ 15/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram

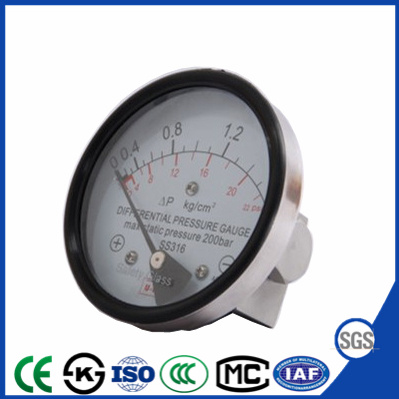

High Quality and Patent Product Magnetic Induction Differential Pressure Gauge

 Application:

 Suitable for measuring the pressure of the fan and blower, filter resistance, wind speed, furnace pressure, orifice differential pressure, the bubble water level or hydraulic system pressure and the liquid amplifier and so on, also used for the air in the process of combustion gas ratio test.The product is a patented product of the company.



Main technical parameters

Nominal diameter :110/150mm.

Accuracy rating :1.5%.

Main body: adopt SUS316 whole processing and production, high pressure
Unilateral maximum static pressure: can reach 200bar, the industry is unique

Protection grade:IP65

Connection thread:PT1/4

Joint material

Copper alloys, stainless steel.

Movement:

Copper alloys or stainless steel.

Cover:All steel SUS304 mirror polishing

Instrument glass: safety glass







Usage guide:
Special wrenches shall be used for installation when installation is disassembled.
The pressure gauge shows that the disk should be installed vertically.
Check the range of differential pressure.
Ensure no magnetic field interference around the meter.
Normal working environment temperature is to 40 ° C to 70 ° C, relative humidity is not more than 85%.

 We are the specialized manufacturer and supplier of pressure gauges.  During our 20 years in the industry,we have managed to earn over 100 patents in mainland China, setting our products apart from those of the competition.Top oc equipment from South Korea and innovative designs help us create more durable and reliable products.

 The JK quality assurance management system has been certified in accordance with ISO9001 since1998.The quality and safety standards of our company meet the standard systems of several countries.
 Based on our accumulated and advanced technology in this feild, we have been actively exporting our quality products to 10 or more countries such as Korea, New Zealand, Australia, Japan and Canada and we have obtained very good reputation from them who are satisfied with our high quality,competitive price,shortest dilivery,etc.




Prod Model: CTS-110
Measuring Range: Low-pressure Gauge
Accuracy: 1.5
Display: Pointer
Application: Air
Structure: Spring Pressure Gauge
Connection Type: Axial
Function: Electric Signal-controlled
Indicating Pressure Reference: General Pressure Gauge
