| Price: | US $ 97.5-120/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
1) 100% laser welding technology.
2) Fit to hydraulic or electric powered wall saw.
3) "Single U" type segment ensure good cooling in fast cutting.
4) Dry or wet cutting.
5) Any flush-cut bolt holes size available.
6) Solve the difficulty of heavily reinforced concrete cuttings.
| Inch | Diameter (mm) | Segment length (mm) | Segment thickness (mm) | Segment height (mm) | Segment number (nos) |
| 24" | 600 | 40 | 4.8/5 | 10 | 36 |
| 24" | 600 | 40 | 4.8/5 | 12 | 36 |
| Inch | Diameter (mm) | Segment length (mm) | Segment thickness (mm) | Segment height (mm) | Segment number (nos) |
| 24" | 650 | 40 | 4.8/5 | 10/12 | 36 |
| 28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
| 32" | 800 | 40 | 4.8/5 | 10/12 | 46 |
| 36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
| 40" | 1000 | 40 | 4.8/5 | 10/12 | 58 |
| 48" | 1200 | 40 | 4.8/5 | 10/12 | 68 |
| 56" | 1400 | 40 | 4.8/5 | 10/12 | 86 |
| 60" | 1500 | 40 | 4.8/5 | 10/12 | 90 |
| 64" | 1600 | 40 | 4.8/5 | 10/12 | 92 |
5pcs 600mm laser welded wall saw blades are packed in one plywood, gross weight per plywood is limited within 90kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Client Feedback
7. Our Related Products

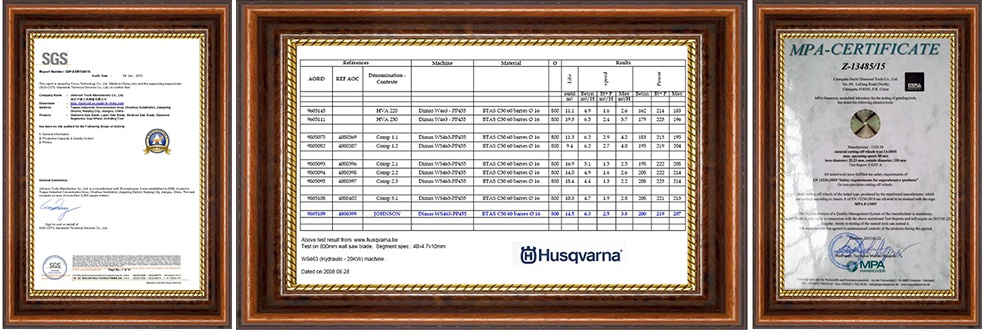

8. Certification

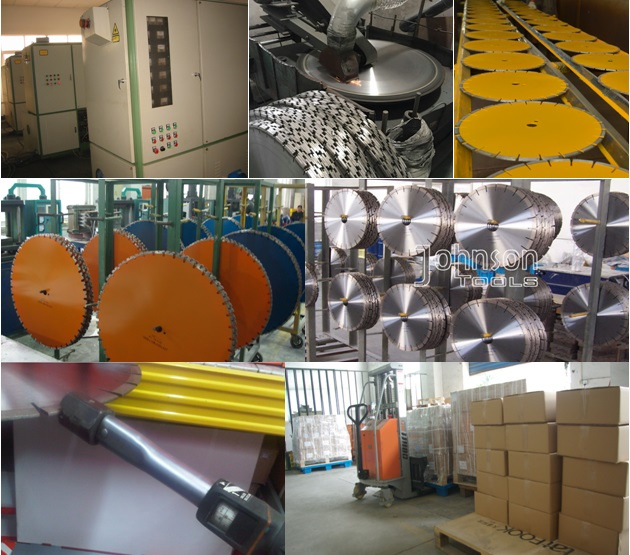

9. Our Stock
10. FAQ
Q: How to place order to your company?
1.Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2.Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3.Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4.Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5.After-Sale Service: Track the goods, learn the products' performance.
6.Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
| Prod Model: | 1.2.1.1 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Diameter (Inch): | 24 Inches |
| Outer Diameter: | 600mm |
| Segment Size: | 40X5X10mm X36nos |
| Machine Type: | Wall Saw |
| Cutting Material: | Prestressed Concrete |
| Horse Power Of Machine: | 10-60 HP |
| Thickness Of Blank: | 3.5mm |
| Technology: | Laser Welding |
| Inner Hole: | 25.4 / 60mm |
