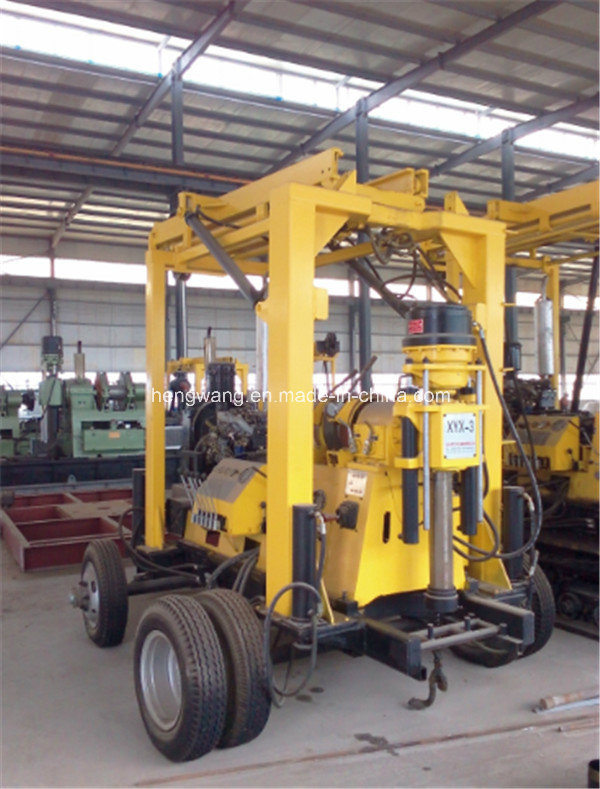

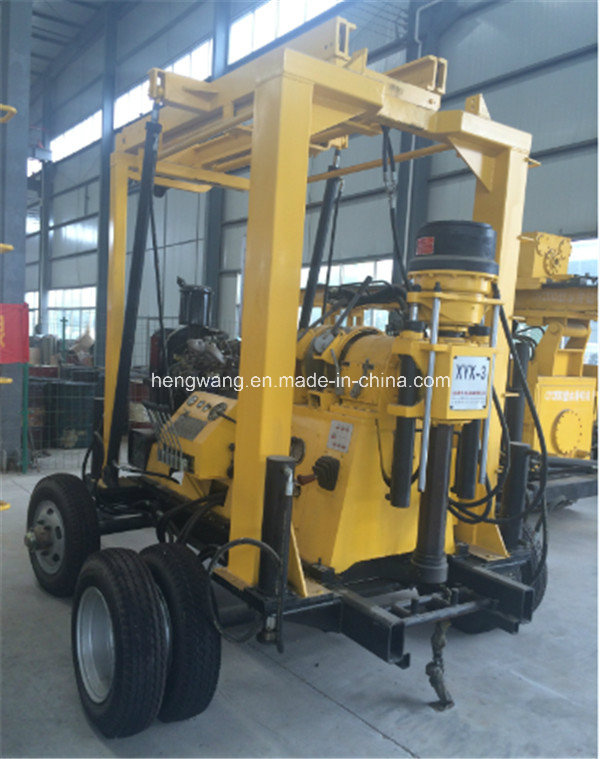

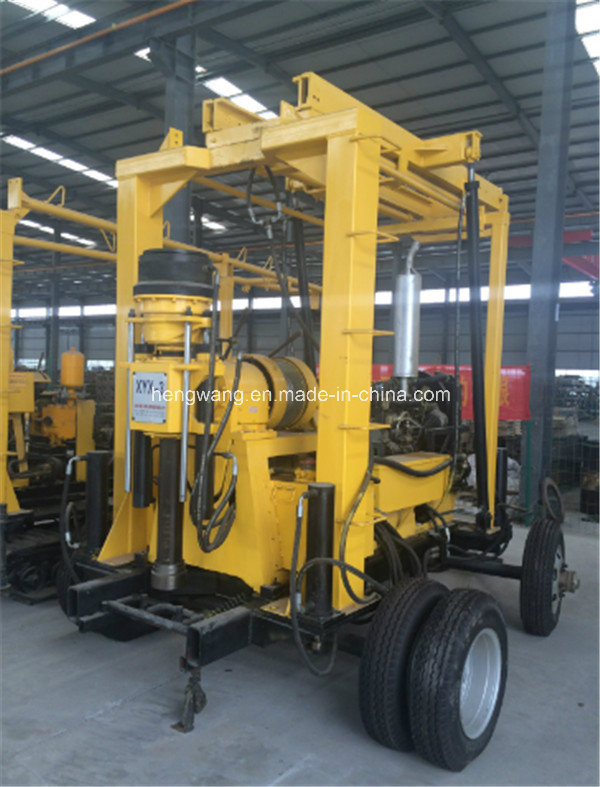

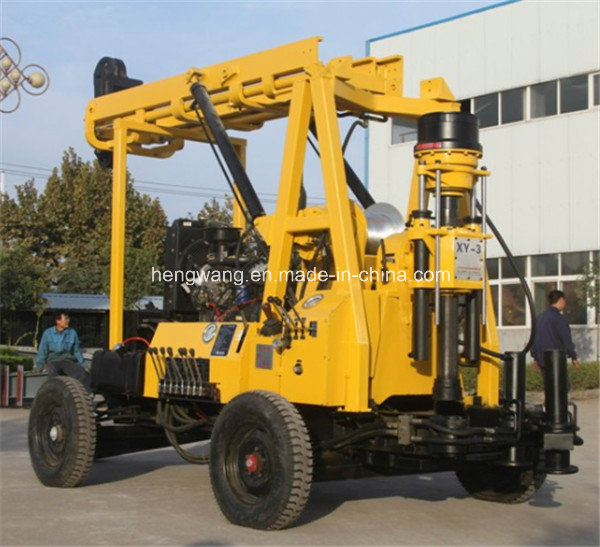

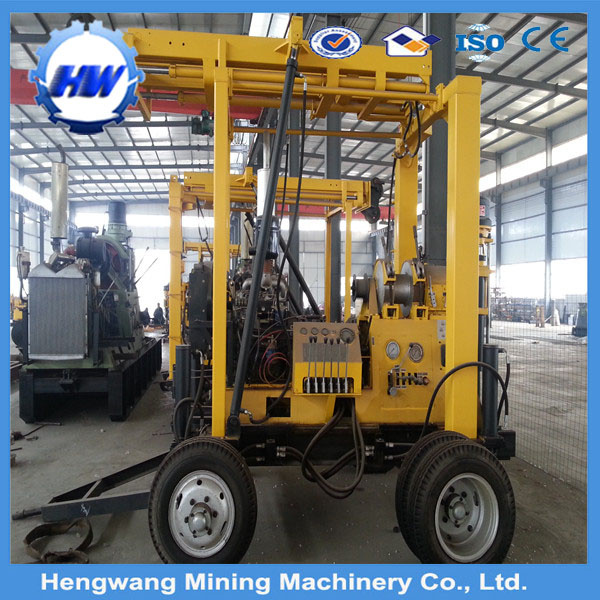

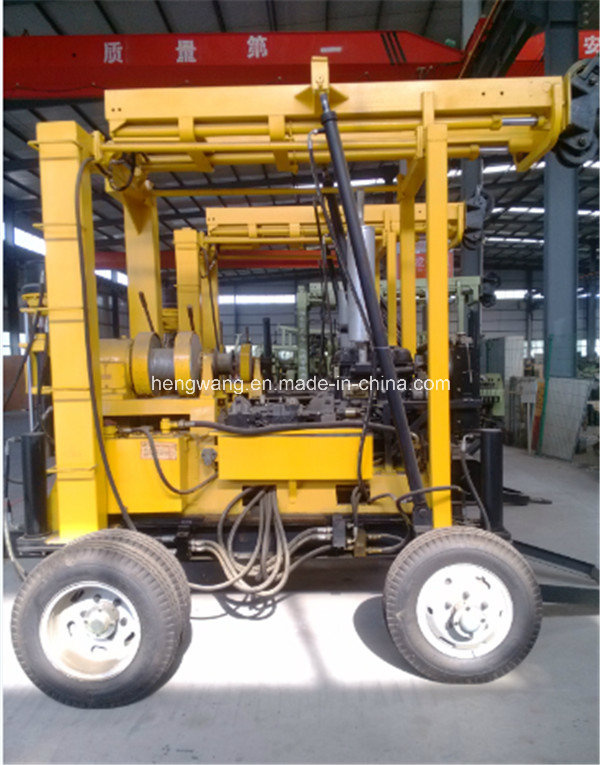

600m Depth Trailer Mounted Bore Well Drilling Machine Price (XY-3)

600m Depth Trailer Mounted Bore Well Drilling Machine Price (XY-3)
Price: US $ 1000-20000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: T/T,Western Union
Manufacturer 600m depth Trailer Mounted Bore Well Drilling Machine Price (XY-3)

Product Introduction
a. XY-3 drilling rig adopts CG140 model auto transmission, has 10 rotation speeds and easonable speed range, with eight forward roation gears and two reverse rotation gears, high speed, strong stroke and wide scope of application.
b. Large engine power and two reverse rotation gears, can easily solve the drilling work accident.
c. The operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.
d. Equipped with normally closed hydraulic chuck, operation is flexible and reliable
e. Spindle and hoist can be operated separately.
f.  Spindle has big inner diameter, able to use big hexagonal drilling rod.
Technology Parameters

Unity machine parameter
Drilling depth600m
Max open hole caliber300mm
End hole caliber75mm
Drilling Rod diameter60mm
Drilling angle90°~65°
Dimension2500 x 900 x 1800mm
Drill weight (without power)1600kg
Spindle
spindle speedForward 30-1050r/min
Reverse 29 137r/min
Spindle stroke600mm
Spindle inner diameter96mm
Lifting capacity6000kg
Hoist
Max.Single line lifting capacity4000kg
Max.Single line lifting speed0.5-1.9m/s
Wirerope caliber12.5mm
Wirerope length50m
Reel diameter300mm
Hug folldgate belt width90mm
Mud pump
TypeBW-250
Displacement250 L/min
Work pressure80kg/cm²
Water inlet pipe diameter75 mm
Water outlet pipe diameter50 mm
Gear Oil pump
Duplex gear oil pumpCBF-F63/25
Front Displacement, pressure63 L/min  20Mpa
Behind Displacement, pressure25 L/min  20Mpa
Power
Diesel engine4105 76HP
Electric motorY180L-4 59K





Sunny Kong

Mobile+8615853785289

Tel: 0086-537-2881968

Jining Hengwang Mining Machinery Co., Ltd.
Prod Model: XY-3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Part Name: Water Well Drilling Rig
Model Number: Xy-3
Drilling Depth: 600m
Maximum Open Hole Caliber: 300mm
End Hole Caliber: 75mm
Drill Rod Caliber: 50mm
Drilling Angle: 90~75
Diesle Engine Power: 76 HP
Price: Factory Price
Warranty: 1 Year
Jining Hengwang Mining Machinery Co., Ltd. is located in Jining, Shandong Province, China. Established in 2002, comprehensive enterprise, collection of marketing, scientific research, trade. Registered capital of 10.8 million, Existing staff 200 persons, including 3 engineering experts, senior software engineer 8 persons, network information technicians 28 persons, ecommerce division, more than 80 persons, the international trade commissioner, 18 persons, logistics division 9 persons, all kinds of technical personnel more than 50 persons.

Specializing in the Drilling equipment; Railway equipment; Road machinery; Electrical equipment; Pumps; Hydraulic tools; New energy etc.

Our products sell to Vietnam, Malaysia, South Korea and other southeast Asia, Africa and the Middle East, South America, North America, Europe etc, is popular among the masses of customers. Our Companies adhere business philosophy "to provide convenient service to customers, to create development opportunities for employees" and "continuous improvement, enjoy the" spirit of enterprise. Warmly welcome new and old friends from home and abroad came to our company, to make negotiation.

Our company long term commitment to science connect with market, keep up with Reform Development, take science to be commercialization, marketization and industrialization, work with Coal science and design institute, Metallurgy Design institute, Coal science and technology university and some other famous scientific research, develop and research some mine machines and devices, we not only sell at home but also abroad, Southeast Asia: Vietnam, Malaysia, Korea, Africa and Middle East, our products get great popular from clients. We rely on top quality,

Competitive price and good service to offer metallurgy, coal, hydroelectric, railway, highway, mine etc, we quickly Occupied the Market, Achieved remarkable results.

Insist on "offer excellent service for customers, create development chance for employees" as operation principle and take "keep forging ahead, enjoy great success" as enterprise spirit, we sincerely welcome friends from home and abroad to visit us for business, Let us create great undertaking and brilliant togerther!
