Product Description:
1. New design,national patented products (Patent No.201430452809.9), Unique
Transformers series appearance.
2. Folding guardrails conforms with international safety standard, which can effectively
protect the safety of high-altitude operation.

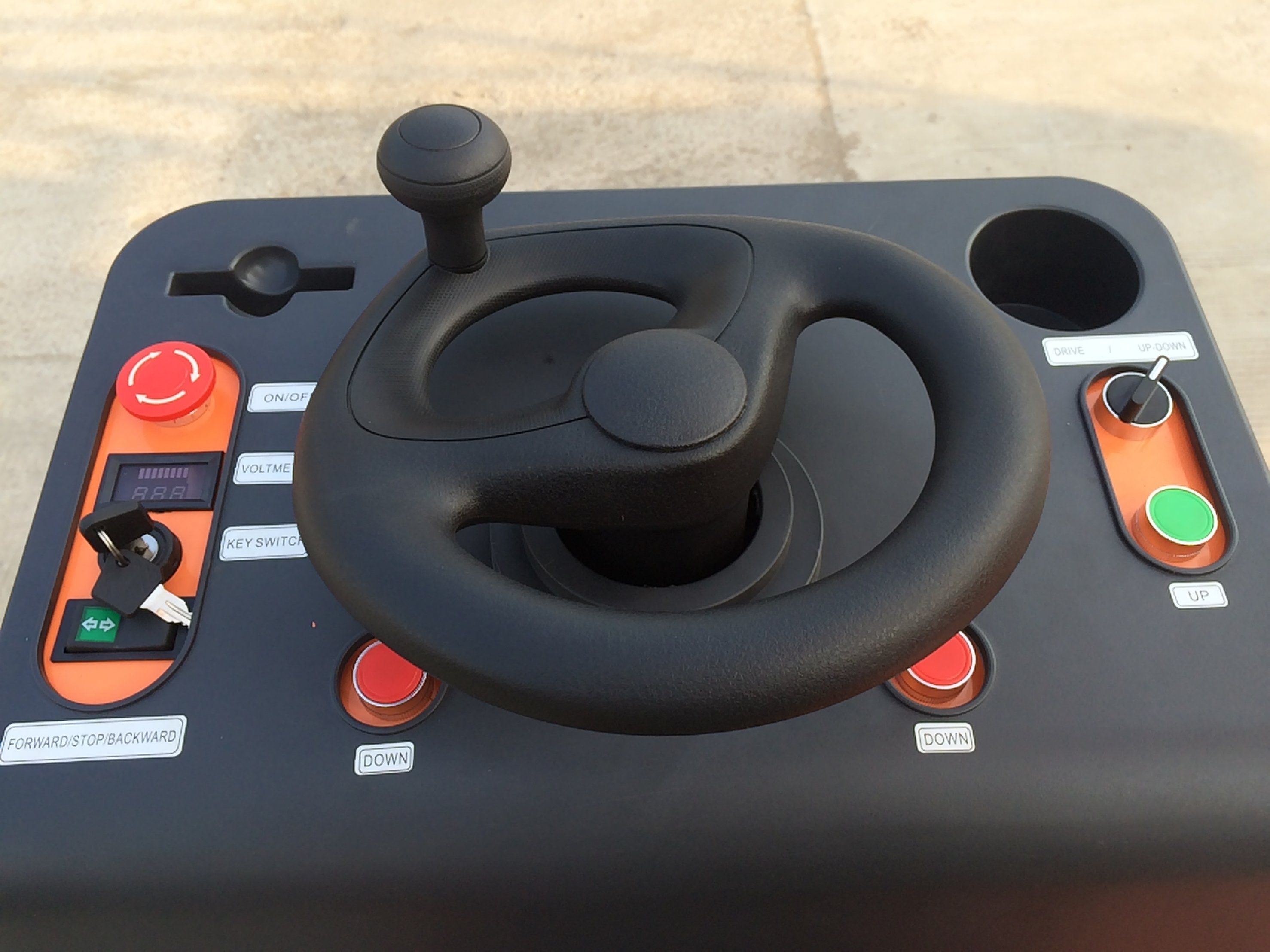

3. The operator can control the movement,lifting and descending to realize continuous
operation at high altitudes.
4. Installed with emergency stop switch to protect personal safety.
Model | Unit | SJZ0.3-6 | SJZ0.3-9 | SJZ0.3-11 | SJZ0.5-6 | SJZ0.5-9 | SJZ0.5-11 |
| Capacity | kg | 300 | 500 |
| Max.Lifting height | mm | 6000 | 9000 | 11000 | 6000 | 9000 | 11000 |
| Min.Plate height | mm | 1127 | 1343 | 1560 | 1290 | 1558 | 1560 |
| Plate size (LxW) | mm | 1830x1000 | 2100x1140 | 1830x1000 | 2100x1140 |
| Unfolding size | mm | 1860x2195 | 2250x2895 | 1860x2195 | 2250x2895 |
| Lifting motor | v/kw | 60/2.2 |
| Motor | v/kw | 60/1.2 |
| Voltage | v | 60 |
| Drive speed | km/h | 4-6 |
| Max.gradeability | % | 10-15 |
| Battery | v/Ah | 60/85 |
| Charger | v/Ah | 60/8 |
| Overall length | mm | 2560 | 2957 | 2560 | 2957 |
| Overall width | mm | 1195 | 1335 | 1195 | 1335 |
| Overall height | mm | 2163 | 2379 | 2596 | 2326 | 2594 | 2596 |
| Net weight | kg | 1090 | 1250 | 1530 | 1350 | 1490 | 1580 |
Hubei Maihui Technology Co., Ltd(formerly known as Hubei Goldmill Machinery Technology Co., Ltd. )founded in 1956, is China's first professional manufacturer of small and medium hydraulic lifting, handling, loading and unloading, lifting operations vehicles, and is also an executive member of China Construction Machinery Industry Association.
The company's famous brands Goldmill& Maihui include 8 series and more than 130 kinds of products from hydraulic lift, manual, electric hydraulic pallet trucks, stackers, hand drum trucks to scissor lifts, which are ideal cargo handling vehicles for factories, workshops, supermarkets, warehouses, docks, construction sites, film crew, stage performing, etc. With an annual production capacity of 300, 000 sets, our products are exported to more than 80 countries and regions including Europe, America and Southeast Asia. We have 108 after-sales service centers in domestic cities and are highly reputed for our quality and services.
We regard ''reasonable prices, efficient production time and good after-sales service'' as our tenet, and hope to cooperate with more customers for mutual development and benefits. We welcome every potential customer to visit our factory!
