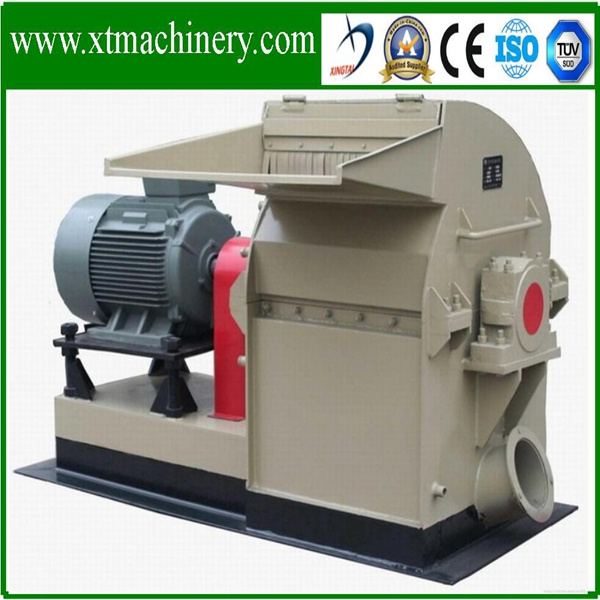

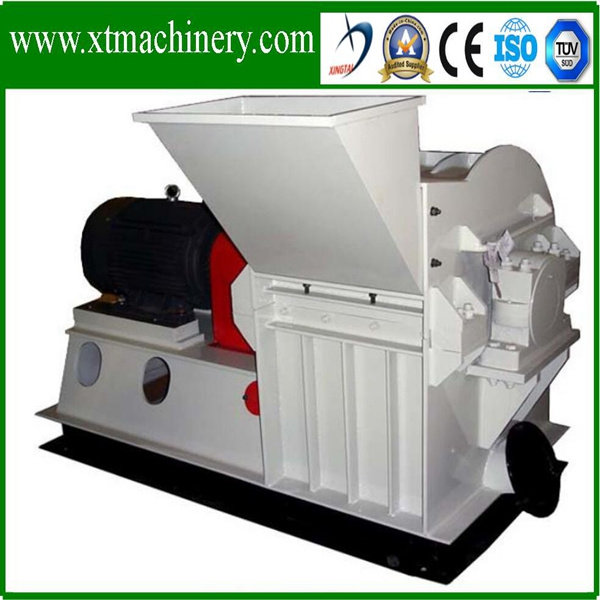

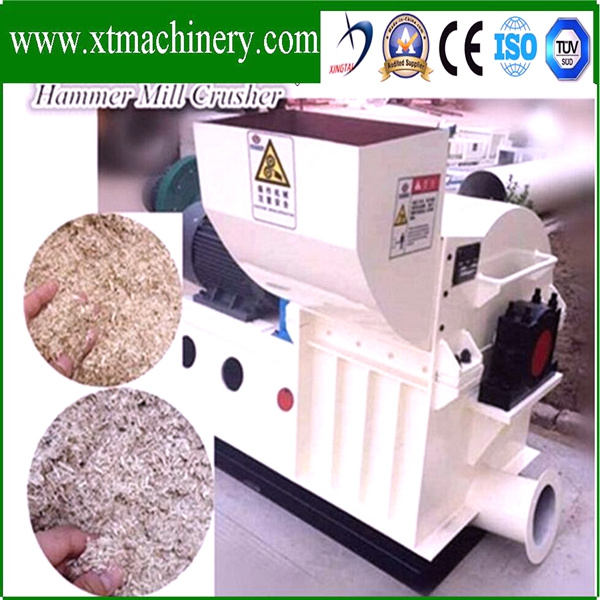

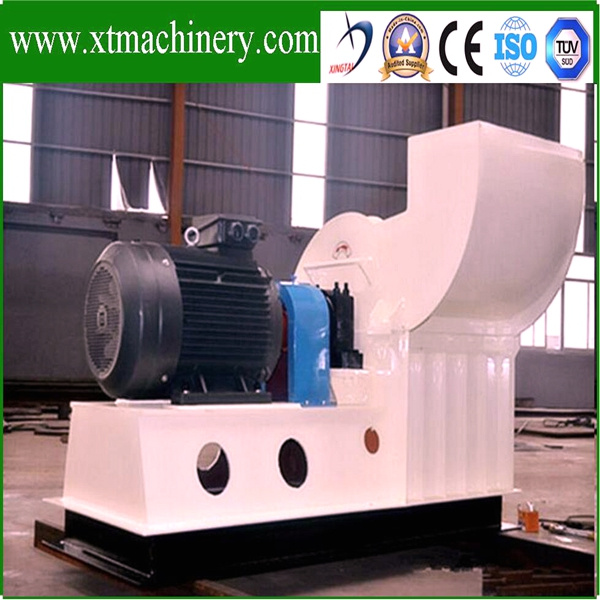

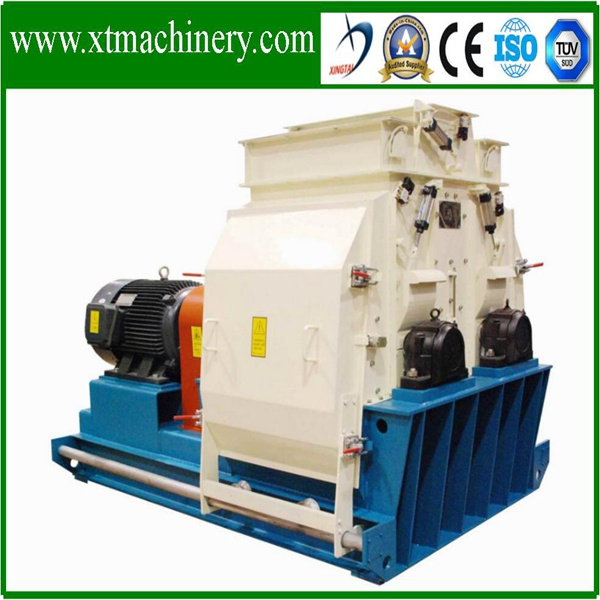

High efficient Hammer Mill
Multifunctional wood hammer mills are our company specializing in the production; the machine uses hammer hit screens to get the goods. According to the proportion of materials and output to choose type of machine.
Multifunctional Wood Hammer Mill is our finalize the design products , it is a best machine to crush kinds of straw , weeds , PVC foam board, rubber, plastic etc. So could be called straw hammer mill, wood hammer mill, rice husk hammer mill, cotton stalk hammer mill, PVC hammer mill.
Advantage of Hammer Mill
1.Hopper.We can design the vertical or horizontal hopper for your specific requirement.
2.Rotor structure. It ensures no dead corner inside and makes the finish products evenly.
3.Multifunctional. hammer mill can handles fertilizer,animal food and biomass material Security lock. To ensure the doors will not open during operation.
4.The hammer mill usually works with cyclone; the cyclone can filter out the dust from finished products.
5.A variable frequency drive could be installed on the belt conveyor to hammer mill, so you can adjust the right speed for the material.
| Model | Power(kw) | Capacity t/h | Hammers | Weight (t) |
| XT40 | 7.5 | 0.2-0.5 | 16 | 0.27 |
| XT50 | 15 | 0.6-0.8 | 16 | 0.45 |
| XT65*27 | 22 | 0.8-1.5 | 24 | 1.1 |
| XT65*55 | 37 | 1-2 | 48 | 1.5 |
| XT65*75 | 55 | 2-3 | 72 | 1.9 |
| XT65*100 | 90 | 3-4 | 96 | 2.3 |
| XT130*55 | 110 | 5-6 | 80 | 5.3 |
| XT130*100 | 160 | 7-8 | 160 | 6.8 |
Features:

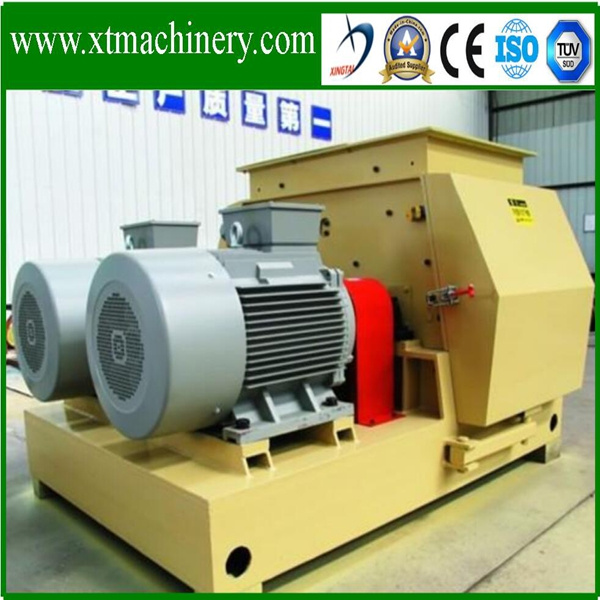

1 The motor and rotor are installed in the same heavy-duty base, using coupling direct drive, rotor passes accurate dynamic balancing test, the hammers are arranged symmetrically.
2 Unique Feeding Design, the feeding inlet is made at the side of the device to make feeding easily.
3 The shell is welded by steel plate, the site in the crush room which connects to the materials all use the wearable and commutative parts and double wear plate.
4 Hammers adopts special abrasion resistant treatment technology, extend its lifetime greatly.
XT Machinery, Works For You!

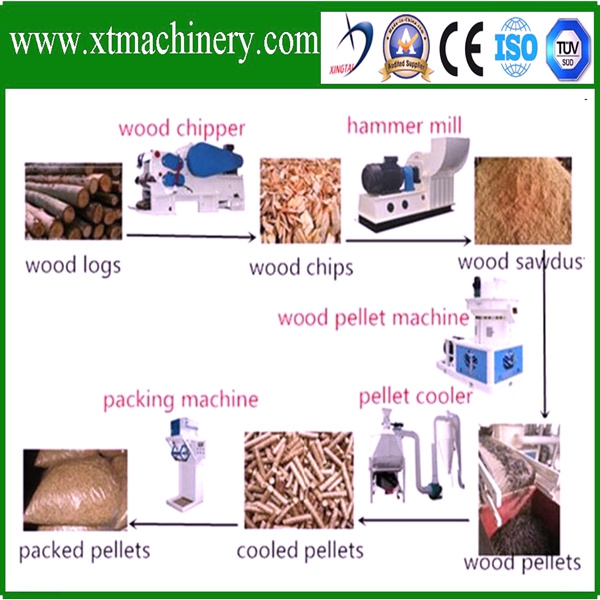

Founded in 2010, Zouping Xingtai Machinery Co., Ltd, is among the most professional manufacture for wood processing equipment, including wood chipper (drum chipper and Disc chipper), wood pellet mill (ring die pellet mill & Flat die pellet mill), hammer mill, wood splitting machine, wood peeling machine. All the machines are built by specialized teams of highly skilled craftsmen with decades of experiences in manufacturing.
The advantages of Xingtai Machinery are easy operation, strong and durable, energy saving, high production capacity. Due to Xingtai machines are built by teams of craftsmen who love what they do, there is a personal infusion of pride that goes into every machine.
Over 200 machines made by Xingtai Machinery have been sold to the world and are used daily in virtually every type of climate, on any terrain. With the spirit of "Works For You", Xingtai machinery keeps in developing high quality machines, and offering you professional technical supports to clients all over the world.
Product range: Wood chipper, log splitter, wood peeling machine, pellet mill, biomass production line...etc.
Certificate: ISO9001, CE certificate, TUV Audit Inspection...etc
Exported country: USA, England, Greece, Thailand, Vietnam, India, Argentina...Over 20 countries.
