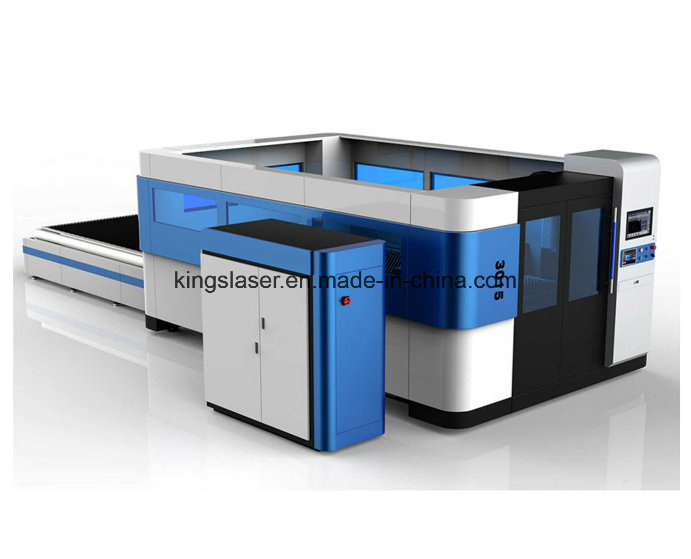

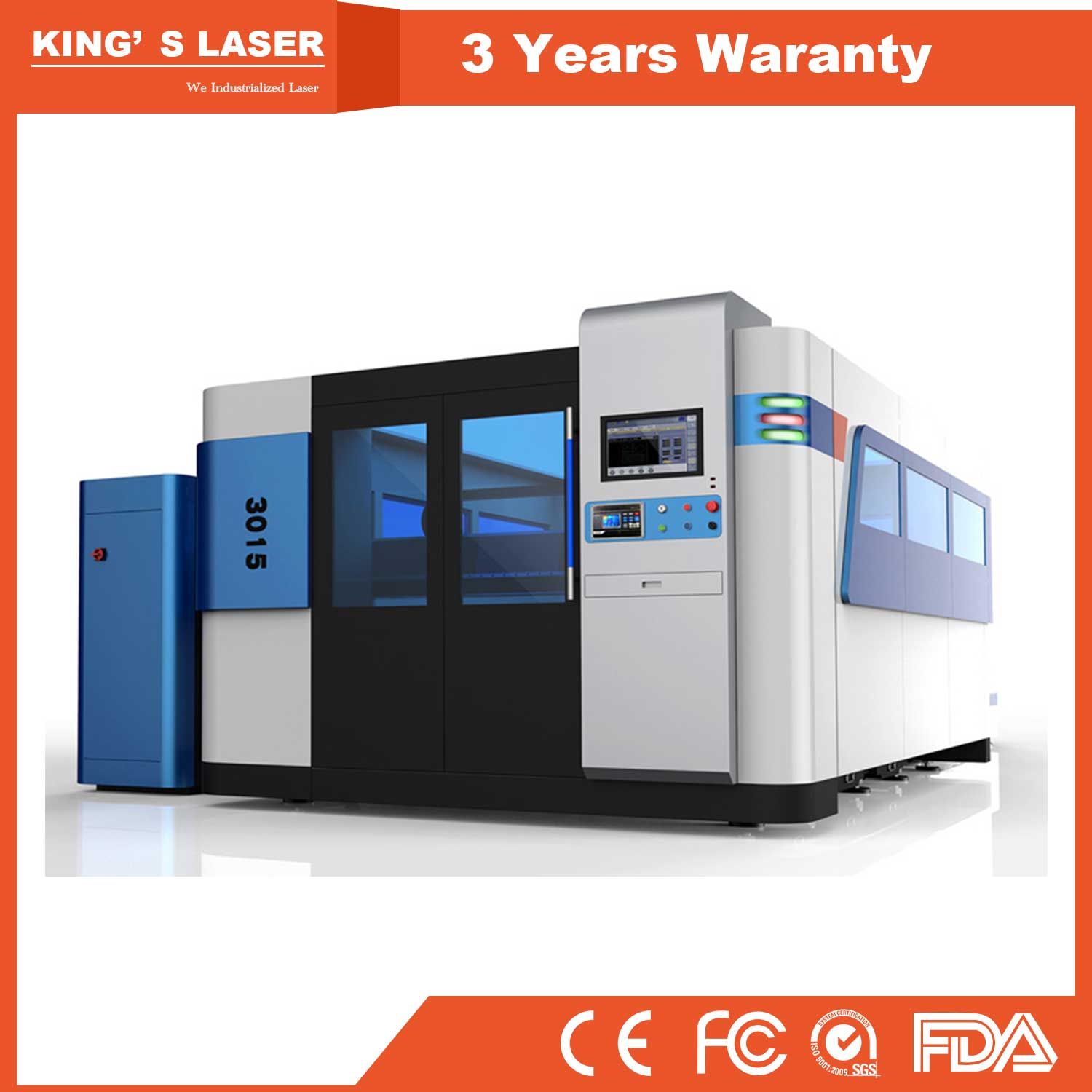

500W All Cover Exchange Platform Fiber Laser Cutting Machine CNC Cutter for Metal

500W All Cover Exchange Platform Fiber Laser Cutting Machine CNC Cutter for Metal
Price: US $ 30000-200000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union

500w All Cover Exchange Platform Fiber Laser Cutting Machine CNC Cutter for metal


Germany laser source | Germany Cutting head | Fast delivery | 3 warranty years






Features:


1.Adopts laser CNC system, ensure high precision, high efficiency under high running speed.
2.Imported laser cutting head, Non-contact capacitance sensor, strong security measures, high stability.
3.Provide auxiliary gas auto changing system (pressure-air, nitrogen, oxygen) for processing different type of materials
4.Cutting bed equipped gathering unit for recollecting and processing metal powder.
5.Advanced programming jacking software (including material management,cutting optimization functions), profound performance for punching, sharp point processing, sophisticated laser cutting processing database, operator only need to match the cutting parameters according to the materials which makes the operation smarter and easier.
6.Optimized optical lens, special designed nozzle and sensing technology, ensure the cutting process more smoothly and steadily.
7.Adopts IPG Germany fiber laser source

Specification:

Laser type: Fiber laser
Laser output power500W-3000W
Laser safety classclass 4
Wave length: 1064nm
X,Y axis positioning accuracy: ±0.03mm
Repeated positioning accuracy:  ±0.05mm
Servo type: AC servo
Acceleration 1.5G
Max.travelling speed:80-150m/min
X axis travel: 3000mm
Y axis travel: 1500mm
Z axis travel: 100mm
Protection level: IP65
Continuous working hrs: 24hrs
Working size: <1500mm×3000mm
Power supply: 380V/50Hz/50A

Application:

Capable for cutting a variety of sheet metals pipes ( By adding a pipe clamping device ) mainly for stainless steel carbon steel galvanized sheet electrolytic plate brass plate aluminum manganese steel various alloy plates rare metal and other materials

Materials:

Mild steel

Aluminum

Stainless steel

Copper

Brass

Titanium

Zinc

Coated steel






Welcome to visit us!

Contact person

Vince Xu

+86 13277998363


Prod Model: RS-FC3015G
Wavelength: 1064nm
Cuttng Area: 3000X1500mm
Service: 7/24hours
CNC Or Not: Yes
Cutting Speed: 30m/Min
Cooling Model: Water Model
Cutting Thickness: 1-6mm
Certification: Ce, ISO, FDA
Place Original: Wuhan China
Condition: New
KING'S laser is specialized in design, R&D, and production of laser machines in the field of laser marking, laser engraving, laser cutting and laser welding. Since foundation, with strict management and innovative spirit, we have successfully developed a number of advanced expertise. Our products include laser marking machine, laser cutting machine, laser welding machine, as well as the whole set of production solutions designed for clients. Currently, our products have been exported to India, S Korea, Pakistan, Spain, Slovenia, Russia, Italy, France, Chile, Argentina and more. They are widely used in electronic components, manufacturing, machinery, internal combustion engines, auto parts, medicine, food, household industrial and defense industries. We not only provide clients with excellent satisfying equipments but also timely lifetime service, like technical advice and after-sales service. We are glad to cooperate with the clients from all over the world.
