500m Span Suspension Clamp (Two amour rods)

500m Span Suspension Clamp (Two amour rods)
Price: US $ 9/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Set
Pay Type: L/C,T/T

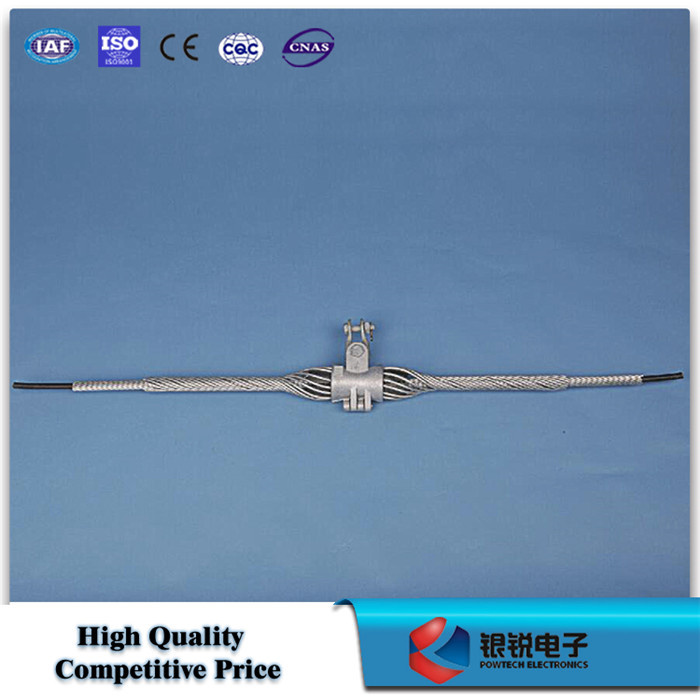

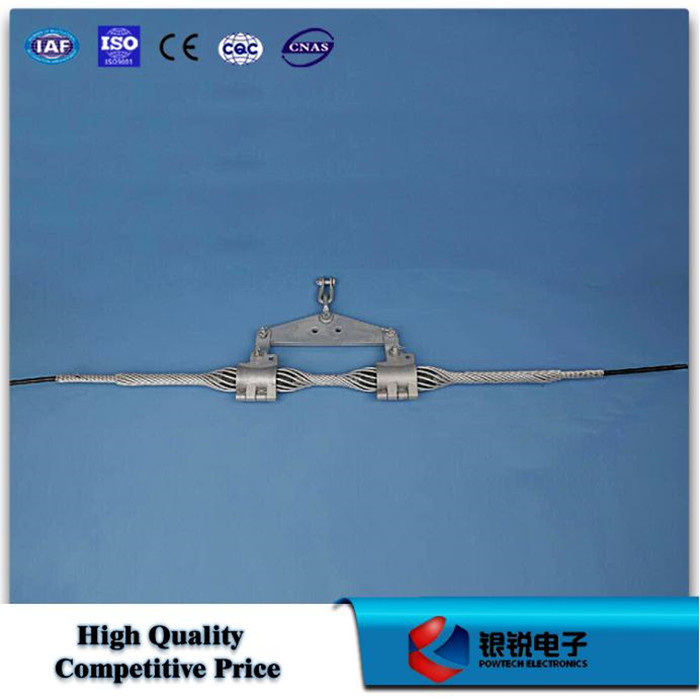

Suspension Clamp for ADSS Cable 500m Cable Span (Two Amour Rods)


Features:
ADSS two amour rod suspension sets are designed to reduce static stress ate the support point of ADSS cable,as well as ensure that the cable is cushionedvagainst the dynamic stress of Aeolian vibration.The combination of the reinforcing amour rods and dead-end amour rods provide against cable bending stress,there's no other stress concentration,so that the fiber optic doesn't produce extra loss in the cable.The grip strength of the clamp is bigger than 10%-20% of the rated tensile strength.

Applications:
(1)The span should be 200-800m.
(2)The poles/towers with corner angle less than or equal to 30° straight lines
(3)The angle of single-side suspensions is between15°-18°

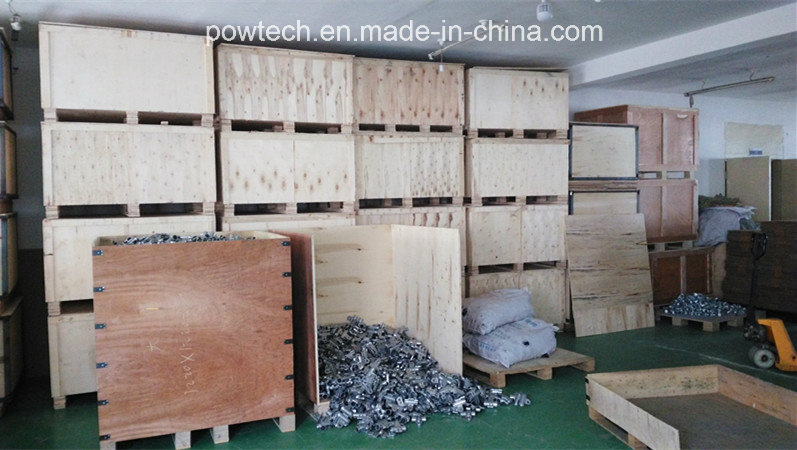

Warehouse:

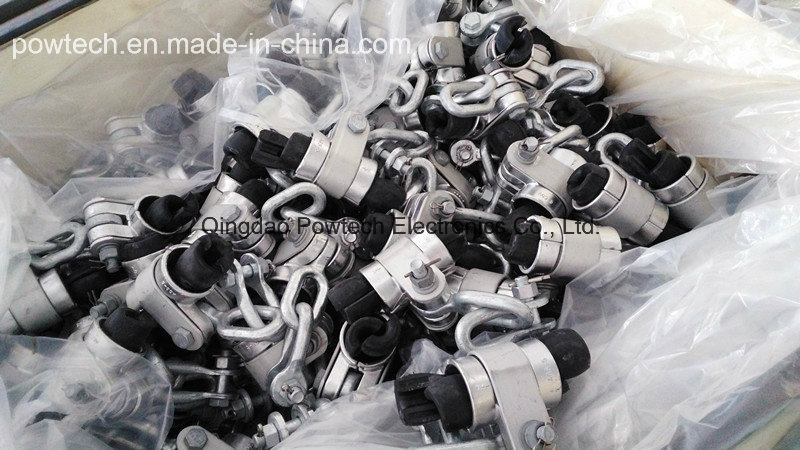

Standard Configuration:
1.U-7 Anchor shackle
2.ZH-7 Eye chain link
3.AGS clamp Aluminum  housing
4.Rubber insert
5.Dead end amour rods
6.Reinforcing rods
7.Other link fittings are customized

Technical data sheet:
Breaking force:20kN,30kN,40kN,50kN,60kN,70kN,80kN,100kN
Recommended Span Length:200m,300m,400m,500m,600m,700m,800m,1000m

Model
Cable Diameter(mm)Reinforcing Amour rod(mm)Dead-end Amour rod(mm)Breaking force(kN)Recommended Span Length
AXC-2009.5-21.31200 900≥20kN200m
AXC-3009.5-21.315001060≥30kN300m
AXC-4009.5-21.316001100≥40kN400m
AXC-5009.5-21.317601260≥50kN500m
AXC-6009.5-21.319601360≥60kN600m
AXC-7009.5-21.321001500≥70kN700m
AXC-8009.5-21.322001580≥80kN800m
AXC-10009.5-21.325901680≥100kN1000m
Shipment:

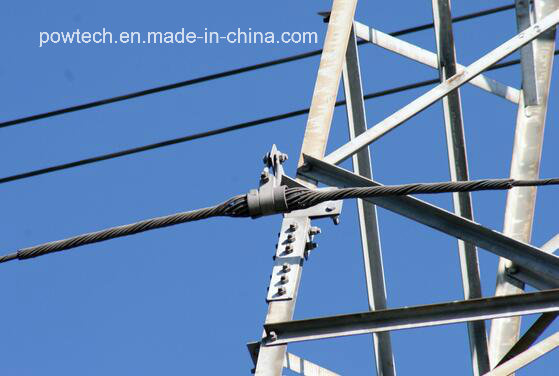

Installation Guide:
Prod Model: AXC-500
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Insulated
Conductor Type: Stranded
Application: Overhead
Conductor Material: Aluminum
Sheath Material: PVC
Insulation Material: PE
Material Shape: Round Wire
Range Of Application: Flame Retardant
Certification: Ce, RoHS, ISO9001, CCC, UL
Brand: Optelec
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.

The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.

As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.

Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.

Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
