500 Ton Mechanical H Frame Straight Side Metal Stamping Punching Press Machine, Punch Press Machine, Power Press Machine
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Details:

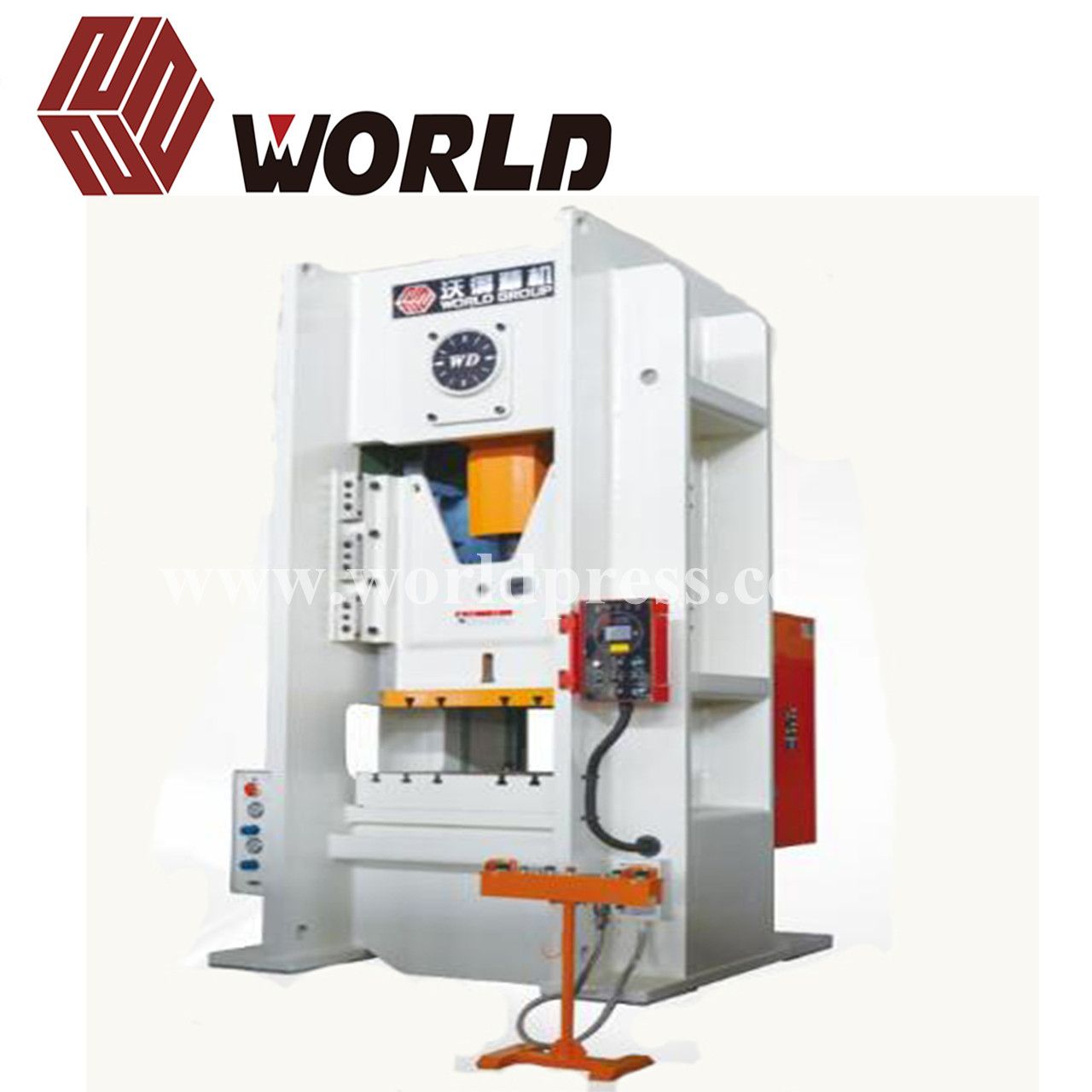

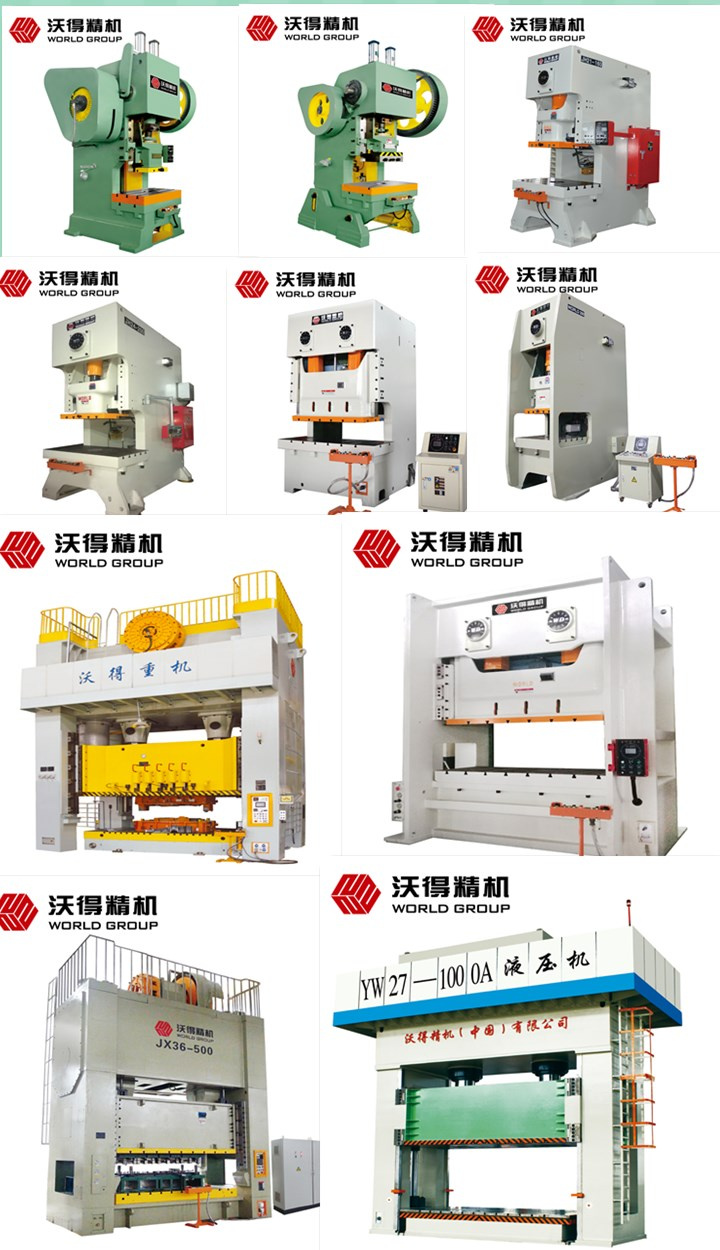

The JW31 straight-side single points press is designed with a strong H frame. Suitable for single and progressive die application, and it owns the capacity ranging from 160 ton to 630 ton.The enclosed wet clutch with high torque need minimal maintenance and it can get rid of the noise and pollution caused by airborne particles, significantly extending the using life.
FEATURES:
1.Welded steel plate H frame body with high intensity and rigidity;
2. Combined wet multi discs friction clutch and brake;
3.Hydraulic overload protecting device;
4.4. Adopt 4-corne & 8-face long guide rail for sliding block with excellent guidance performance and high accuracy;
5.Electric die height adjustment with digital display;
6.Electric cam device with intelligent top dead center stop function and several safety unction;
7.Balancing cylinder adopts manual lubrication system.| Specifications of JW31 Series Straight-side Single Point Press |
| Parameter | | Unit | JW31-160 | JW31-200 | JW31-250 | JW31-315 | JW31-400 | JW31-500 | JW31-630 |
| Nominal Capacity | | KN | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 | 6300 |
| Nominal Stroke | | mm | 6 | 6 | 6.5 | 7 | 8 | 8 | 10 |
| Slide Stroke Length | S | mm | 180 | 200 | 220 | 220 | 250 | 250 | 250 |
| H | mm | 130 | 150 | 160 | 160 | 180 | | |
| Slide Stroke | Fixed | S | times/min | 45 | 35 | 30 | 30 | 25 | 20 | 20 |
| Variable | times/min | 25-50 | 25-45 | 20-35 | 20-35 | 20-30 | 15-25 | 15-25 |
| Fixed | H | times/min | 60 | 45 | 45 | 45 | 35 | | |
| Variable | times/min | 40-70 | 35-60 | 30-55 | 30-55 | 30-40 | | |
| Max. Die Set Height | S | mm | 400 | 450 | 500 | 550 | 600 | 650 | 650 |
| H | mm | 425 | 475 | 530 | 580 | 635 | | |
| Die Height Adjustment | | mm | 110 | 110 | 120 | 120 | 120 | 120 | 120 |
| Distance Between Uprights | | mm | 1100 | 1200 | 1300 | 1350 | 1450 | 1650 | 1800 |
| Side Openning Size | F x B | | mm | 650 | 750 | 800 | 850 | 900 | 1000 | 1100 |
| H | | 350 | 420 | 430 | 480 | 520 | 650 | 650 |
| Bolster Size | F x B | | mm | 650 | 750 | 800 | 850 | 900 | 1000 | 1200 |
| L x R | | 1000 | 1100 | 1200 | 1250 | 1350 | 1500 | 1700 |
| Bolster Thickness | | mm | 165 | 180 | 190 | 190 | 200 | 220 | 220 |
| Slide Bottom Size | F x B | | mm | 600 | 700 | 750 | 800 | 850 | 950 | 1200 |
| L x R | | 750 | 850 | 950 | 1000 | 1100 | 1250 | 1400 |
| Bolster Surface Height | | mm | 1005 | 1125 | 1205 | 1215 | 1225 | 1225 | 1400 |
| Handle Hole Size | Dia | | mm | 65 | 65 | 70 | 70 | 80 | 80 | 80 |
| Depth | | 90 | 90 | 95 | 90 | 100 | 100 | 110 |
| Overall Size | F x B | | mm | 2200 | 2300 | 2500 | 2600 | 2700 | 3100 | 3340 |
| L x R | | 1780 | 2000 | 2050 | 2200 | 2370 | 2600 | 3000 |
| H | | 3800 | 4200 | 4500 | 4550 | 4900 | 5400 | 5550 |
| Motor Power | | Kw | 15 | 18.5 | 22 | 30 | 37 | 45 | 75 |
| Weight | | Kg | 16000 | 22000 | 27500 | 30000 | 36500 | 47500 | 75000 |
| Press Pressure | | Mpa | 0.5 |
| Standard Equipments: | Optional Equipments: |
| 1) Wet clutch | 1) Light curtain |
| 2) Hydraulic overload protecting pump | 2) Foot pedal |
| 3) PLC | 3) Die cushion |
| 4) Touch screen | 4) Inverter |
| 5) Auto lubrication system | 5) Die quick change device |
| 6) Manual lubrication system | |
| 7) Die height adjusted motor | |
| 8) Cam controller | |
| 9) Rotary encoder | |
| 10) Movable control panel | |
| 11) Electronic crankshaft angle indicator | |
| 12) Digital die height indicator | |
| 13) Balance cylinders for slide and upper die | |
| 14) Joint for air | |
| 15) Joint for miss-feeding | |
| 16) Absorbing pads | |
