4sp high pressure hydraulic hose for industrial machineStructure

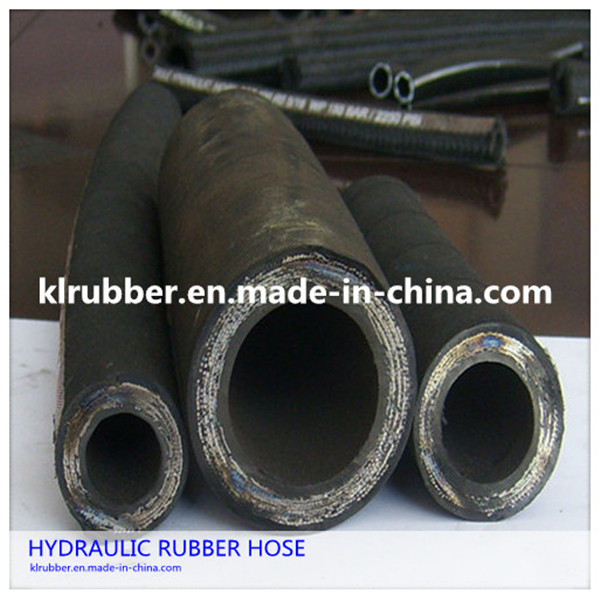

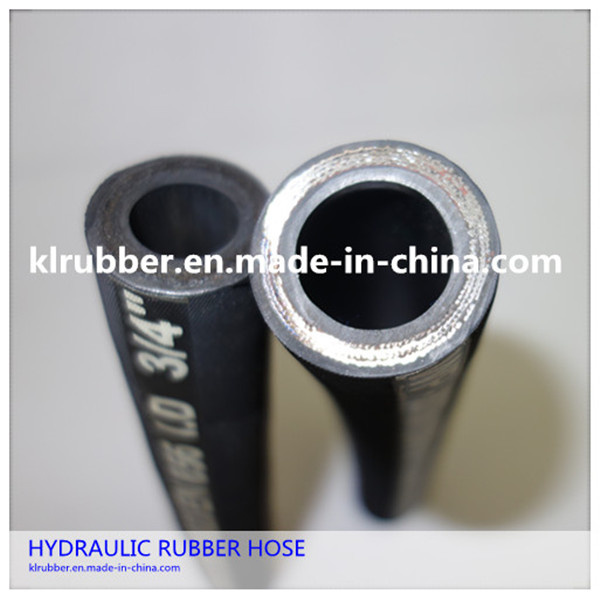

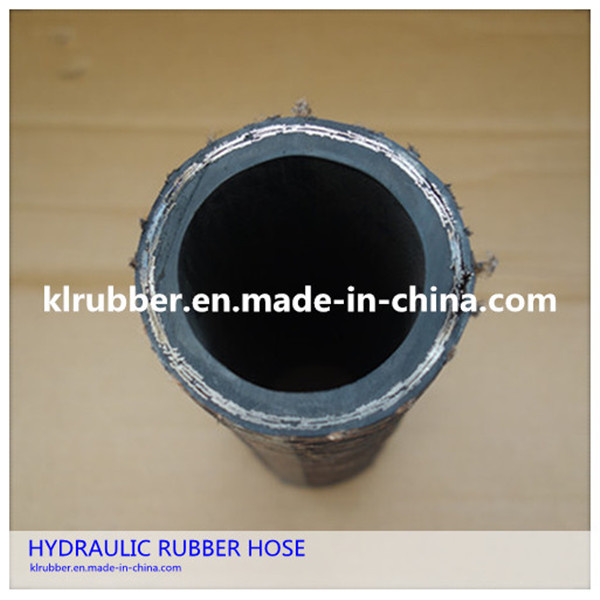

4SP hydraulic hose Consists of an inner tube, middle layer, four spiral wire reinforcements and cover. Inner tube is to transmit liquid under pressure and protect wire against corrosion while cover is to protect wire against abrasion, wire layer ( Ø0.3-2.0 reinforcement) is the structure materials that providing reinforcement.
Inner Tube: Neoprene
Reinforcement: Four spiral layers of high tensile steel wire
Cover: Black neoprene blend that meets MT98 and GB/T 15907 Flame resistance
Application Standards: GB / T 10544 4SP, EN856 4SP, MT98 4SP.
Application
Mainly used in mine hydraulic support, oil exploration, suitable to engineer construction, crane transport, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery various machine tools.
Working Temperature
-40°C to +100°C
Features
It provides superior oil resistance, heat resistance and aging resistance by using special synthetic rubber.
It provides high pressure resistance and superior impulse resistance.
It provides superior bonding in hose internal, soft use and small deformation under pressure.
It provides superior kink resistance and fatigue resistance and longer services life.
General Technical Data for 4SP hydraulic hose
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length |
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres |
| 5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100.0 | 14280 | 89 | 0.19 | 50/100 |
| 6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90.0 | 12840 | 102 | 0.21 | 50/100 |
| 8 | 5/16 | 7.9 | 12.7 | 15.0 | 21.5 | 3120 | 85.0 | 12280 | 114 | 0.24 | 50/100 |
| 10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72.0 | 10280 | 127 | 0.33 | 50/100 |
| 13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64.0 | 9180 | 178 | 0.41 | 50/100 |
| 16 | 5/8 | 15.9 | 21.4 | 23.7 | 13.0 | 1890 | 52.0 | 7420 | 203 | 0.45 | 50/100 |
| 19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42.0 | 6000 | 241 | 0.58 | 50/100 |
| 25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 | 0.88 | 50 |
| 32 | 1 1/4 | 31.8 | 40.5 | 43. | 6.3 | 920 | 25.0 | 3600 | 419 | 1.23 | 20 to 40 |
| 38 | 1 1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 730 | 20.0 | 2860 | 508 | 1.51 | 20 to 40 |
| 51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 | 1.97 | 20 to 40 |
