| Price: | US $ 6-9/Piece |
|---|---|
| Min Order: | 500/Piece |
| Pay Type: | T/T |
Parameter:
| Parameter | Specifications | Unit |
| Display Size (Diagonal) | 4.98 | inch |
| LCD Type | TN TFT | - |
| Display Mode | Normally White | - |
| Resolution | 480 RGB (H) x 854 (V) | Pixel |
| Viewing Direction | 6 O'clock | Best Image |
| Outline dimensions | 66.80(H) × 120.55(V) × 2.10(D) | Mm |
| Active Area | 62.06(H) × 110.42(V) | Mm |
| Pixel Pitch | 0.1293 (H) X 0.1293 (V) | Mm |
| Pixel Arrangement | RGB Stripe | - |
| Display Colors | 16.7M | - |
| Interface | MIPI | - |
| Driver IC | ILI9806E-2 | - |
| With or Without Touch Panel | Without | - |
| Operation Temperature | -10~+60 | ºC |
| Storage Temperature | -20~+70 | ºC |
| Weight | TBD | grams |
Found in 2007, Jingtai is specialized in manufacturing LCD Modules in Shenzhen, China. Our team have had long years experience in making TFT-LCM. Our main products are from 3.5'' to 5.5'' vertical mobile phone LCM and 2.4'' to 10'' landscape, which can be used in POS Machine, Digital Camera, Security Devices, Medical Equipment and Industrial Equipment, etc.

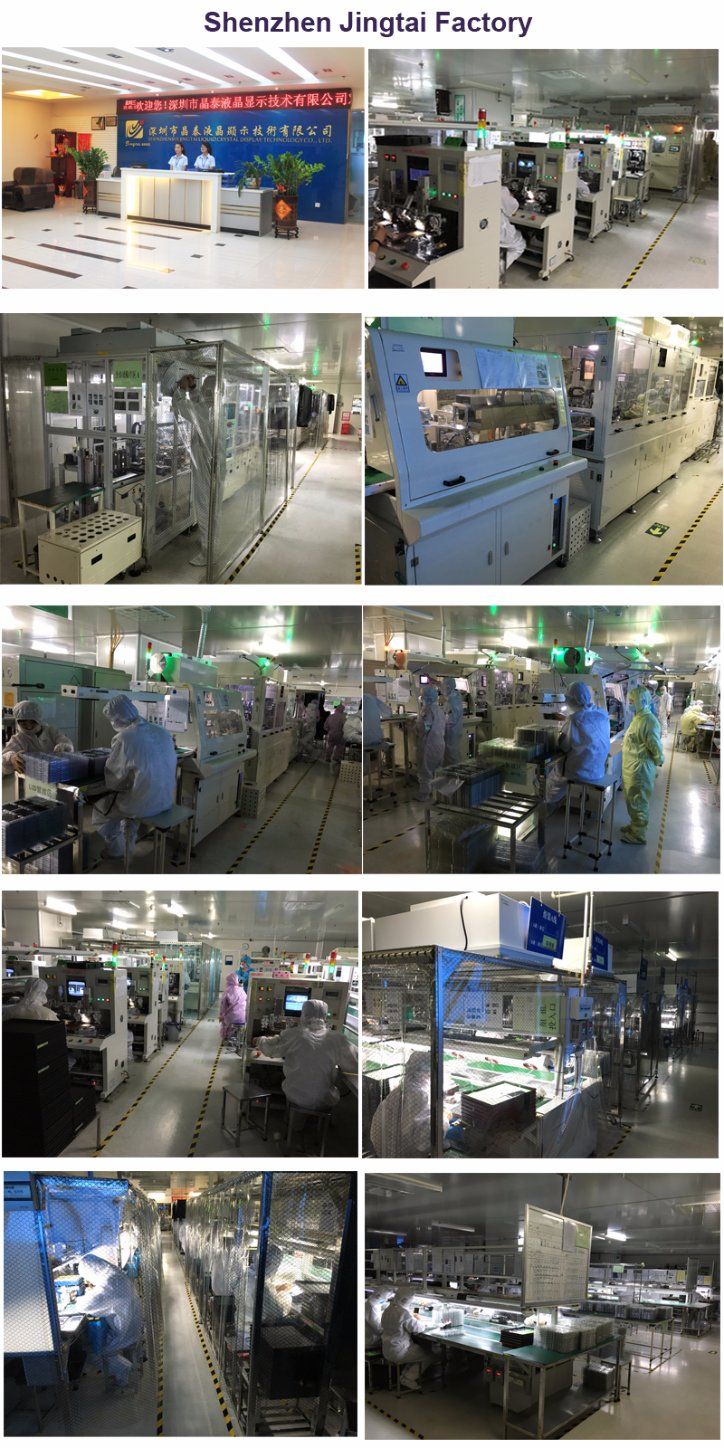

We have a large number of excellent production equipments, such as COG, Glass cutting Machine, STM, Bubble Mechine withing 5 full-automatic lines, 2 high-speed lines and 5 semi-automatic lines. We also have strong R&D capacity, mass production ability and considerable assembly line to provide customized OEM/ODM services for your project.
In addition, we have through ISO9001 and ISO14001 certificates, and take every precaution, from raw material check to stringent testing for final goods, to ensure that the products' quality. We had built the good cooperation with ZTE, Transsion, Kingsun, Grave, Fortune, Wingtec, which are famous company in China. And we are always looking to expand our customer base and won a good reputation in this field.
We sincerely invite you to our factory, and looking forward to establish a mutual benifit and long term bussiness relationship with you. If you are interested in our products, please contact us:

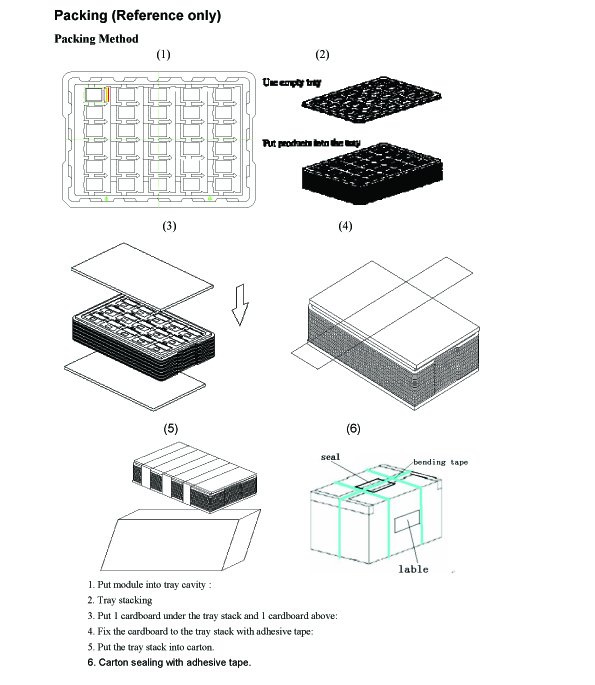

Package:
Warranty:
1. All panels' grade is promised strictly same as original factory's standard.
2. All brand-new panels' electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We have 10-year experience in the mobile phone lcd module field.
4. ISO 9001 and ISO 14001 guarantee.
FAQ:
1. Q: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us by email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We only accept T/T.
| Prod Model: | JTD050257I0 |
|---|---|
| Usage: | Small-sized LCM |
| Touch Screen Type: | Capacitive |
| Type: | LCM |
| Response Time: | 1ms |
| Viewing Angle: | TN＋FILM |
| Display Technology: | TFT |
| DOT-Matrix Graphic LCD Module Type: | Row/Column-Driven Control Type |
| LCD Drive Mode: | Multiplex Drive LCD Module |
| Customized: | Customized |
| Digital LCD Module Type: | LCD Module |
