| Price: | US $ 20000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
Aplication
1. Rock drilling
2. Mine and quarry

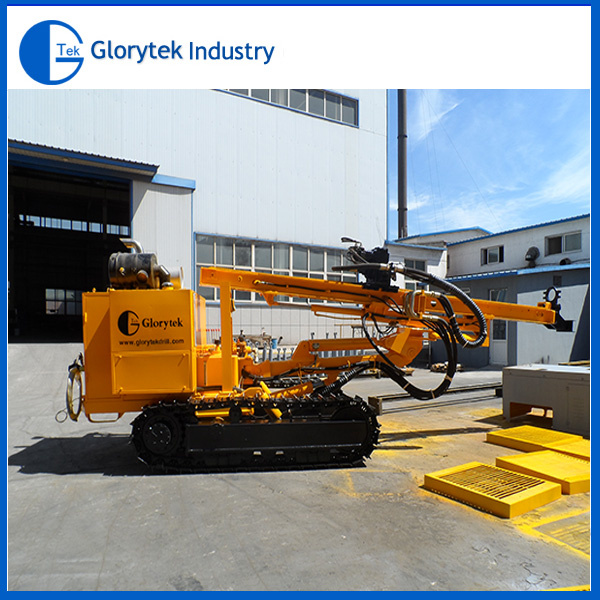

Picture for the Product
Drilling diameter | follow-pipe Φ114-Φ219mm |
down-hole Φ90-Φ200mm | |
Drilling depth | following-pipe 40m |
Down-hole 200m | |
Working air pressure | 1.2-2.4MPa |
Air consumption | 11 -25 m³ / min |
The biggest pipe-rod changing length | 3m |
Propulsion power | 6000kgf |
Moving Speed | 2km/h |
Gradeability | 24° |
Power (Diesel drive or electric drive) | internal combustion 56KW (Yuchai Brand, Cummins is optional) |
electric 30KW | |
Outer size(length×width×height ) | 6900×2200×2200mm (transportation state) |
Weight | 6200kg |
Dust removol | Wet type(optional) |
Our Services
Delivery Time: Based on order quantity, normally it takes 30 days for production.Only 2 or 3 days if we have stock on your request size.
Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
After Services: Technical Support will be available in any time. We could provide the professional suggestion for you.
EX: 1.Select the right most suitable products.
2. According to the rock types, choosing the face type, button tooth type.
3. According to the different purpose,. choosing the different body type
Our Company
Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
| Prod Model: | 458 Type |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mining Object: | Mining |
| Usage: | Ore |
| Condition: | New |
| Type: | Drilling Machine |
