| Price: | US $ 900-950/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T |
| Chip system | |
| Chip type | Rotor type |
| Chip capacity | Fresh 100mm, dry 65mm |
| Rotor width | 240mm |
| Rotor diameter | 215mm |
| Working RMP | 2400 rpm |
| Rotor housing inlet size | 240*160mm |
| Rotor housing outlet size | 252*78mm |
| Drum blade | 2 pcs - 240*46*9mm |
| Counter blade | 1 pc - 250*50*14mm |
| Blade material | SKH-51 |
| Bearing | SKF BOX ball bearing from SWEDEN |
| Belt | GATES belts from UNITED STATES |
| Frame system | |
| Frame type | Maneuverable |
| Handrial height | 715mm |
| Wheel | 16*4.5-8 tube tire |
| Gasoline engine | |
| Brand | Loncin |
| Model | G420F(D) |
| Type | Single cylnder, 4-stroke, Forced air cooling, OHV |
| Rated power | 9 kw/3600rpm |
| Fuel consumption(g/kw.h) | ≤395 |
| Idle speed | 1800±150 |
| Displacement(cc) | 420 |
| Starting Mode | Recoil start / Electric starting |
| Fuel tank | 6.5L |
| Oil tank | 1.10L |
| Oil alarm | Yes |
| Fuel/Oil type | Use unleaded gasoline with a pump octane rating of 86 or higher./10W-30, 4-stroke oil |
| Dimension(L×W×H) (mm) | 405×452×443 |
| Net weight(kg) | 32(35) |
| Packing | |
| Packing method | Plywood case |
| Packing size | 1115*665*1105mm |
| Gross weight | 200kg |
| 20ft loading quantity | 32 units |
| 40HQ loading quantity | 72 units |
| After-Sale SERVICE FORM Please tick one box from below: A. Service inquiry B. Spare part inquiry C. Guarantee claim |
| 1. Senders information | First name, family name | xxx |
| Zip Code, Place | xxx | |
| Country | xxx | |
| (Mobile) phone | xxx | |
| xxx | ||
| 2. Tool information | Serial number | xxx |
| Machine type | xxx | |
| 3. Required spare parts | ||
| Part No. | Description | Quantity |
| xxx | xxx | xxx |
| xxx | xxx | xxx |
| xxx | xxx | xxx |
| xxx | xxx | xxx |
| 4. Problem description Please describe amongst others in the problem: What has cause the problem/defect, what was the last activity before you noticed the problem/defect? For electrical problems: Have you had checked your electric supply and the machine already by a certified electridciam? | ||
| 5. Additional information | ||
| INCOMPLETELY FILLED SERVICE FORMS CANNOT BE PROCESSED! FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES/DELIVERY RECEIPT OTHERWISE IT CANNOT BE ACCEPTED. FOR SPARE PARTS ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE MARKED CLEARLY AND UNMISTAKABLE. THIS HELP US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCELLERATES THE HANDLING OF YOUR INQUIRY THANKS FOR YOUR COOPERATION! | ||

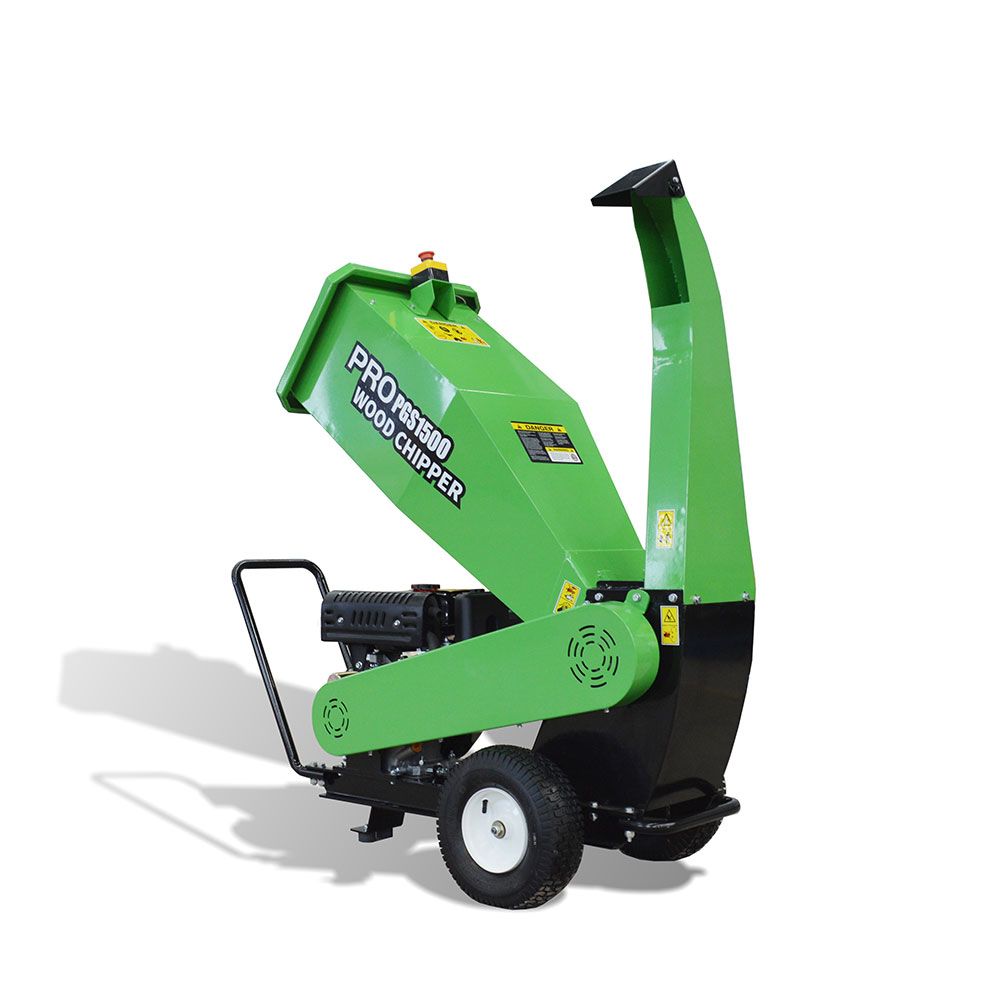

| Prod Model: | PGS1500 |
|---|---|
| Brand: | Austter |
| Engine: | Loncin G420f(D) |
| Chip Capacity: | Fresh 100mm, Dry 65mm |
| Blade: | Skh-51 Material |
| Chip Type: | Rotor Type |
| Feeding Type: | Gravity Feeding |
| 20gp Container: | 30 Units |
| 40hq Container: | 72 Units |
| Delivery Time: | 10 Days |
| Warranty: | 2 Years |
| Certification: | TUV-Ce-MD, Ce-EMC, RoHS, PAHs, Noise |
